Eurolite Lifting rope 1000x10mm w. shackle -400kg

Eurolite Lifting rope 1000x10mm w. shackle -400kg
  • På lager
  • På lager, 3-5 hverdage
  • Bedømmelse for Eurolite Lifting rope 1000x10mm w. shackle -400kg
    Produktet er endnu ikke bedømt
  •
    209,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


Lifting rope, safety bond, safety

EUROLITE Lifting ropes, safety bonds
The EUROLITE lifting ropes, safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The lifting ropes, safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The lifting ropes, safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can install and secure loads above persons with these lifting ropes, safety bonds in all areas where the BGV C1 is required.
Use as attachment gear
These ropes are stamped with a WLL describing the maximum load when used for general lifting purposes. For all areas where the BGV C1 is required, the correct lifting rope must be selected only by calculating with safety-factor 12. According to this calculation, the maximum load of this rope is 450 kg (single-stranded).

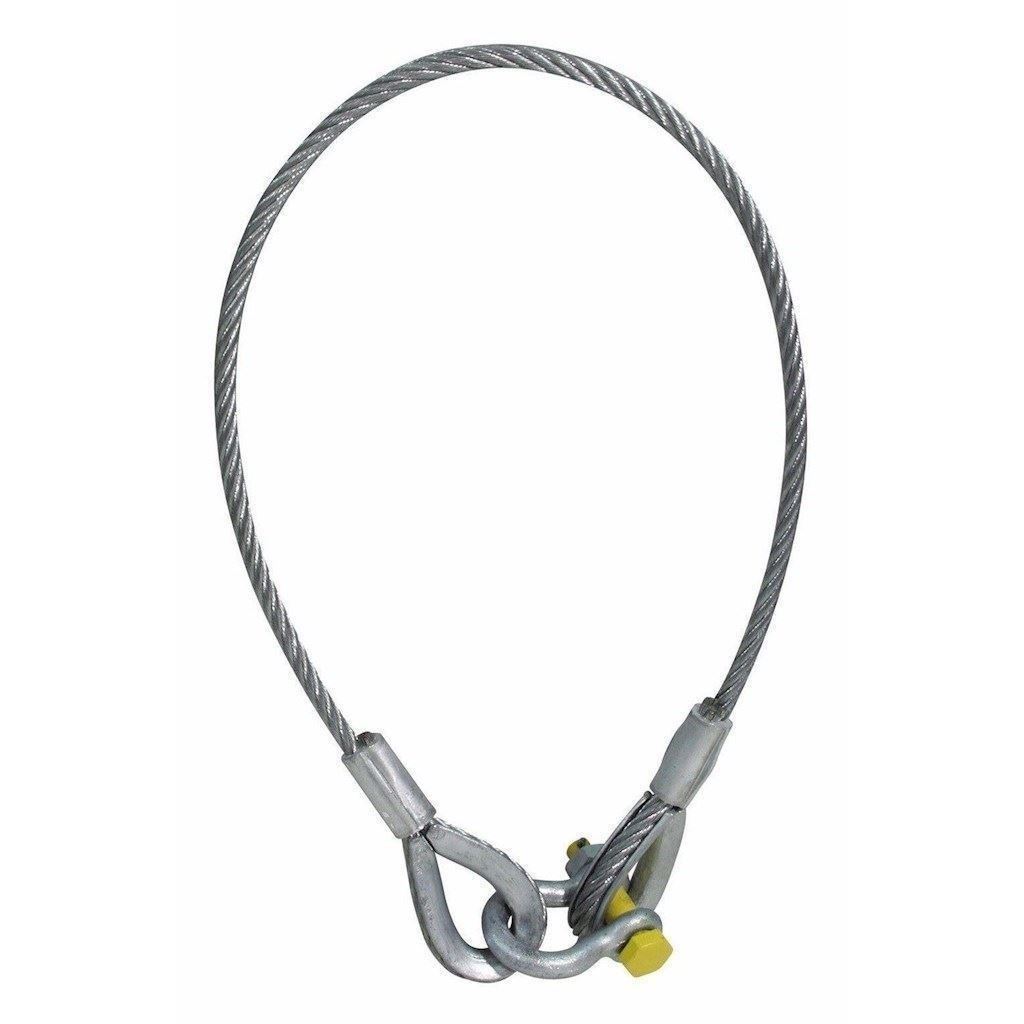

Installation rope, safety bond, safety

  • Round strand rope 6 x 19 with fibre core
  • With two thimbles
  • Suitable for installing and securing loads above persons

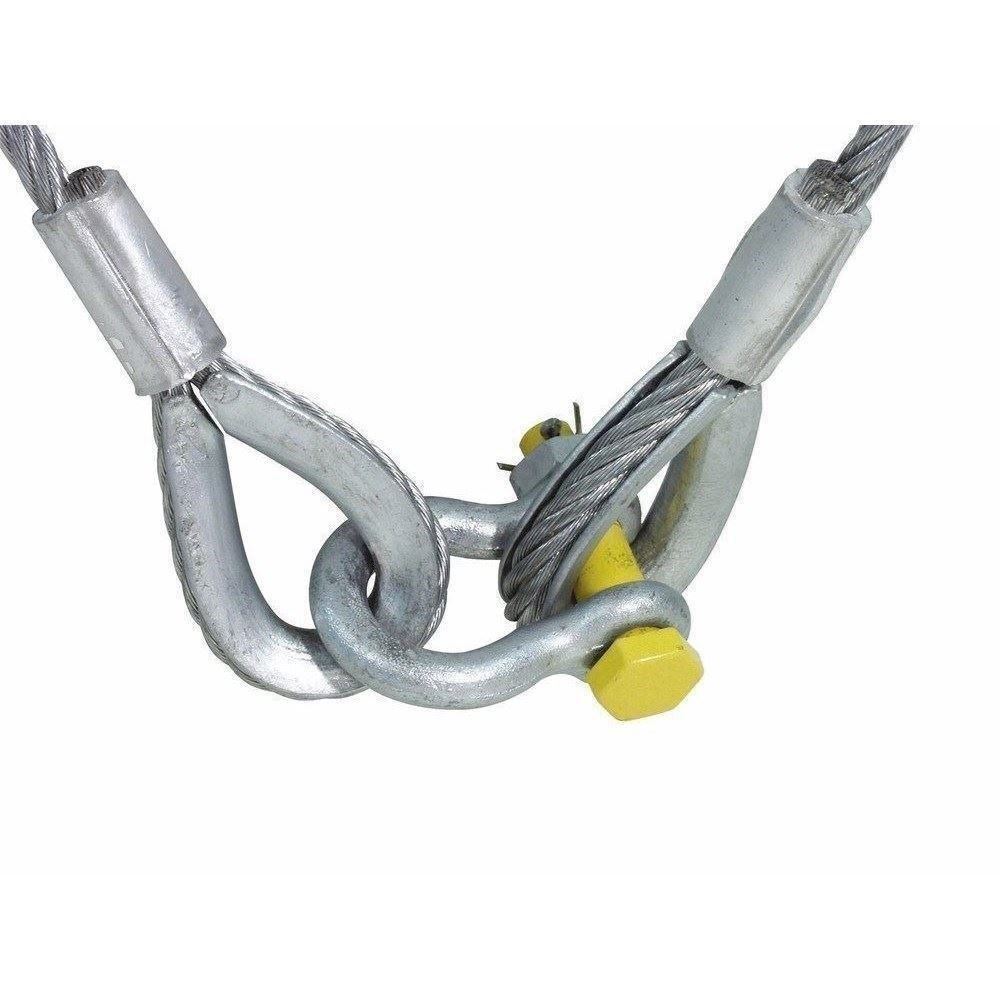

  • 16 mm shackle included in the delivery
  • 10 x 1000 mm
  • WLL 1050 kg
  • Test report according to DIN EN 10204 as download




Maximum load WLL (5-fold):1050 kg
Maximum load BGV C1 (12-fold):450 kg
Maximum load (safety):100 kg
Temperature range:-40° C to +100° C
Rope length:1 m
Rope diameter:10.00 mm
Rope type:Round strand rope
Nominal tensile strength:1770 N/mm²
Strength classification:1770
Maximum load WLL (5-fold):1050 kg
Color:Silver
Nominal tensile strenght of rope:1770 N/mm²
Design of the core:6 x 19 FC
Strength classification:1770
Wire surface:Zinc-plated
Length:100 cm
Standard:DIN EN 12385-4:2008-06, DIN 56927:2009-03
Lengthweigth:0.359 kg/m
Varenr.: E-58010490
