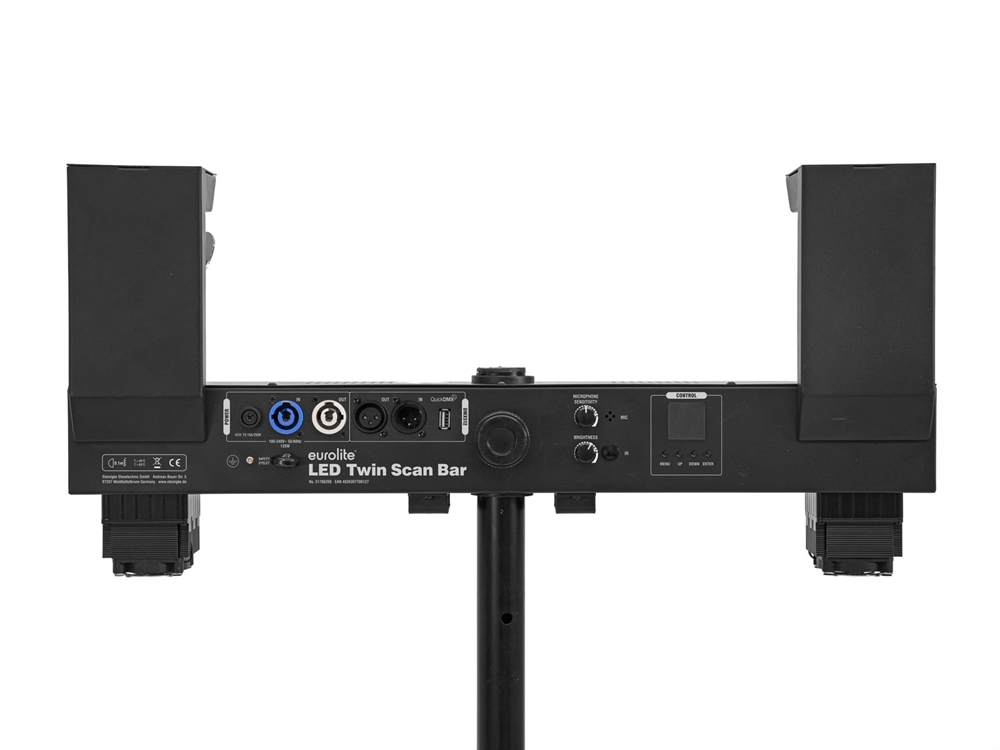

Eurolite LED Twin Scan Bar

LED Scan Bar with 2 scanners, incl. IR remote control

EUROLITE LED Twin Scan Bar

LED Scan Bar with 2 scanners, incl. IR remote control

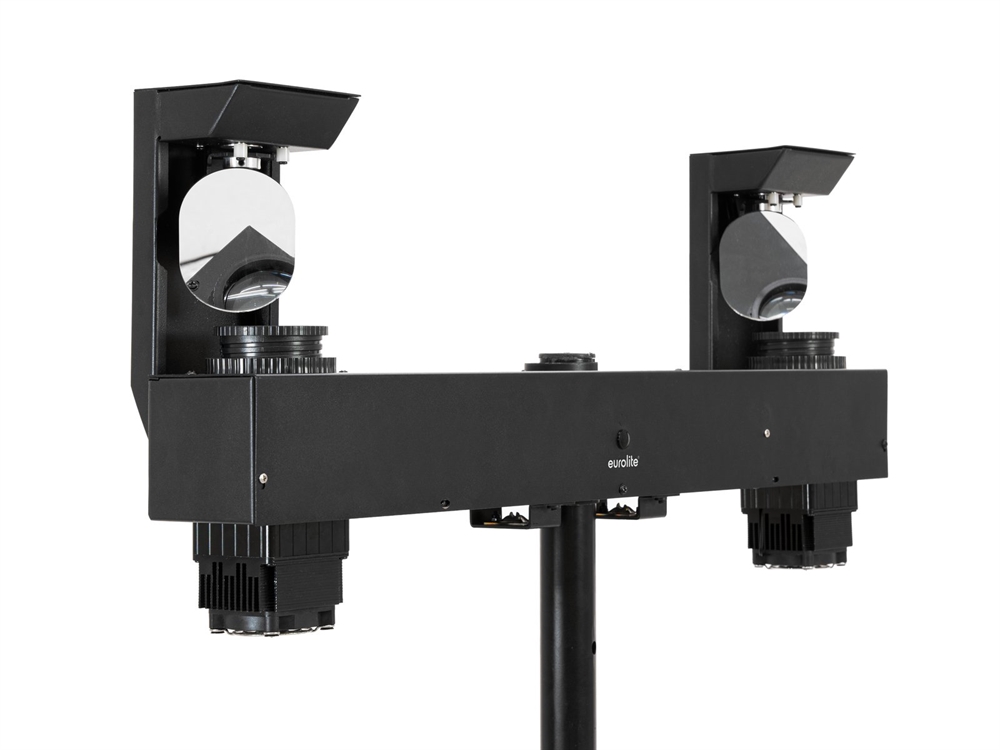

2 full-fledged scanners in one bar
Mirror movement can be inverted separately for both scanners (e.g. for common, counter-rotating control)
Color and gobo selectable in standalone functions
16 built-in auto and music show programs
Strobe effects with adjustable speed
Random strobe effect
Quick access for dimmer and microphone sensitivity via potentiometer
Supports QuickDMX - the wireless DMX system by Eurolite

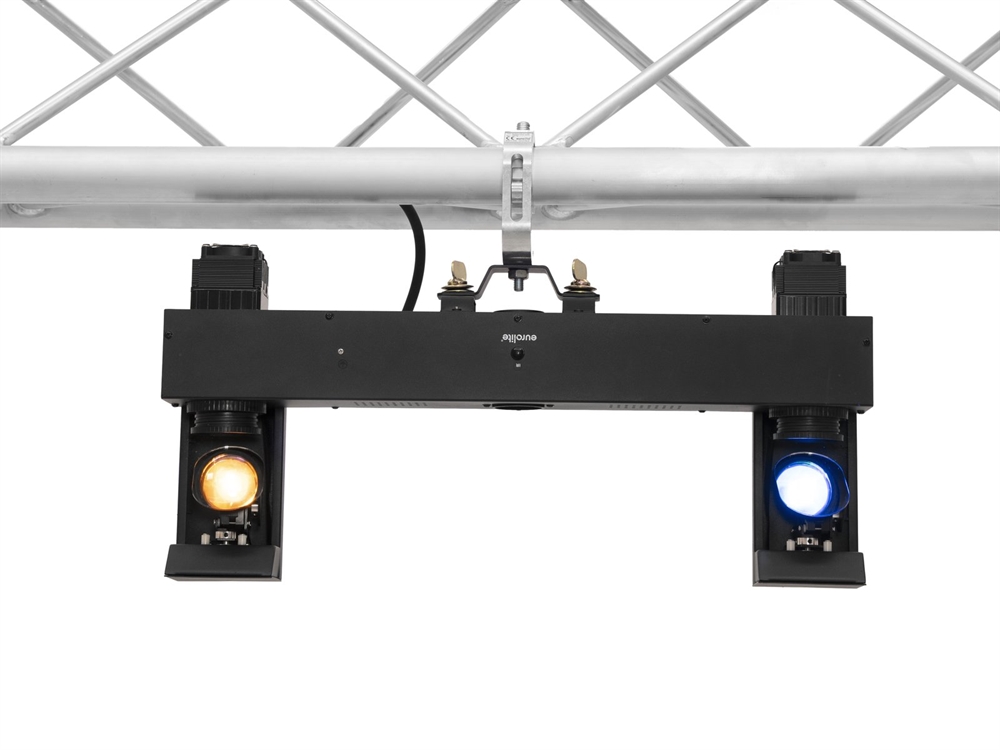

Quick truss installation via quick-lock omega bracket

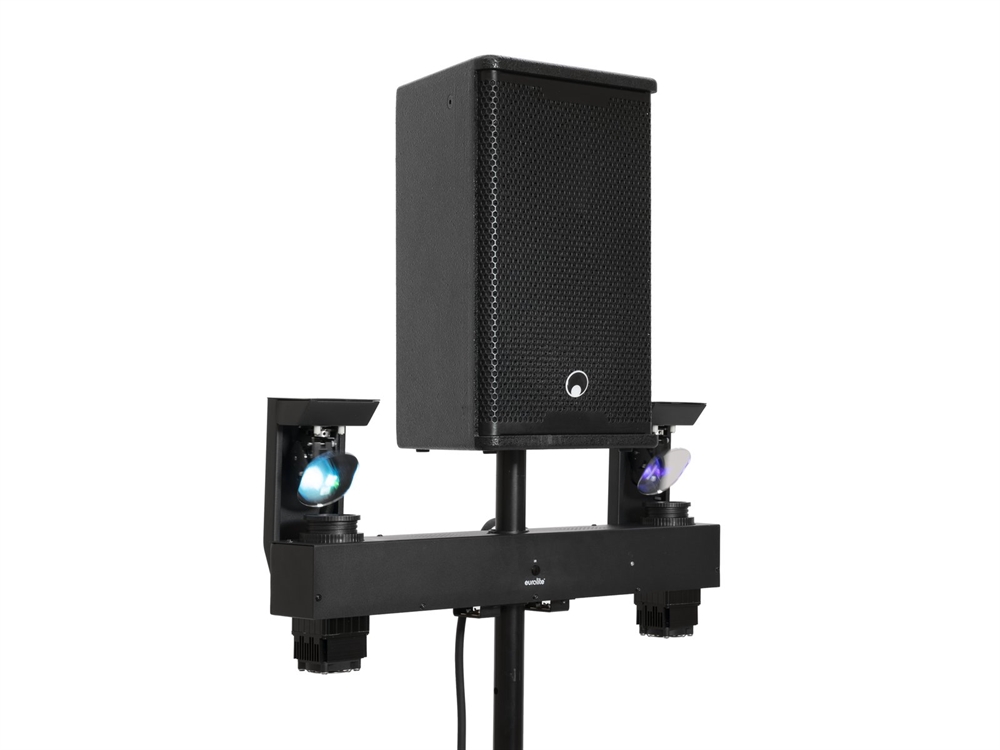

Suited for installation on a speaker stand (not included) or truss

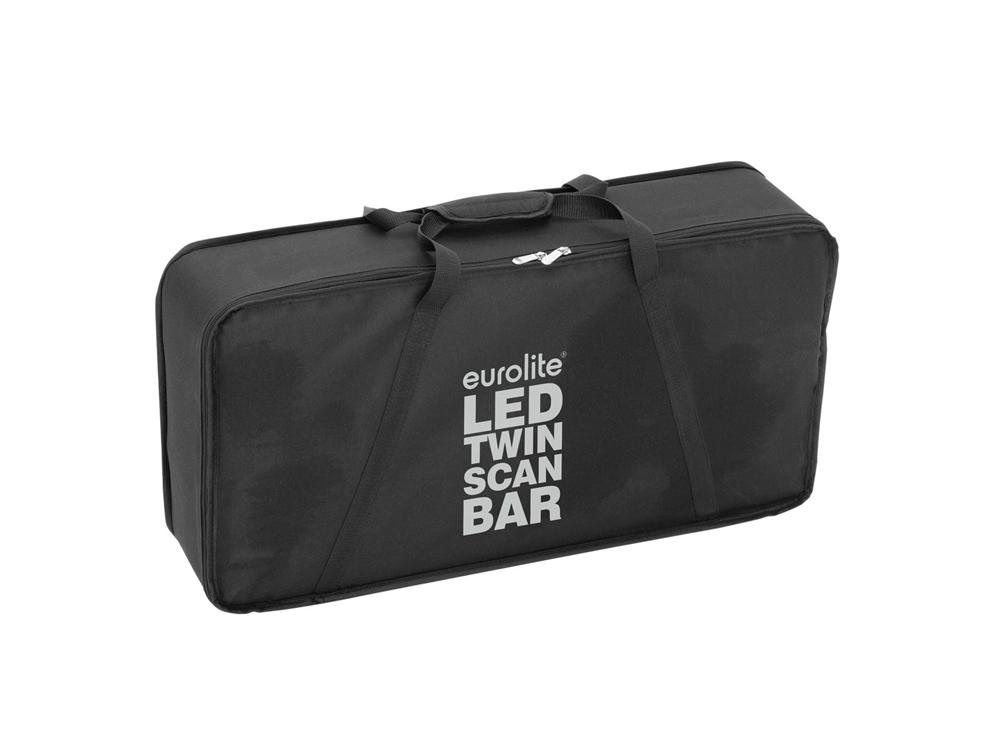

Comes pre-assembled with practical transport bag
2 powerful LEDs 37,5 W COB (chip-on-board) cold white (CW)
Color wheel with 7 dichroic filters plus open
Rainbow effect with adjustable speed
Gobo wheel with static gobos, 7 gobos and open
Can be operated in 2; 5; 7; 8; 14 CH mode
The device is cooled by temperature-controlled fan
Controlling by stand-alone; Sound to light via Microphone; Master/slave function; IR remote control; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional)
Preprogrammed in Light´J; Light Captain
With a beam angle of 12°
Multicolor OLED display
For application areas such as: Wedding/gala/events

Package contents

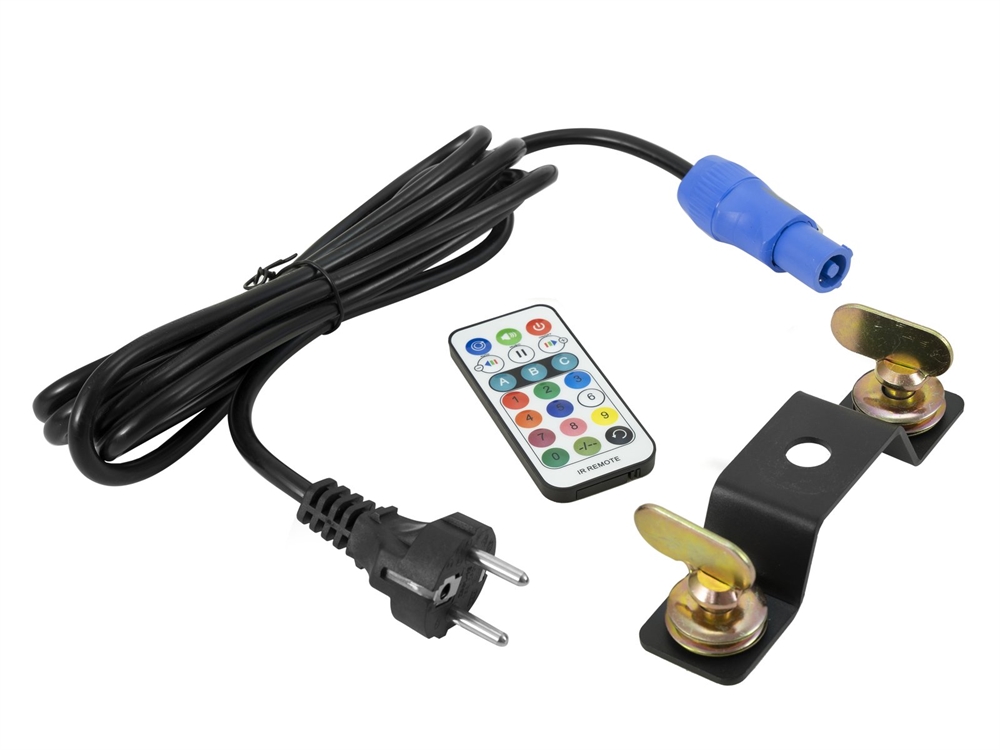

1 x device, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x remote control, 1 x battery, 1 x bag

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	125 W
IP classification:	IP20
Protection class:	Class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray)
Device fuse:	5 x 20 mm, T 3,15 A Fuse replaceable
Lamp type:	LED lamp
LED:	2 x 37,5 W COB (chip-on-board) cold white (CW)
Color temperature:	8500K
Flash rate:	0 - 20 Hz
Equipment:	Gobo wheel with static gobos; color wheel
Color generation:	Color wheel with 7 dichroic filters plus open
Gobos:	Gobo wheel with static gobos, 7 gobos and open
DMX channels:	2; 5; 7; 8; 14
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	2 x temperature-controlled fan
Control:	Stand-alone; Sound to light via Microphone; Master/slave function; IR remote control; DMX; QuickDMX (optional); Light´J; Light Captain; W-DMX by wireless solution (optional); CRMX by LumenRadio (optional)
Beam angle:	12°
Beam angle (1/2 peak):	12°
Housing color:	Black
Display type:	Multicolor OLED display
Dimensions:	Length: 60 cm Width: 11,8 cm Height: 28,5 cm
Weight:	6,25 kg
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in

Varenr.: E-51786200
