| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 70 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

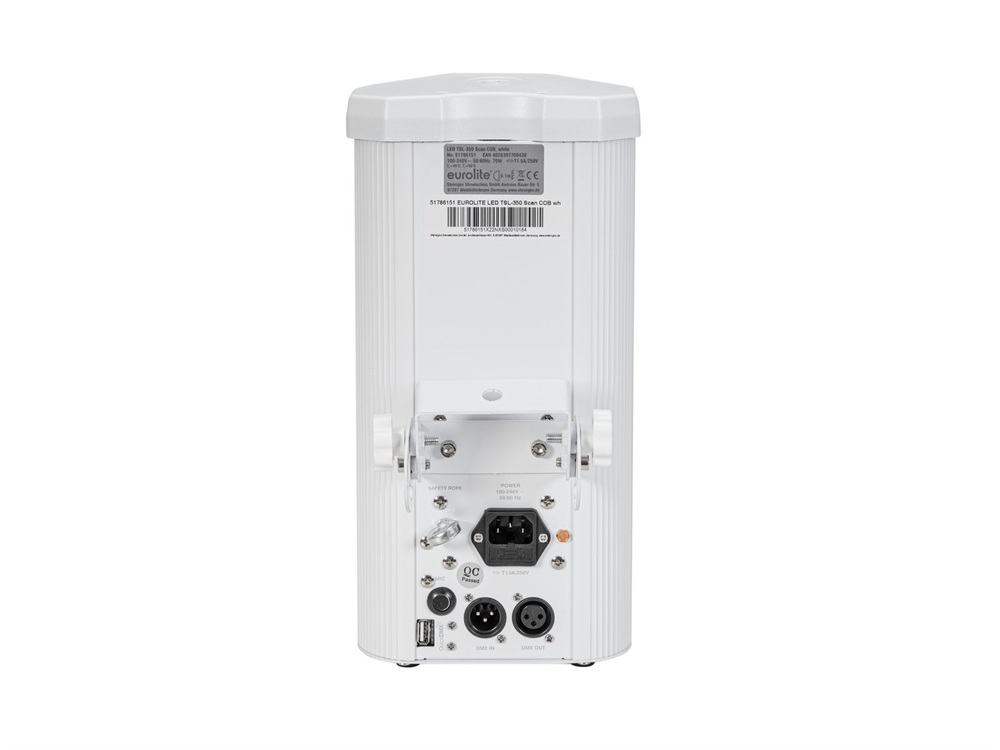

| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm, T 1,5 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x 60 W COB (chip-on-board) cold white (CW) |
| Equipment: | Color wheel; gobo wheel with rotating gobos; Focus manual |
| Color generation: | Color wheel with 7 dichroic filters plus open |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 10mm
Image diameter 14mm
Slot-in gobo system for easy gobo replacement
Shake effect |
| DMX channels: | 10 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; Light Captain; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: | 11° |
| Beam angle (1/2 peak): | 11° |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 12034 lx, 3m: 1489 lx, 6m: 388 lx |
| Housing color: | White |
| Display type: | LCD display |
| Dimensions: | Width: 16,0 cm
Depth: 15,0 cm
Height: 33,0 cm |
| Weight: | 3,26 kg |
