Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus

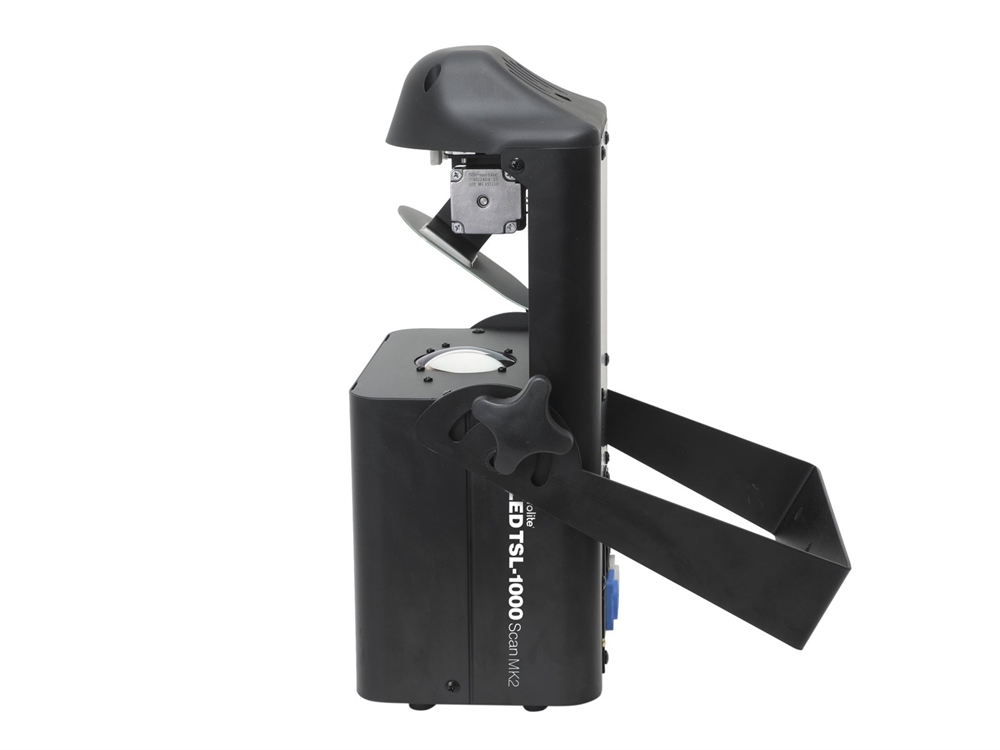

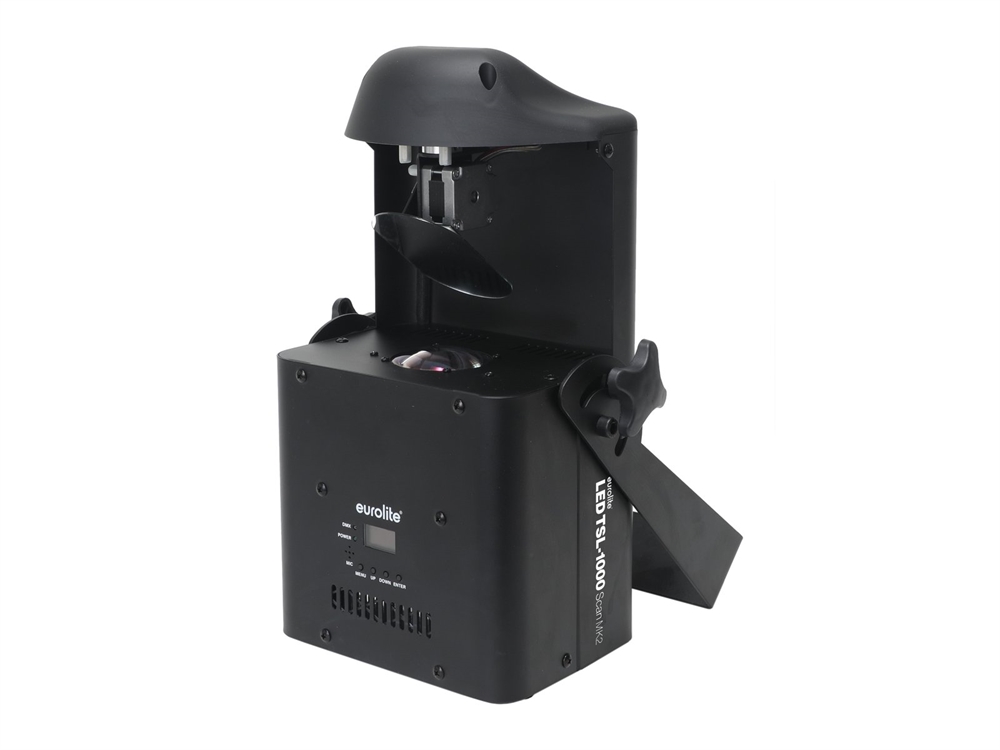

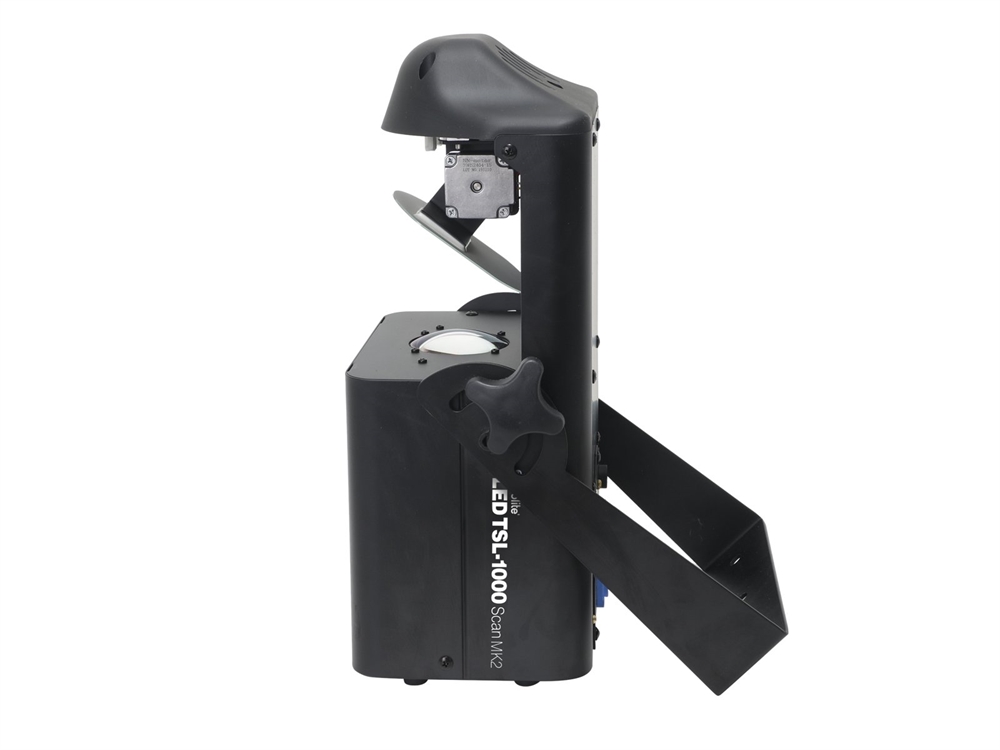

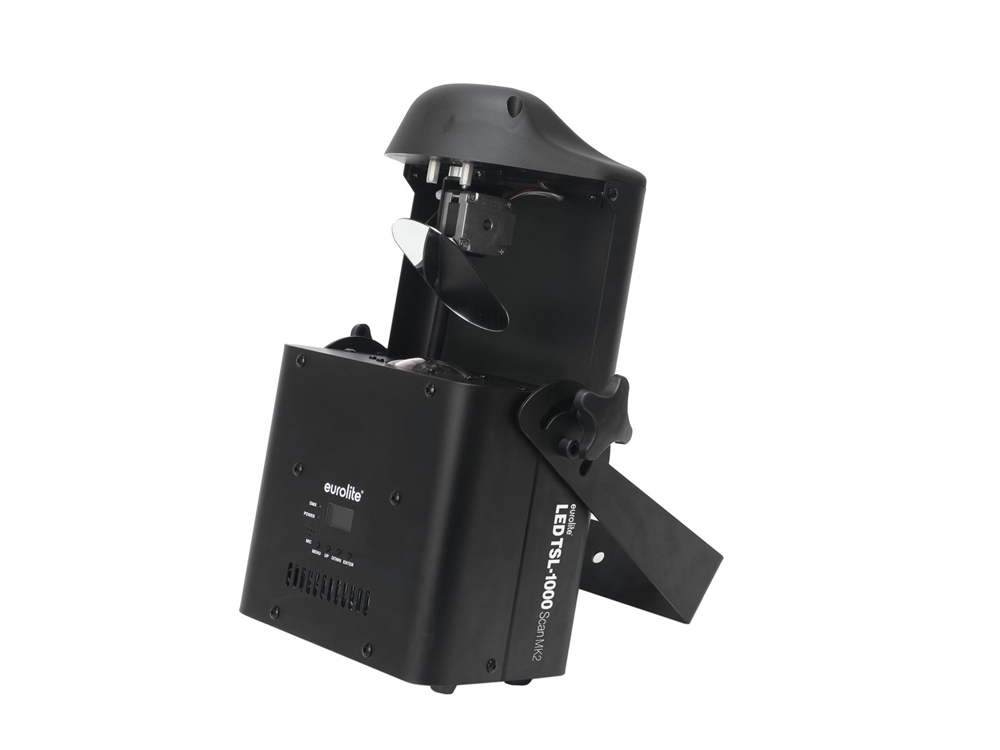

EUROLITE LED TSL-1000 Scan MK2

Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus

Equipped with 1 cold white 100 W COB LED
Positioning within 160° PAN and 50° TILT
Exact positioning via 16-bit PAN/TILT movement resolution
Auto, music, master/slave and DMX mode
Built-in auto and music show programs
10 or 15 DMX channels selectable
Color wheel with 8 dichroic colors plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with 7 rotating gobos plus open
Gobo shake function
3-facet prism
Strobe effect with adjustable speed
Motorized focus
Electronic dimmer (0-100%)
Narrow beam angle of 20°

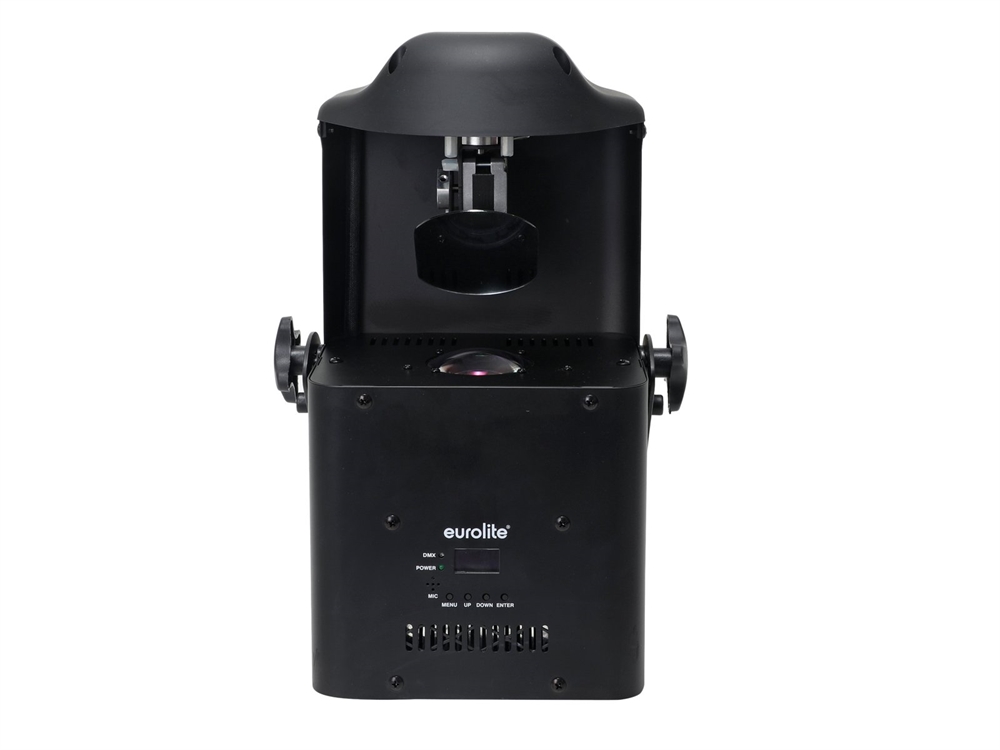

Control panel with OLED display for easy configuration
Mains input and output for power linking up to 8 units
Additional rubber feet protect the device when positioned
Note: The macro programs of the predecessor model (no. 51786122) are not identical, therefore no synchronous master/slave operation is possible between these devices.
LED: 1 x COB (chip-on-board) 100 W cold white (CW)
Color wheel 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools
Can be operated in 10; 15 CH mode
The device is cooled by cooling fan
Controlling by stand-alone; DMX; Master/slave function; Sound to light via Microphone
Preprogrammed in Light´J; Light Captain
Flicker-free projection
Effect: Gobo effect

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	110 W
IP classification:	IP20
Protection class:	Class I

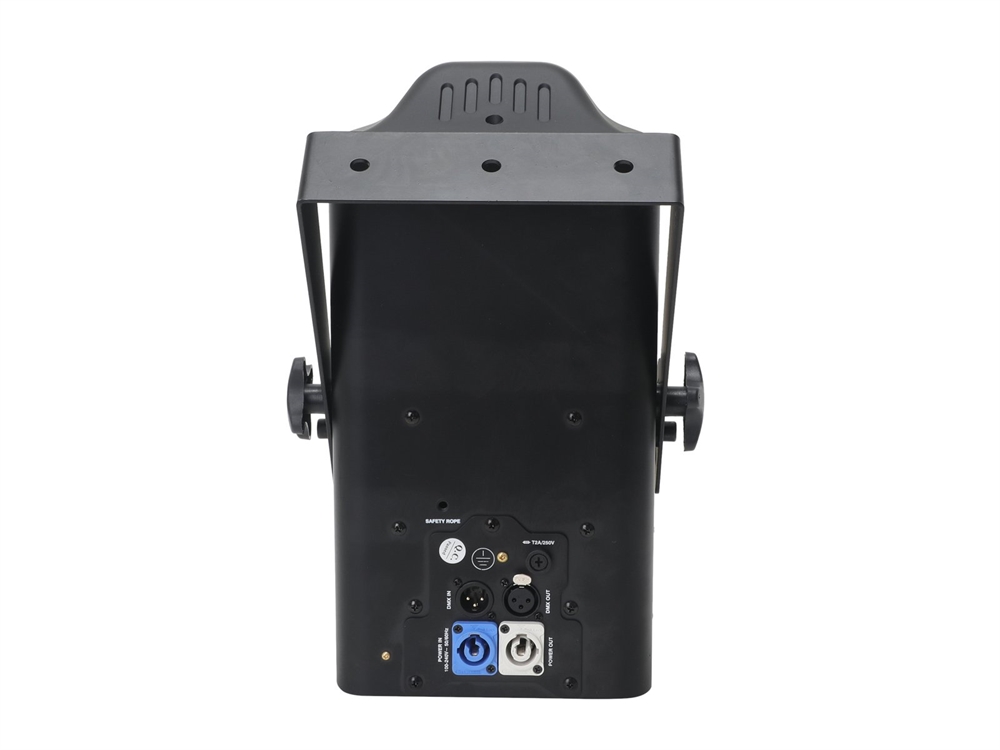

Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 4 A Fuse replaceable
Lamp type:	LED lamp
LED:	1 x COB (chip-on-board) 100 W cold white (CW)
Color temperature:	8000K
Max. TILT movement:	Exact positioning (16 bit resolution) 50°
Max. PAN movement:	Exact positioning (16 bit resolution) 160°
Flash rate:	1 - 25 Hz
Equipment:	Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold
Color generation:	Color wheel 8 dichroic filters plus open
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Shake effect Gobos changeable Slot-in gobo system for exchanging gobos without tools
DMX channels:	10; 15
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; Master/slave function; Sound to light via Microphone; Light´J; Light Captain
Beam angle:	20°
Beam angle (1/2 peak):	20°
Illuminance in Lux (lx):	Cold white (CW) 1m: 35679 lx, 3m: 4265 lx, 6m: 1055 lx
Housing color:	Black
Display type:	OLED display
Dimensions:	Width: 25,1 cm Depth: 14,1 cm Height: 37,7 cm
Weight:	5,75 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Varenr.: E-51786126
