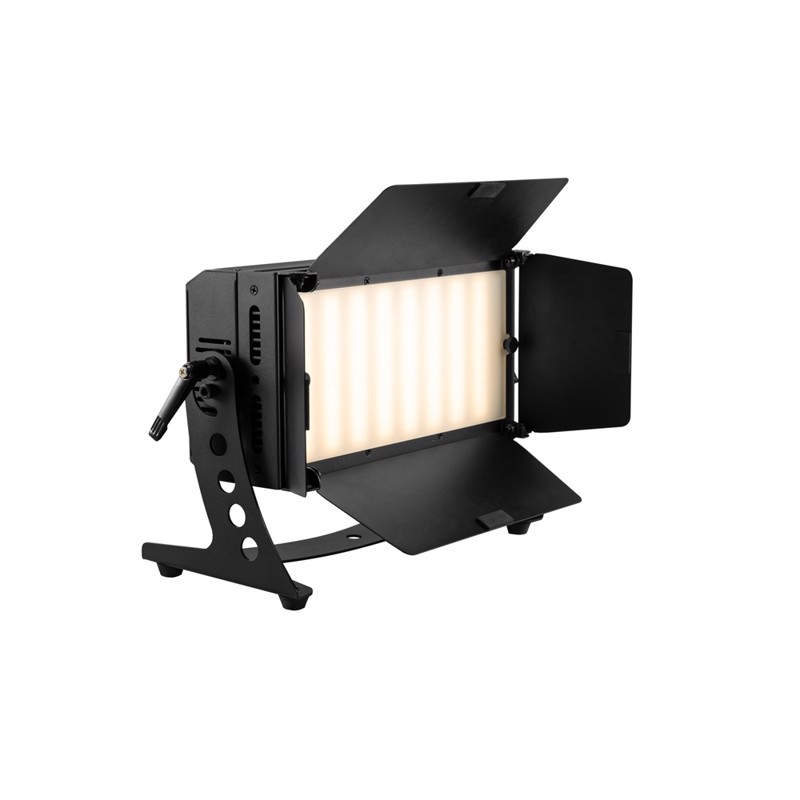

Eurolite LED PLL-384 CW/WW Panel

DMX-controlled surface light with 384 dual white LEDs, QuickDMX port, diffuser and barn doors

EUROLITE LED PLL-384 CW/WW Panel

DMX-controlled surface light with 384 dual white LEDs, QuickDMX port, diffuser and barn doors

Ideal for photography, film, stage and trade fair lighting
High-grade surface light with 384 super bright, dual white LEDs
Variable color temperature 2700-5700 K
69 preset color temperatures
Quick color temperature and brightness setting via rotary dials
Energy-saving, durable and environmentally friendly
Milky diffuser provides a homogeneous and soft continuous light
4 barn doors to avoid blinding the audience and for protection during transport
Electronic dimmer (0-100%)
Strobe effect 1-20 Hz
Control panel with LC display for easy configuration
Supports QuickDMX - the wireless DMX system from Eurolite
Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
Master/slave function for synchronous operation of multiple devices
Swivel mounting bracket
Additional rubber feet protect the device when positioned on the floor
Mains input and output for power linking up to 8 units
LED: 192 x SMD 5730 0,5 W cold white (CW)
LED: 192 x SMD 5730 0,5 W warm white (WW)
Can be operated in 2-1; 2-2; 3-1; 3-2; 4 CH mode
The device is cooled by temperature-controlled fan
Controlling by DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); Quick select potentiometer for brightness and color temperature
Flicker-free projection
Very high color rendering index (CRI)

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	100 W
IP classification:	IP20
Protection class:	Class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Lamp type:	LED lamp
LED:	192 x SMD 5730 0,5 W cold white (CW) 192 x SMD 5730 0,5 W warm white (WW)
Color temperature:	2700K - 5700K adjustable
Flash rate:	1 - 20 Hz
DMX channels:	2-1; 2-2; 3-1; 3-2; 4
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); Quick select potentiometer for brightness and color temperature
Beam angle:	50°
Beam angle (1/2 peak):	50°
Beam angle (1/10 peak):	100°
Color rendering index (CRI) more than:	90 Ra
Housing color:	Black
Display type:	LCD display
Dimensions:	Length: 34,7 cm Width: 13,8 cm Height: 21,1 cm
Weight:	3,52 kg
Noise classification:	Class 0 (no noise at all)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Varenr.: E-40001892
