EUROLITE LED KLS Scan Next FX Compact Light Set

LED KLS Scan NEXT FX by Eurolite

Everything in a compact light set: basic light, effects and scanner

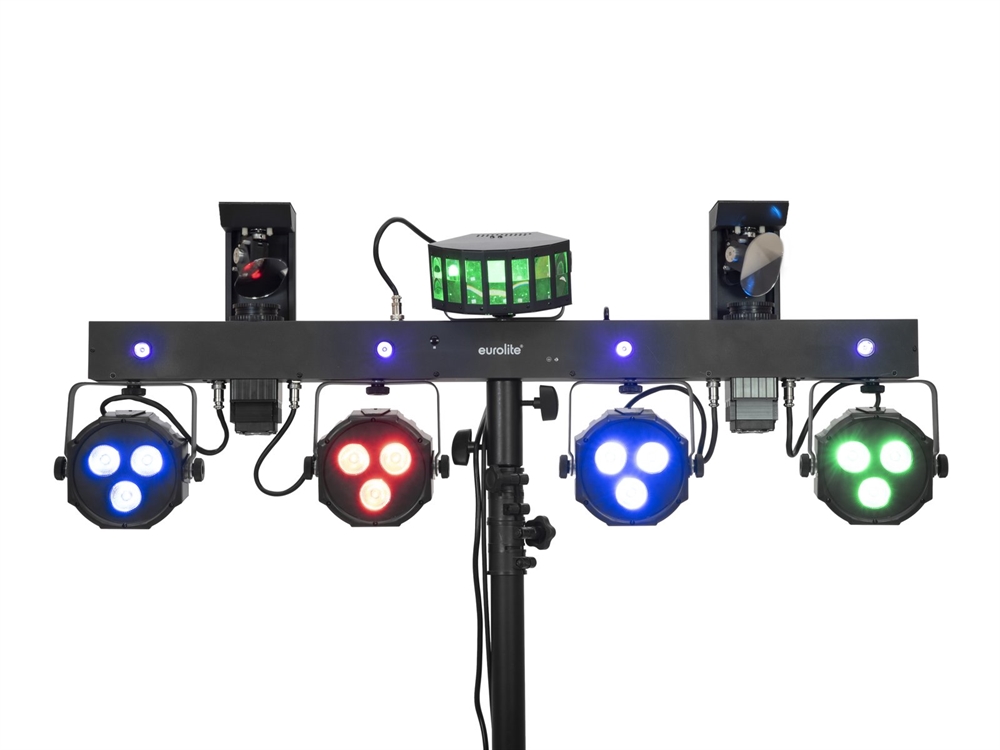

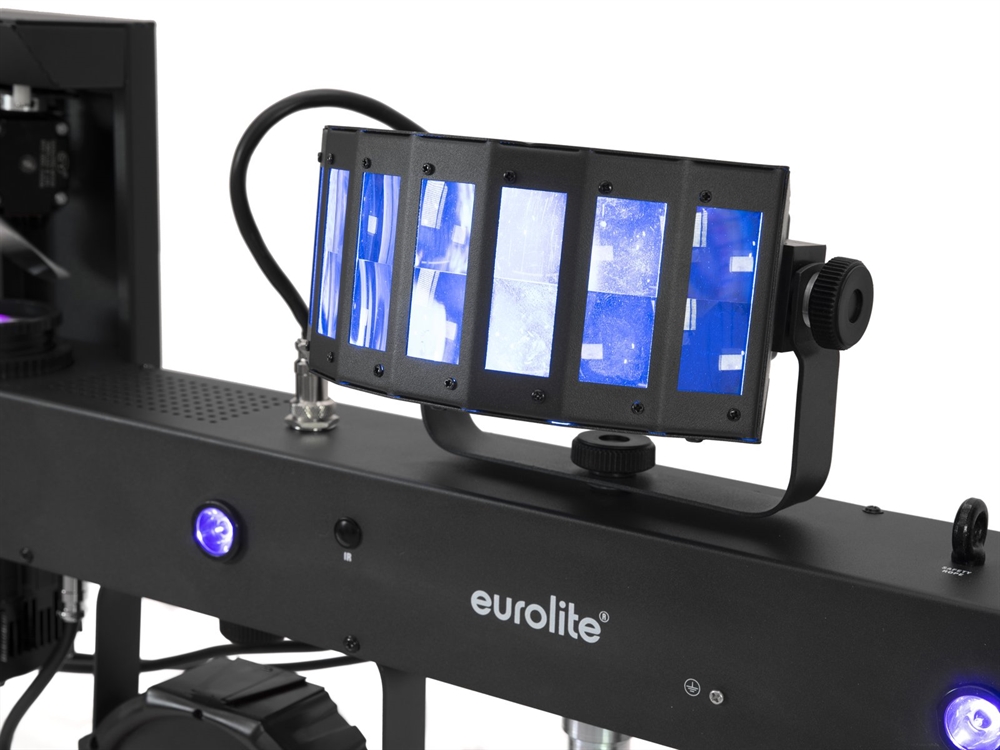

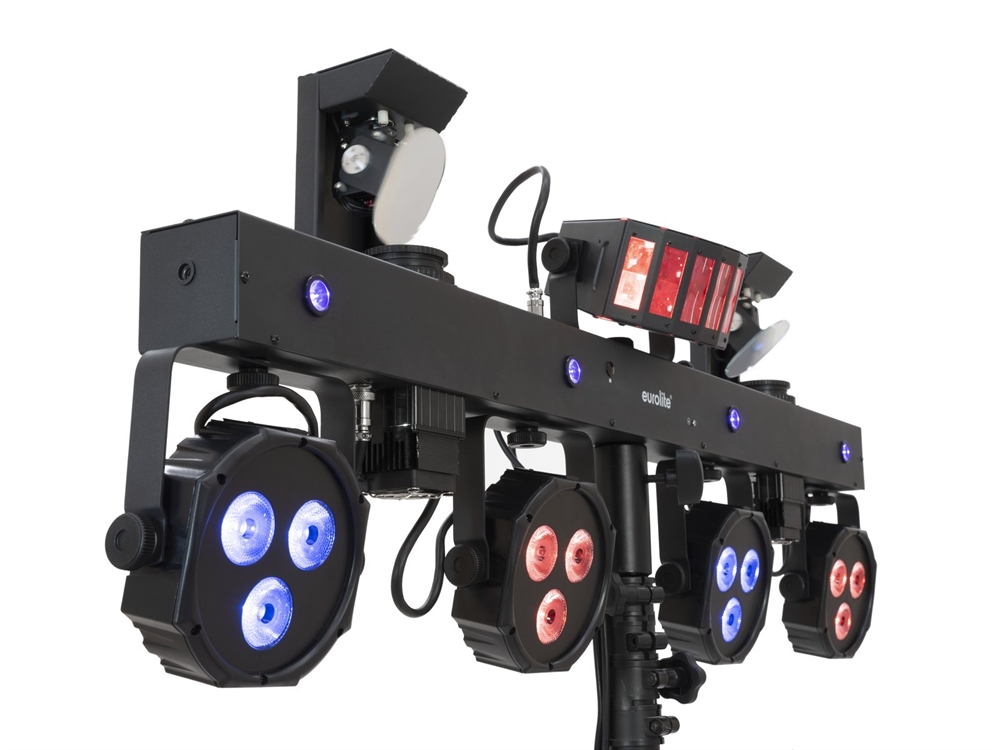

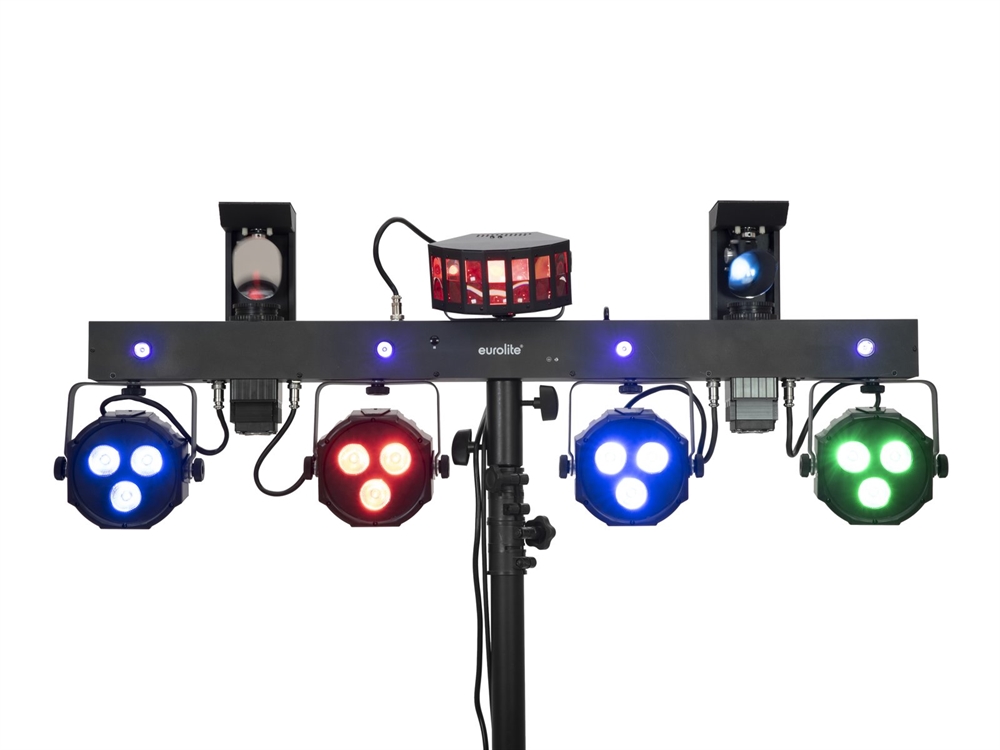

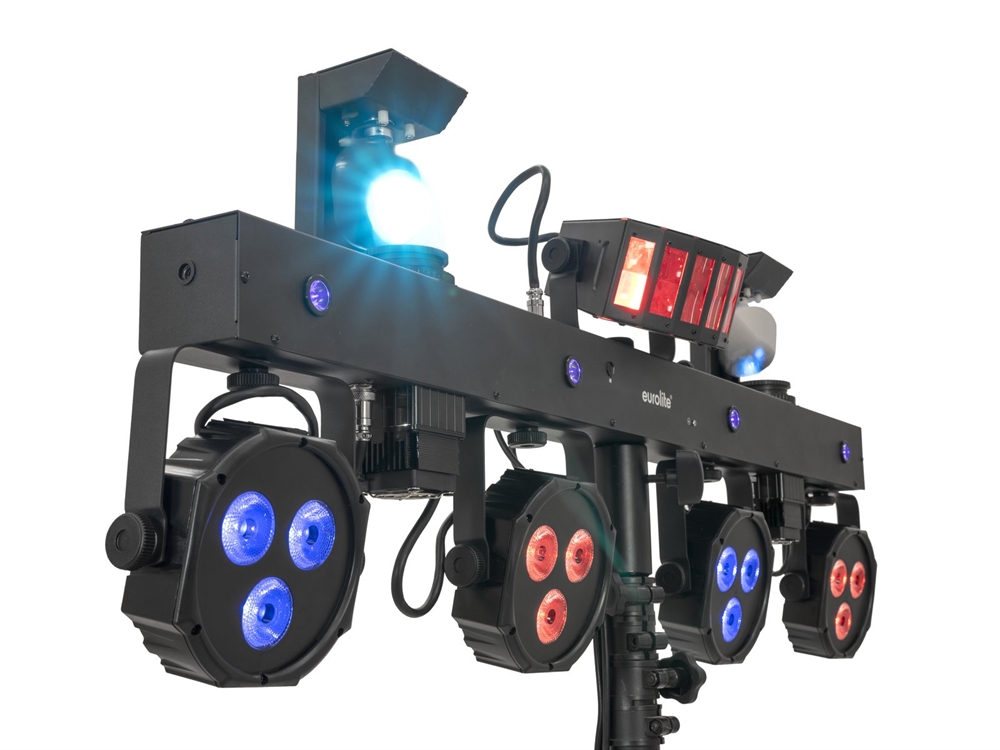

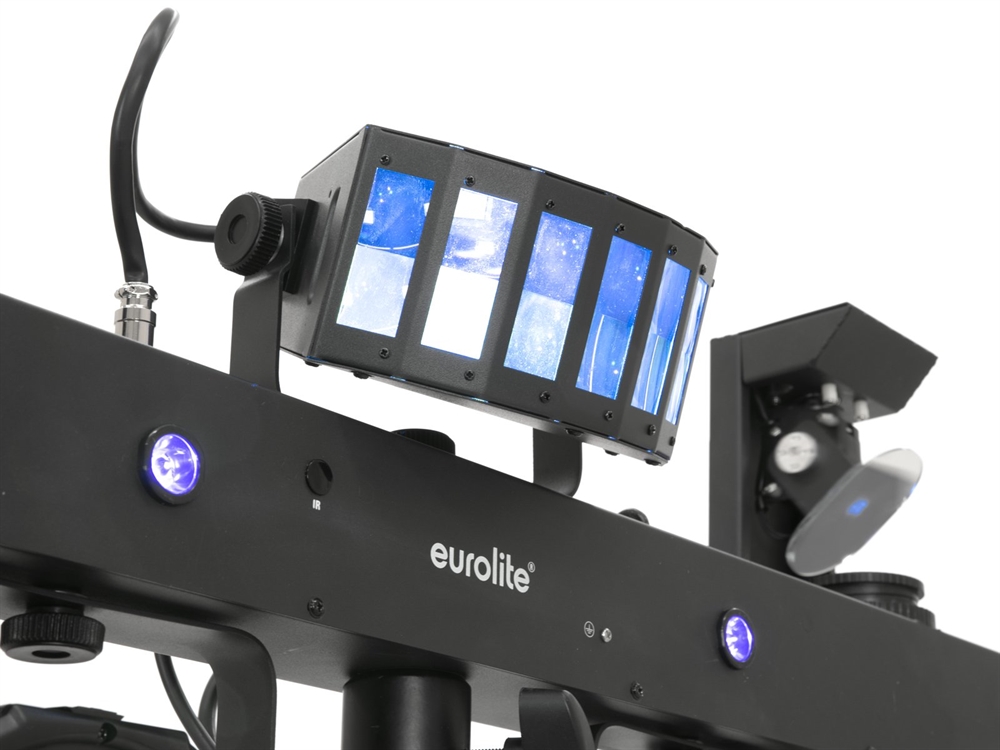

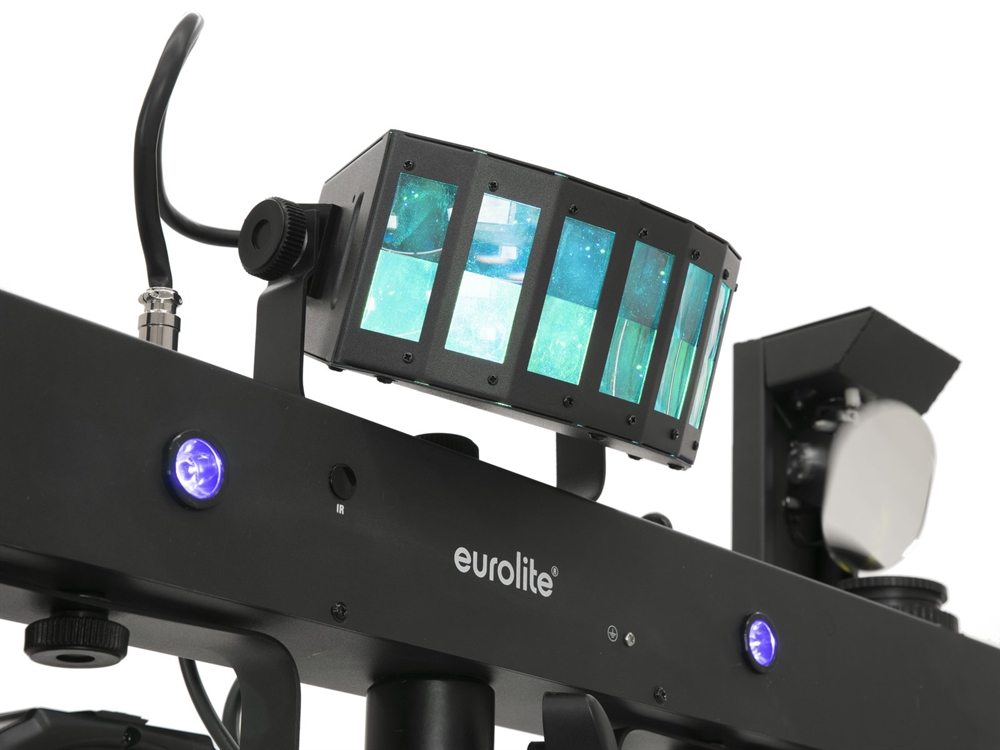

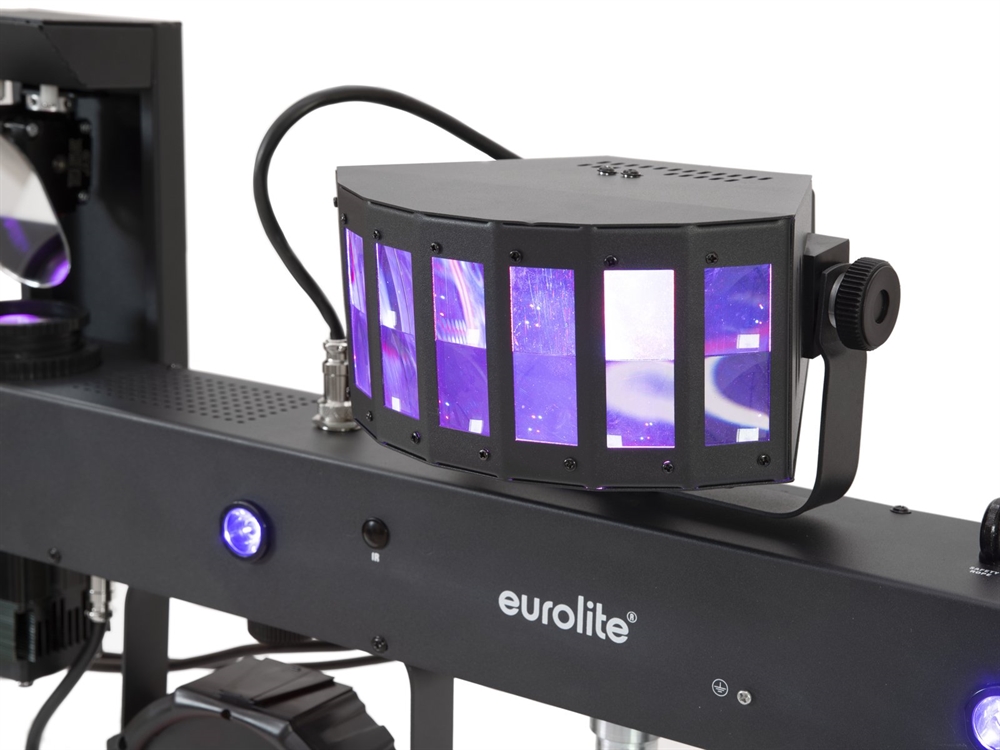

The LED KLS Scan Next FX is equipped with 4 spots for the colored basic lighting, UV LEDs for the popular black light effect and a derby effect for the party atmosphere. But the special feature of this bar is the equipment with two integrated scanners incl. gobo wheel and color wheel. The two scanners are each equipped with a very effective 15-watt LED.

Control via standalone, remote control and foot switch

The control options of the KLS offer something for every user: even without an external controller, 20 different programs can be set that run either automatically or music-controlled. These programs offer well thought-out, carefully selected shows in terms of color. The various programs can be called up and colorful moods created via the infrared remote control supplied. Control via an optional footswitch is also possible.

Different DMX modes

There are ten different DMX modes: In the smallest mode with three channels, the automatic and music-controlled programs can be called up and switched. The largest mode with 39 channels allows full control of each fixture, the derby and the scanners. In some modes, the two scanners are controlled together. In the menu, it is then possible to set that one or both axes of movement should be inverted, i.e. mirrored. This facilitates the control and results in a coherent picture.

Wireless DMX

The KLS has a USB socket for QuickDMX. An optional DMX wireless adapter can be plugged into this to realize wireless DMX transmission. This works not only from one console to the KLS bars, but also with several KLS units for master-slave operation.

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag

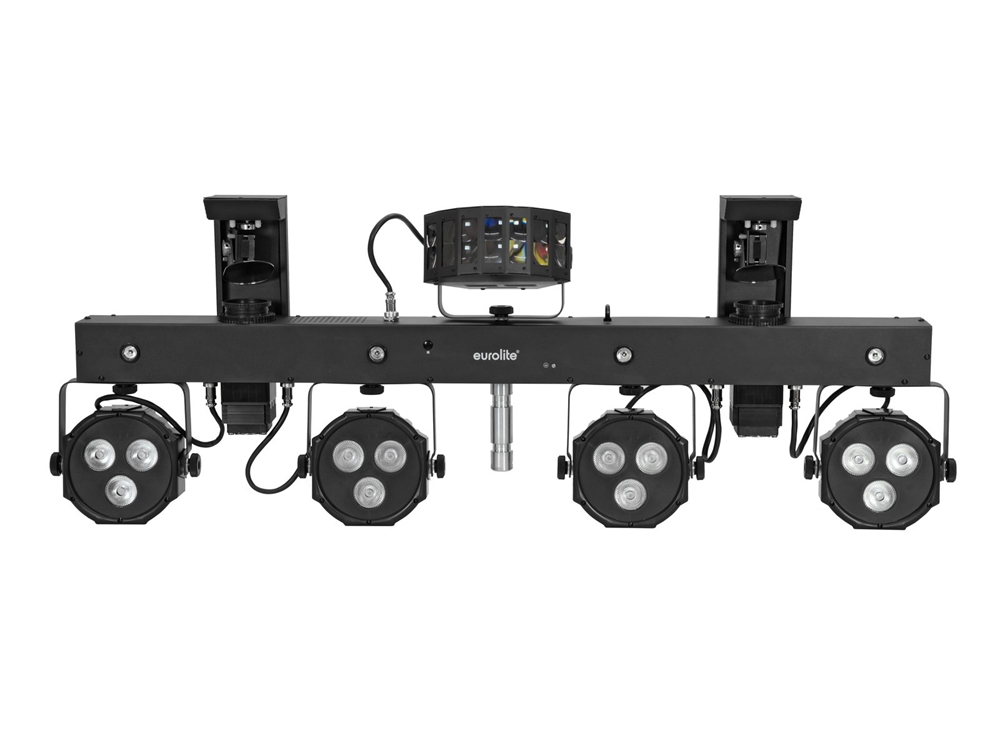

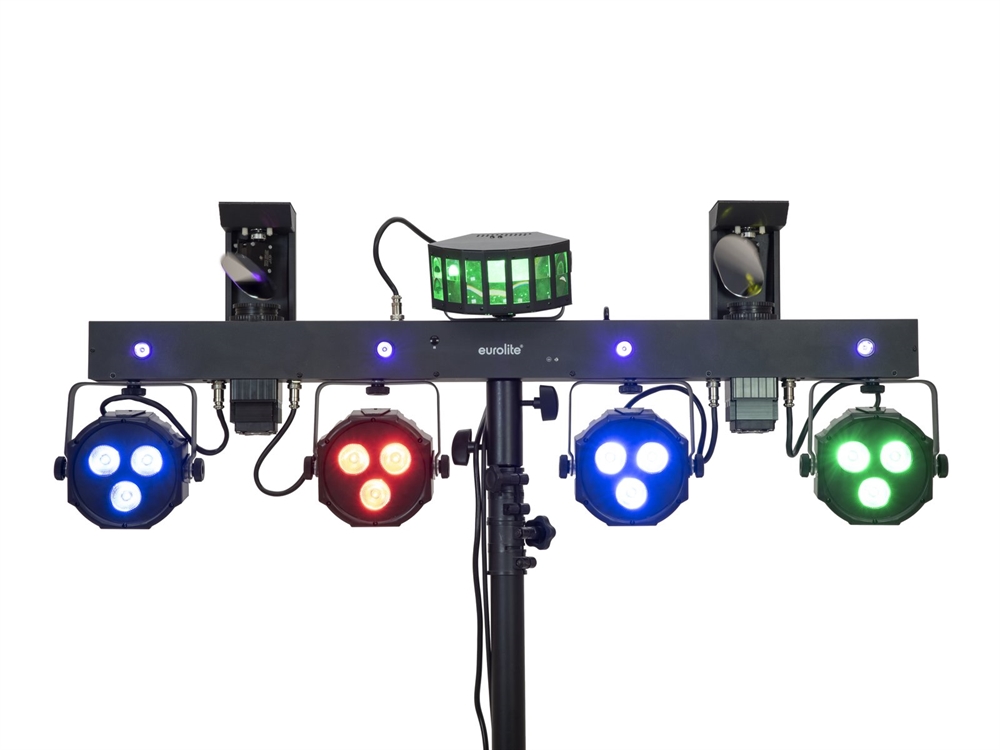

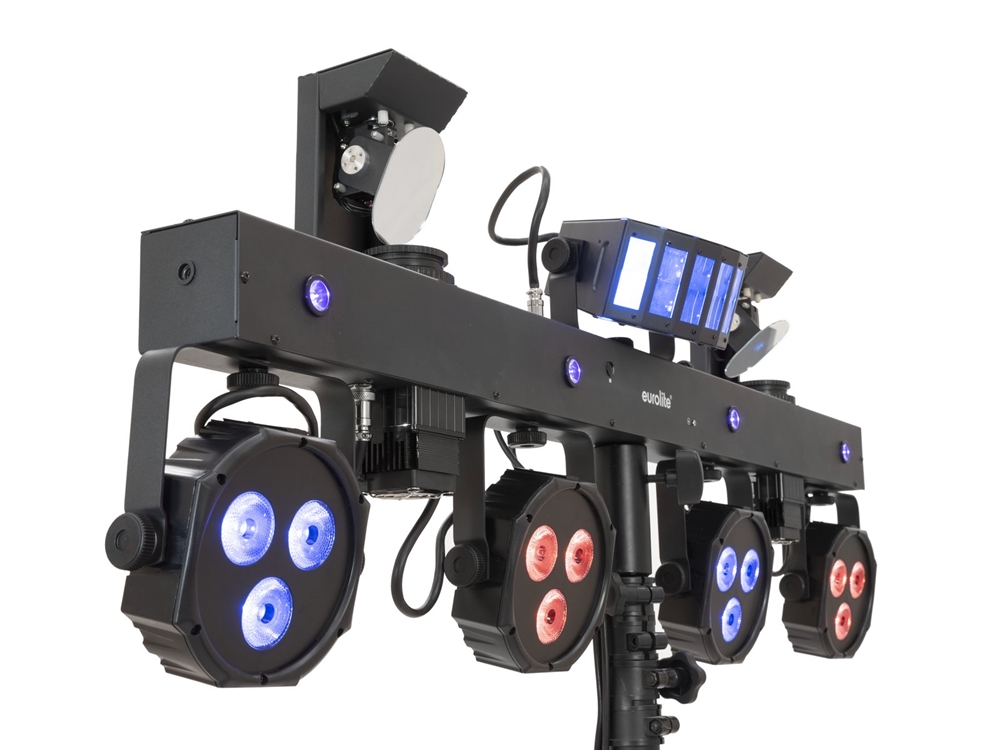

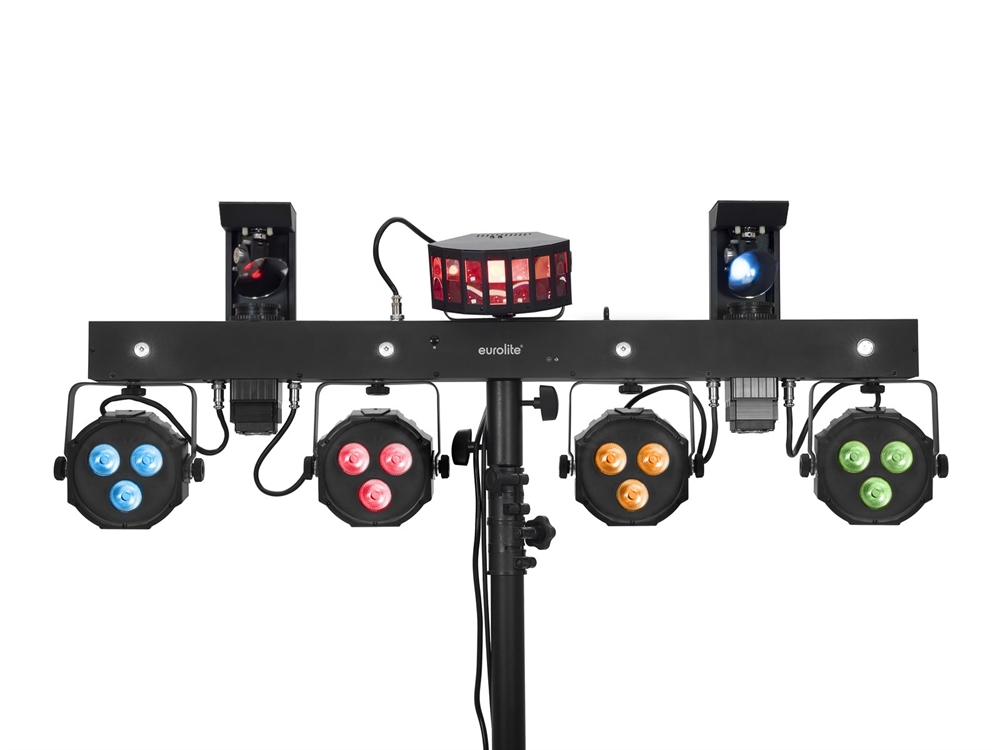

• DMX light effect bar with 1 rotating LED derby, 4 LED spots, 2 scanners and UV LEDs
• Ultra-light ideally suited for mobile use

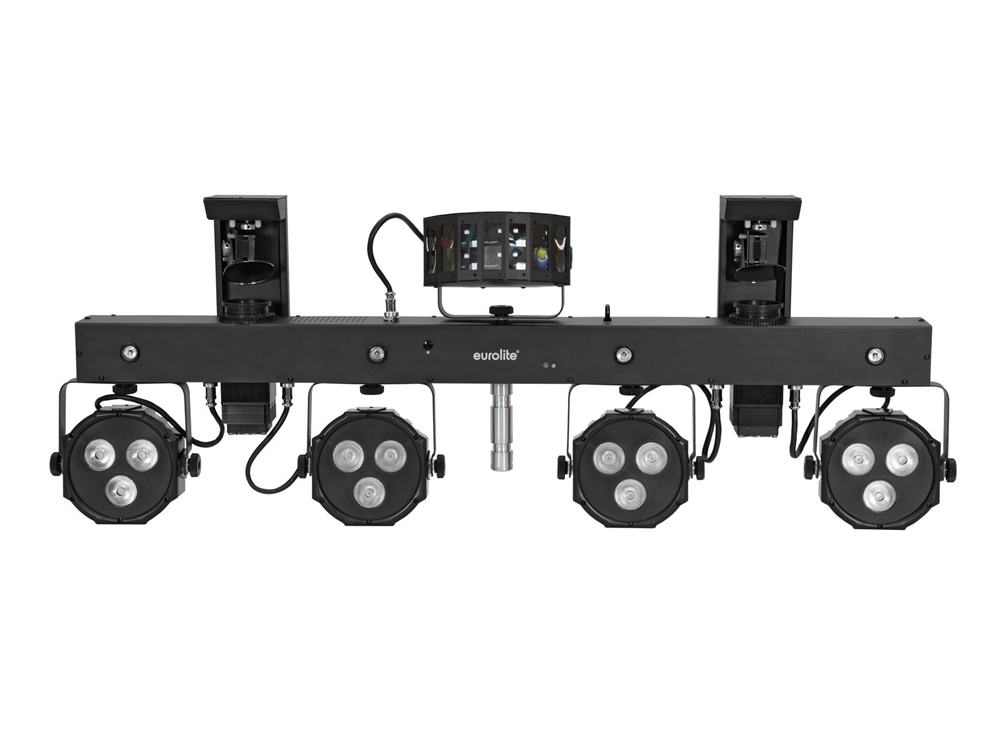

• Crossbar with integrated DMX control unit and TV spigot for stand installation
• Swivel mounting brackets for truss mounting
• Comes pre-assembled with practical transport bag
• Convenient control via included IR remote control or optional wireless foot switch
• Sound-control via built-in microphone with sensitivity control
• Several diverse DMX modes for various consoles and requirements
• LED derby and LED spots individually tiltable and controllable
• Spots with 15° beam angle
• Mirror movement can be inverted separately for both scanners (e.g. for common, counter-rotating control)
• Brand-new software design with smart programs
• 20 built-in auto and music show programs that include all 4 effect units
• Addressing and setting via control panel with 4-digit OLED display
• Supports QuickDMX - the wireless DMX system by Eurolite
• Built-in phantom-powered USB port for QuickDMX receivers (accessories)
• When fog is used, this effect becomes especially attractive

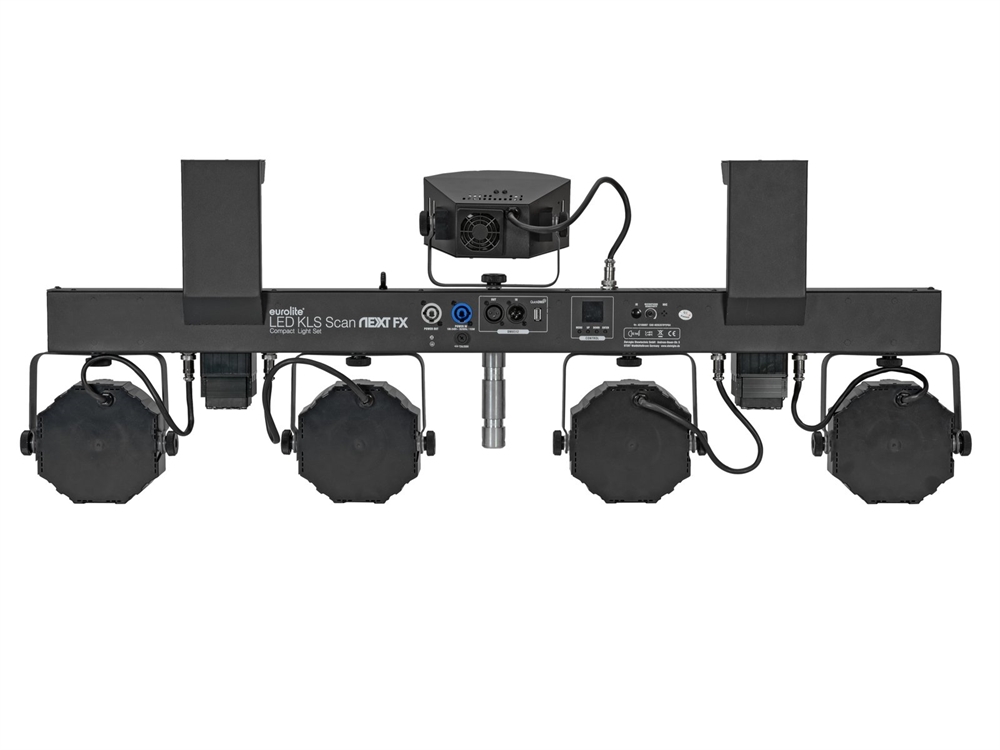

• P-Con terminals for power linking up to 8 units
• Switch-mode power supply for operation between 100 and 240 volts
• Can be operated in 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 CH mode
• The device is cooled by cooling fan
• Controlling by DMX; QuickDMX via USB (optional); IR remote control (provided); Sound to light via Microphone; Stand-alone; Wireless footswitch (optional); Master/slave function
• For application areas such as: Wedding/gala; Lender; Small lender

spotlight

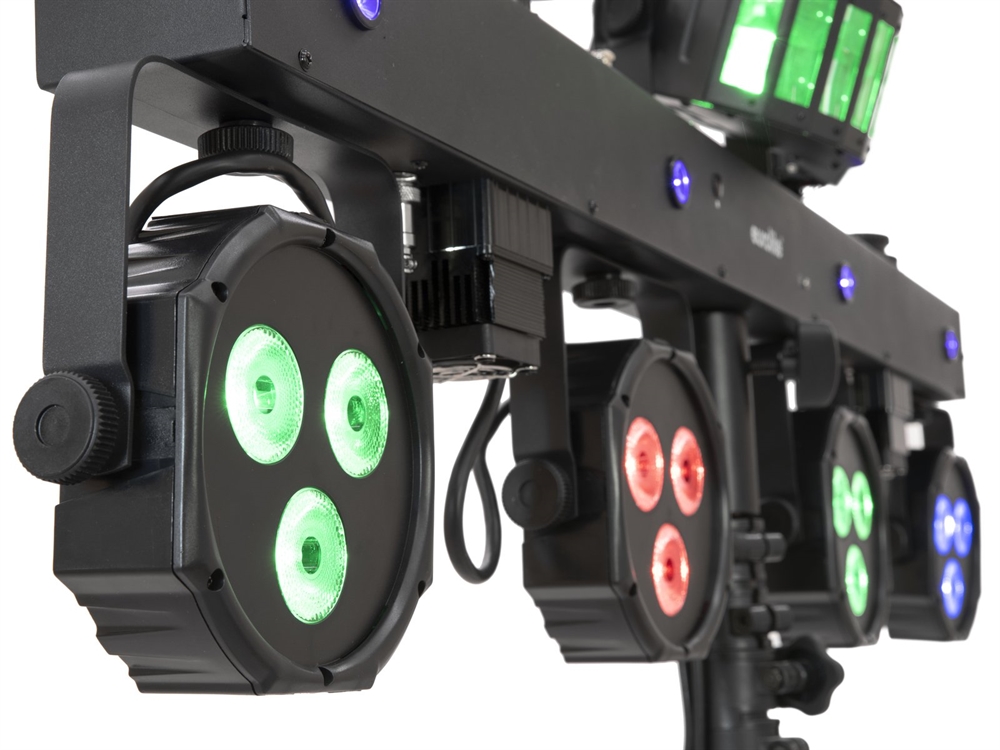

• LED: Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix)

light effect

• LED: Multi beam effect each 1 x 3 W R/G/B

moving light

• LED: Scanner each 1 x 15 W CW

bar

• LED: 4 x high-power 1 W UV
