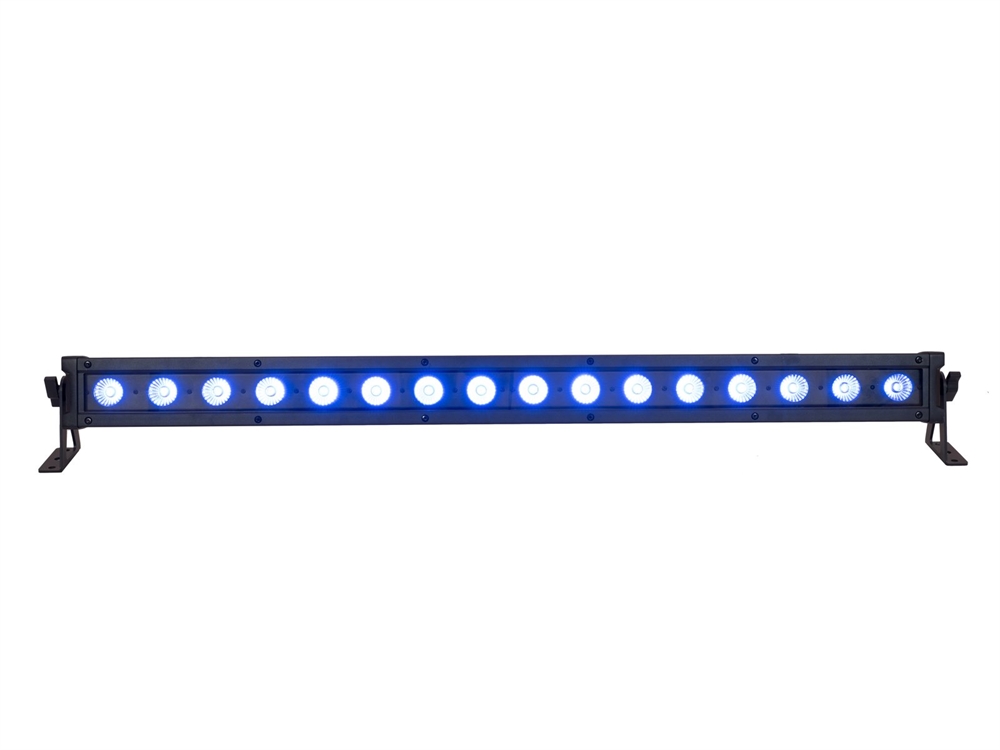

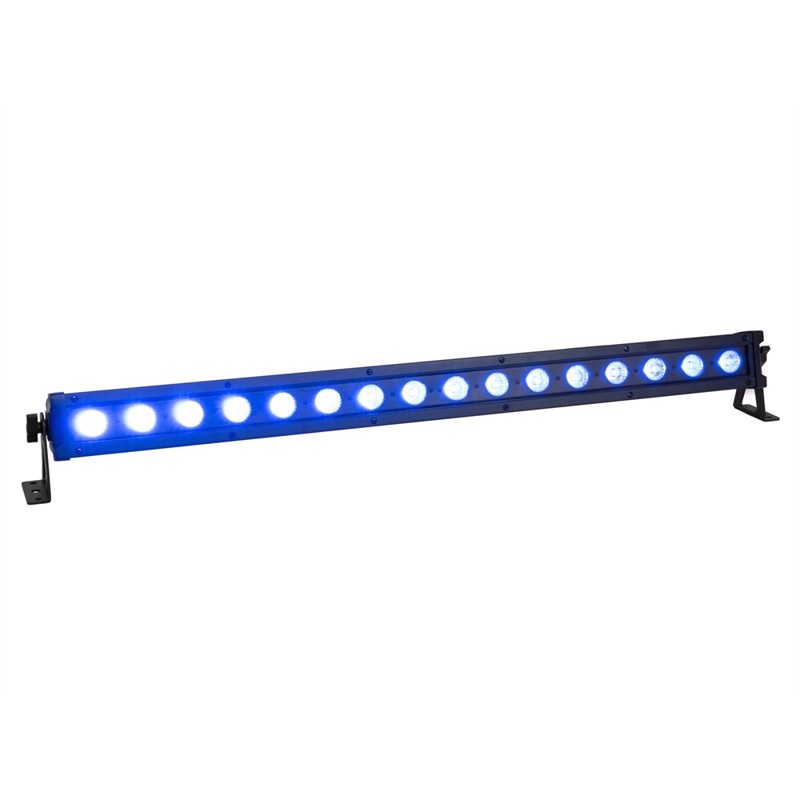

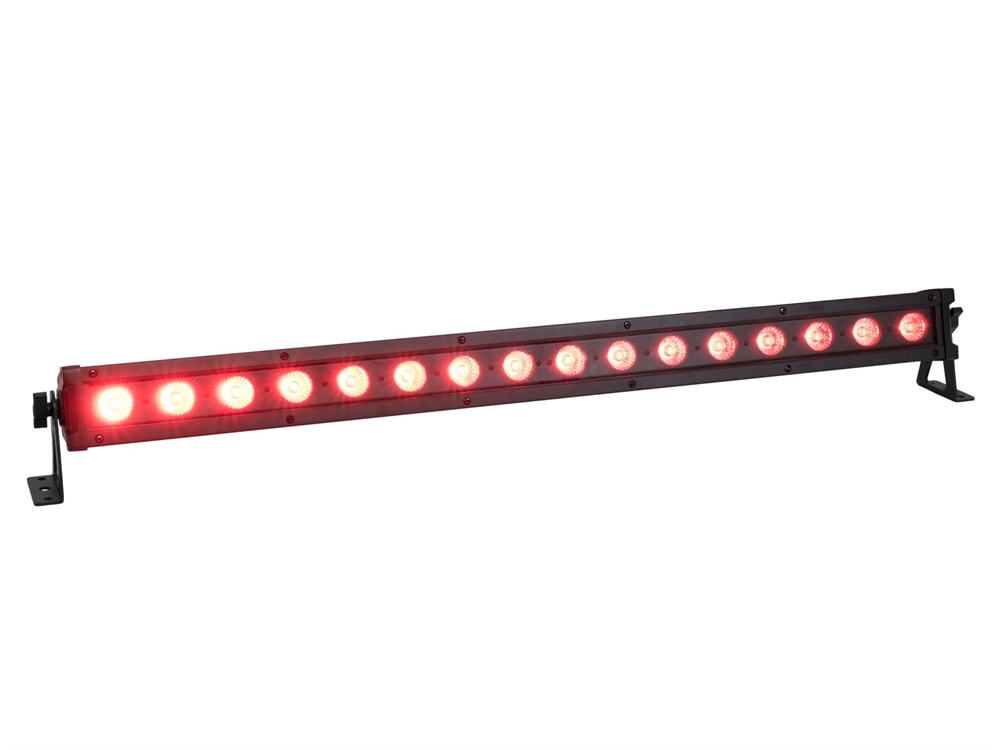

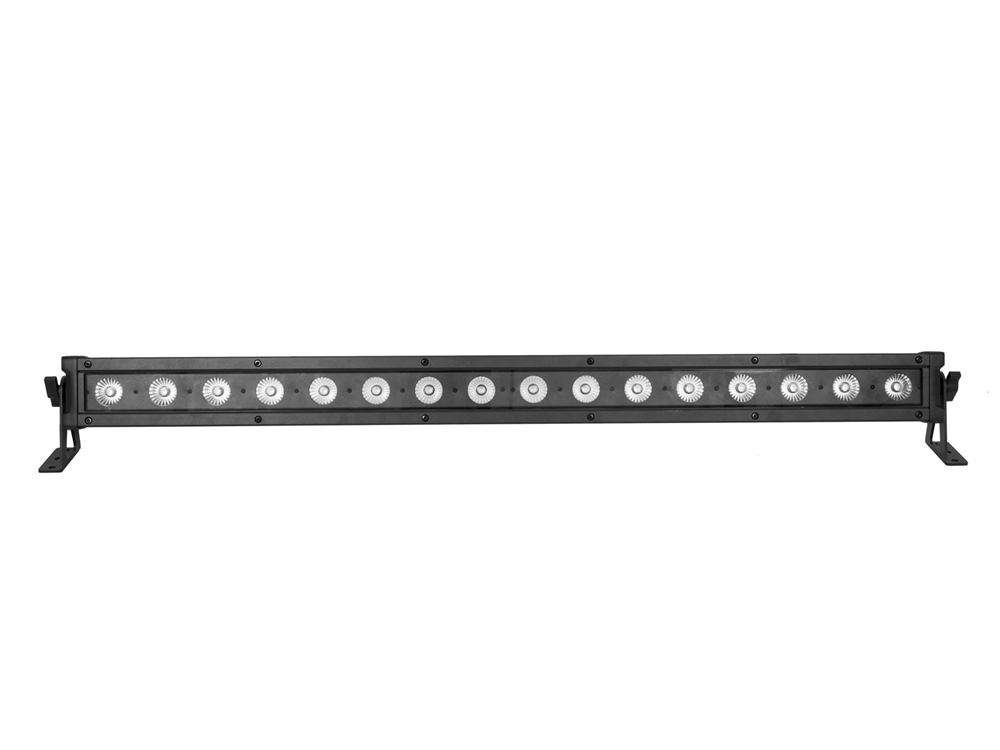

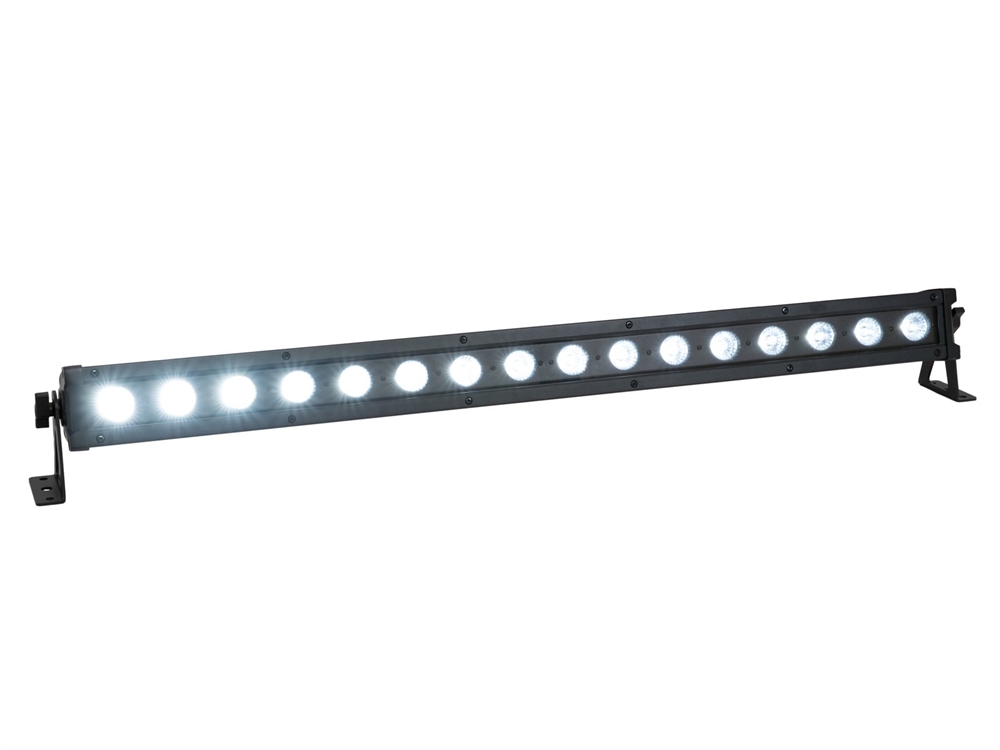

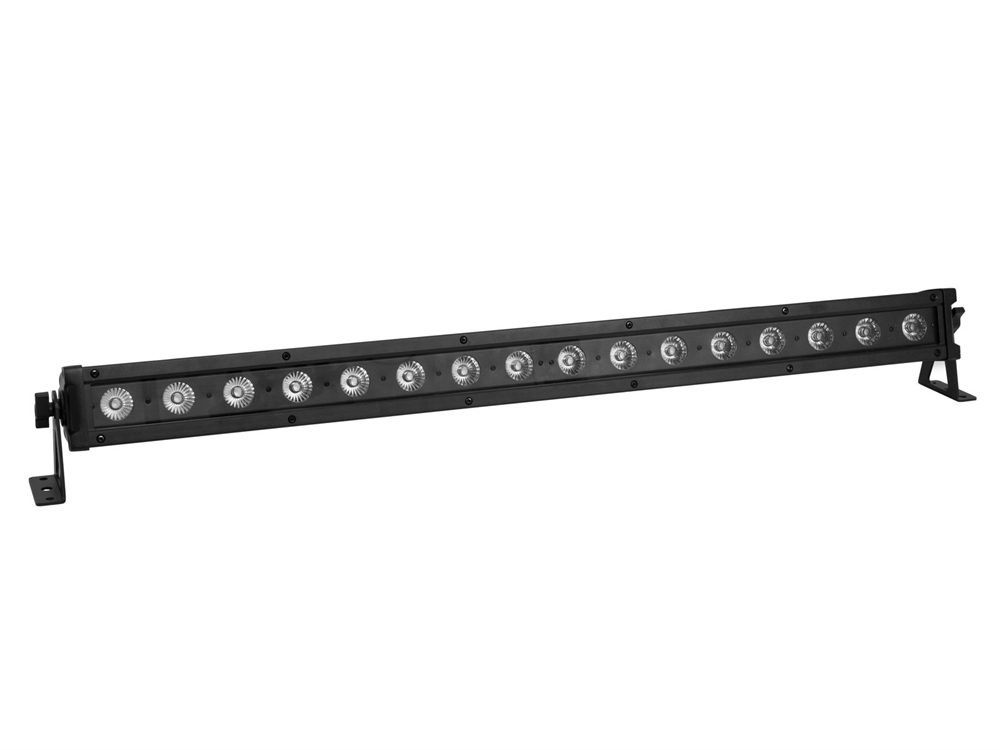

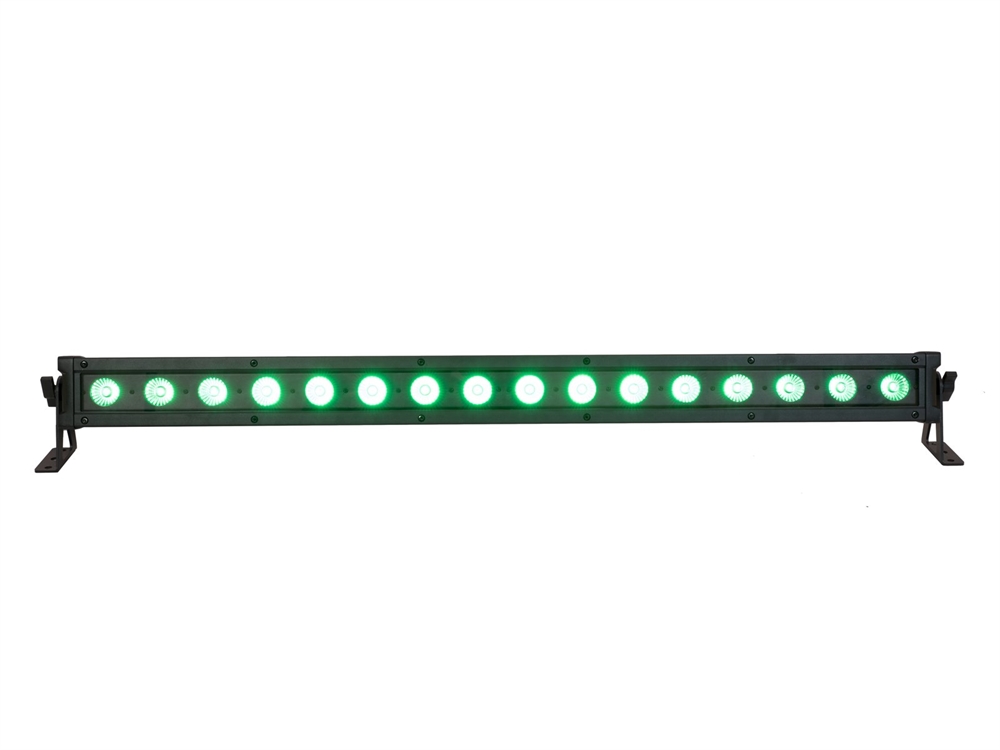

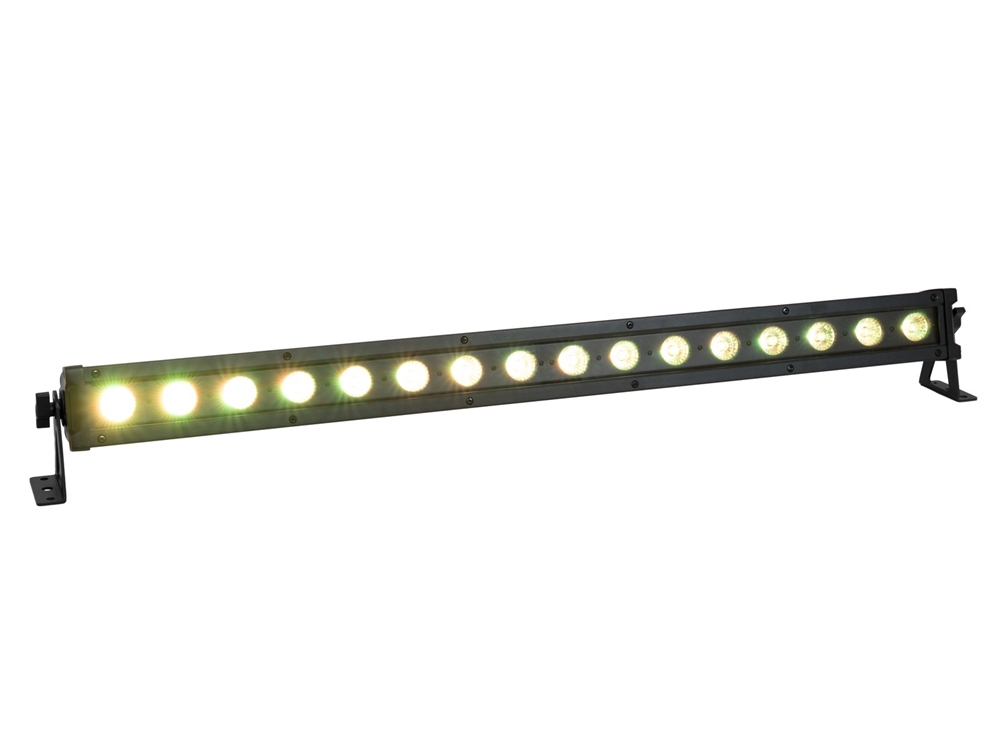

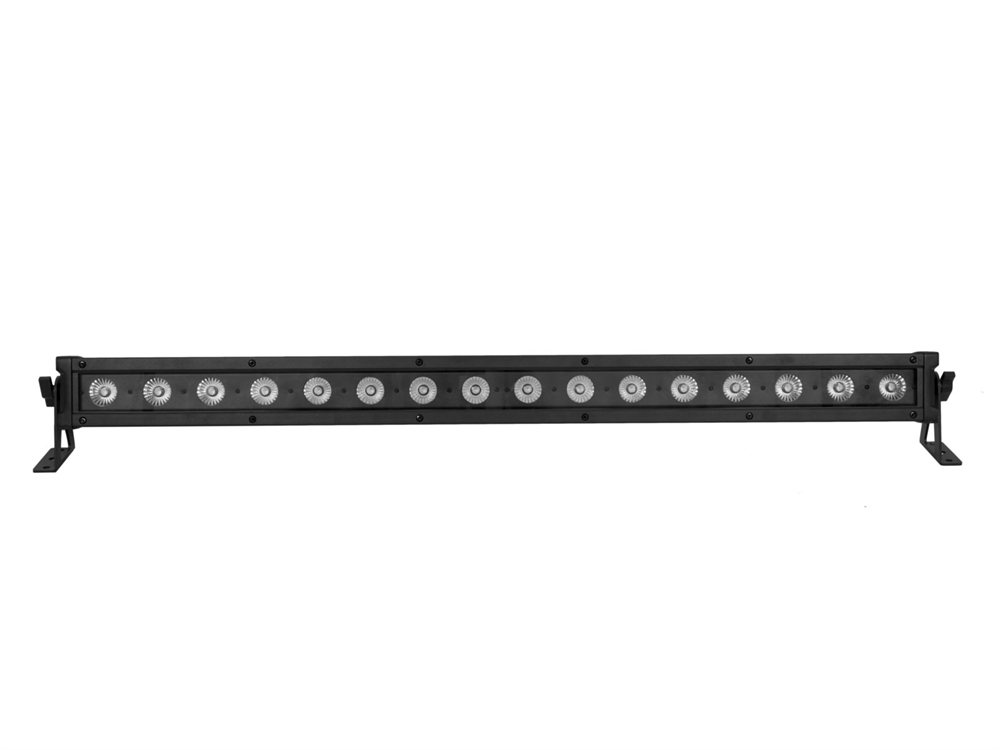

Eurolite LED IP T-Bar 16 QCL Bar

Weatherproof (IP65) bar with RGBW color mixing, incl. IR remote control

16 high-power 8 W RGBW LEDs (4in1)
Suitable for external use (IP65)
Auto, master/slave and DMX mode
Built-in auto show programs
Direct color selection for 19 preset colors
Stepless RGBW color blend, color change with programmable speed, dimmer and strobe effect

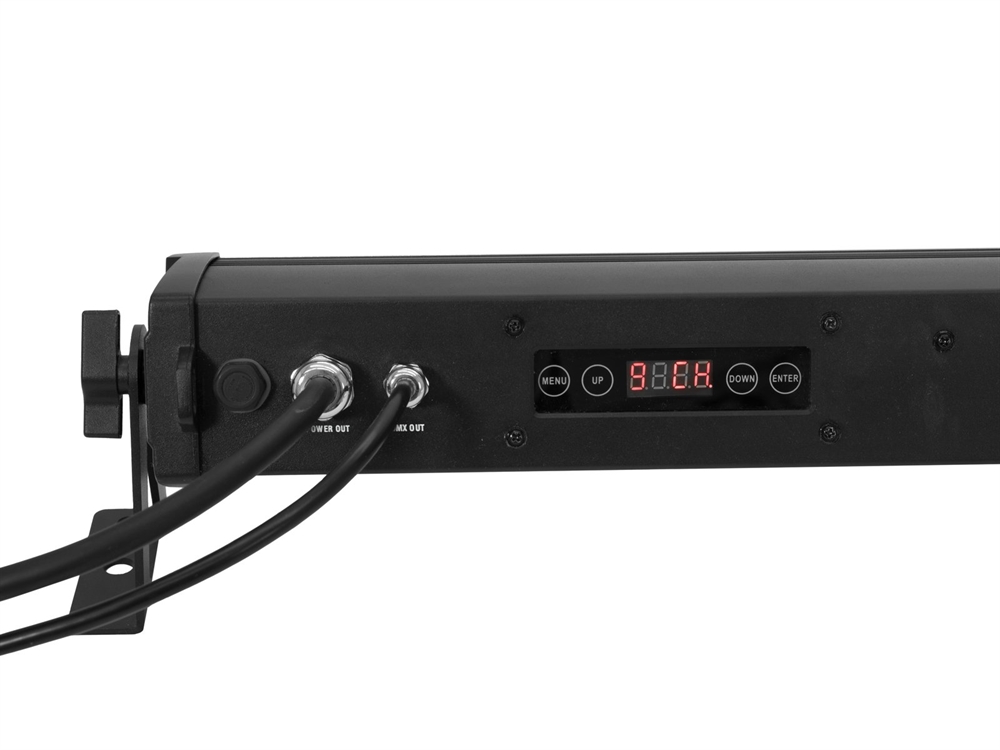

Addressing and setting via control panel with 4-digit LED display
Convenient wireless control via included IR remote control EUROLITE IR-7
3, 4, 5, 6 or 9 DMX channels selectable

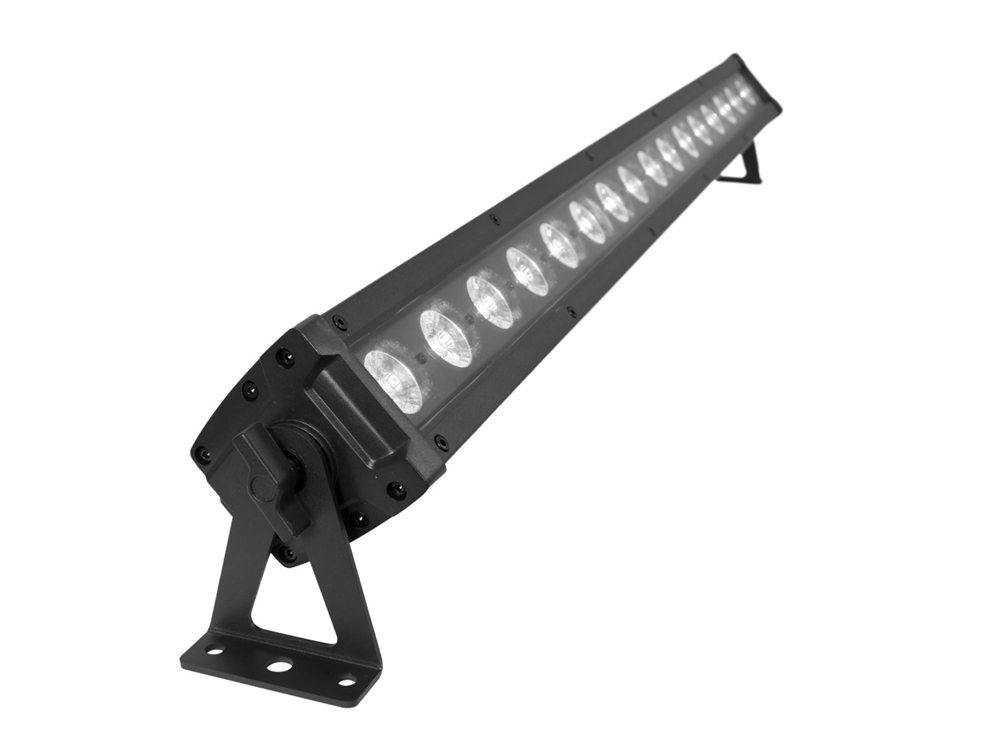

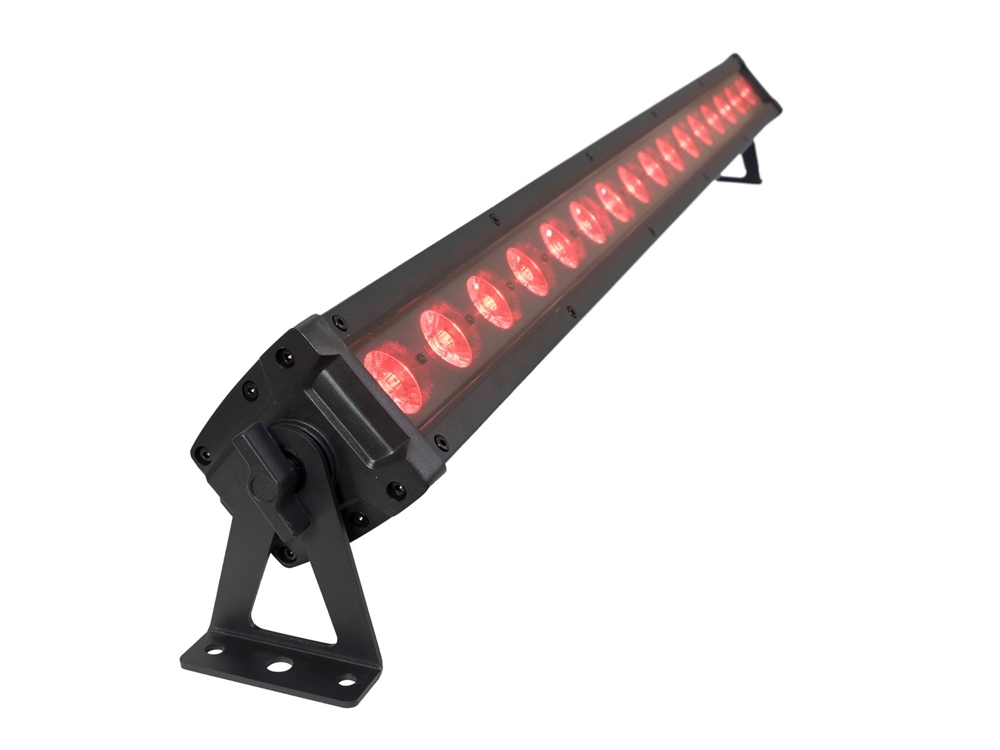

wivel mounting bracket
Switch-mode power supply for operation between 100 and 240 volts

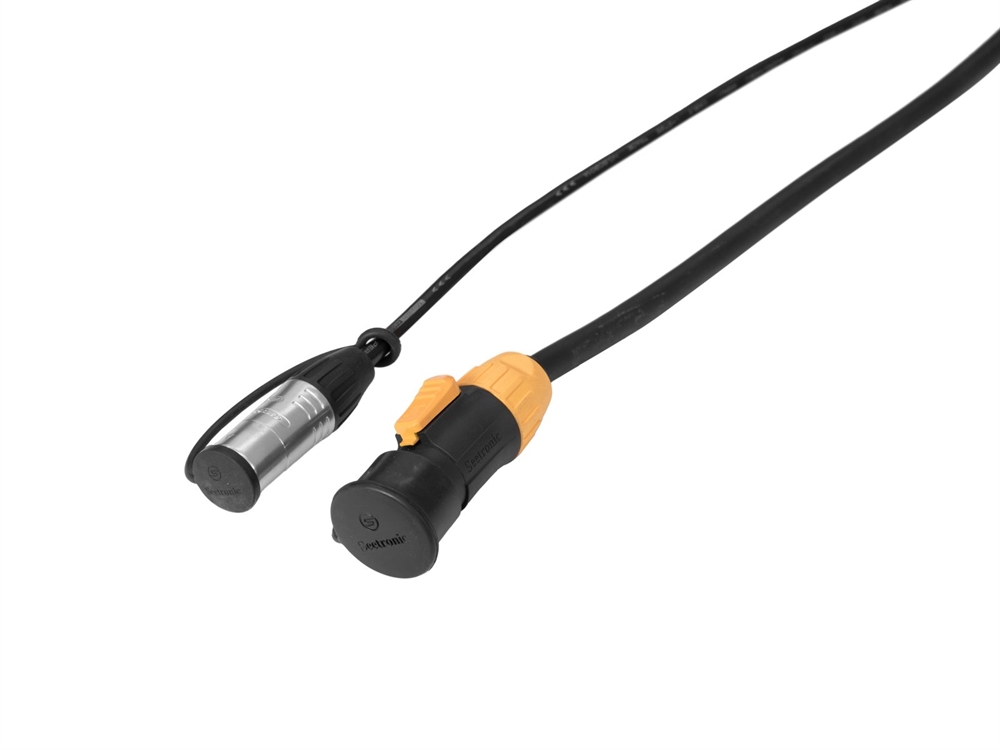

IP T-Con terminals for power linking up to 8 units
LED: 16 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
Can be operated in 3; 4; 5; 6; 9 CH mode
The device is cooled by passive convection
Controlling by DMX; Master/slave function; Stand-alone; IR remote control (provided)
Is in Light J Software already preprogrammed
Flicker-free projection
Suitable for outdoor use

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
IP classification:	IP65
Power output:	IP T-Con (F)
Lamp type:	LED lamp
LED:	16 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
Flash rate:	0 - 20 Hz
DMX channels:	3; 4; 5; 6; 9

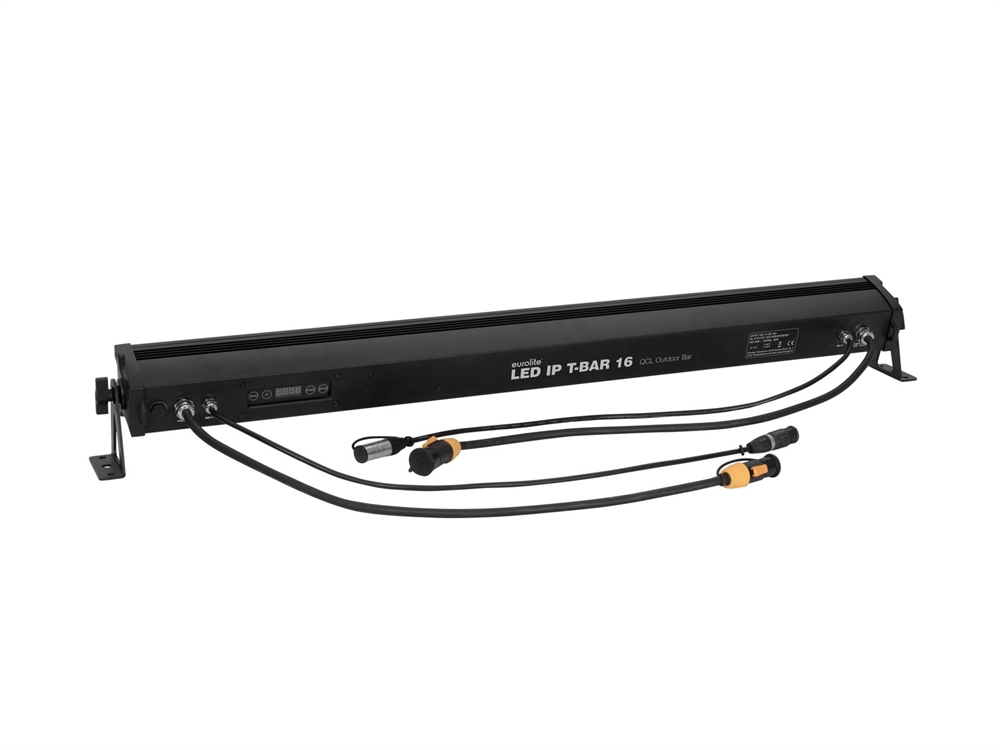

DMX input:	3-pin XLR (M) IP
DMX output:	3-pin XLR (F) IP
Power connection:	Fixed IP T-Con (M) Power supply cord with safety plug
Cooling:	Passive convection
Control:	DMX; Master/slave function; Stand-alone; IR remote control (provided); Light J Software
Beam angle:	20°
Beam angle (1/2 peak):	20°
Beam angle (1/10 peak):	35°
Housing color:	Black

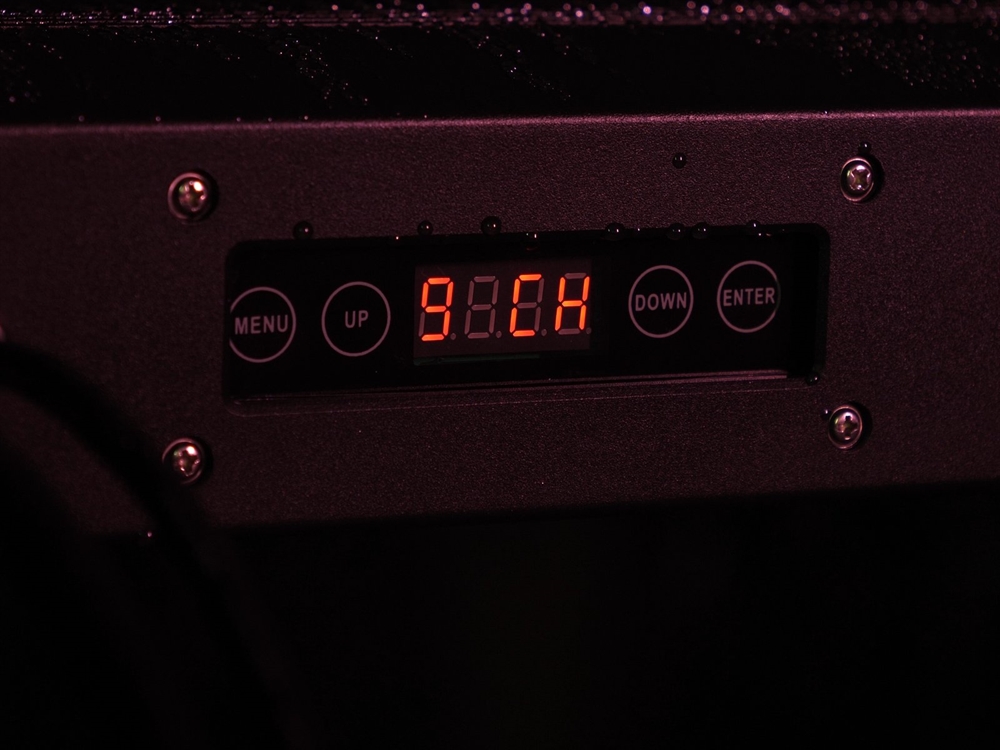

Display type:	4 digits 7-segment LED display
Dimension:	Length: 106.50 cm Depth: 10.00 cm Height: 12.65 cm
Weight:	5.95 kg
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting

Varenr.: E-51914107
