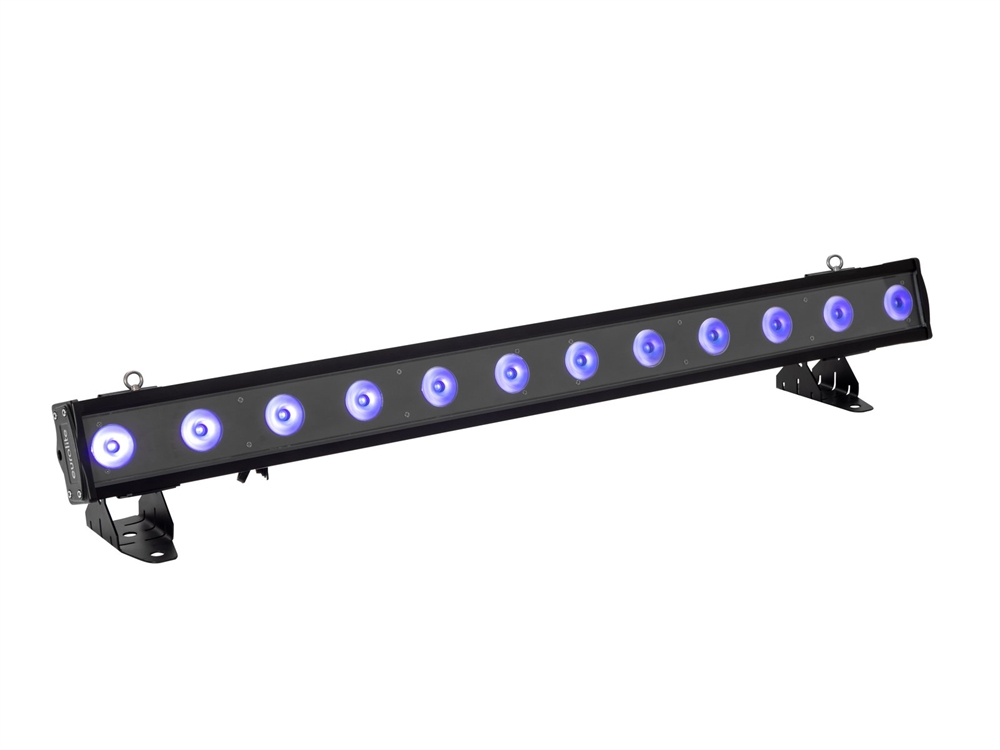

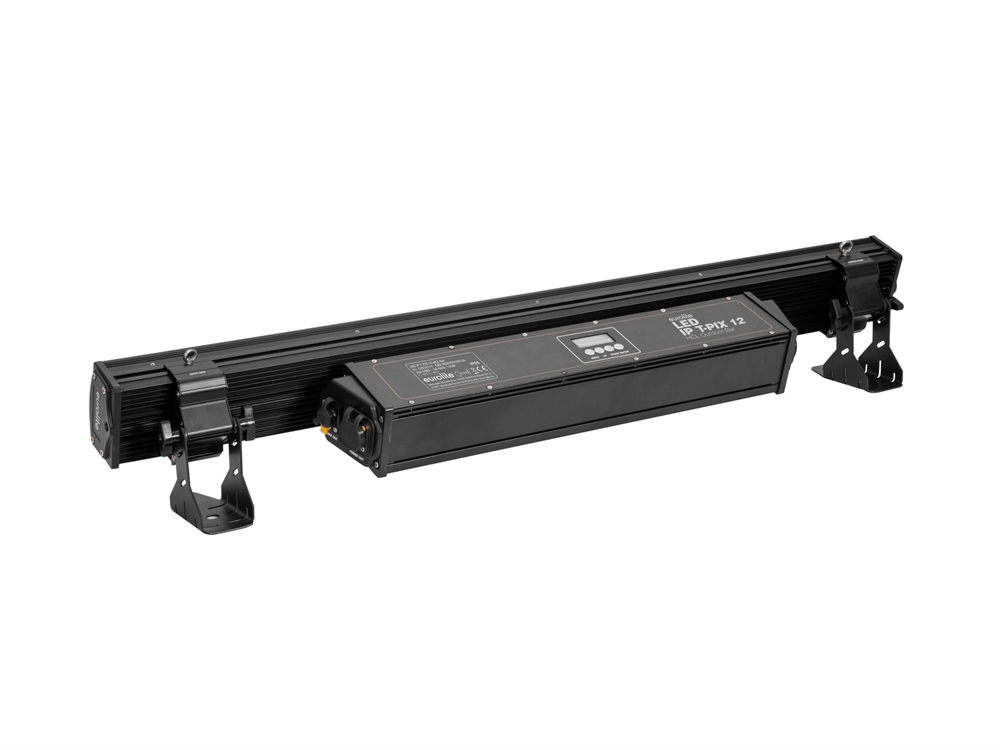

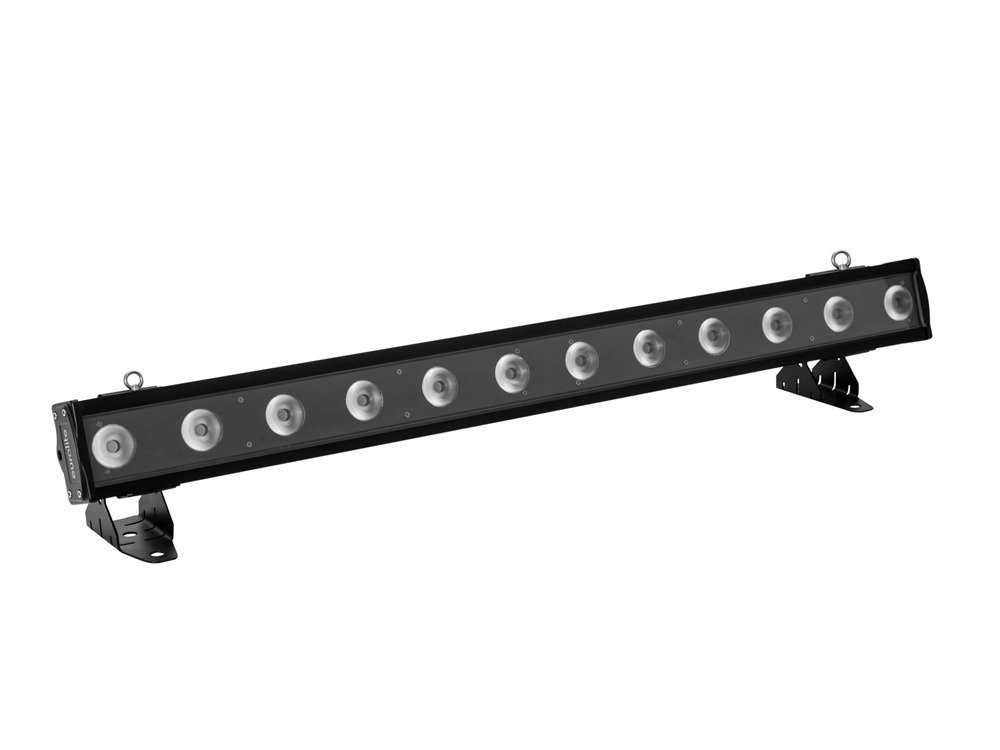

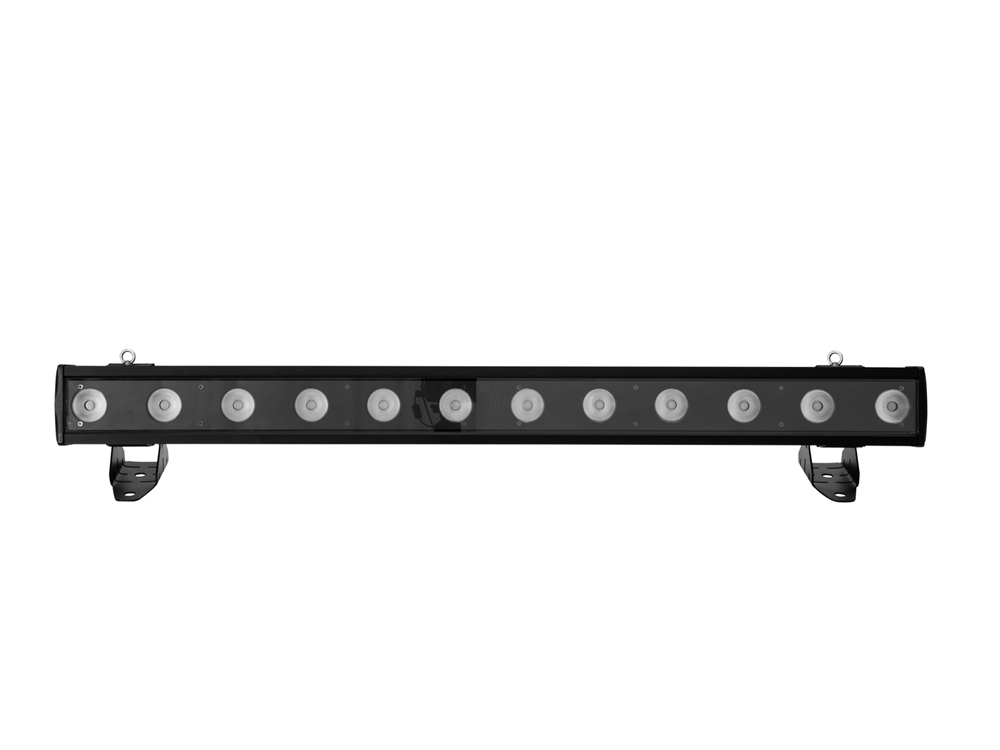

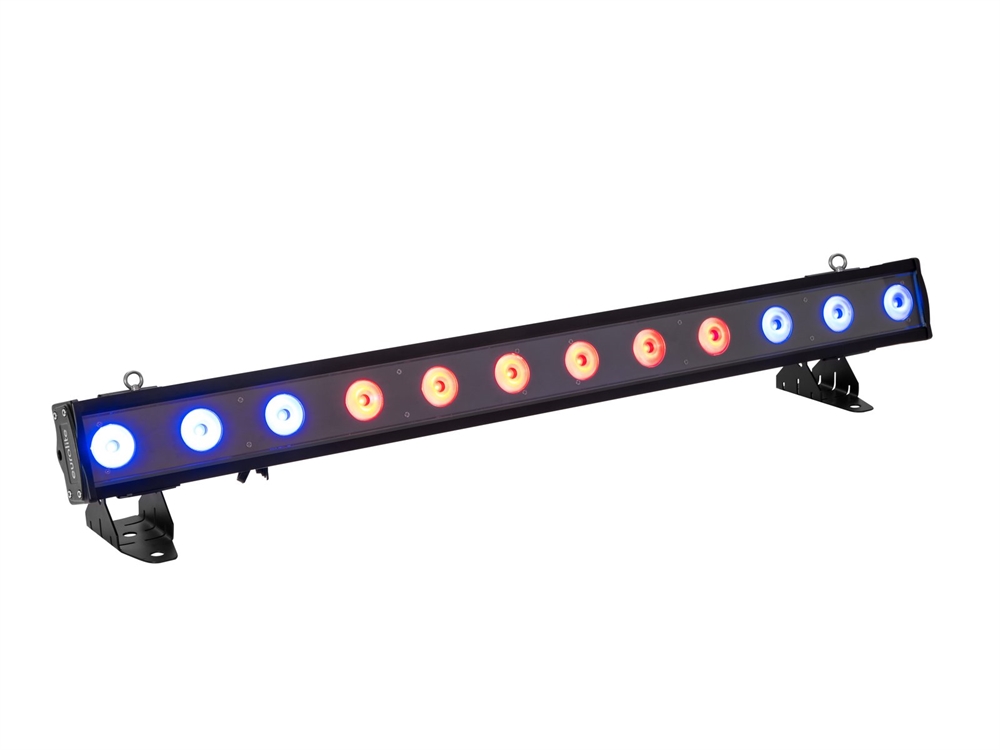

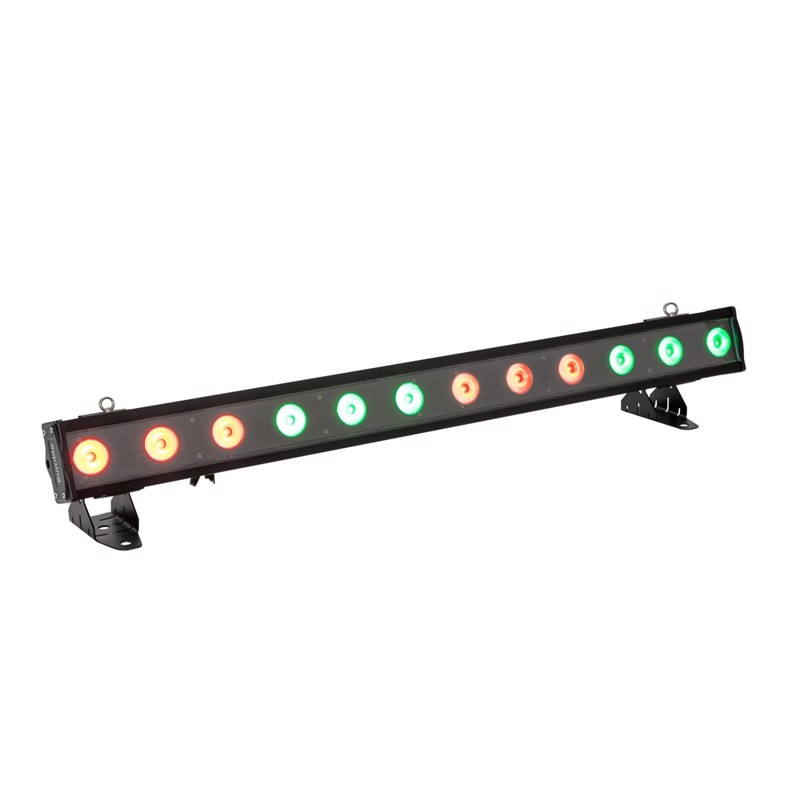

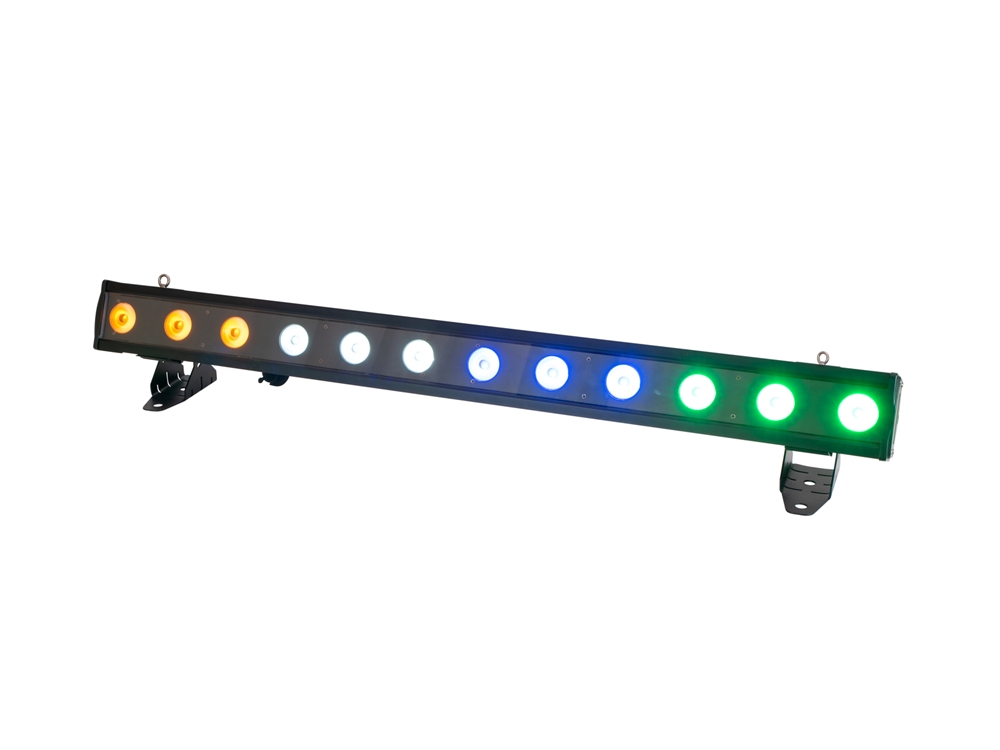

EUROLITE LED IP T-PIX 12 HCL Bar

Weatherproof (IP65) bar with RGBAW+UV color mixing and pixel control

12 high-power 10 W RGBAW+UV LEDs (6in1)

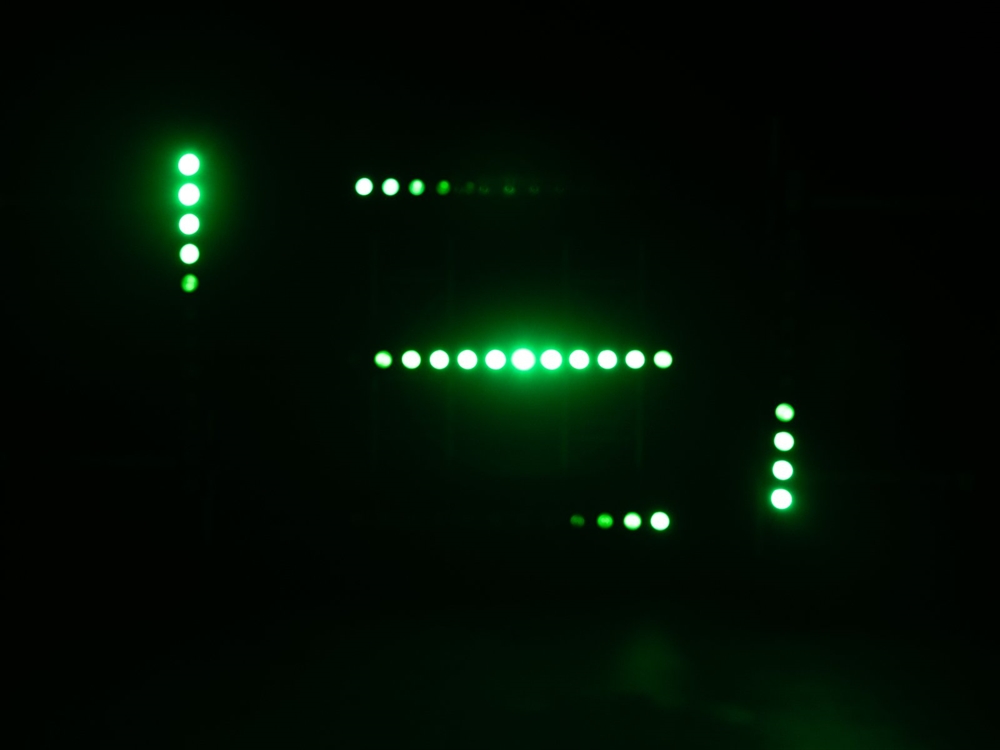

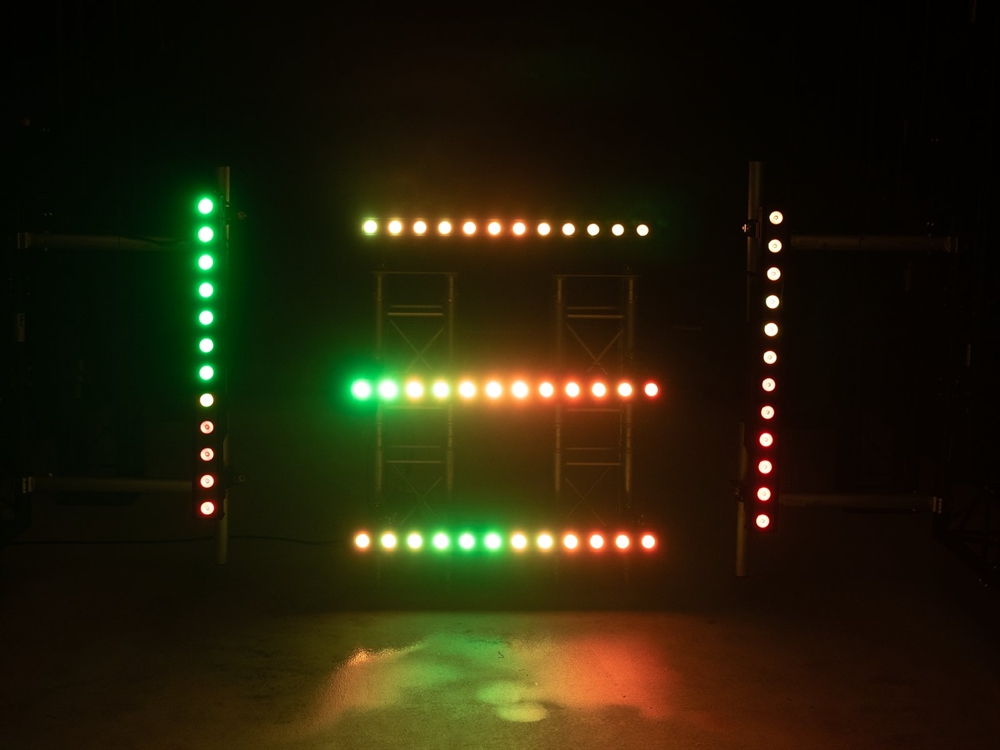

Each LED can be controlled via DMX individually or in segments with 2 or 3 LEDs each
Suitable for external use (IP65)
Auto, music, master/slave and DMX mode
Built-in auto show programs
Direct color selection for 45 preset colors
Stepless RGBAW+UV color blend, color change with programmable speed, dimmer and strobe effect
Different dimmer curves selectable

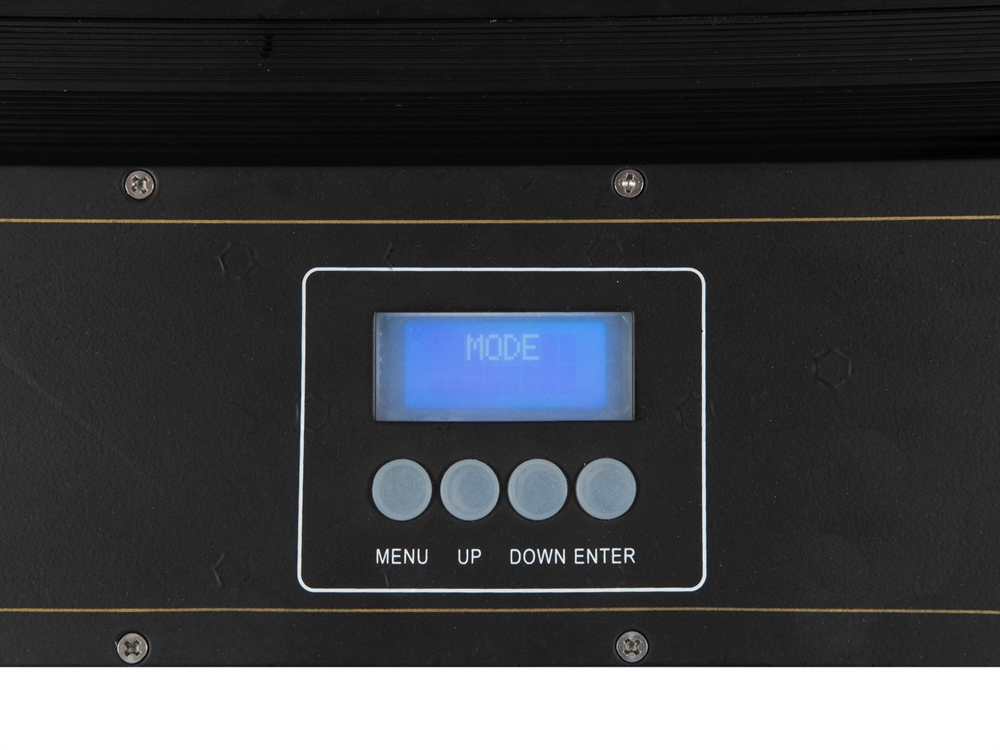

Addressing via control panel with LCD and four operating buttons
Sound-control via built-in microphone with adjustable microphone sensitivity
6, 11, 24, 41 or 77 DMX channels selectable

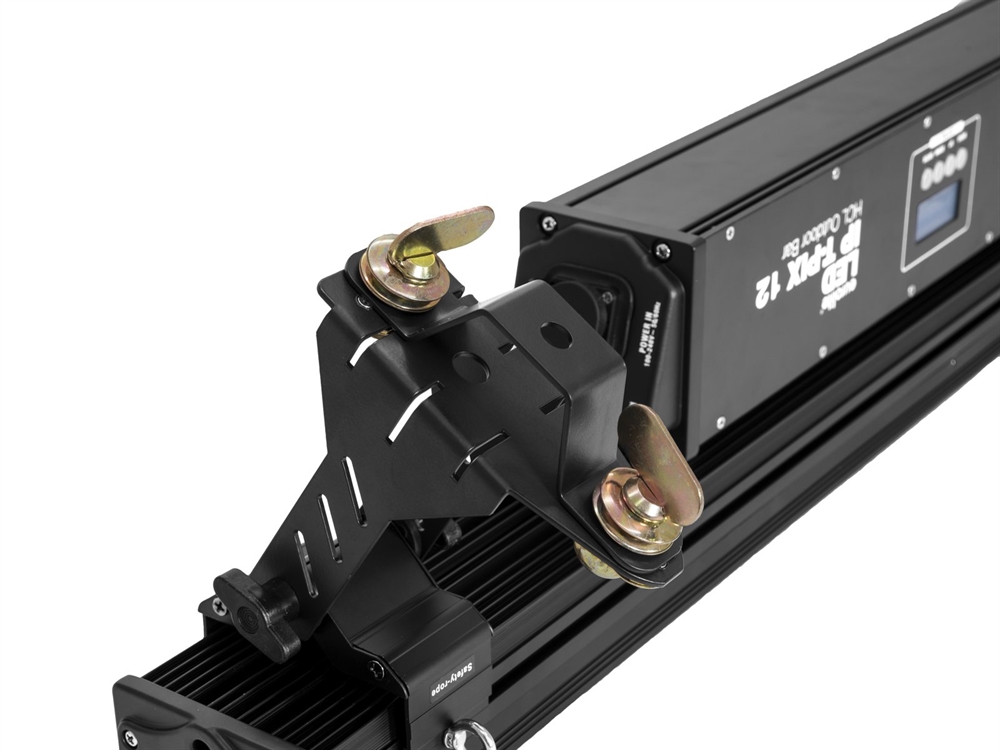

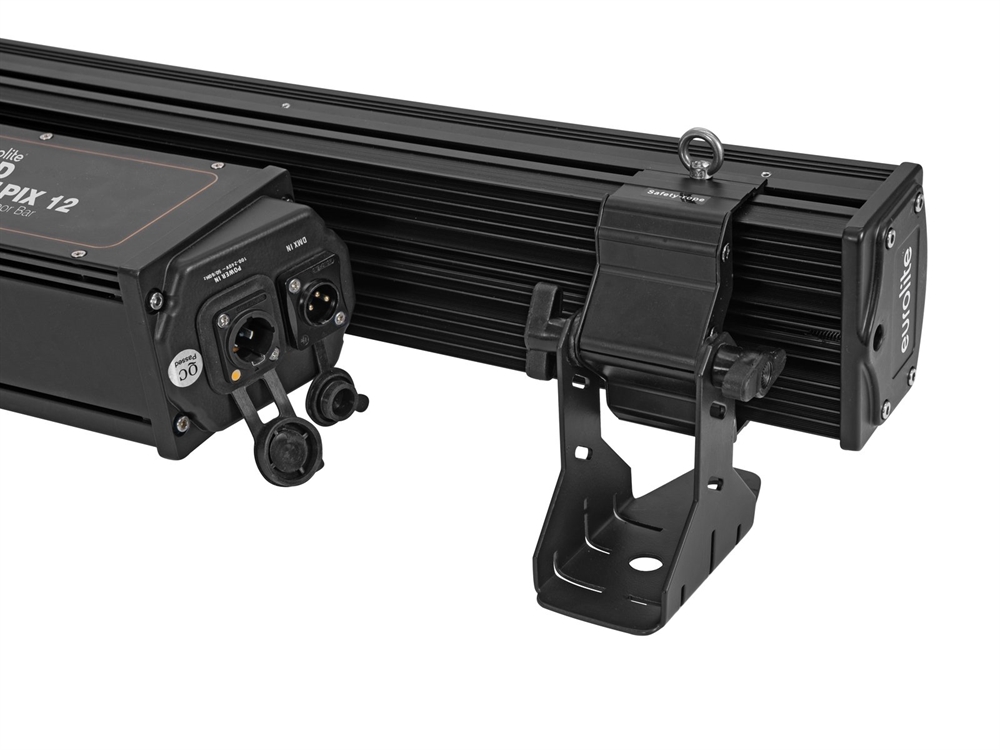

Swivel mounting bracket

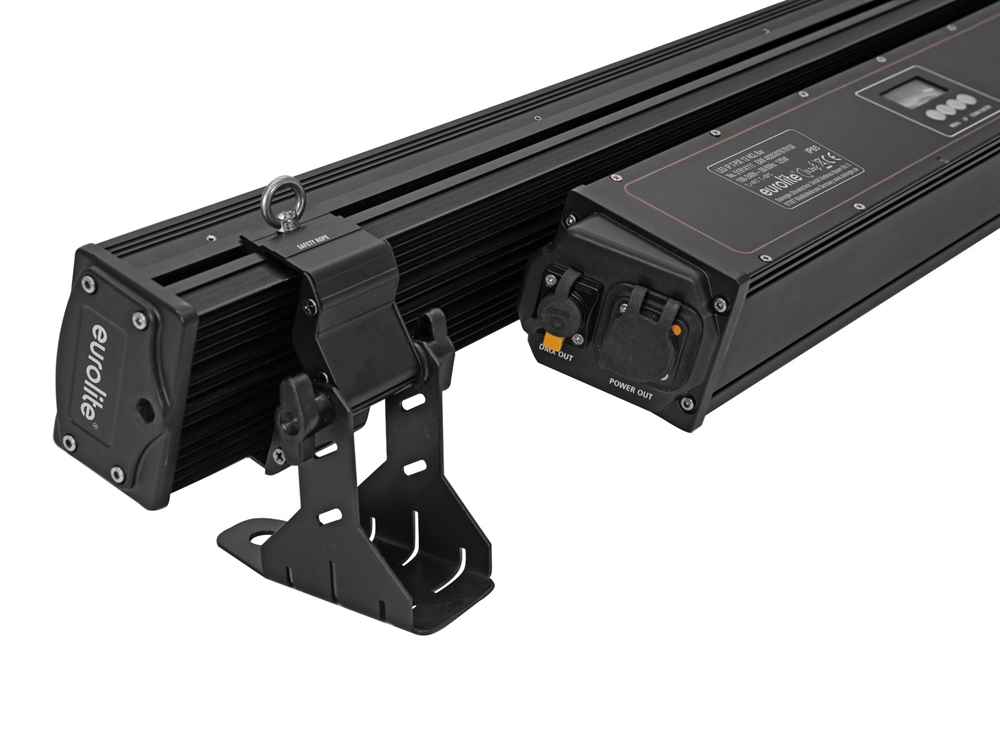

Hanging installation via quick-lock Omega holder (included in delivery)
DMX and power terminals intelligently designed for easy wiring
Switch-mode power supply for operation between 100 and 240 volts
Feed-through output allows to power up to 8 devices

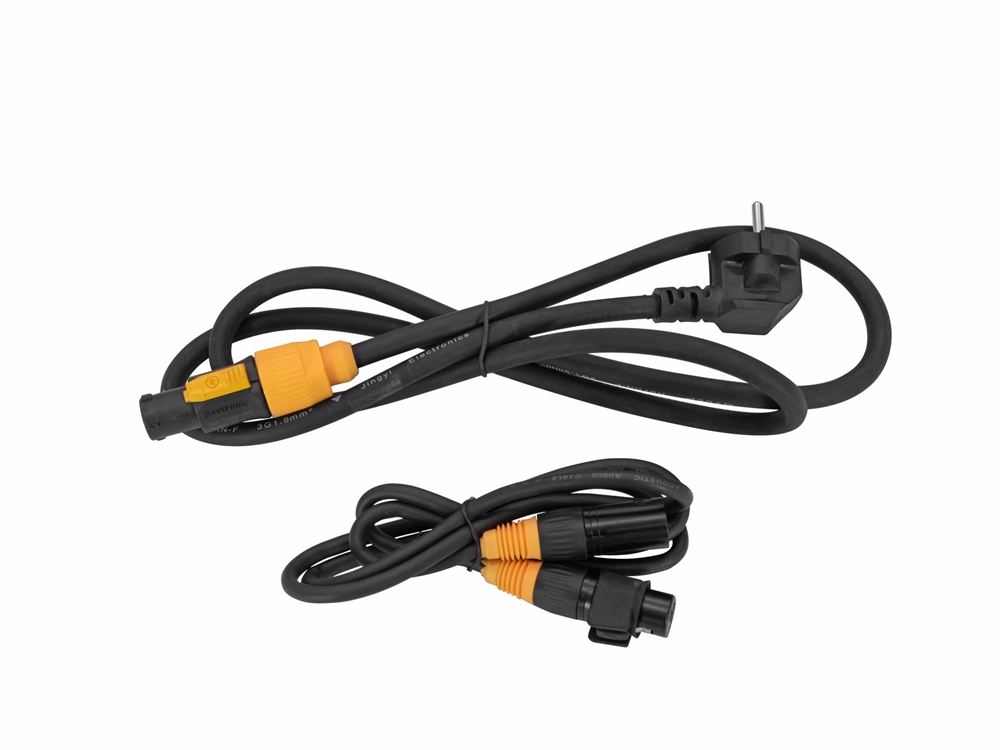

Power connection via IP T-Con jack and included power cable with safety plug
DMX512 control possible via any commercial DMX controller
LED: 12 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Control: Stand-alone; Master/slave function; Sound to light via Microphone; DMX
Projection: flicker-free

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	125 W
IP classification:	IP65
Power connection:	Mains input IP T-Con (M) mounting version Power supply cord with safety plug
Power output:	1 x IP T-Con (F) mounting version
LED:	12 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Flash rate:	1 - 25 Hz
DMX channels:	6; 11; 24; 41; 77
DMX input:	1 x 3-pin XLR (M) mounting version IP
DMX output:	1 x 3-pin XLR (F) mounting version IP
Cooling fan:	No, cooling by convection
Control:	Stand-alone
	Master/slave function
	Sound to light via Microphone
	DMX
Beam angle (1/2 peak):	25°
Beam angle (1/10 peak):	50°
Housing color:	Black
Length:	99 cm
Height:	14 cm
Depth:	16 cm
Weight:	8,30 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
