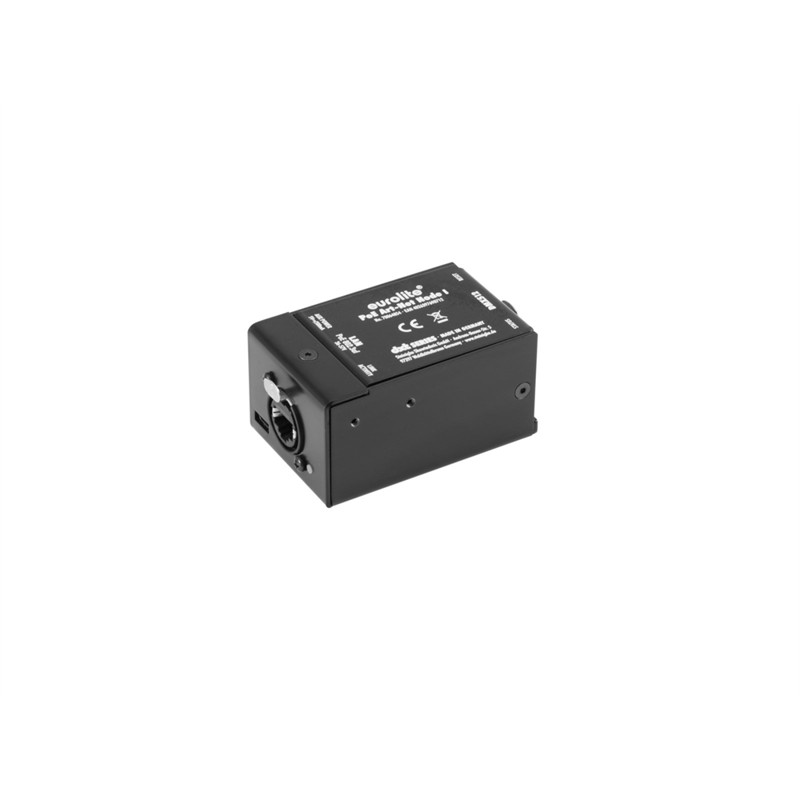

EUROLITE DXT PoE Art-Net Node I

Art-Net interface for control of 512 DMX channels

EUROLITE DXT PoE Art-Net Node I

Art-Net interface for control of 512 DMX channels

DMX512 connection via 3-pin XLR plug (female)
etherCON network connection with PoE
Power supply via 48V PoE switch / PoE injector (802.3af) or 5V USB-C port
Up to 512 DMX channel input and output
DMX refresh rate: 40 Hz, 30 Hz or 20 Hz
ArtDMX reception via Broadcast or Unicast
Configuration with website or Art-Net
Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe and DMX refresh rate and DMX in/out via website
Rugged metal body for use on stage
Mounting brackets optionally available (No. 70064875)
Including USB A/C cable
Can receive and process up to 512 DMX channels
Can transmit up to 512 DMX channels
Controlling by ArtNet
The device can be connected via RJ-45 etherCON (F) mounting version to the PC
Made in Germany

Power supply:	5 V DC 500 mA 37-56 V DC
IP classification:	IP20
Power connection:	Mains input USB C (F) mounting version Power supply cord for USB A mains connection (provided) Mains input RJ-45 (F) mounting version
DMX channels:	Input 512 Output 512
DMX output:	1 x 3-pin XLR (F) mounting version
Network connection:	Protocol: Ethernet TCP/IP via RJ-45 etherCON (F) mounting version, 10/100 Mbit/s
Control:	ArtNet
Status LED:	Signal, link
Use of brands:	Built with NEUTRIK connector
Color:	Black
PC connect:	Via RJ-45 etherCON (F) mounting version
Dimensions:	Width: 7,8 cm Depth: 5 cm Height: 4,2 cm
Weight:	470 g

Varenr.: E-70064854
