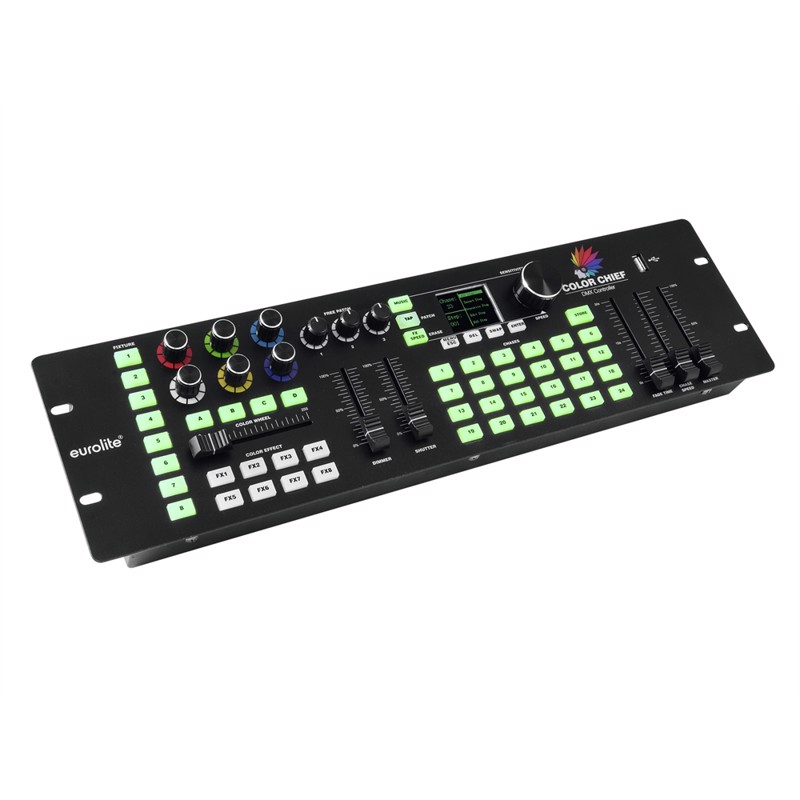

EUROLITE DMX LED Color Chief Controller

EUROLITE DMX LED Color Chief Controller
  • På lager
  • På lager, 3-5 hverdage
  • Bedømmelse for EUROLITE DMX LED Color Chief Controller
    Produktet er endnu ikke bedømt
  • Før 1.769,00
    1.569,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


DMX lighting desk with innovative control concept for LED spotlights

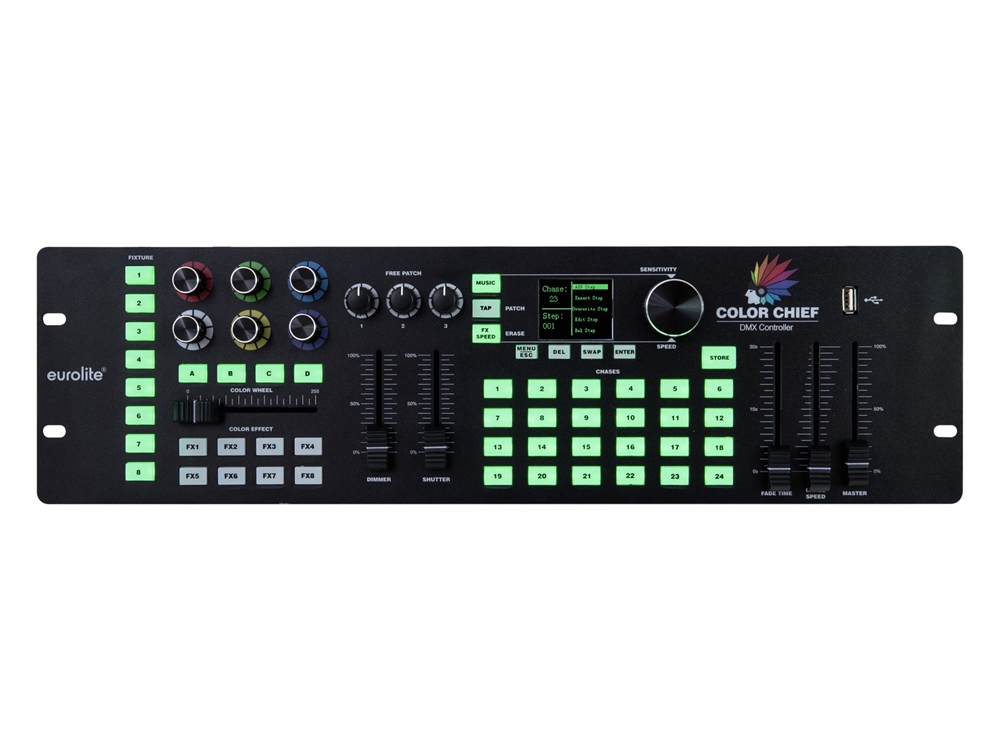

EUROLITE DMX LED Color Chief Controller

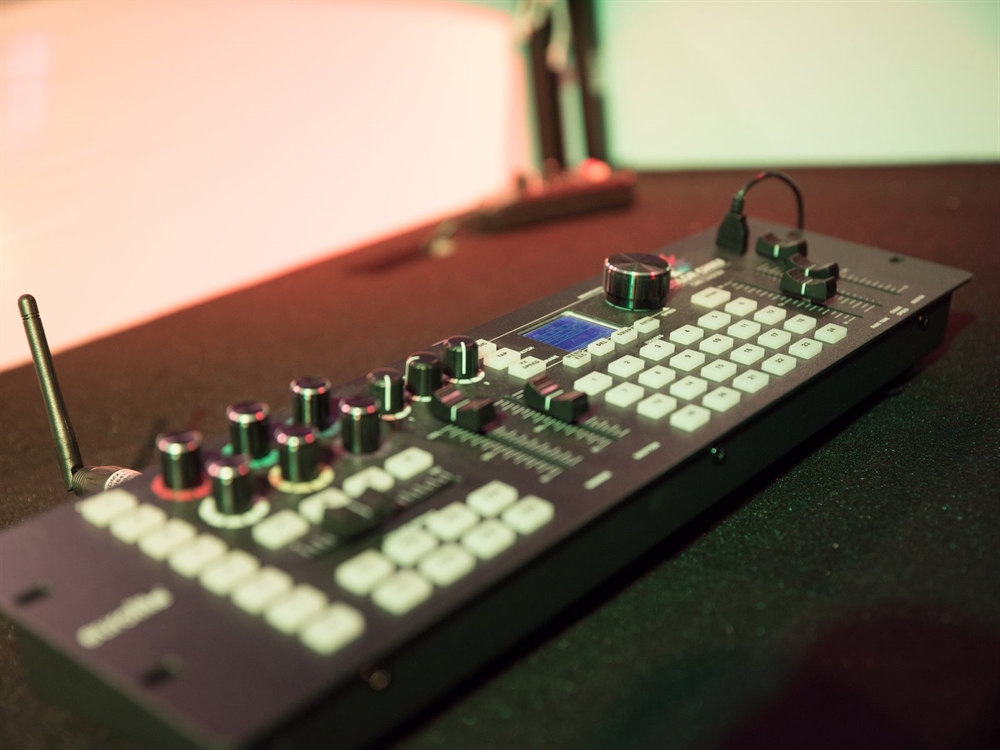

Color Chief title picture

Color Chief

Innovative control concept for colored spot lights


The Color Chief offers you an innovative control concept combining easy handling with astounding results. The DMX controller has been developed especially for both colored spot lights and simpler light effects. What makes the Color Chief so special is that it cannot only control individual spot lights but also fixtures with up to 4 individual segments. Thus you can easily control your KLS system or your light bars with 4 segments. Altogether, the Color Chief can control a total of 8 spot lights with up to 4 segments each.

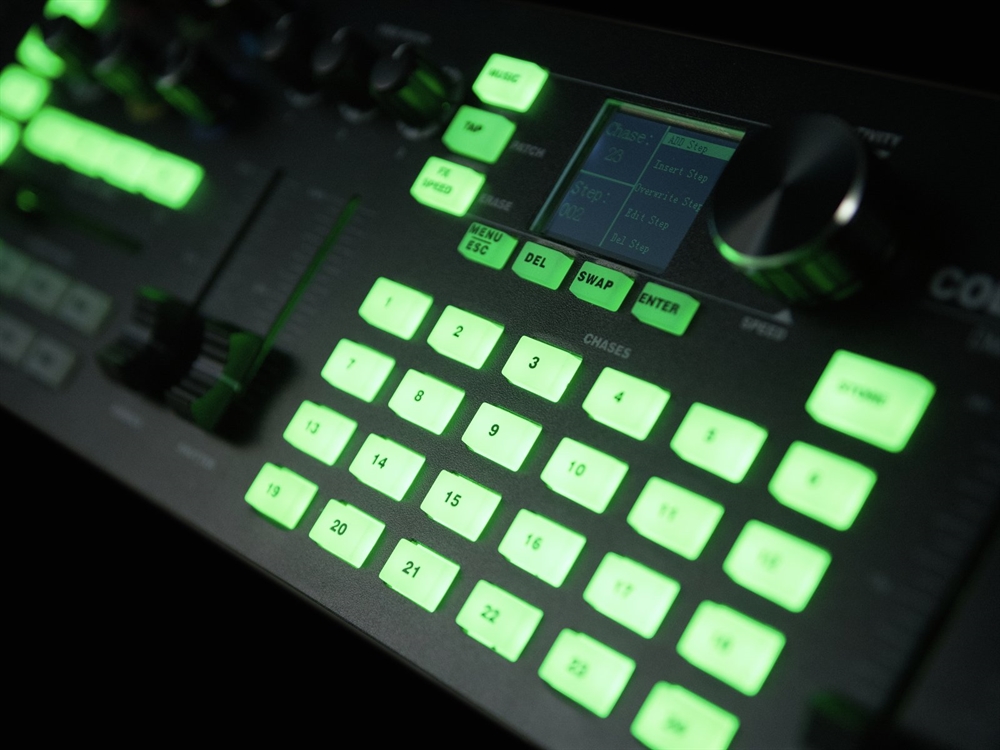

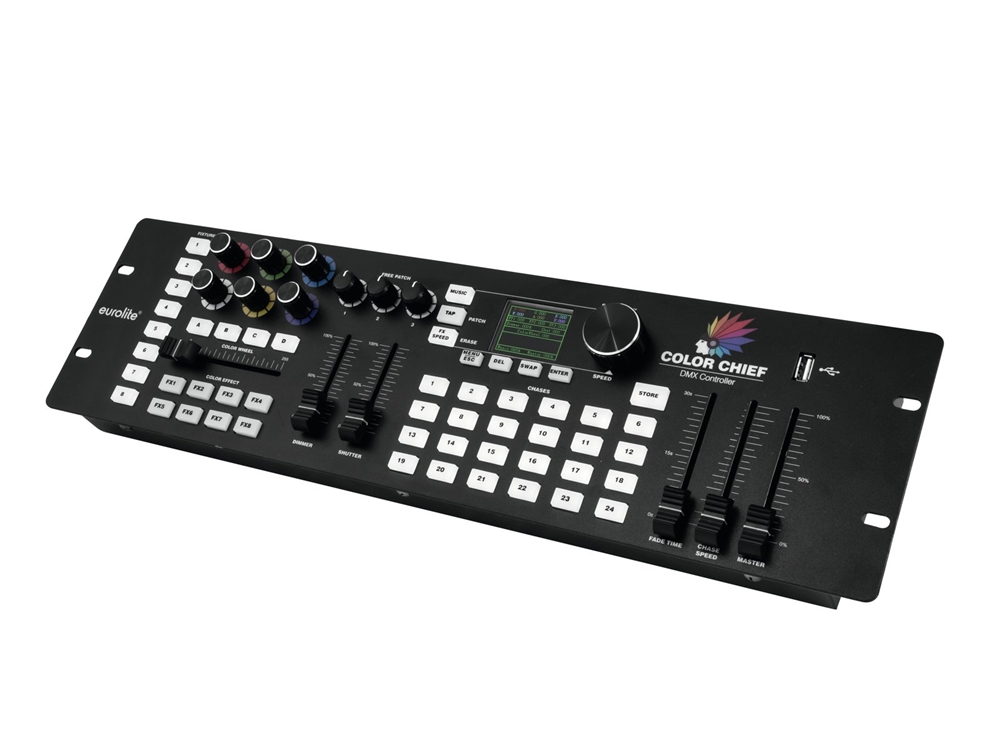

Color Chief Close-Up
The power of colors
As the name suggests, the Color Chief’s strong suit is its colors. It supports up to 6 colors, thus it does not matter whether you have a simple RGB spot light or a complex light effect unit with red, green, blue, amber, white and UV. Spot lights with individual colors, e.g. white light spot lights, can be integrated as well. The Color Chief’s clear design makes it particularly easy to be always in control.

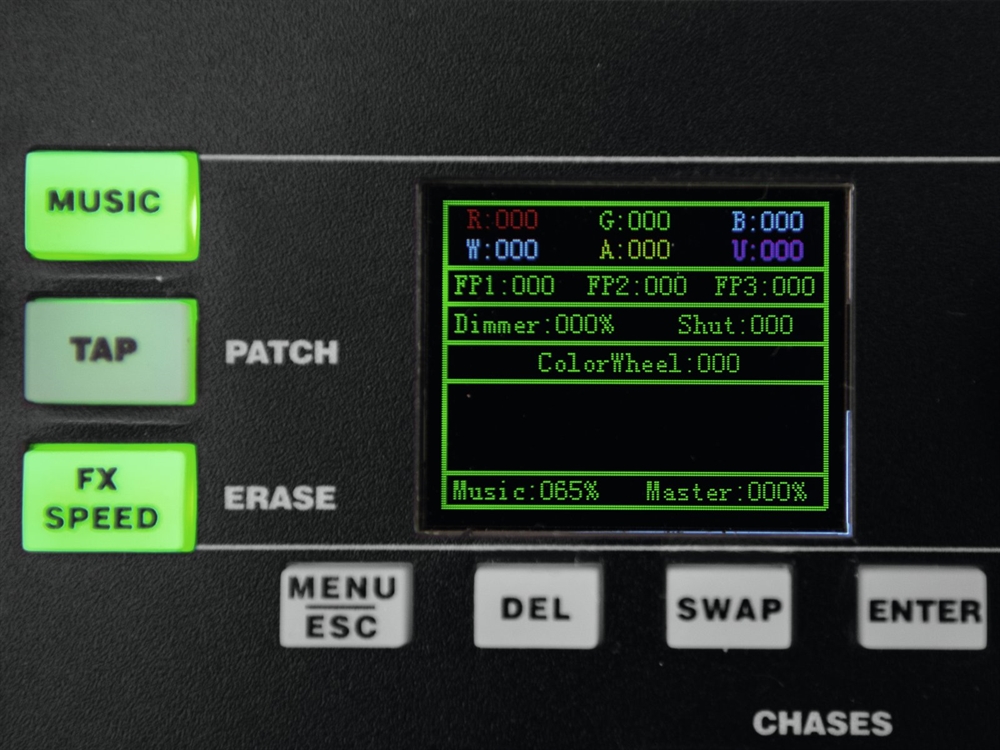

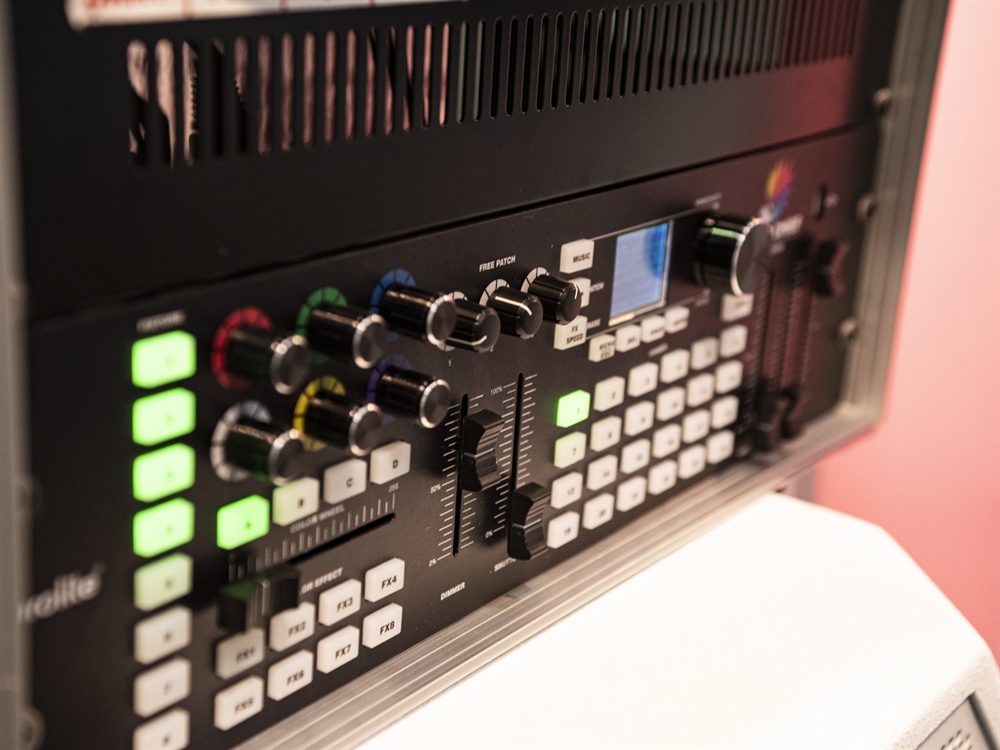

Color Chief Controller
Smart color effects
Do you have a color effect with only one channel for various colors? Thanks to the color wheel function, this is not a problem for the Color Chief. The 8 already recorded smart color effects make the configuration even easier for you. It has never been easier to create such impressive color effects.
Special features
Of course, the Color Chief offers more than color control. You can also adjust the dimmer, shutter and three free channels, thus you can also control simple beam effects, lasers and projectors.

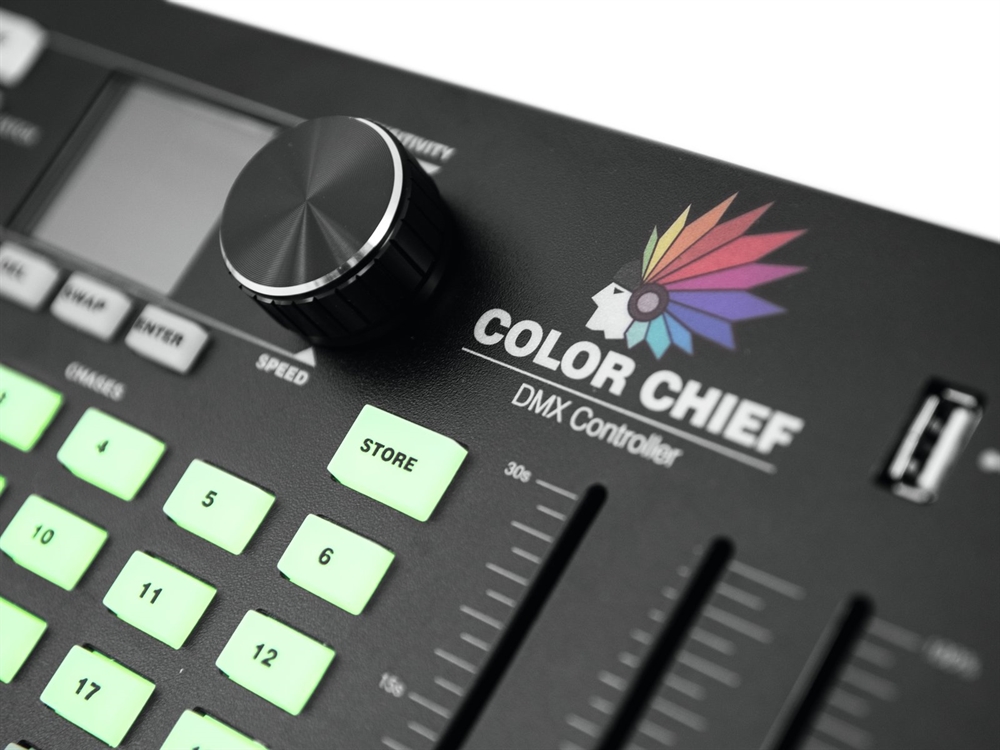

Color Chief Store Button
Easy memory procedure
Memorizing your scenes is just as easy. When you have created a nice scene and want to memorize it as a new step you just press the Store button. This way you can easily create individual scenes and chases which can be stored on up to 24 memory banks. However, you can also easily add steps at any position, edit previously memorized scenes or delete steps.
Simultaneously running chases
With the Color Chief you can run more than one chase, thus you can use several chases and scenes simultaneously. What is more, every chase can have its own running time and fade time, i.e. you can determine for each chase how fast it should run and if the fade effect should be hard or soft. Of course, you can change these settings anytime.

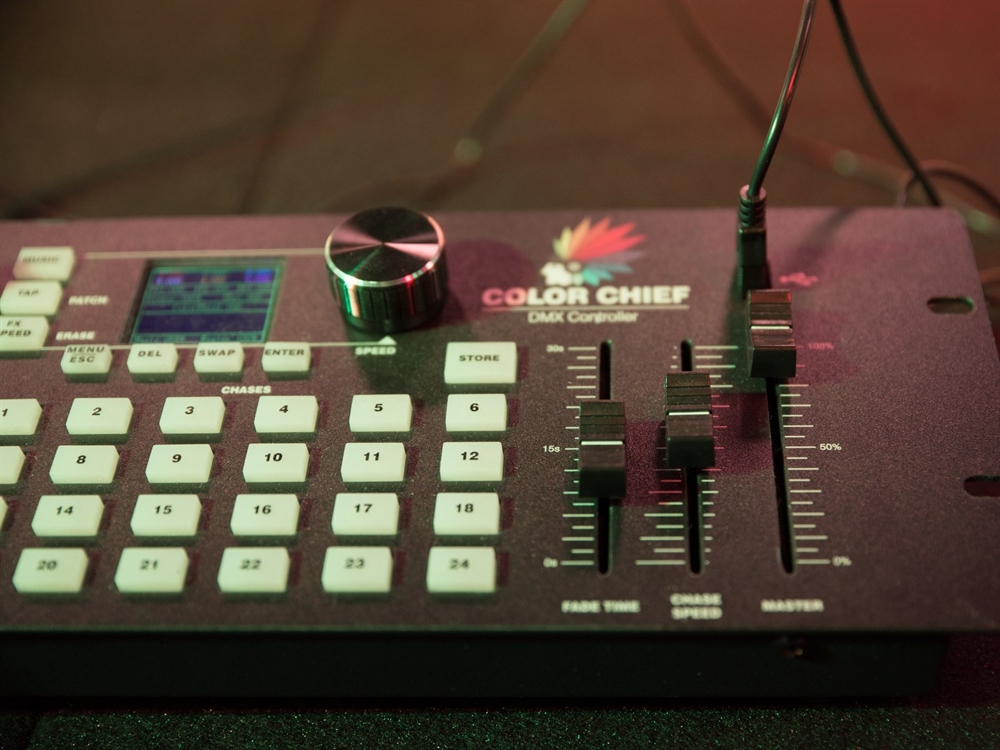

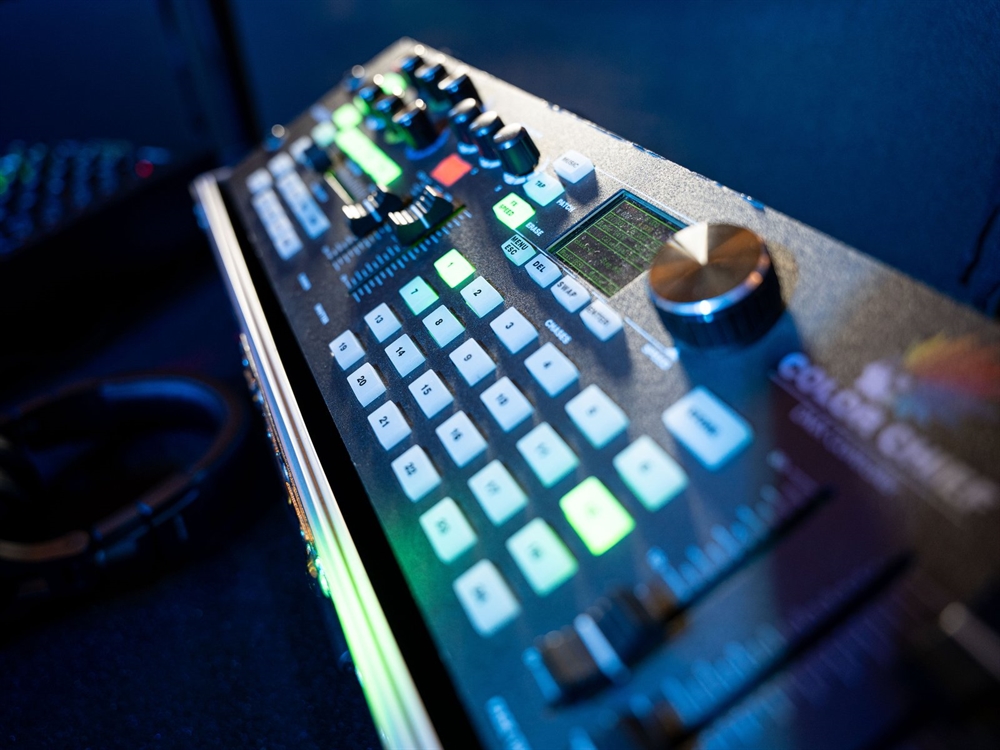

Color Chief Controller
Everything safe
The Color Chief has a USB interface that can be used to memorize the entire control panel with all its settings and programs. You can memorize up to 24 complete setups on a USB flash drive. This way you can easily manage different shows or fixture arrangements.

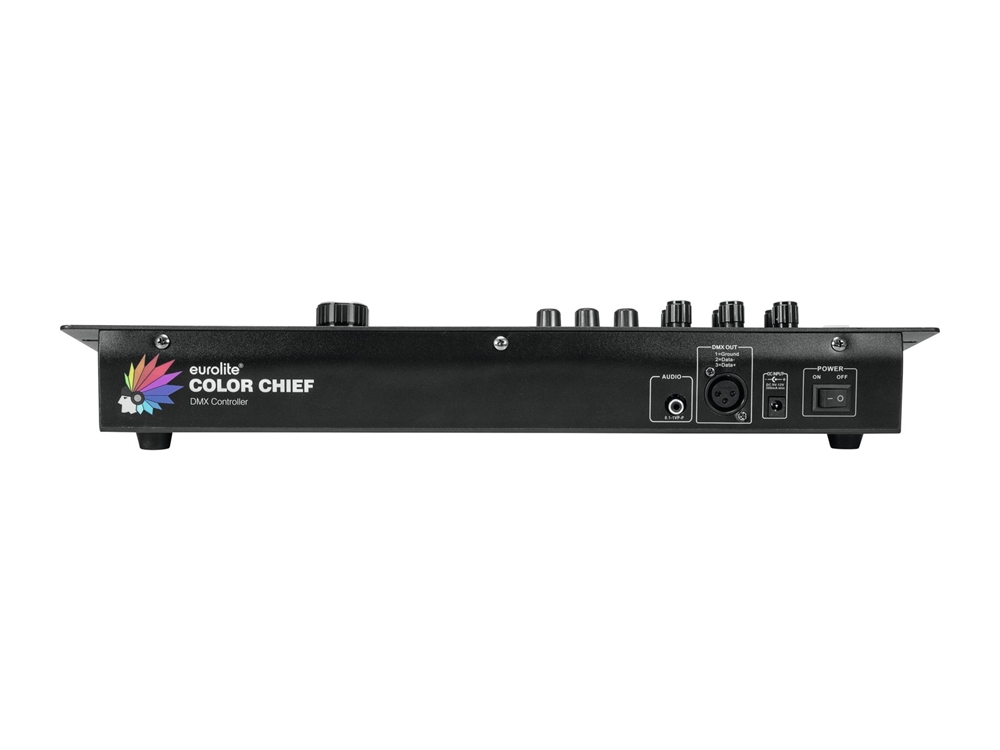

Color Chief connections


DMX lighting desk with innovative control concept for LED spotlights

  • Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
  • For 8 devices or device groups, each with up to 4 segments
  • Each device can occupy up to 30 channels
  • Quick and easy programming
  • Additional fixtures can be configured manually
  • 8 color effects directly selectable
  • 3 additional channels available per fixture (e.g. for rotations)
  • Color wheel selection and simulation
  • 24 memory spaces for scenes and chases
  • Several chases can be run simultaneously
  • USB port for storing program data
  • Sound control via audio signal or TAP button
  • Master dimming, fade time and run time easily adjustable
  • Firmware update via USB
  • Programmable 24 sequencens
  • Can transmit up to 240 DMX channels
  • Control via DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
  • (19") 48.3 cm rack installation 3 U
  • Desktop console housing

Package contents

  • 1 x controller, 1 x user manual, 1 x external mains adapter


Power supply:100-240 V AC, 50/60 Hz
9 V DC 800 mA
Power consumption:10 W
IP classification:IP20
Power connection:Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Programs:Programmable
24 Sequences
DMX channels:Output 240
DMX output:1 x 3-pin XLR (F) mounting version
Control:DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
Housing color:Black
Available storage media:USB devices (FAT 32)
USB port:Typ A
Color:Black
Housing design:(19") 48.3 cm rack installation 3 U
Desktop console housing
Dimensions:Width: 48,3 cm
Depth: 13,35 cm
Height: 8,5 cm
Weight:2,25 kg
Varenr.: E-70064575
