200 W constant-voltage driver with 12-28 V DC input
DALI DT6 compatible
0.1% deep, flicker-free dimming with Hybrid HydraDrive
Two LED outputs and two control channels
LEDcode2 support

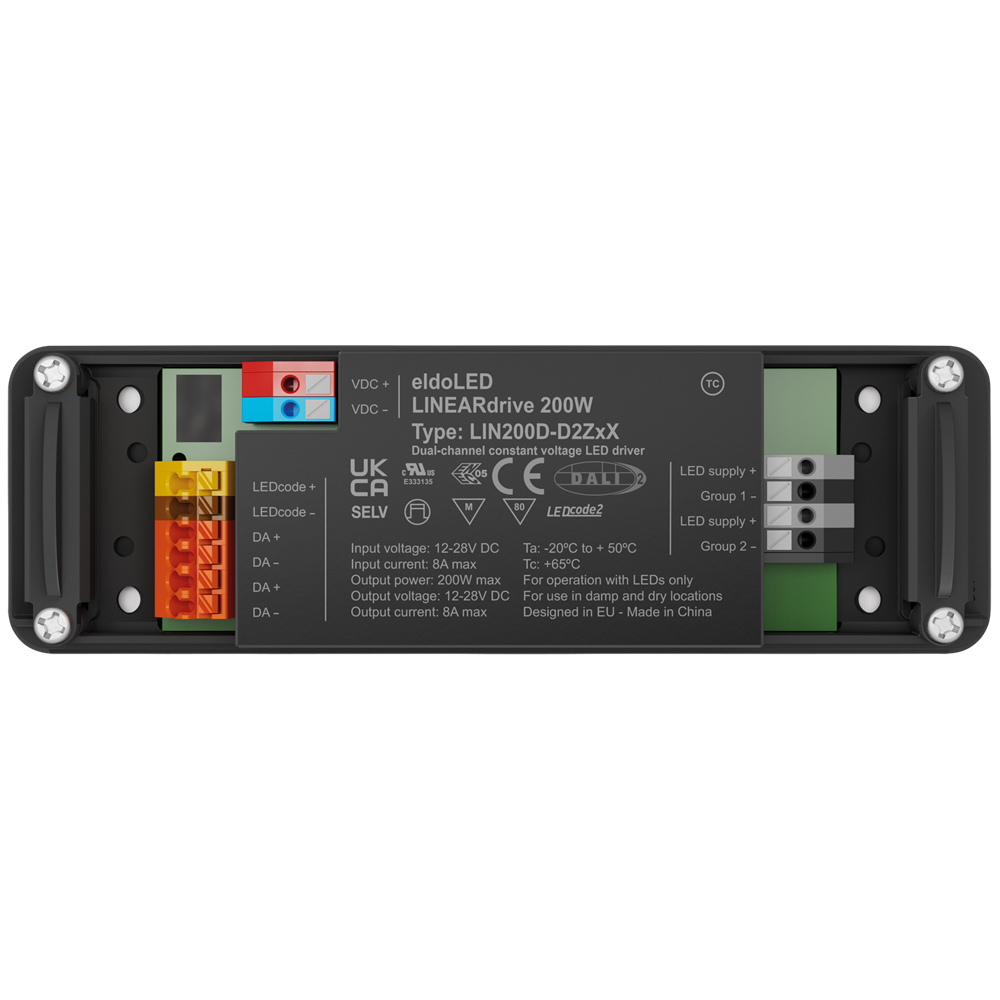

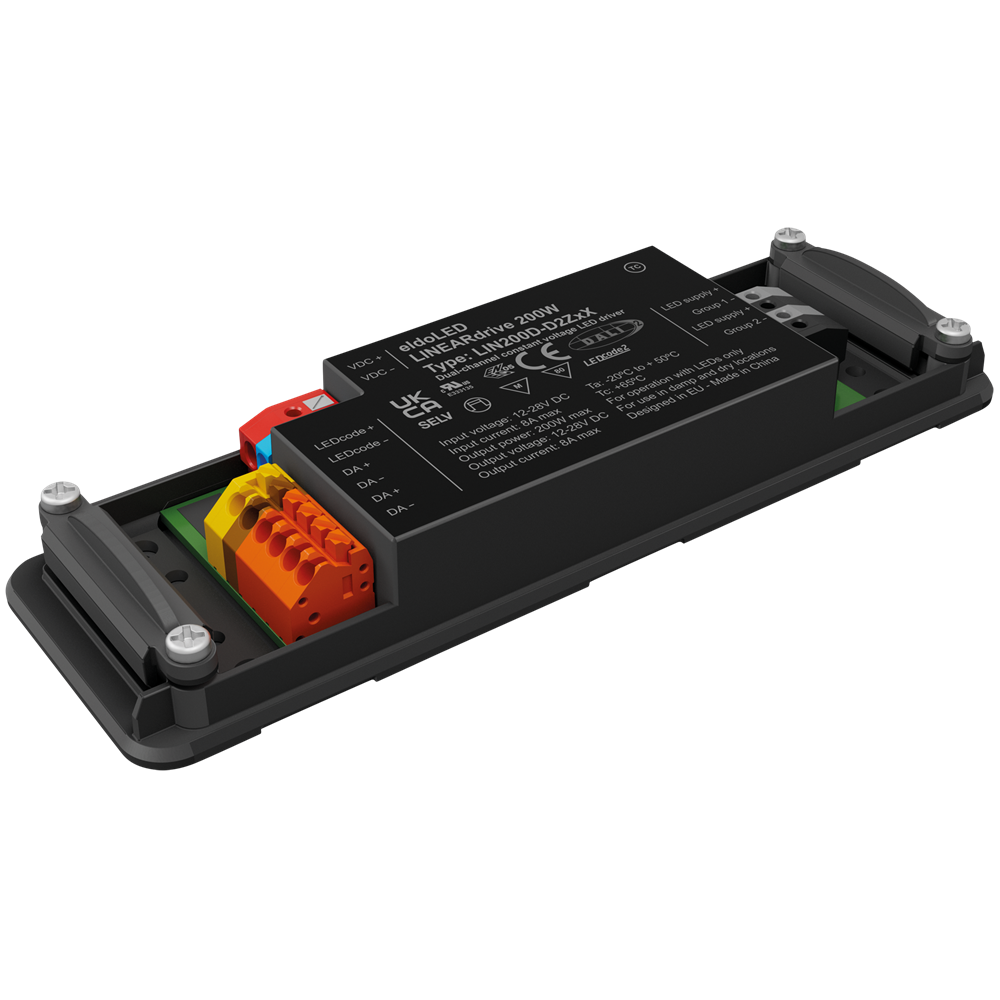

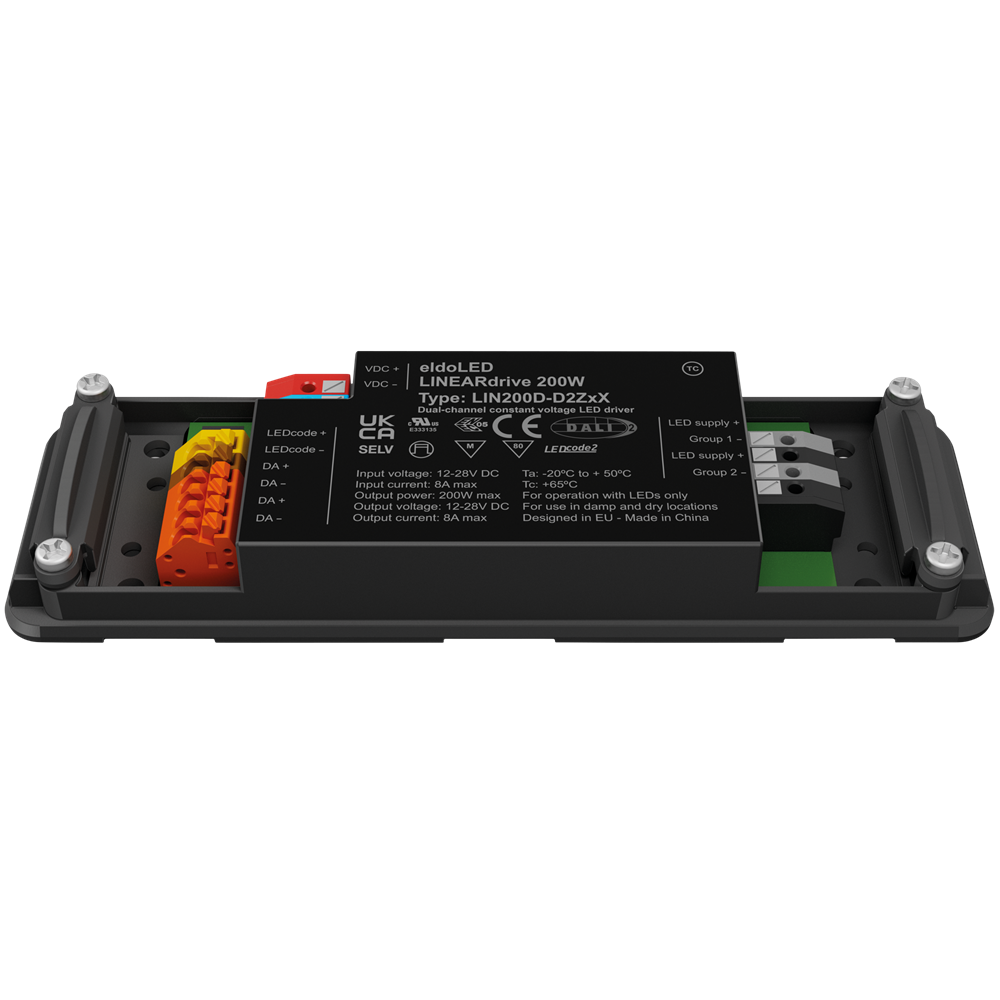

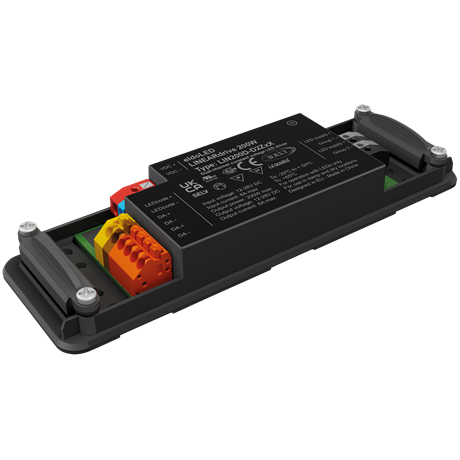

The eldoLED LINEARdrive DC - 200 W is a programmable constant-voltage LED driver designed for architectural, commercial and entertainment lighting applications. It offers smooth dimming, precise control and robust compatibility with DALI DT6. This driver supports up to 224 W output power, with a 12-28 V DC input and output range and up to 8 A maximum output current, shared across two independent LED outputs. It features two LED outputs driven by two separate control channels, making it ideal for tuneable-white systems with independent control. It is perfect for cove lighting, LED strips and dynamic architectural effects.
The LINEARdrive DC series is designed for applications ranging from single-colour to Dim-to-Warm and full-colour effects, with deep dimming down to 0.1% and compliance with international flicker standards. Programming is fully supported through the eldoLED TOOLbox and FluxTool software, enabling custom dimming curves, LightShape features and LEDcode2 functionality for advanced integration and accessory control.
Control Mode: DALI
Protocols: DALI 2 ( DT6 )
BT: No
Power Supply: 12-28 V DC
Output voltage: 12-28 V DC
Maximum Output Current (A): 8 A
Power Connector In: Open End
Power Connector Out: Open End
Data Connector In: Open End
Data Connector Out: Open End
Length (mm): 153 mm
Height (mm): 23 mm
Width (mm): 50 mm
Weight: 0.149 kg
IP Rating: IP20 (indoor use only)
Housing: Plastic
Colour: Black
Maximum Ambient Temperature: 50 °C
Minimum Ambient Temperature: -20 °C
Maximum Surface Temperature: 65 °C
