FEATURES
30° Beam Angle
ArtNet and KlingNet Support
RDM - Remote Device Management
Individual LED Control
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
SOURCE
(6) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
6,500 LUX 604 FC @ 1m (3.3’) (30° Full ON)
1,934 LUX 180 FC @ 2m (6.6’) (30° Full ON)
901 LUX 84 FC @ 3m (9.8’) (30° Full ON)
508 LUX 47 FC @ 4m (13.1’) (30° Full ON)
318 LUX 30 FC @ 5m (16.4’) (30° Full ON)
EFFECTS
Strobe and Chase Effects
Individual LED Control
Variable and Selectable Dimming Curves
COLOR

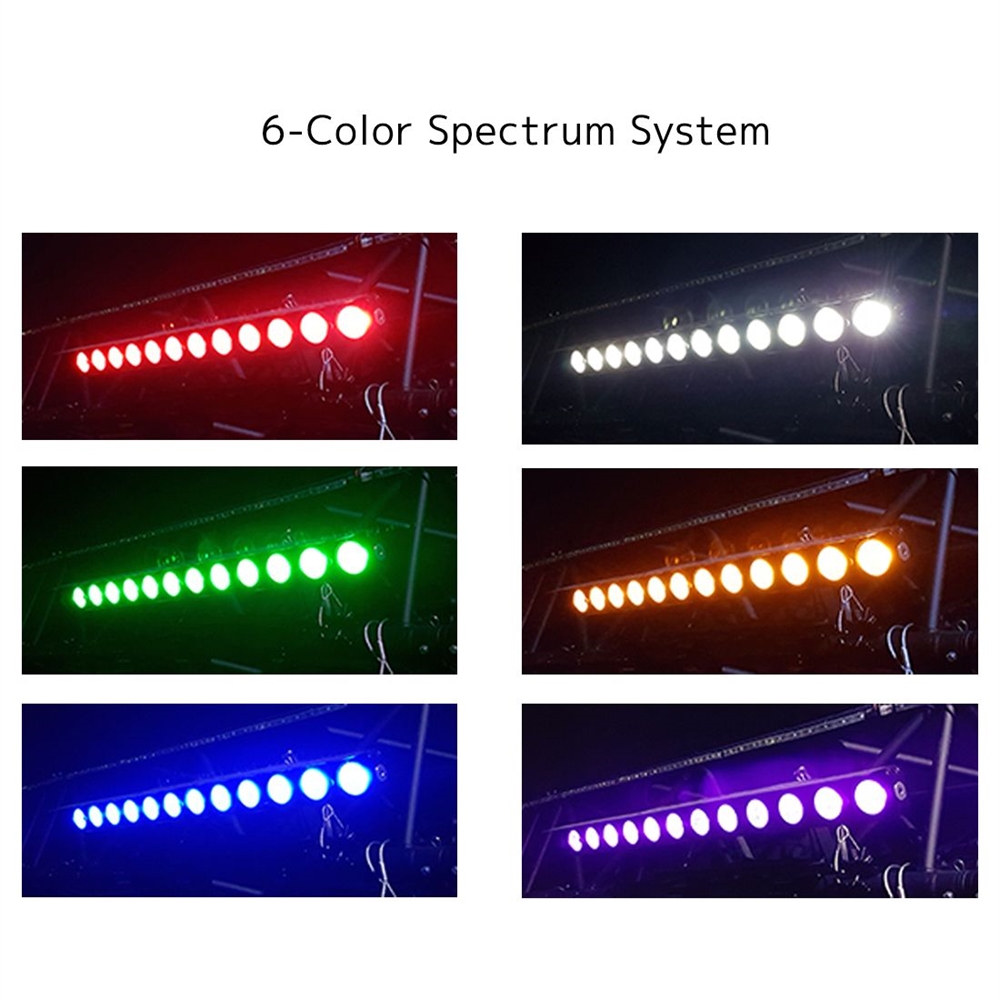

RGBAW+UV Multi-Chip LEDs
CONTROL / CONNECTIONS
8 DMX Channel Modes (6 / 7 / 11 / 13 / 18 / 36 / 39 / 43)
4 Button Control Panel and LCD Menu Display
ArtNet + KlingNET Protocol Support
RDM (Remote Device Management)
(2) locking ethernet Ports
3pin and 5pin DMX In/Out
Locking power cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 450mm (17.7”)
Width: 206.4mm (8.1”) *with included glare shield
Vertical Height: 155mm (6.1”)
Weight: 4.1 kg (9.0 lbs.)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
93W Max Power Consumption
Power Linking: 11pcs @110V / 25pcs @240V
-15°C to 45°C (5°F to 113°F)
UV Wavelength: 395nm
INCLUDED ITEMS

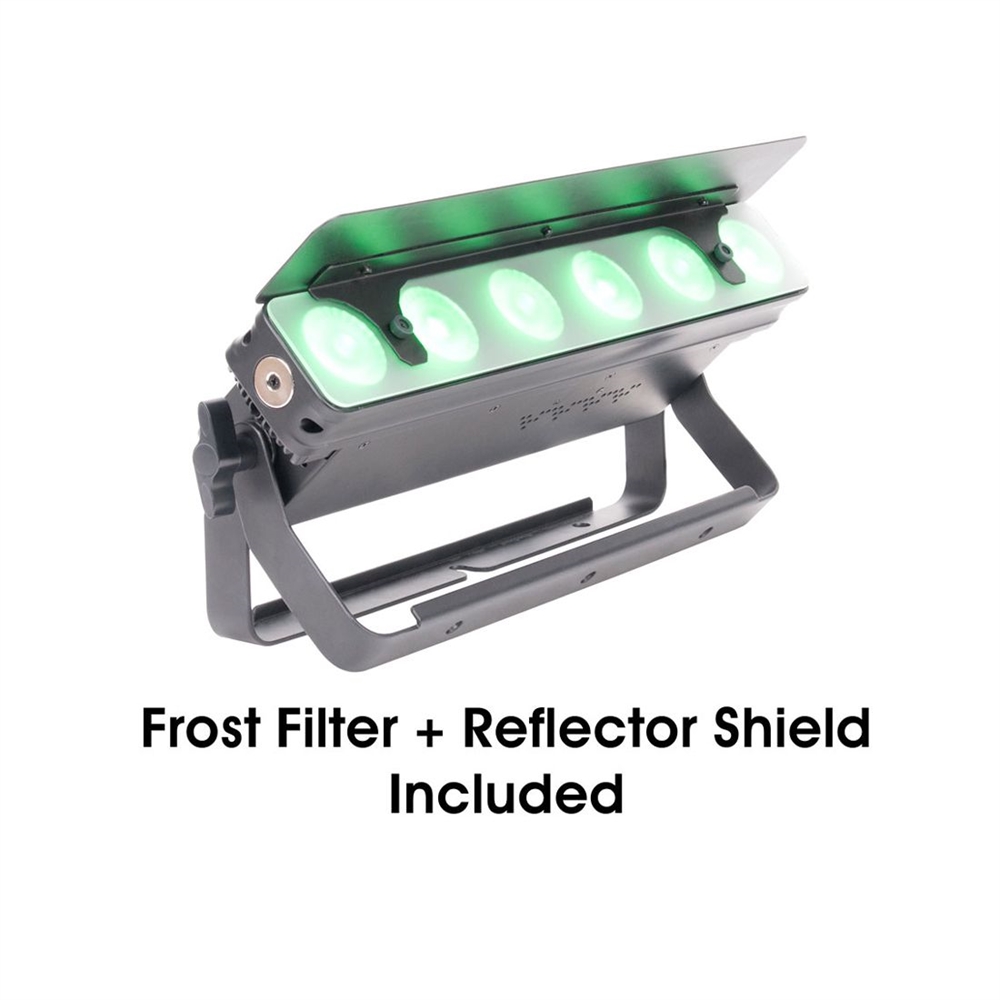

Glare Shield

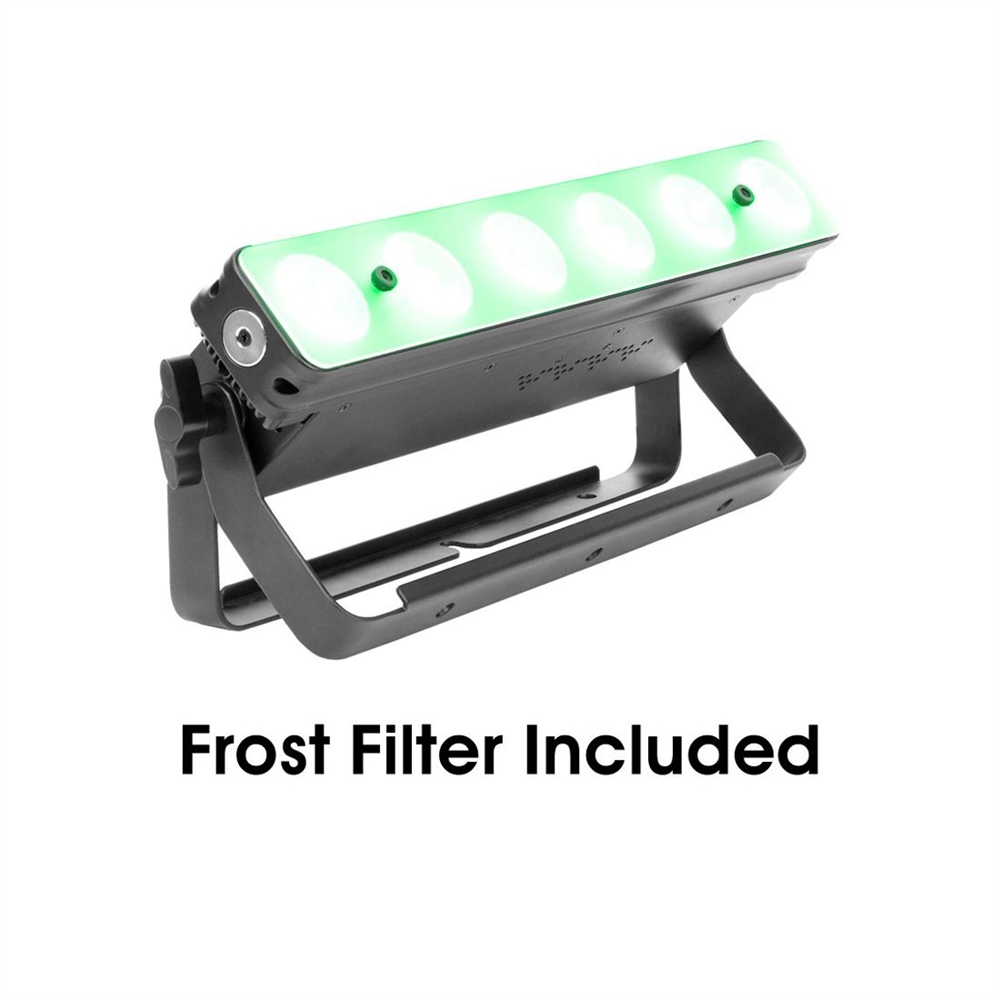

Frost Filter
Mounting Screws for Glare Shield and Frost Filter
