FEATURES
(6) 20W RGBLA+UV LED Array
>4000 Lumens, 93 CRI
Extra Large 50mm Lenses
Beam Angle: 30°x 14° (Frost Filter Included)
Full Pixel Control
Completely Fanless Cooling

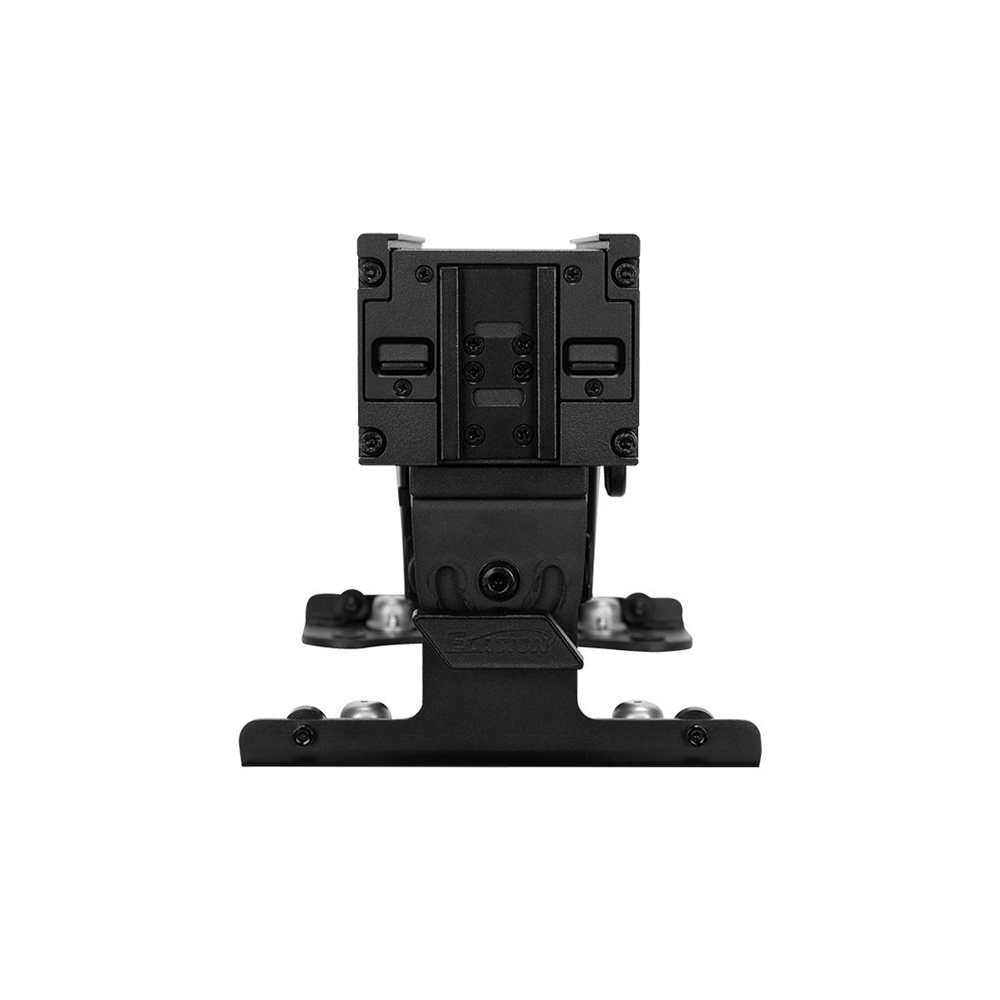

Integrated L Track for Flexible Mounting
Unique End-to-End Interconnection System
Art-Net, sACN and KlingNet Support
IP65 Rated
SOURCE
(6) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
>4000 Total Lumen Output
CRI - 93
Beam Angle: 30°x 14°
Field Angle: 44°x 30°
EFFECTS
Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
13 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 13ch, 16ch, 16ch, 22ch, 22ch, 34ch, 46ch, 82ch, 36ch)
8 Six Bar 500 Emulation DMX Channel Modes (6ch, 7ch, 11ch, 13ch, 18ch, 36ch, 39ch, 43ch)

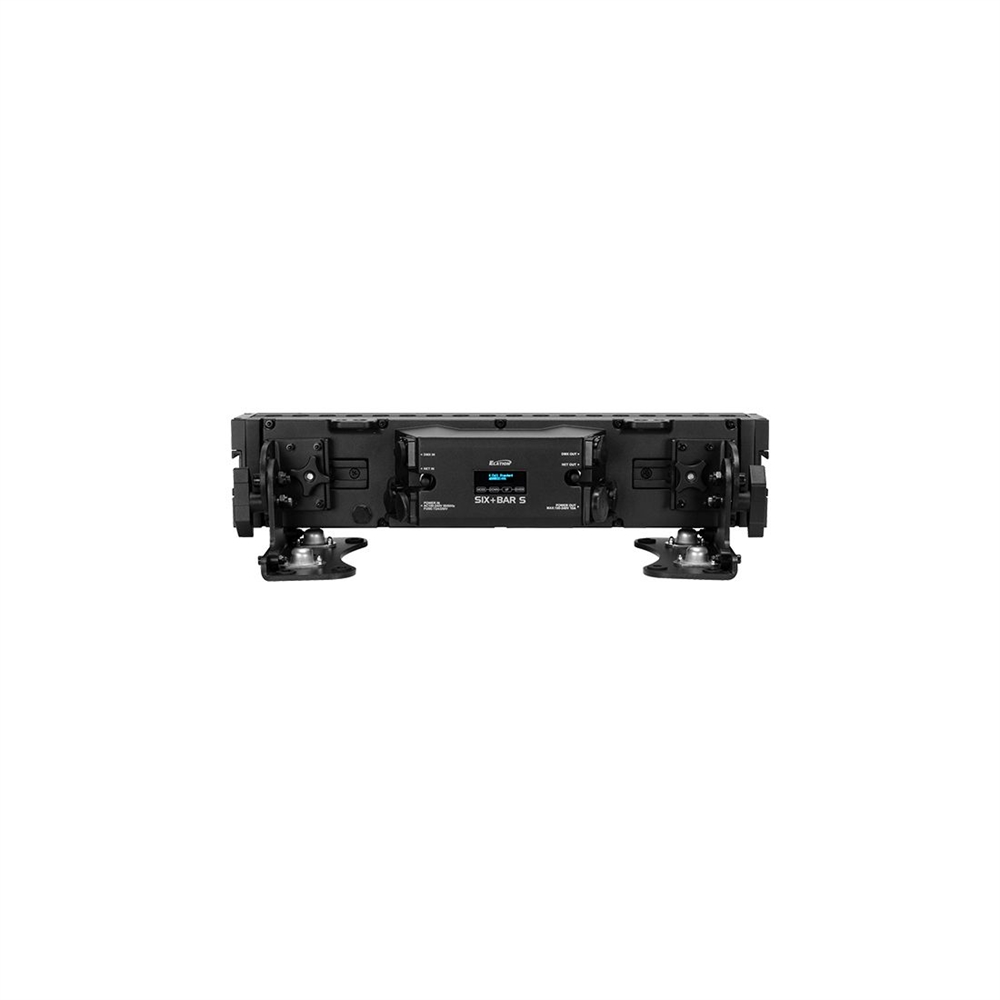

4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)

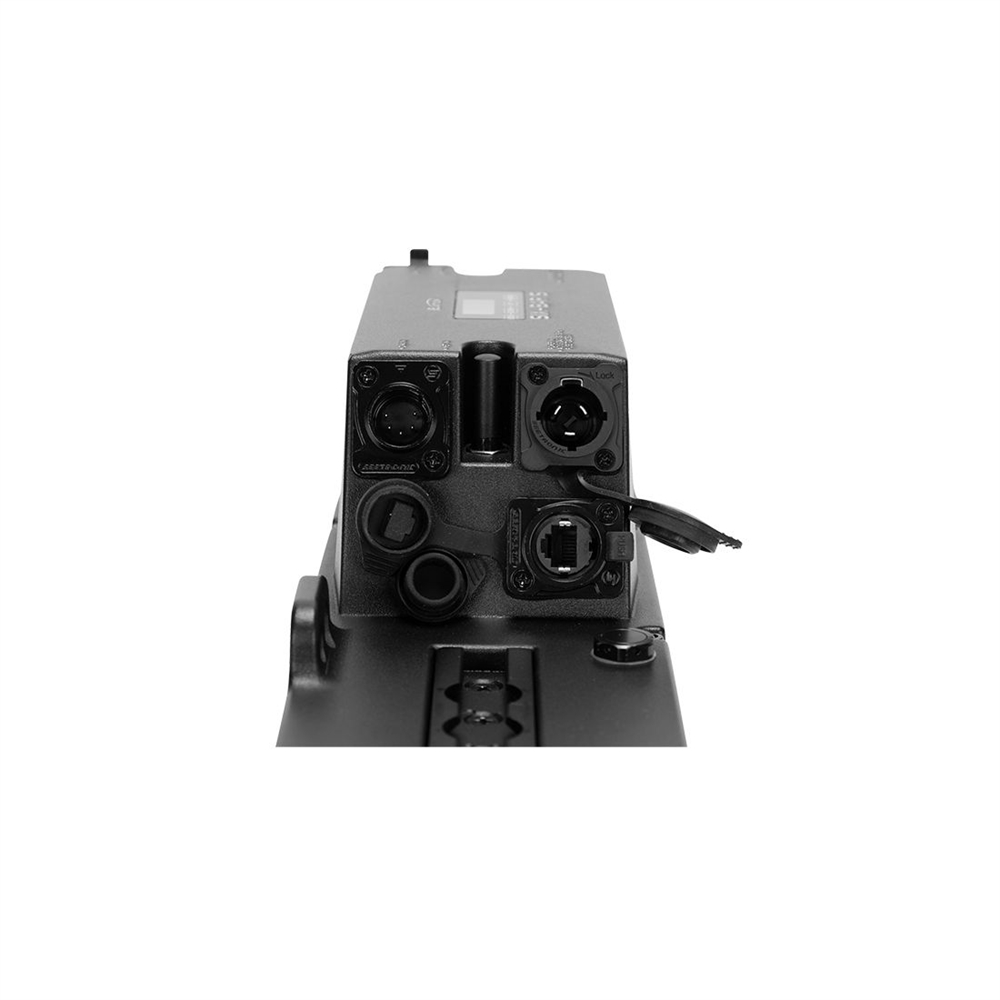

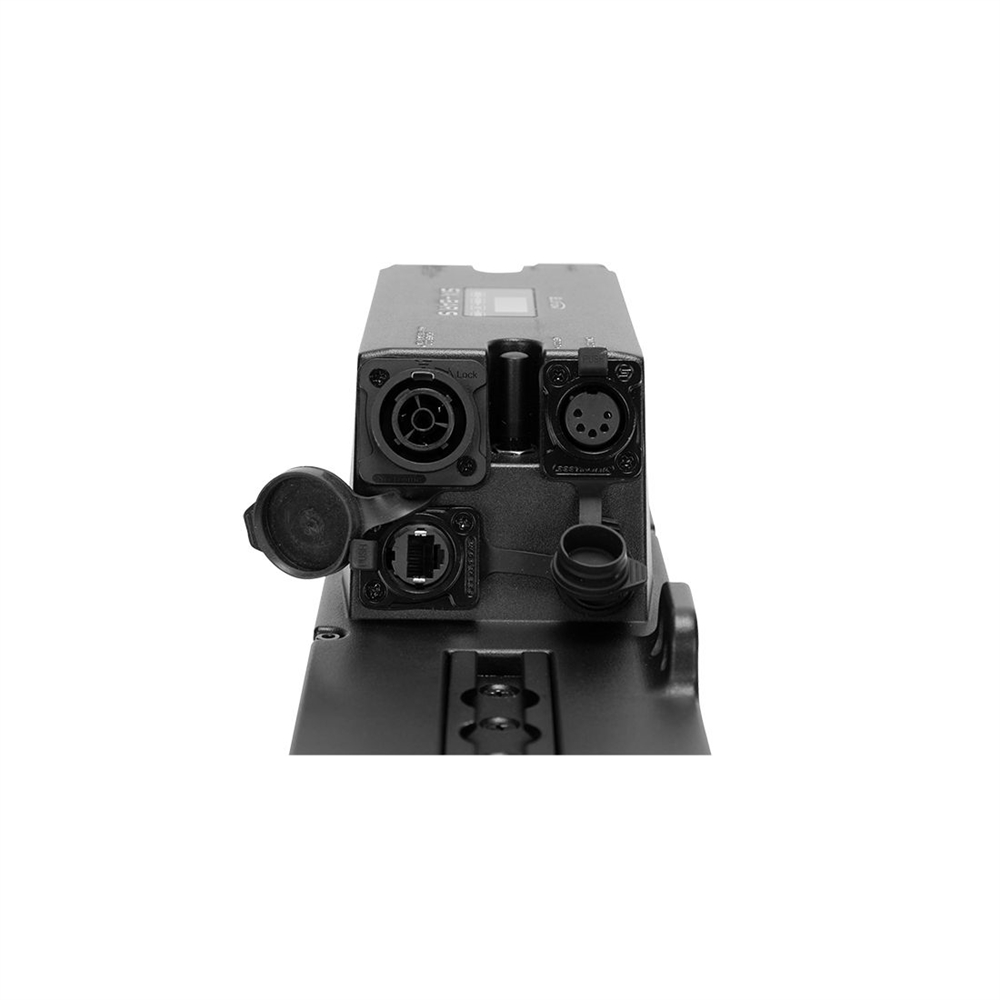

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)
IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 500mm (19.69”)
Width: 105mm (4.13”)
Horizontal Height: 206mm (8.11”)
Weight: 6.75kg (14.88 lbs)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Thru Capacity: @110V: 16 Units; @240V: 32 Units
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 375.1
INCLUDED ITEMS
IP65 Locking Power Cable
Frost Filter
Glare Shield
Fixture Interconnect Key
