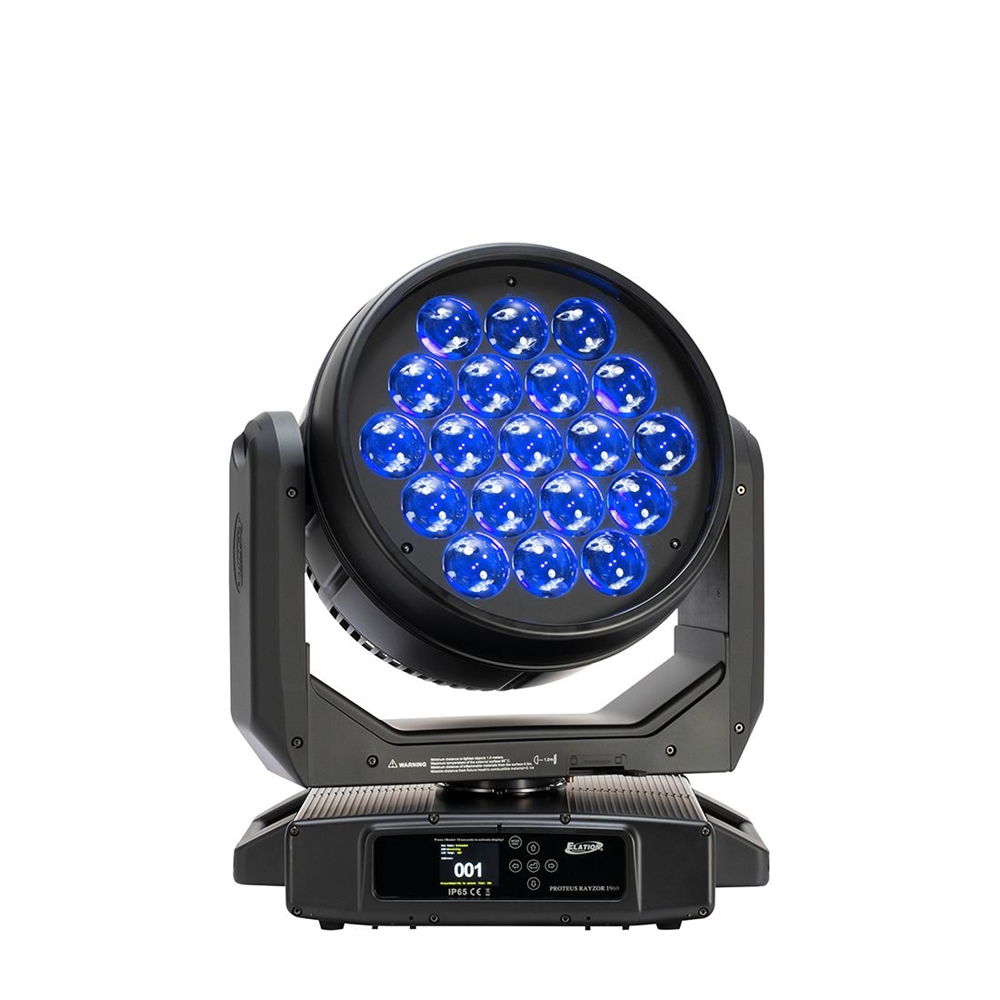

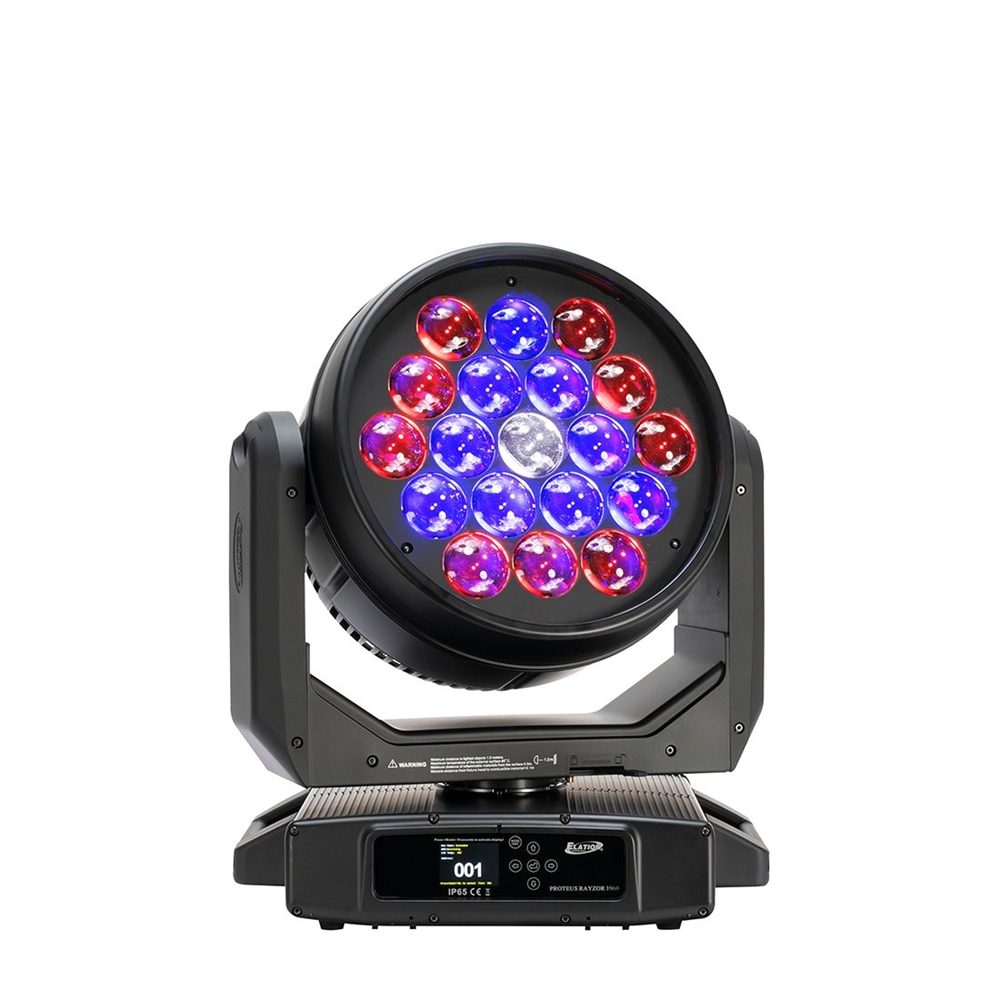

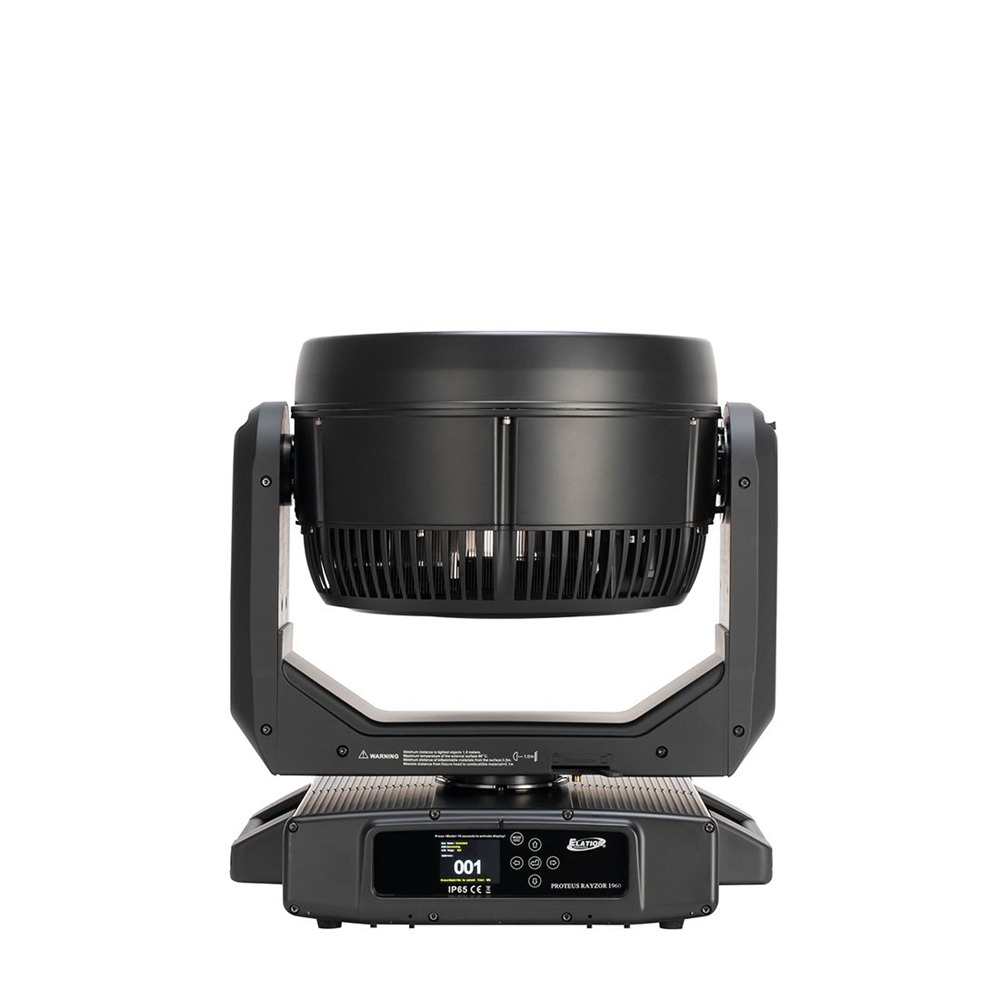

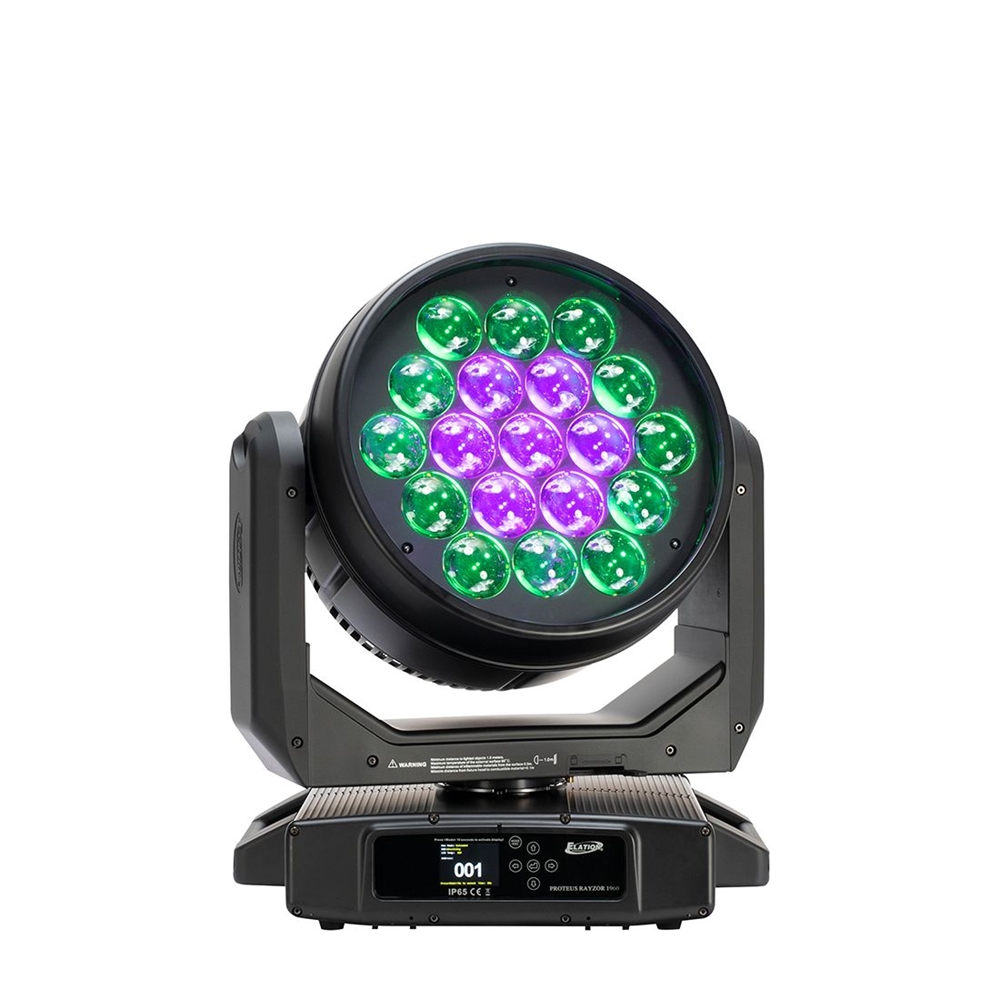

Elation PROTEUS RAYZOR 1960, 19x 60W RGBW LED Zoom 7.8° - 71.1°

Fjernlager
Kontakt os om leveringstid
Bedømmelse for Elation PROTEUS RAYZOR 1960, 19x 60W RGBW LED Zoom 7.8° - 71.1°
Produktet er endnu ikke bedømt

74.620,00DKK ved 1 stk.

Vis uden moms

The PROTEUS RAYZOR 1960™ is a compact yet extremely powerful IP65 rated Wash Effects fixture featuring Elation’s unique SparkLED™ system and fast continuous Pan and Tilt motion. With its wide zoom range from 5° to 55° it provides intense and well-defined mid-air beams at over 18.000 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

FEATURES

IP65 Rated LED Wash Effects Fixture
19x 60W OSRAM RGBW LED with Pixel Control
76x 2W SparkLED™ Effect with Pixel Control (patented)
Extreme Zoom – 5.6° for mid-air beam to 55° for even washes
Fast and precise 360° continuous Pan and Tilt rotation
Beam FX and Smooth Wash fixture in a compact IP65 certified housing

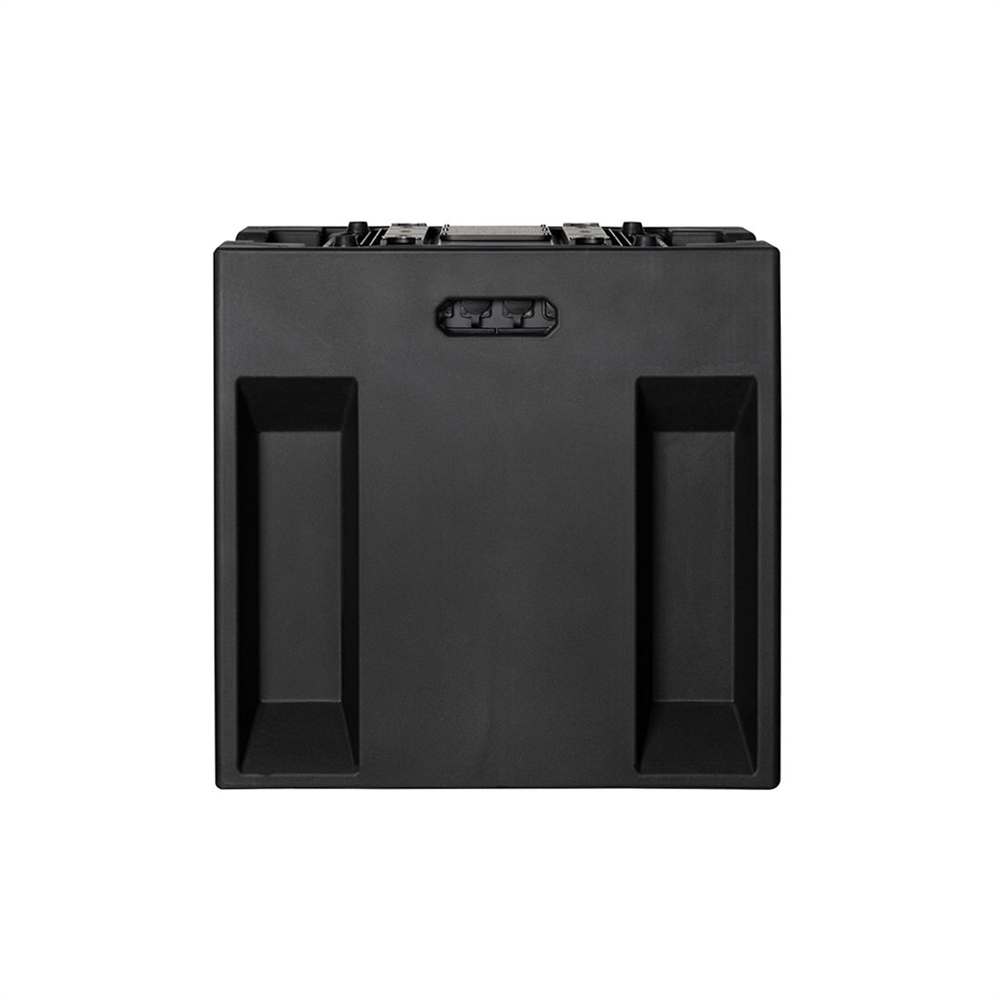

FIL (Foam In Lay) Polyurethane Foam Packaging Included

SOURCE

(19) 60W Osram RGBW LEDs
(76) 2W White SparkLED™
50,000 Hour Average LED Life*

*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

18.100 Total Lumen Output
CRI 80
Zoom Range 5° - 55°
Beam Angle 5.6° - 53.5°
Field Angle 7.8° - 71.1°

EFFECTS

Motorized Zoom
Linear Color Temperature Presets (2700-8000K)
RGBW Color Mixing and Pixel Control

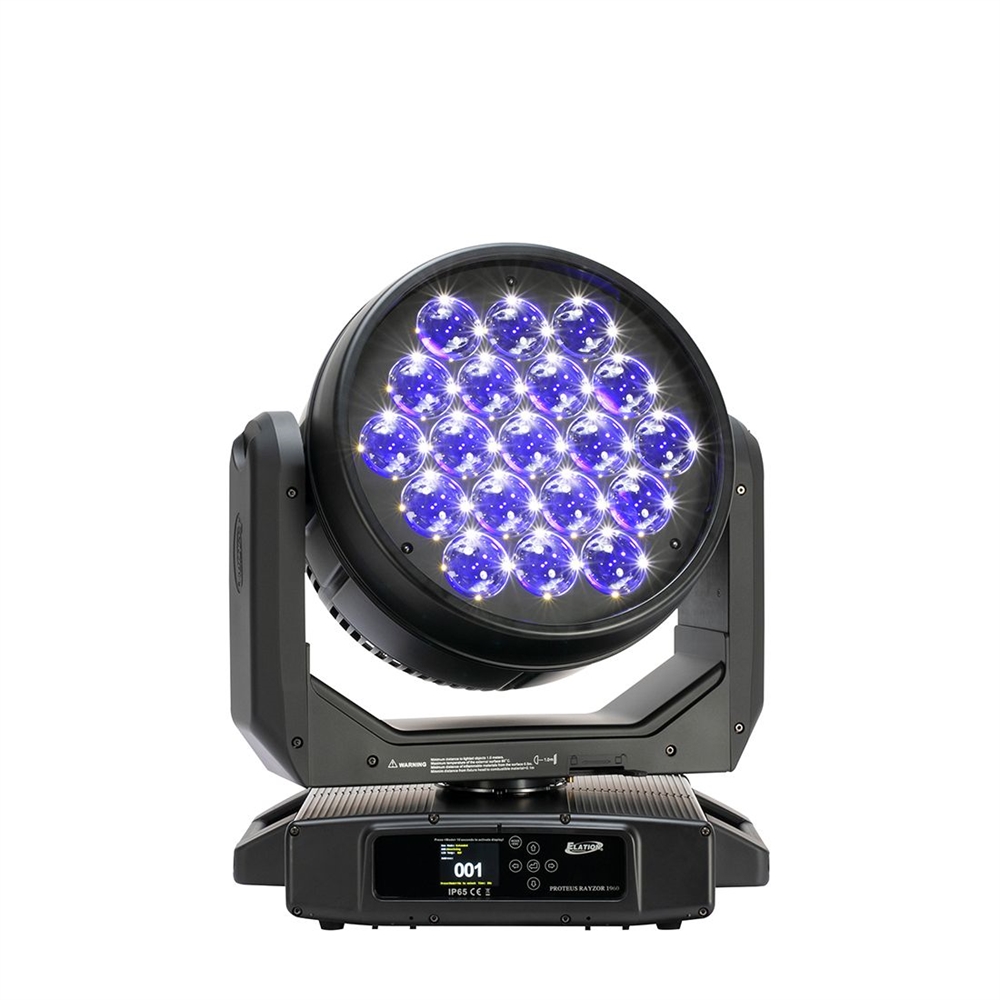

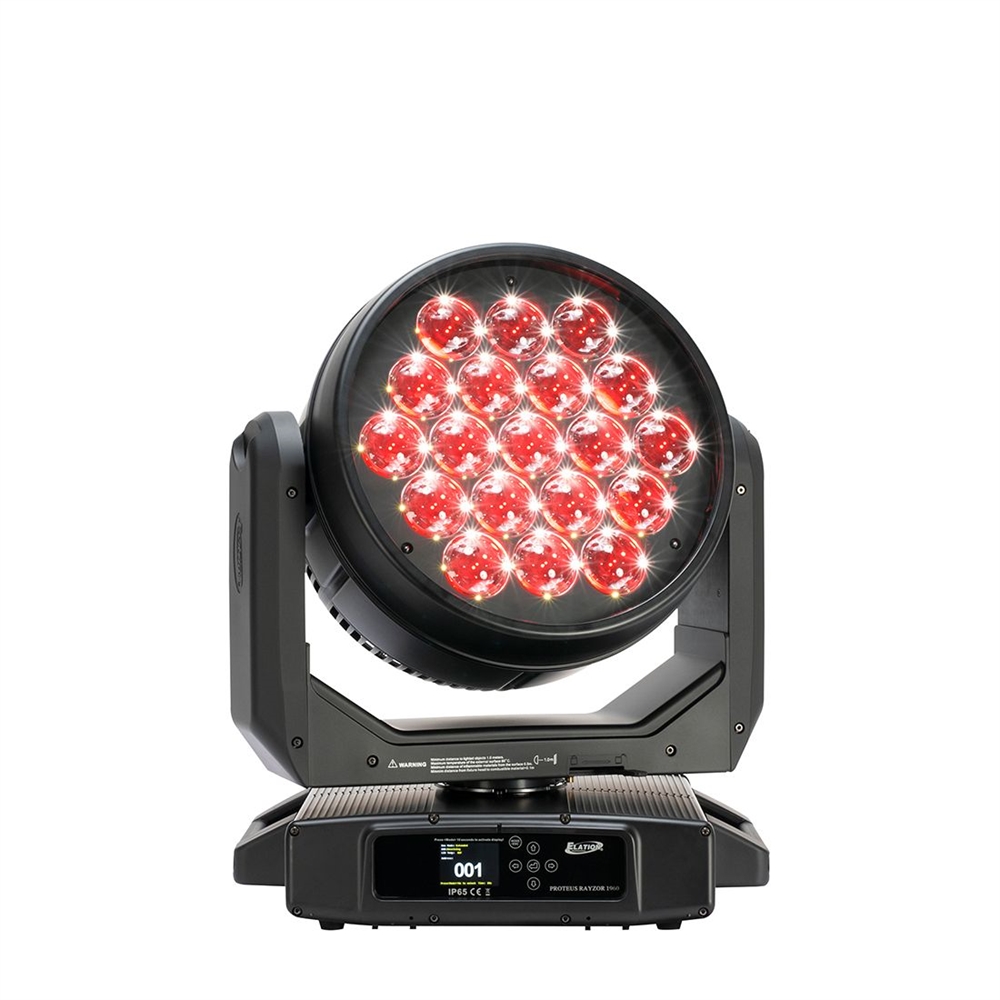

White SparkLED Lens Effect
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming

Pan Angle: 360° (continuous rotation) / 540°
Tilt Angle: 360° (continuous rotation) / 270°

CONTROL / CONNECTIONS

3 DMX Channel Modes (25 / 100 / 176 channels)
360° Continuous Pan and Tilt Movement
DMX Adjustable Refresh Rate (900 -25000 Hz)
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
RDM Support

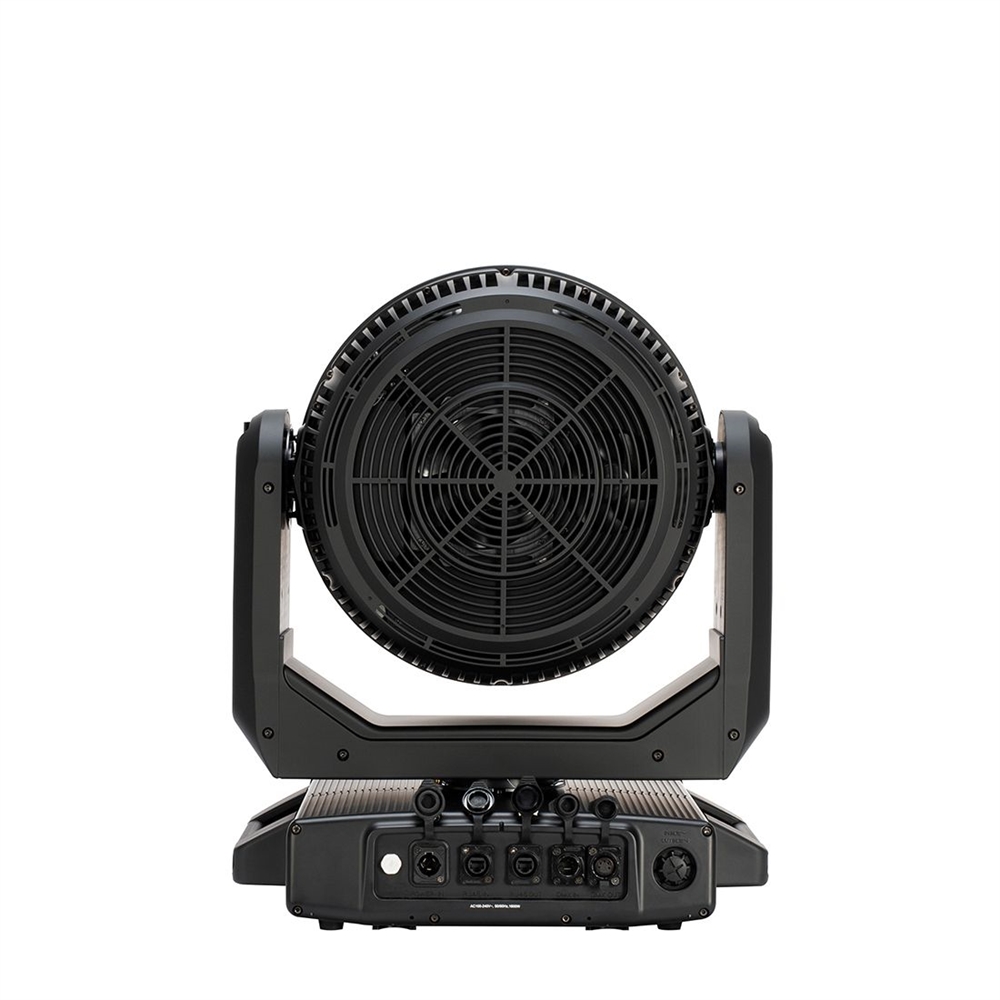

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
IP65 Locking Power Cable In

SIZE / WEIGHT

Length: 370mm (14.6 in)
Width: 468mm (18.4 in)
Height: 582mm (22.9 in)
Weight: 32,6kg (72.0 lbs.)

ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
1600W Max Power Consumption

Dataark / Info Blad

Varenr.: M-1237000261
