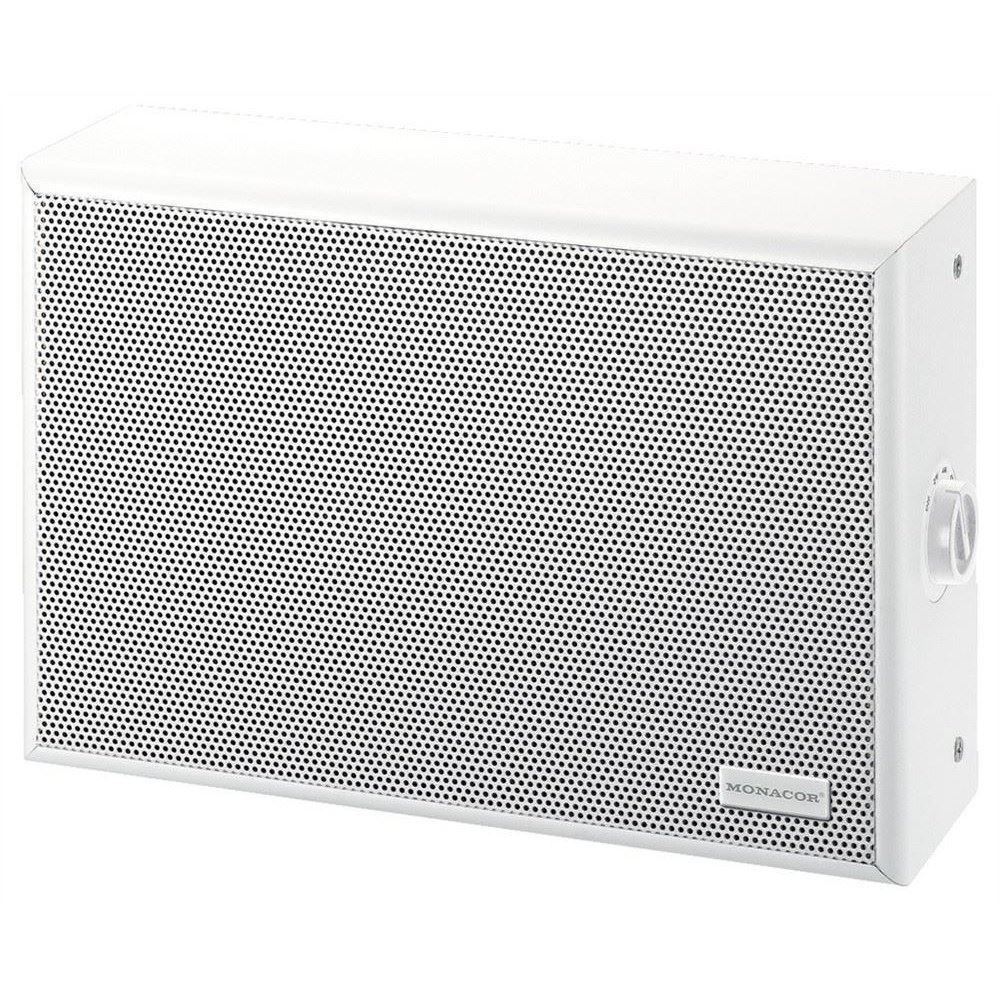

ELA-væghøjttaler - ESP-70/WS

PA væg højttaler, hvid
100V line teknik, 5-trins drejekontakt for 10/6/4/2WRMS/ Off

PA væghøjttaler

100 V line-teknologi
5-trins drejekontakt (10/6/4/2 W/off)
Drejekontakten kan erstattes af en dækplade for at undgå utilsigtede indstillinger
Prioritetsrelæ
Hvidt trækabinet med frontgitter i metal
Monteringsplade til nem vægmontering
Testet og godkendt som boldskudssikre iht. DIN 18032, part 3

Active/passive	passive
Transmission method	100 V
Impedance	-

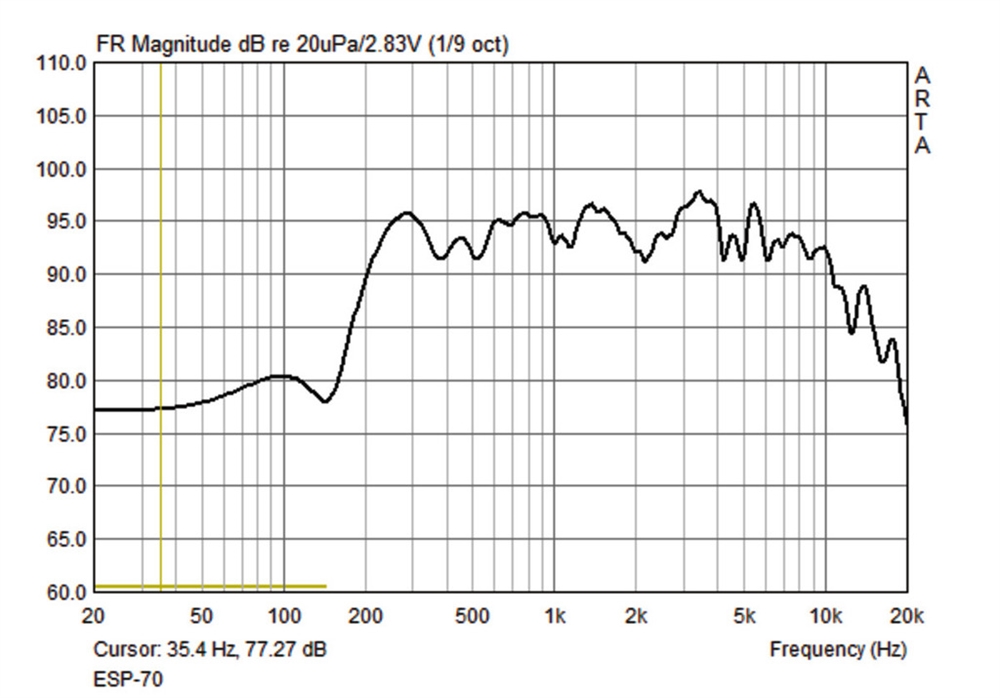

Frequency range	95-19,000 Hz
Power rating	-
Max. power	-
THD	-
S/N ratio	-
Input signal	-
System	-
Bass speaker	-
Midrange speaker	-
Tweeter	-
Number of speakers	-
Speaker size	-
Power rating	10/6/4/2 W
Peak music power output	-
Sensitivity	-
Max. rated SPL	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Features
Housing material	wood
Colour	white
Mounting facility	-
Protected against ball rebound	yes
Protective class	-
Admiss. ambient temp.	0-40 °C
Power supply	-
Width	300 mm
Height	200 mm
Depth	90 mm
Weight	2.3 kg
Inputs	-
Outputs	-
Replacement voice coil
Other features	-
Accessories

Varenr.: 162120
