DI Box active - Palmer Pro

DI Box active - Palmer Pro
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for DI Box active - Palmer Pro
    Produktet er endnu ikke bedømt
  •
    2.239,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

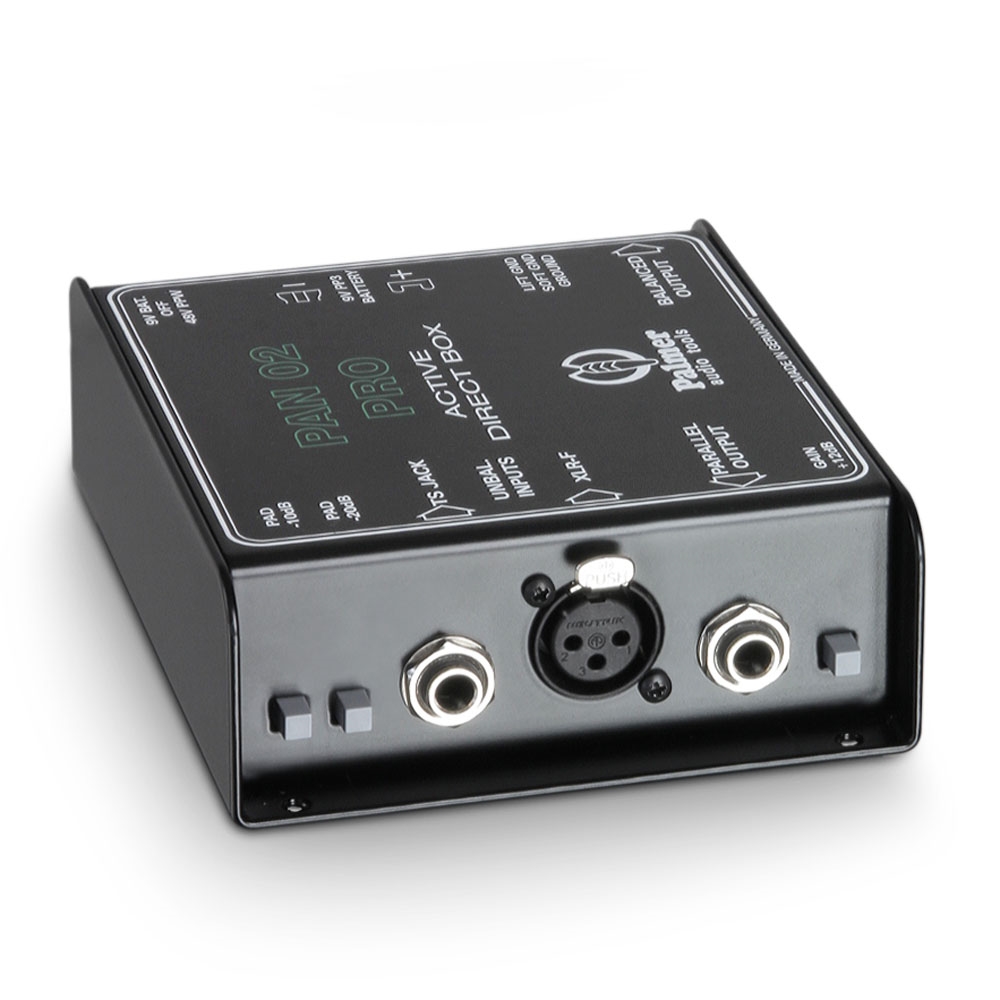

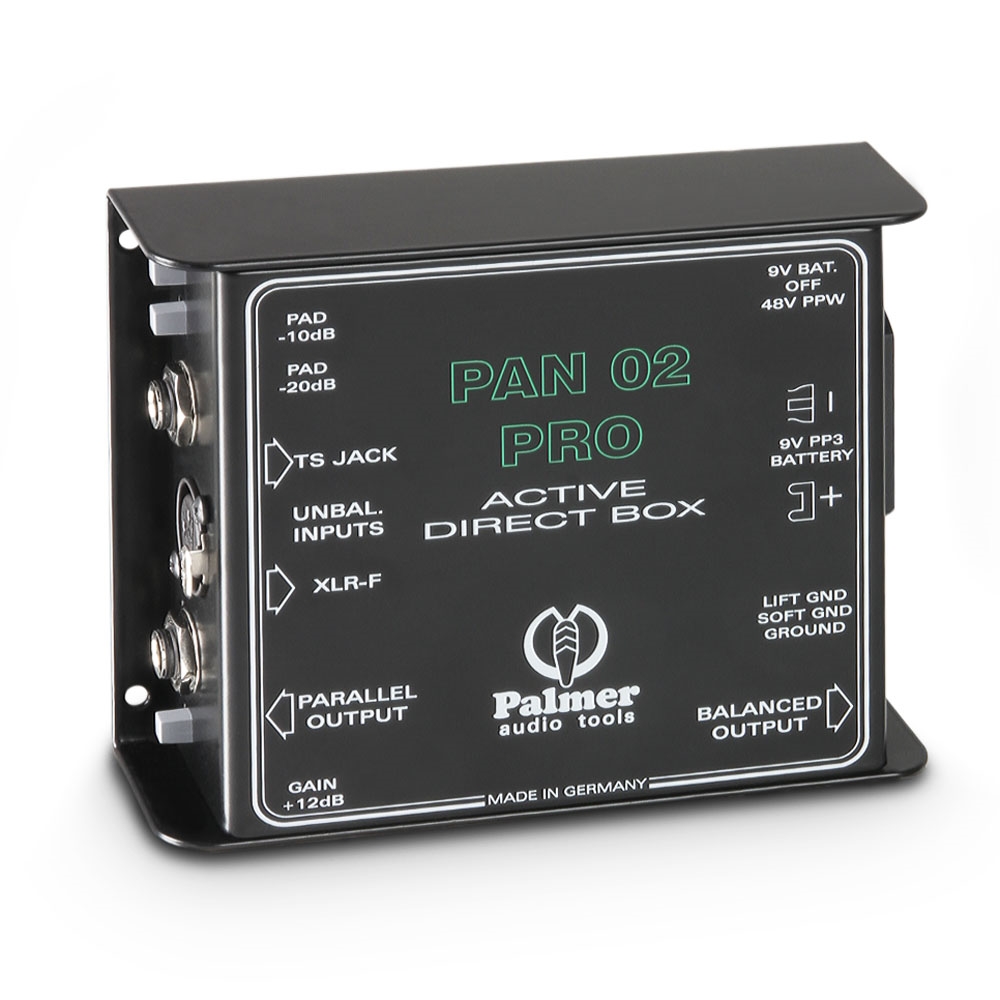

The Palmer PAN02 PRO is an active DI-box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The Groundlift switch has a "lift" position allowing adjustments between a "soft and hard grounding" . The balanced output is achieved with a high quality transformer in the Mumetall housingthat was specially developed for this purpose. The PAN02 Pro can be powered either with a 9 V battery or 48 V phantom power. A two-colour LED indicates which source supplies the power.





  • First-class Active Di-box
  • Unbalanced XLR Input
  • 3-way attenuator (-10, -20, -30dB)
  • Switchable gain (12dB)
  • Max. Output voltage +20 dB
  • Soft ground lift

Product typeDI Boxes
Typeactive
Channels1
Inputs2
Input connectors6.3 mm jack, XLR
Max. input level+ 45 dBu
Input impedance0dB & 12 dB: 1 M Ohm(s), -10 & -20 dB: 70 k Ohm(s), -30 dB: 40 k Ohm(s)
Input pad0 dB, -10 dB, -20 dB, -30 dB
Outputs1
THRU outputs/channel1
Output connectors6.3 mm jack, XLR
Max. output level+ 20 dBu
Output impedance600 Ohm(s)
Frequency response20 - 20000 Hz
Transformer balancedyes
Ratio3.16:1, 10:1, 31.6:1, 1:4
ControlsBoost, ground lift, attenuator, battery/+ 48 V Power
Operating voltage+48 V phantom power, 9 V block
Cabinet materialsheet steel
Cabinet surfacepowder coated
Width116 mm
Depth140 mm
Height43.5 mm
Weight0,85 kg


Varenr.: A-PAN02PRO
