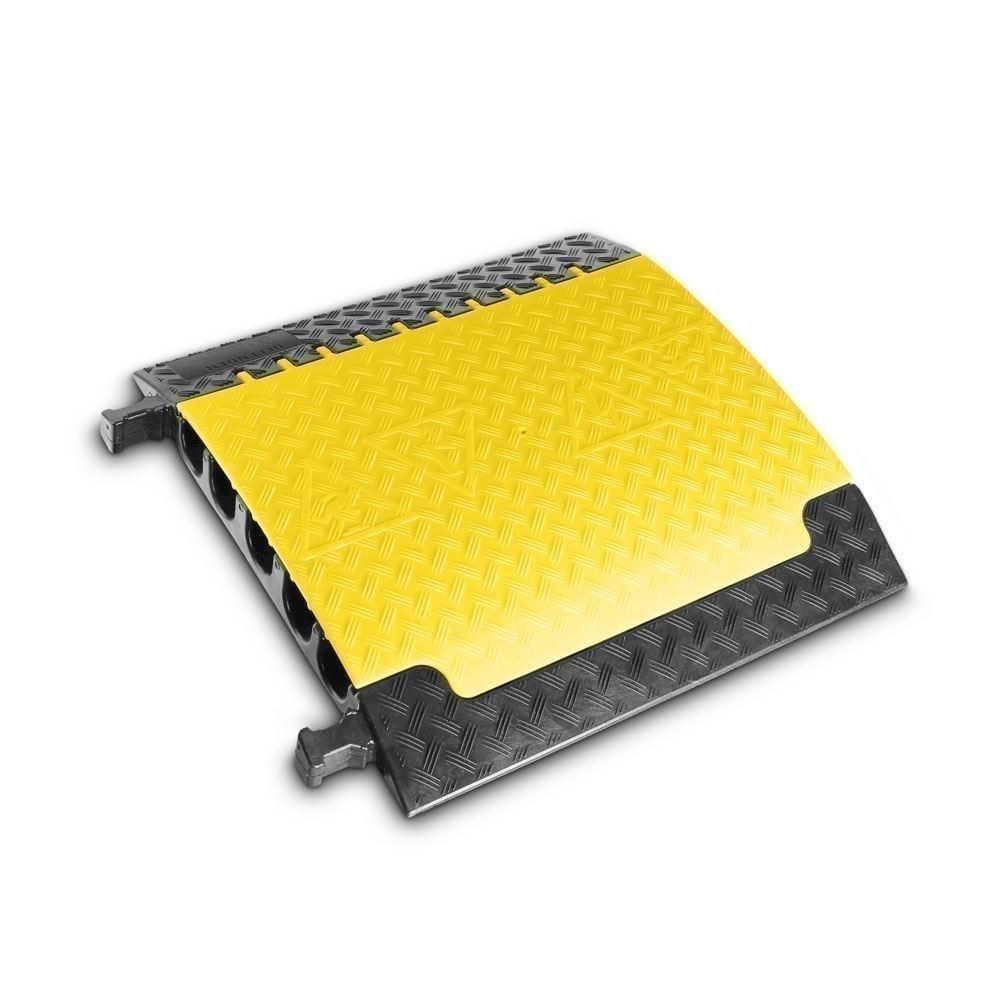

Defender Cable Protector 5-channel - XXL

Defender Cable Protector 5-channel - XXL
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Defender Cable Protector 5-channel - XXL
    Produktet er endnu ikke bedømt
  •
    3.009,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner






5 extra-large channels – the heavy-duty all-rounder

Defender® XXL heavy-duty cable crossovers have been developed for extremely high loads and offer 5 large cable/hose channels, three of them for fire C hoses (only up to 62 mm diameter – no couplings) and power cables. Integrated connector plugs enable a quick, easy connection of individual elements to build a stable cable crossover line. The separately available end ramps ensure safe insertion and removal of cables. With a capacity of 5 tonnes on an area of 20 x 20 cm, Defender XXL cable crossovers are the ideal solution for heavy vehicle traffic, construction sites, warehouses and trade shows, as well as carnival and music events. Integrated handles for optimum handling. Integrated handles for optimum handling.

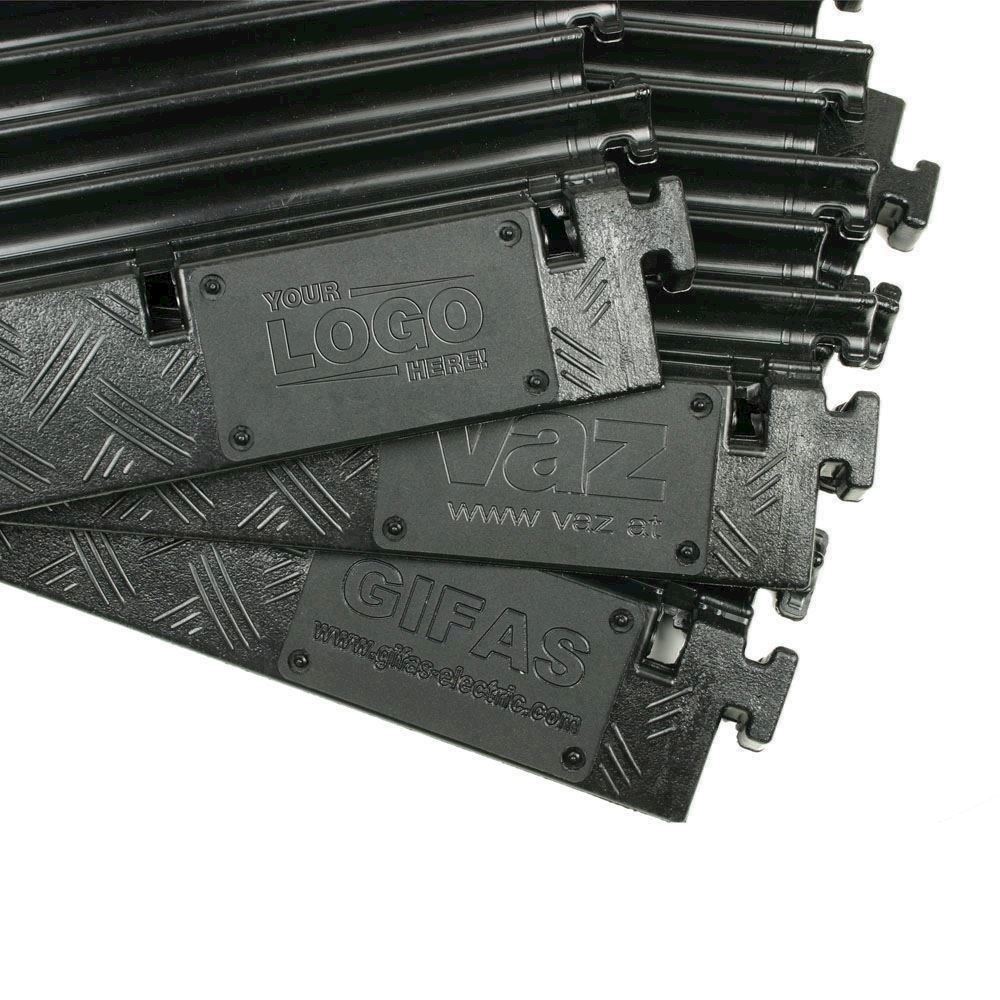

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.





  • Heavy-duty cable protector made of black, recyclable polyurethane with built-in carrying handles for demanding applications
  • non-slip, yellow polyethylene lid with high warning effect and secure closure
  • patented, self-cleaning lid hinge

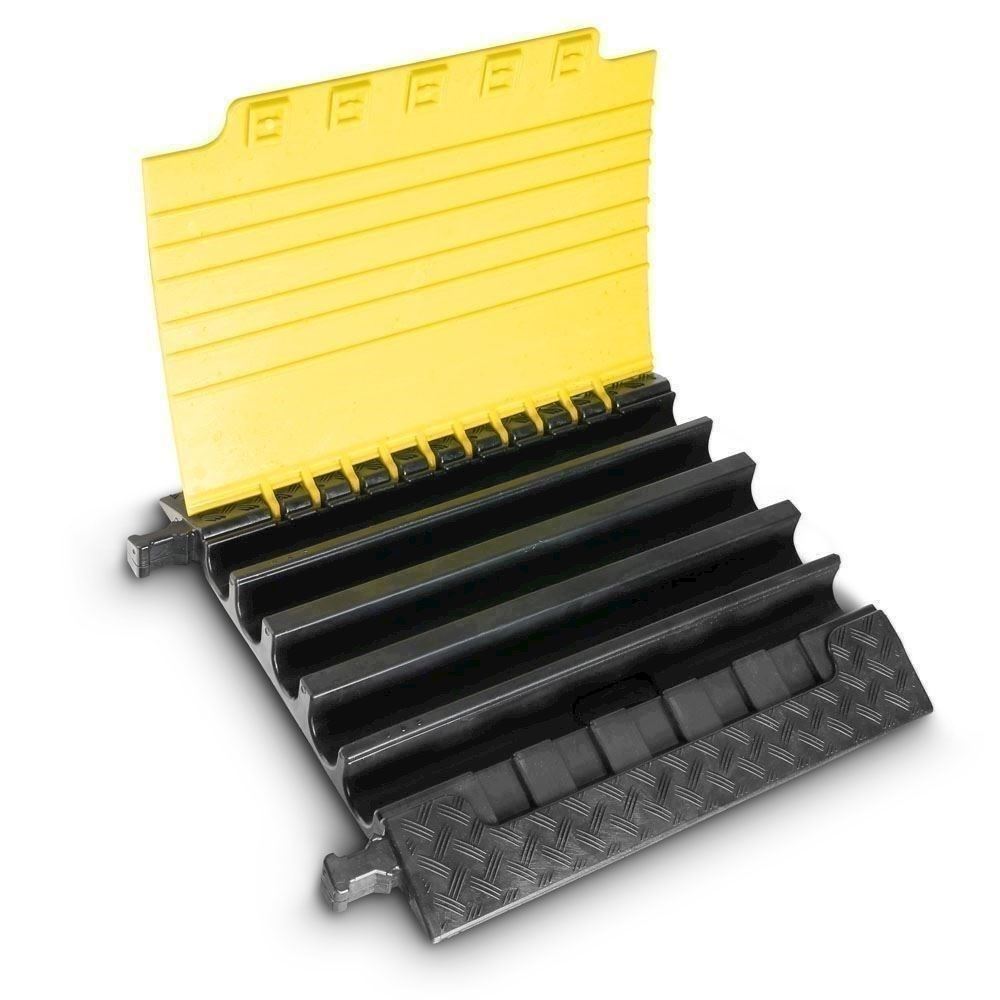

  • 5 channels: 1 channel 60 x 63 mm, 2 channels each 61 x 59 mm and 62 x 65 mm
  • three channels suitable C-Tube hose connectors
  • load bearing capacity approx. 5 t / 20 x 20 cm
  • fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
  • resistant to oil, acids, solvents, and petrol
  • dimensions 70 x 69.6 x 8.7 cm; Weight 21.4 kg
  • reliable protection for cables, hoses, and personnel for indoor and outdoor use
  • end ramps for secure cable and hose inlet and exit as accessories

Product typeCable Protectors
Type5 Channels
Length700 mm
Height87 mm
Width696 mm
Channels5
Width channel 161 mm
Height channel 159 mm
Width channel 262 mm
Height channel 265 mm
Width channel 360 mm
Height channel 363 mm
Width channel 462 mm
Height channel 465 mm
Width channel 561 mm
Height channel 559 mm
Materialpolyurethane
Max. loadapprox. 5t on a surface area of 20 x 20 cm
Chemical resistanceoil-resistant, acid-resistant, petrol-resistant
Fire protection classB2
Temperature range-30°C to +60°C °C
Weight20,66 kg
Special featureDEKRA-certified



Varenr.: A-85500
