Defender Cable Protector 6-channel - Nano

Defender Cable Protector 6-channel - Nano
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Defender Cable Protector 6-channel - Nano
    Produktet er endnu ikke bedømt
  •
    1.039,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

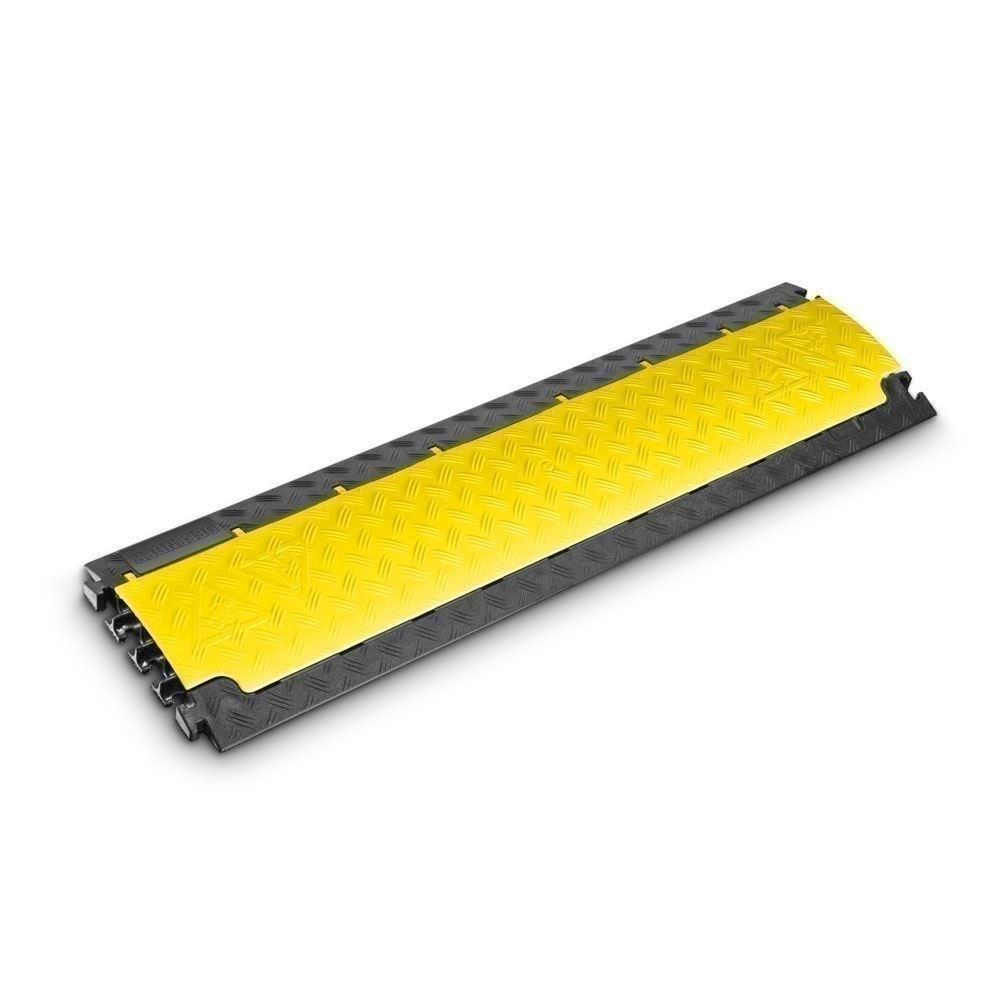

6 narrow cable channels – discreet cable protection for indoor and outdoor use

Defender® NANO cable crossovers are particularly flat and easy to cross with a wheelchair. They are suitable for a wide range of indoor and outdoor applications and are available with either a yellow or black lid. These cable crossovers boast 6 cable channels for neat, orderly cable routing, T-connectors and a load capacity of 2 tonnes on an area of 20 x 20 cm; besides pedestrian traffic, they also take light-duty vehicles, trolleys and – thanks to their flat profile – even forklift and pallet trucks. Separately available end ramps (male/female) ensure safe insertion and removal of cables. Defender NANO cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.

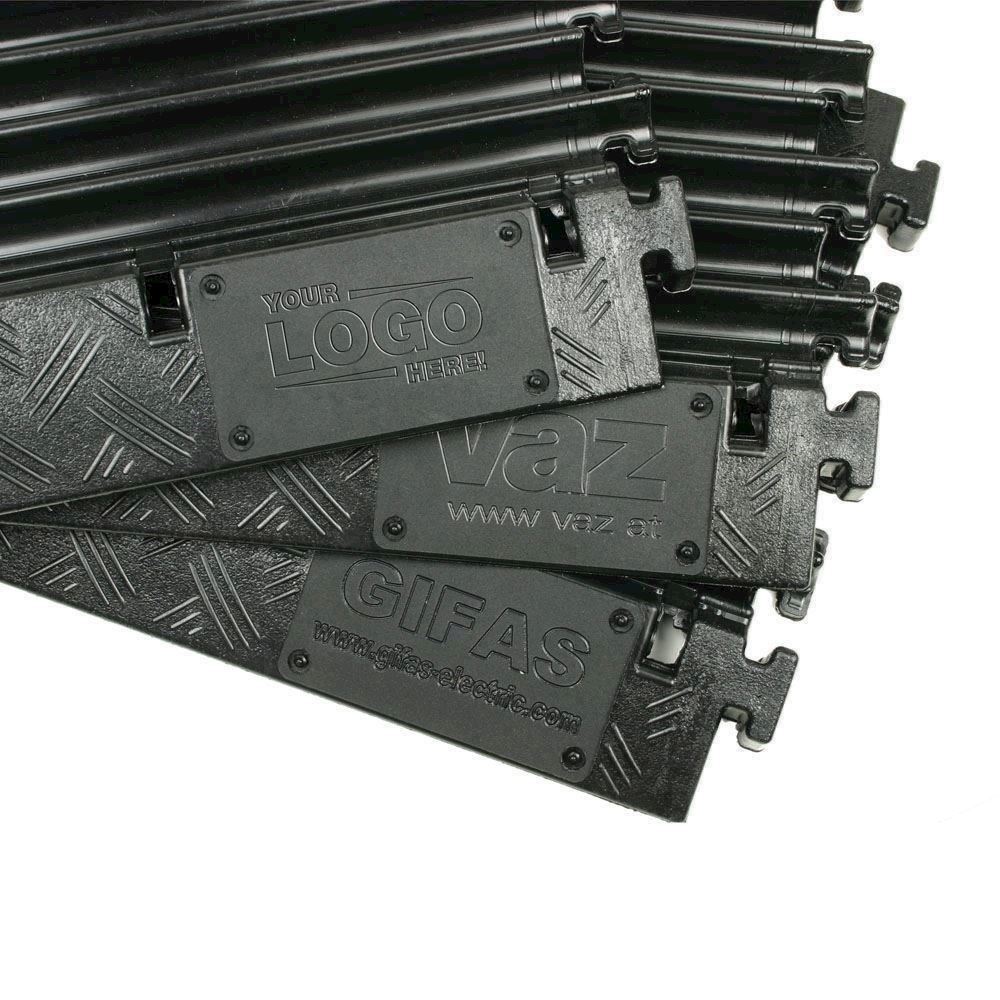

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.

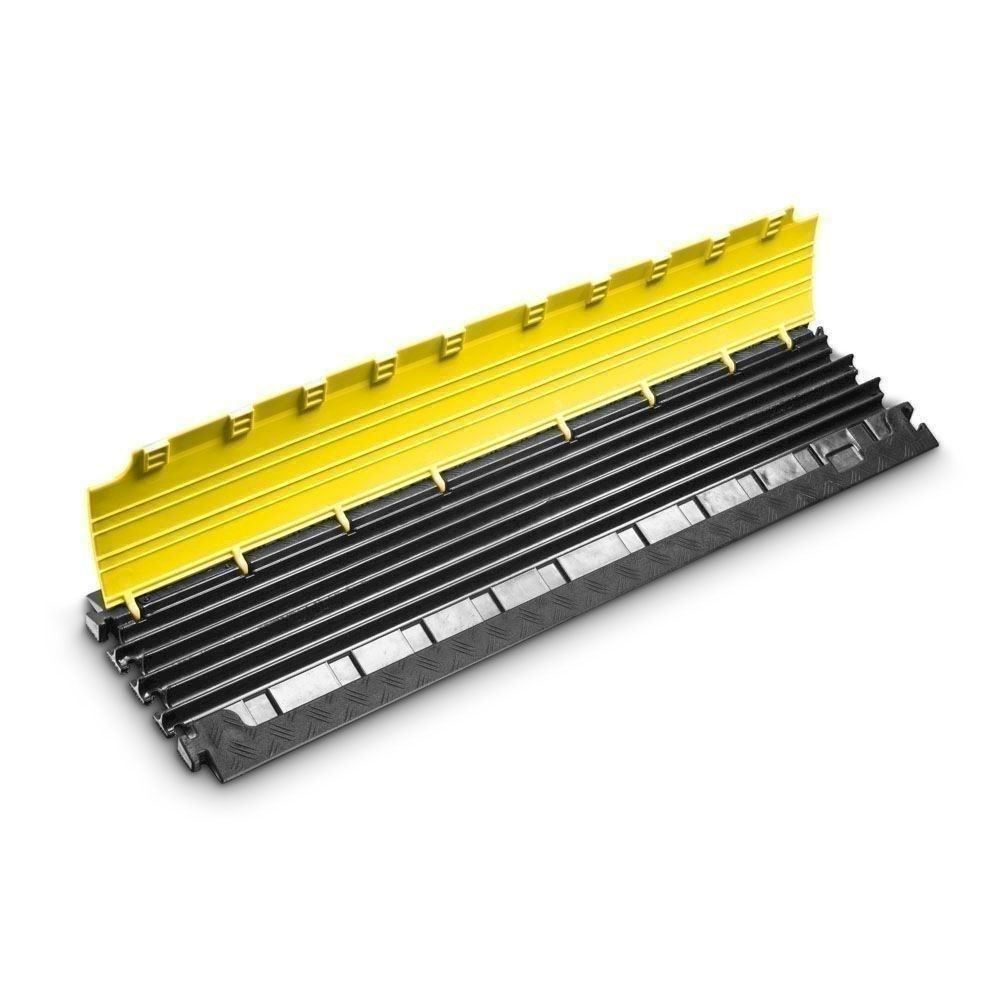

  • especially flat, non-slip cable protector made of black, recyclable polyurethane, wheelchair-compatable
  • yellow polyethylenelid with high warning effect and secure closure (also available with black lid, Item No. 85150BLK)
  • patented, self-cleaning lid hinge
  • 6 channels 17 x 18 mm
  • load bearing capacity approx. 2t / 20 x 20 cm
  • fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
  • resistant to oil, acids, solvents, and petrol
  • dimensions 100 x 28 x 3.2 cm; Weight 4.37 kg
  • reliable protection for cables and personnel for indoor and outdoor use
  • not suitable for vehicular traffic
  • end ramps for secure cable inlet and exit as accessories

Product typeCable Protectors
Type6 Channels
Length1000 mm
Width280 mm
Height32 mm
Channels6
Width channel 117 mm
Height channel 118 mm
Width channel 217 mm
Height channel 218 mm
Width channel 317 mm
Height channel 319 mm
Width channel 417 mm
Height channel 419 mm
Width channel 517 mm
Height channel 518 mm
Width channel 617 mm
Height channel 618 mm
Materialpolyurethane
Max. loadca. 2t on a surface area of 20 x 20 cm
Chemical resistanceoil-resistant, acid-resistant, petrol-resistant
Hardness range88 ± 4 Shore
Fire protection classB2
Temperature range-30 to + 60 °C
Weight4,37 kg
Special featureDEKRA-certified



Varenr.: A-85150
