Defender Cable Protector 2-channel - Ultra L

Defender Cable Protector 2-channel - Ultra L
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Defender Cable Protector 2-channel - Ultra L
    Produktet er endnu ikke bedømt
  •
    3.359,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

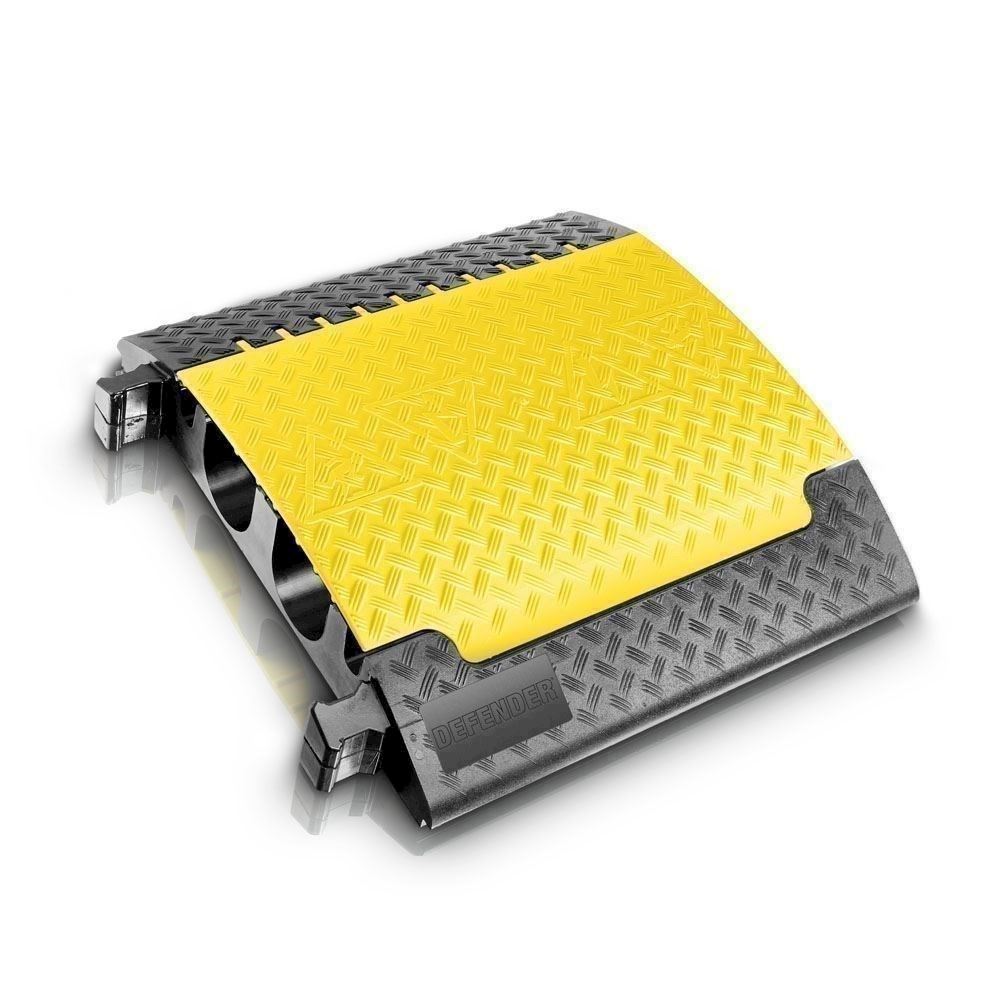

2 extra-large cable crossovers – the heavy-duty giant

Defender® Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements. The load-bearing capacity is approx. 5 tons on a 20 x 20 cm surface area. This makes Ultra L cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnival and music events, as well as other applications involving particularly heavy use.

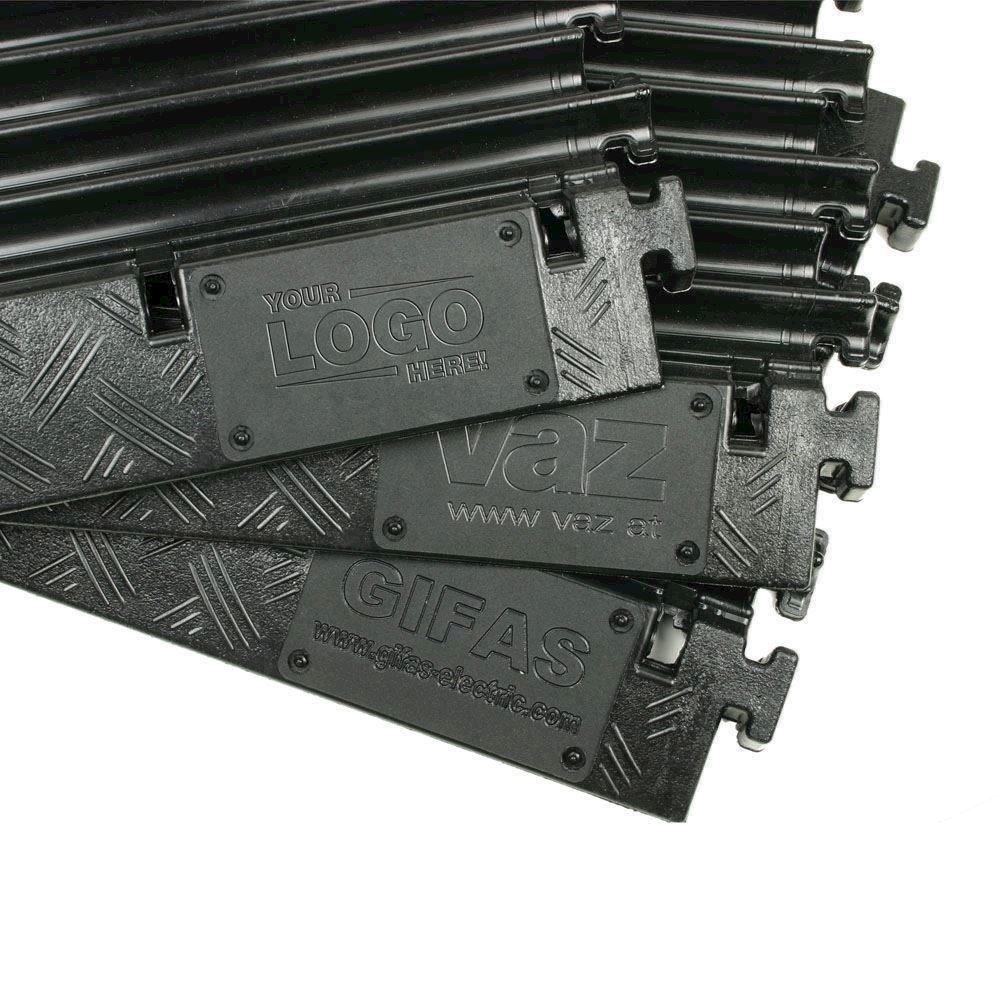

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.





  • Heavy duty cable protector made of black, recyclable polyurethane for demanding applications
  • Non-slip, yellow polyethylene lidmaker with high warning effect and secure closure
  • Patented, self-cleaning lid hinge

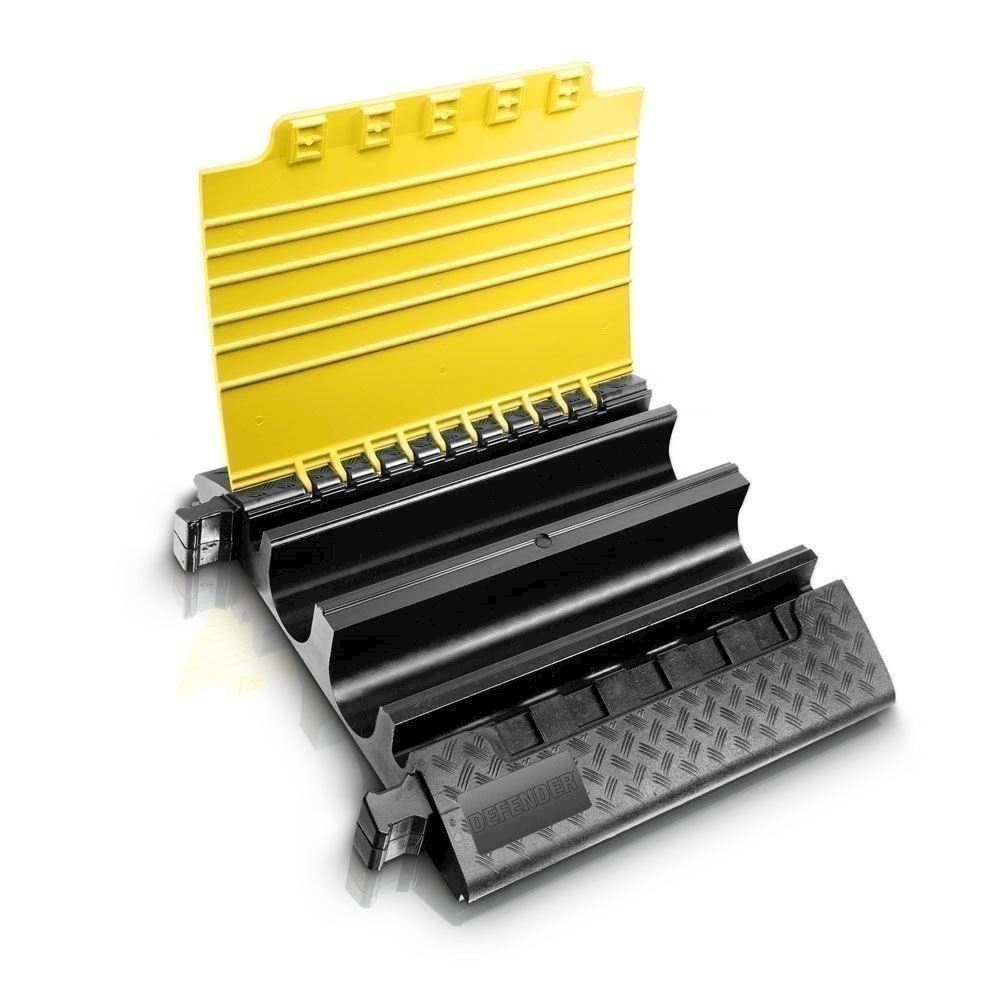

  • 4 channels: 2 channels each 120 x 113 mm and 33 x 50 mm
  • Two channels suitable for A-type suction hoses and multipin connectors
  • Load bearing capacity approx. 5 t / 20 x 20 cm
  • Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
  • Resistant to oil, acids, solvents, and petrol
  • Dimensions 70 x 78.3 x 13.9 cm; Weight 30.5 kg
  • Reliable protection for cables, hoses, and personnel, for indoor and outdoor use

Product typeCable Protectors
Type2 Channels
Length700 mm
Width783 mm
Height139 mm
Channels4
Width channel 133 mm
Height channel 150 mm
Width channel 2120 mm
Height channel 2113 mm
Width channel 3120 mm
Height channel 3113 mm
Width channel 433 mm
Height channel 450 mm
Materialpolyurethane
Max. loadapprox. 5t on a surface area of 20 x 20 cm
Chemical resistanceacid-resistant, petrol-resistant, oil-resistant
Hardness range88 ± 4 Shore
Fire protection classB2
Temperature range- 30 to 60 °C
Weight30,5 kg
Special featureDEKRA-certified




Varenr.: A-85600
