Compact & lightweight design, ideal for live sound, small gigs, and home recording
2x XLR/jack combo with -20 dB pad, phantom power, compression, high/low EQ, low-cut
2x XLR stereo line input with pan and level controls
Aux & BT input with mix level knobs and status LEDs
USB-C interface with 2-in/2-out
LED VU meter and headphone output with volume control

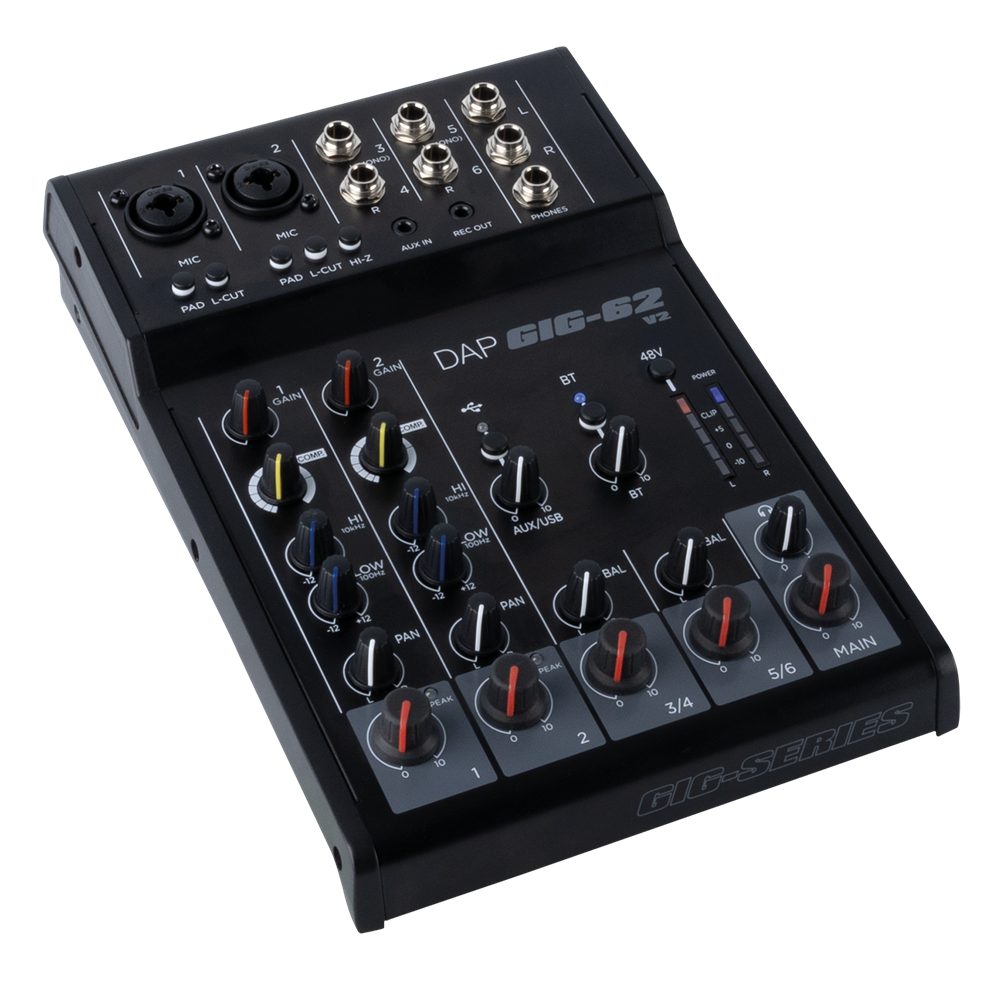

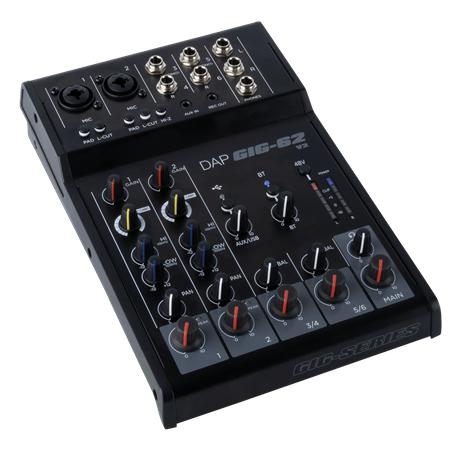

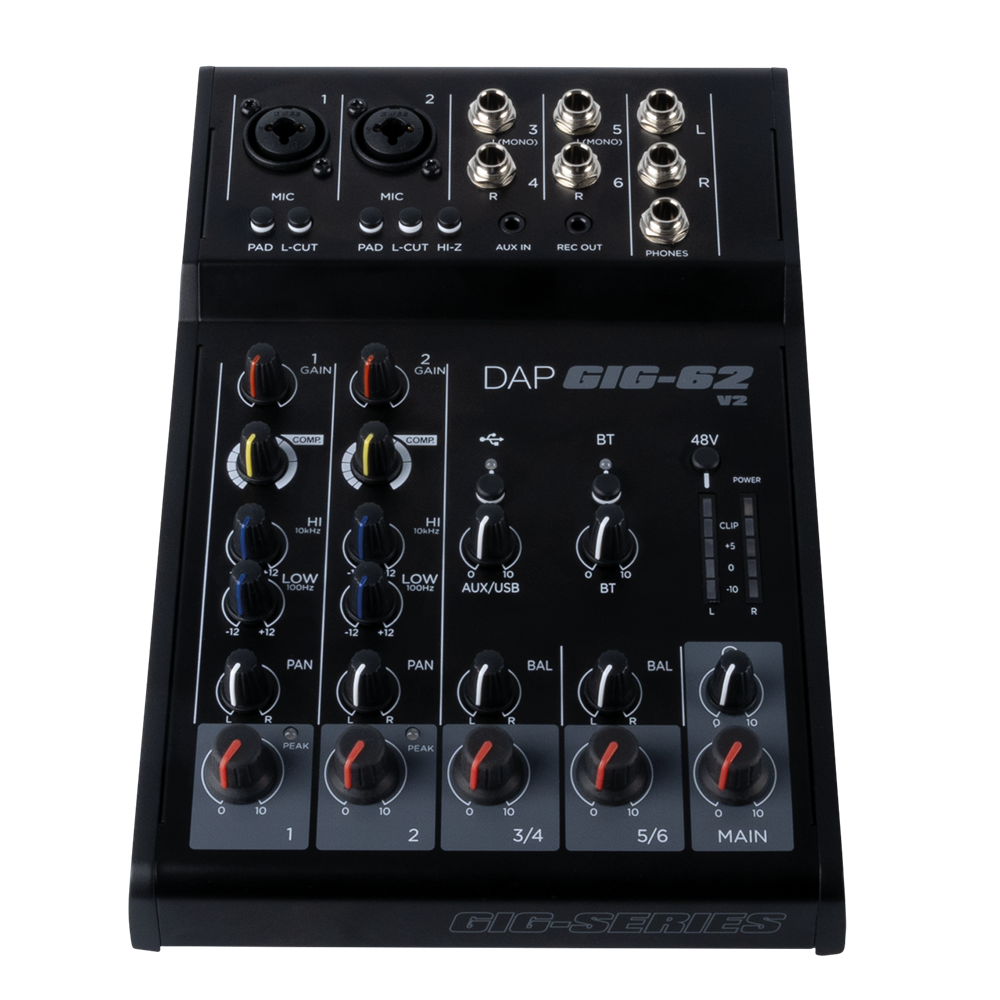

The DAP GIG-62 V2 is a versatile 6-channel analogue mixing console designed for live sound applications, small performances, presentations, and home recording setups. Despite its compact footprint, it offers a wide range of professional features that make it a reliable companion for musicians, sound engineers, and content creators.

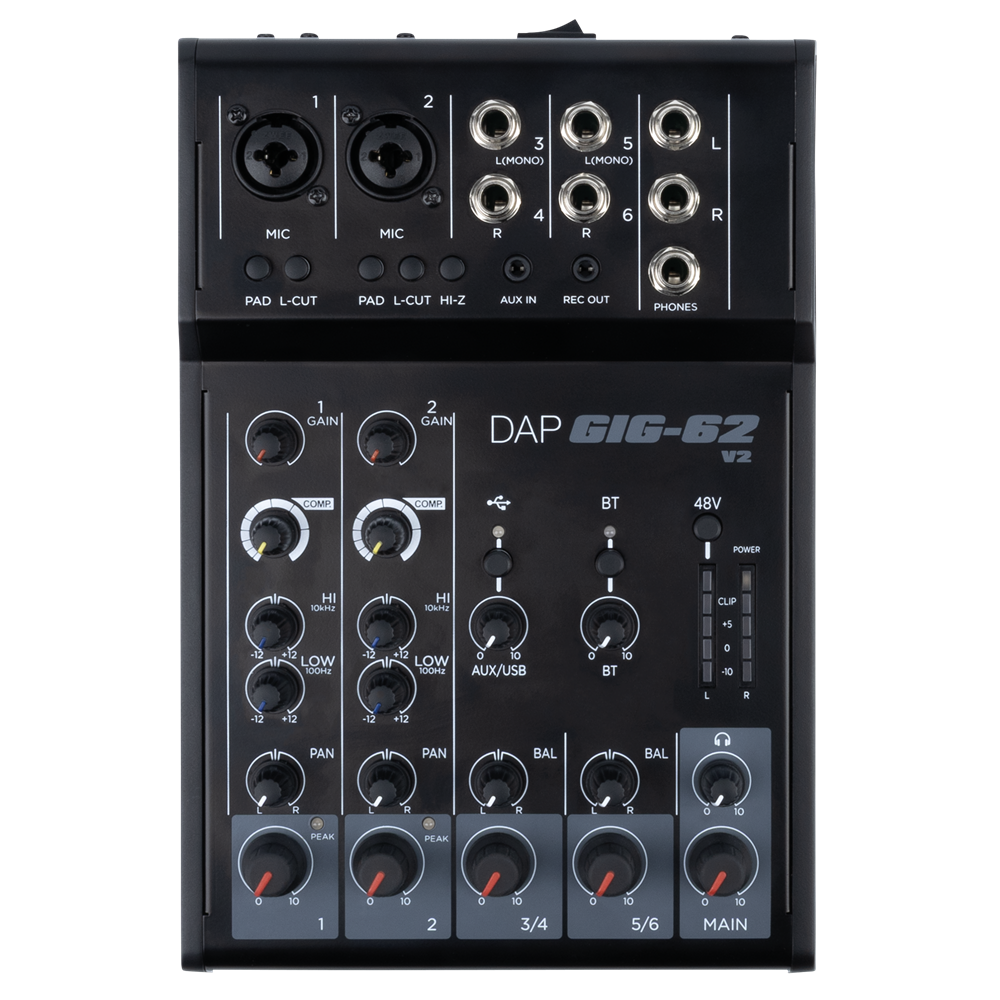

Channels 1 and 2 feature XLR/jack combo inputs with a mic preamp, -20 dB pad switch, 48 V phantom power, and low-cut filter. Channel 2 also includes a Hi-Z mode, allowing direct connection of instruments such as electric guitars. Both channels are equipped with gain control, compressor, high/low EQ knobs, pan control, mix level knobs, and clip LEDs for precise signal management. Channels 3/4 and 5/6 provide stereo line-level inputs via dual 6.3 mm jacks, each with pan and mix level controls. Additional inputs include a 3.5 mm Aux minijack and BT connectivity, both with dedicated mix level knobs and status LEDs.

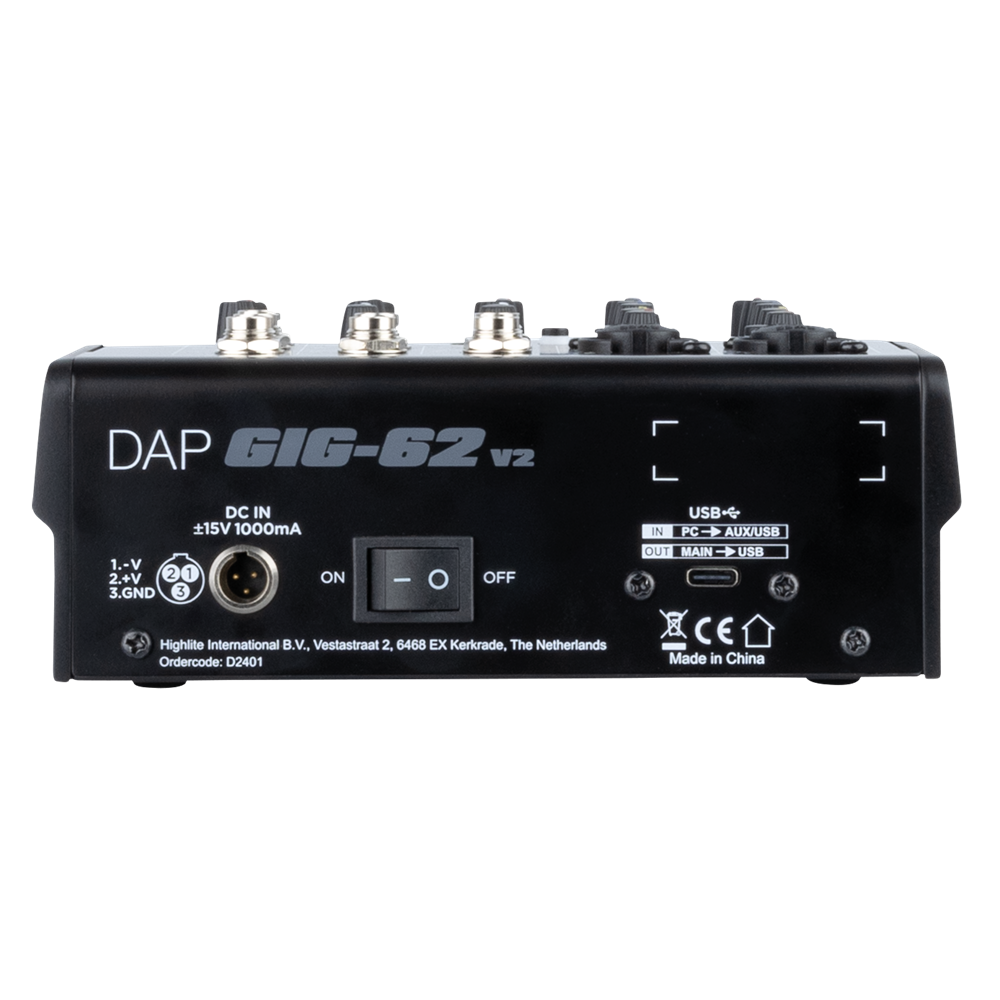

The GIG-62 V2 also features a USB-C interface with 2-in/2-out functionality, shared with the Aux input, making it ideal for recording and playback. Outputs include a pair of balanced 6.3 mm jack main outputs with level control, a headphone output with independent volume knob, and a minijack recording output that mirrors the USB signal. A clear LED VU meter provides visual feedback of output levels, and the mixer is powered by a dedicated ±15V DC external power supply for stable operation.
Mono Inputs: 2
Stereo Inputs: 2
Auxiliary Inputs: 1
Main Outputs: 2
Main Output Maximum Level: 22 dBu
Headphone Output: 1
Audio Interface USB Input: 2
THD Level %: < 0.01 %
Signal-to-noise Ratio: > 103 dB
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 22000 Hz
Phantom Power: 48 V
Dynamics Processing: Compressor
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 7 W
Height (mm): 55 mm
Width (mm): 161 mm
Length (mm): 240 mm
