Dante® is a network protocol based on layer 3 IP technology which provides a low-latency, high-precision and cost-effective solution for point-to-point audio connections. Dante® technology can be used for the transmission of high-precision clock signals and audio signals. It allows for complex ethernet routing to ensure a perfect sound effect, to solve problems resulting from complex cabling known from traditional audio transmissions and to reduce costs. There is no special configuration required for an integration into an existing network.

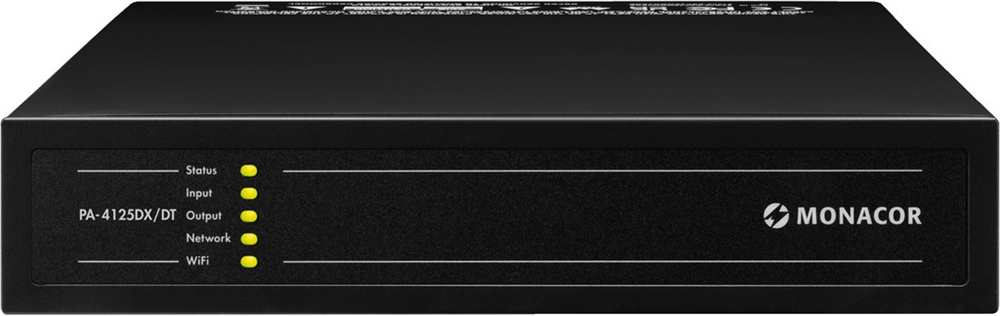

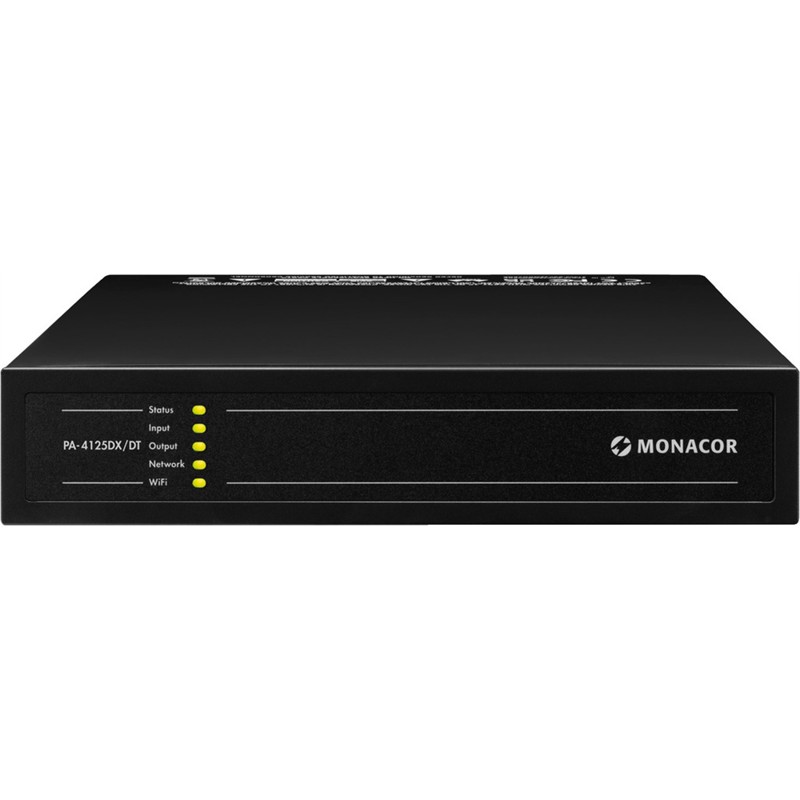

Dante®-enabled 4-zone multifunctional amplifier
class D technology with DSP and professional features for general multi-room PA applications.

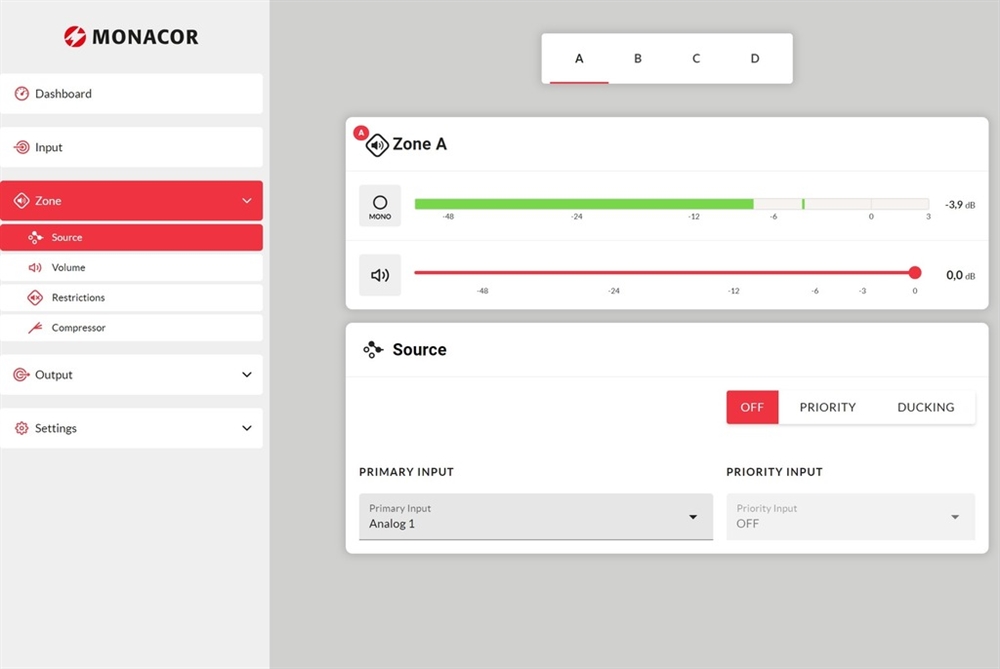

Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).
-
Dante® interface (4 transmission channels, 4 receiver channels)
-
4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V)
-
100 V or 4/8 Ω operation
-

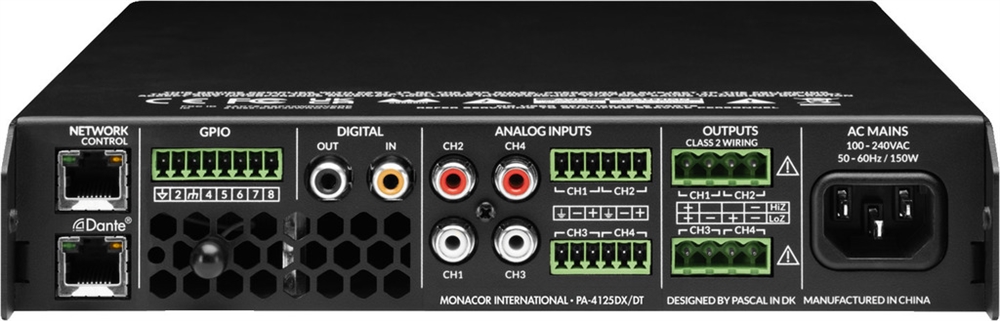

4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
-
1 digital input/output via S/PDIF RCA jacks
-
4 outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
-
GPIO interface for remote volume control and standby
-
Network connection via LAN or WLAN
-
Convenient operation and configuration via user interface HTML5
-
High-pass/low-pass filter with various filters
-

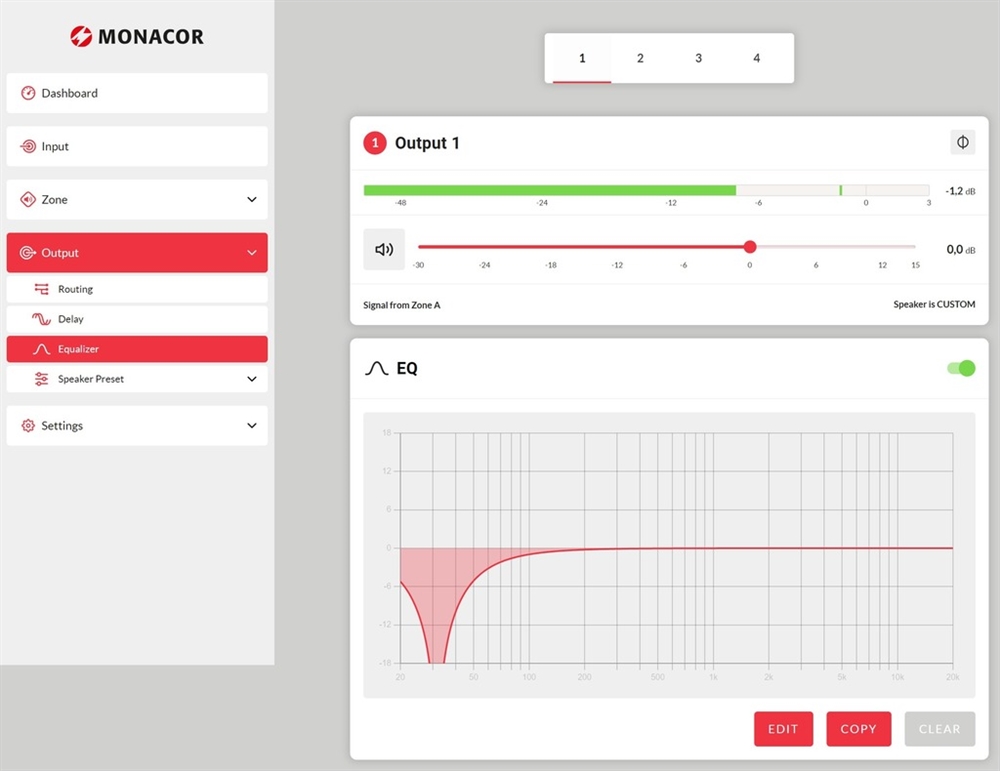

Parametric equalizer
-
Output with separate FIR filters
-
Speaker matching: 10 ms
-
Switchable output phase
-
Adjustable compressor/limiter
-
Adjustable delay
-
Mix inputs
-
Talkover with priority routing
-
Built-in sine wave noise generator
-

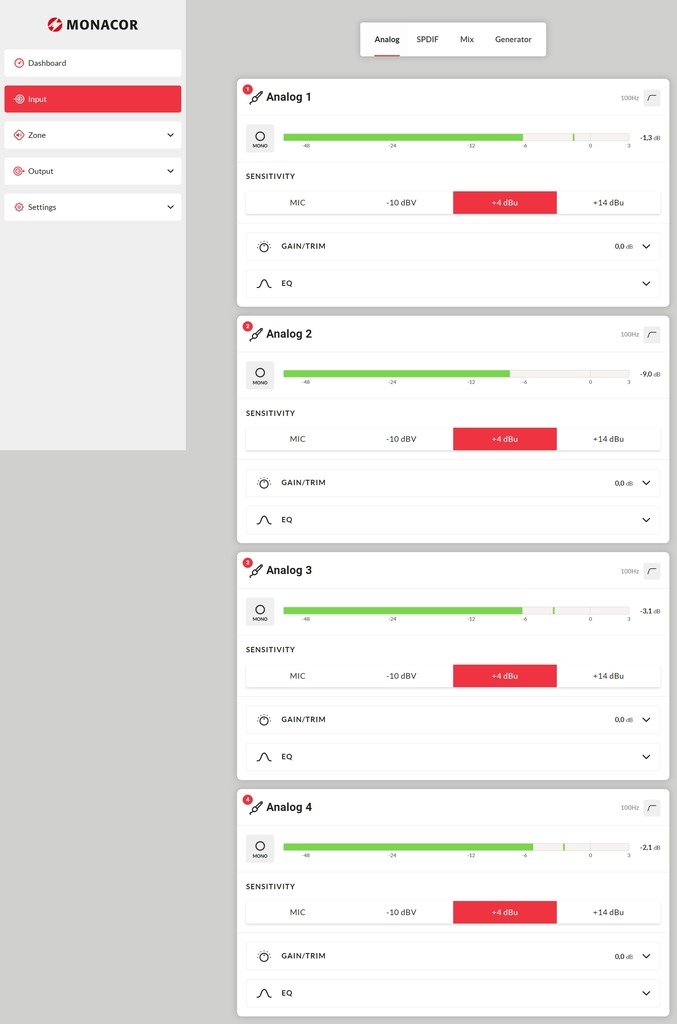

Parametric 5-band equalizer for input
-
Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload
System requirements Dante®: Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.1
