Compact weatherproof horn speaker, 4 Ω, - TR-3-4

Compact weatherproof horn speaker, 4 Ω, - TR-3-4
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for Compact weatherproof horn speaker, 4 Ω, - TR-3-4
    Produktet er endnu ikke bedømt


Indhent tilbud.
Vis uden moms

Billigst på PriceRunner

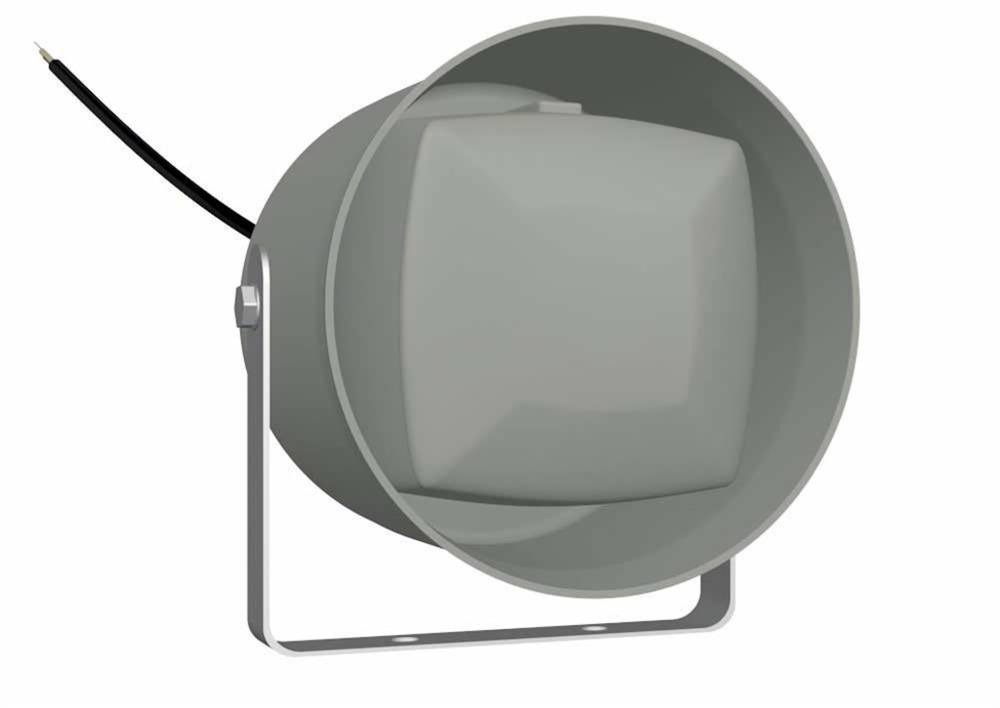

Compact weatherproof horn speaker, 4 Ω,
for speech and alarm applications
  • Very high sound pressure (100 dB/1 W/1 m)
  • IP69k certified, suitable for use in trains, fire engines and call stations
  • Light grey PC/ABS housing (self-extinguishing, complies with UL94V0 standard)
  • Connection via 2-core cable (length 0.6 m)
  • Mounting bracket included
Technical specifications TR-3-4
TR-3-4
Active/passive passive
Transmission technology cable
Power rating (RMS) 10 W
Impedance 4 Ω
Frequency range 250-20,000 Hz
Number of speakers 1
SPL 100 dB/W/m
Max. rated SPL 109 dB
Radiation angle/beam angle 150°
Radiation angle, horizontal 150°
Radiation angle, vertical 150°
Housing material PC/ABS
Colour light grey, RAL 7035
Mounting device mounting bracket
Protection class IP69K
Admiss. ambient temp. -40 °C to +110 °C
Dimensions Ø 97 mm x 102 mm
Width Ø 97 mm
Height Ø 97 mm
Depth 102 mm
Weight 0.5 kg
Inputs cable connection
Other features weatherproof
Packaging dimensions (W x H x L) 0.14 x 0.14 x 0.1 m
Gross weight 0.6 kg
Net weight 0.5 kg
TR-3-4
EAN code 4007754430097
Net weight 0.5 kg
Varenr.: 1001476
