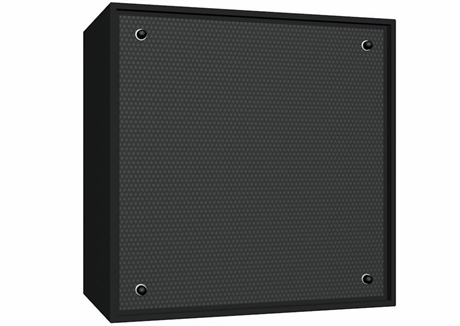

Ceiling cabinet PA system - BS-120

Ceiling cabinet PA system - BS-120
  • Ikke på lager
  • Kontakt os.
  • Bedømmelse for Ceiling cabinet PA system - BS-120
    Produktet er endnu ikke bedømt


Indhent tilbud.
Vis uden moms

Billigst på PriceRunner



Ceiling cabinet PA system
for mounting on or suspending from ceilings or ceiling constructions
  • High-quality transmission of speech and music
  • 100 V transmission technology via audio transformer with 3 power taps 120/60/30 W
  • 4 x 2-way speaker (8 cm) with additional high-range horn
  • Excellent efficiency, superb sound characteristics and optimised radiation properties due to 4 speakers so that it is possible to achieve a defined directionality even within the critical mid-range
  • Particularly suited for ceiling PA in surroundings with a long reverberation time, high ceilings and a high ambient noise level
  • Black laquered MDF cabinet with mounting eyelets for suspension by steel cables
Technical specifications BS-120
BS-120
Active/passive passive
Transmission technology 100 V
Total power rating 120 W
Power rating (RMS) 120/60/30 W
Frequency range 80-22,000 Hz
System 2-way
Number of speakers 4
Speaker size 8 cm
SPL 102 dB/W/m
Max. rated SPL 123 dB
Radiation angle/beam angle H85°/V85° (1 kHz)

H60°/V60° (2 kHz)

H50°/V50° (4 kHz)

Radiation angle, horizontal 85° (1 kHz)

60° (2 kHz)

50° (4 kHz)

Radiation angle, vertical 85° (1 kHz)

60° (2 kHz)

50° (4 kHz)

Housing material MDF
Colour Black, RAL 9005
Mounting device mounting eyelets
Dimensions 500 x 500 x 300 mm
Width 500 mm
Height 500 mm
Depth 300 mm
Weight 22.5 kg
Inputs Pressure terminals
Packaging dimensions (W x H x L) 0.6 x 0.4 x 0.45 m
Gross weight 24 kg
Net weight 23 kg
BS-120
EAN code 4007754430066
Net weight 23 kg
Varenr.: 1001473
