21 x 15 W RGBW LEDs with 10,000 lm total output for uniform and powerful colour mixing
-

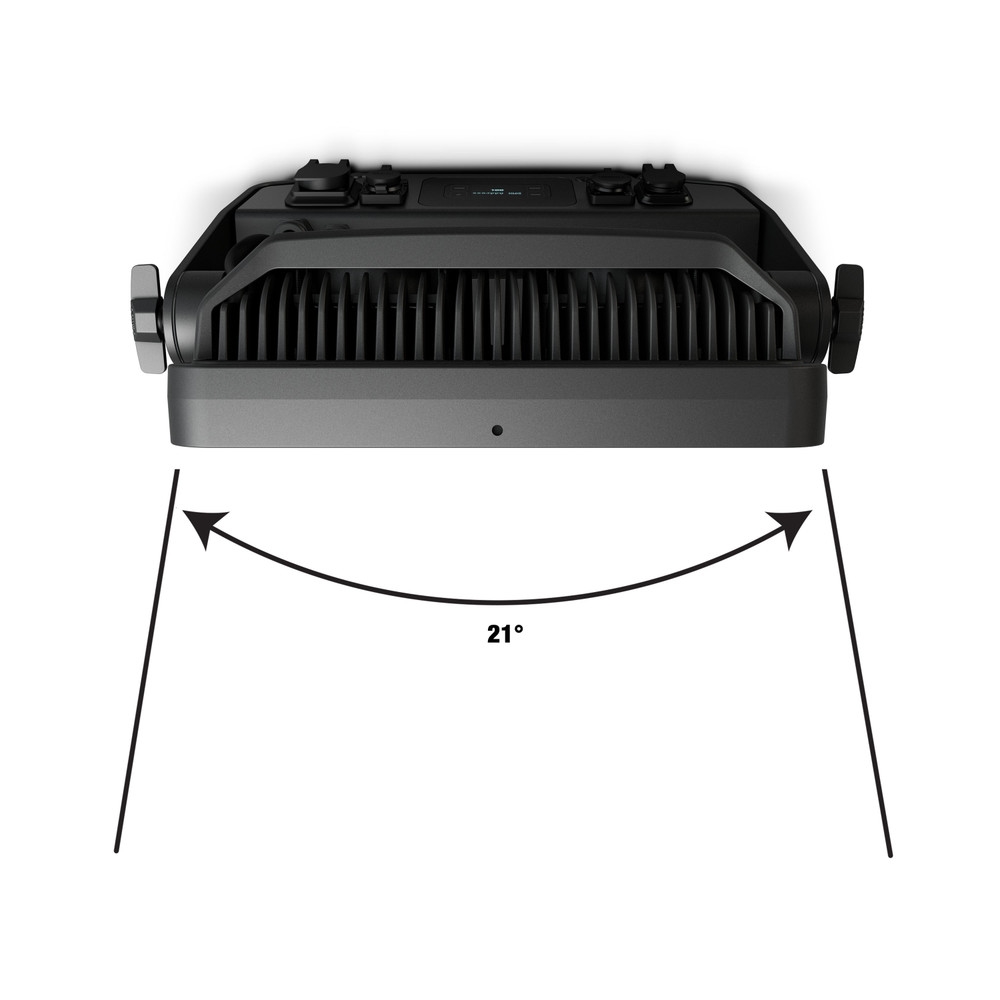

21° beam and 35° field angles without diffuser
-

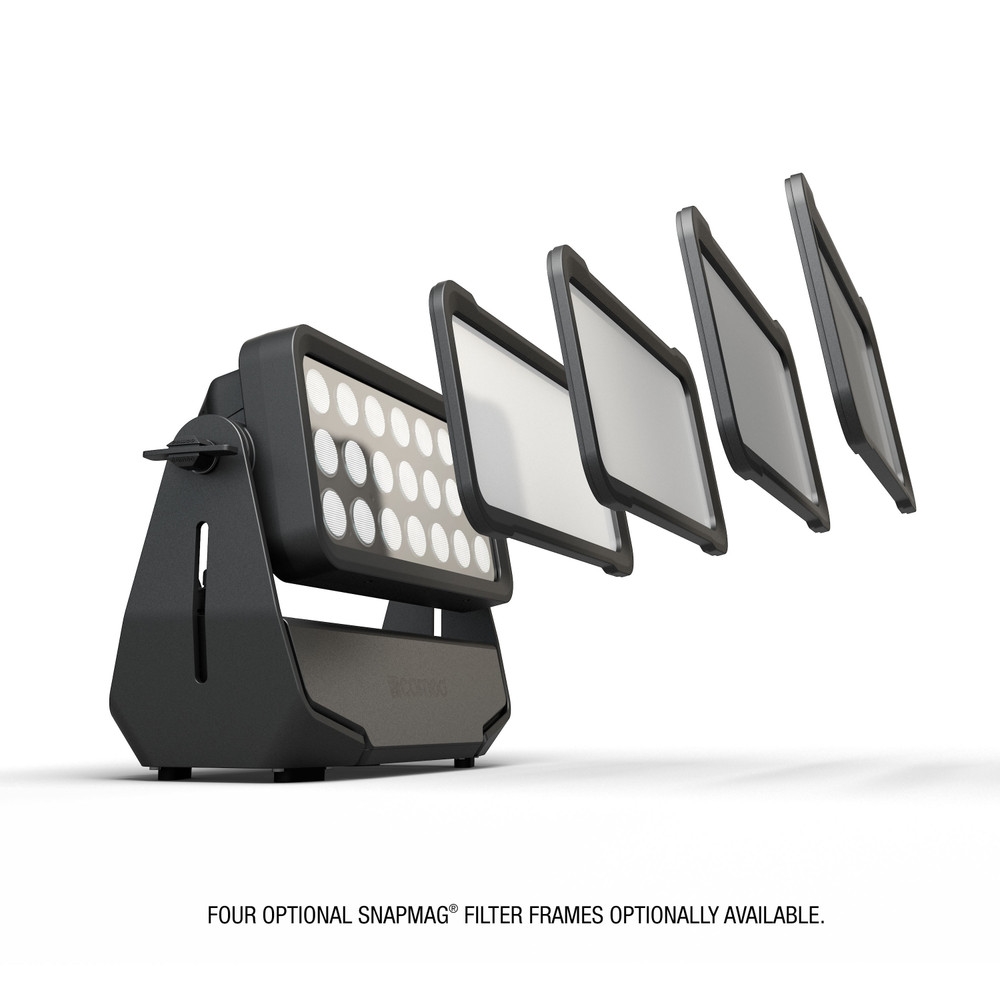

Optional SnapMag® filter frames for 25°, 45° or 100° and elliptical 60° x 10° beam angle selection and installation without tools or dismantling
-
Built-in 2.4 GHz W-DMX™ transceiver
-
Wireless master and slave operation,
-
W-DMX™, RDM, DMX or IR control plus standalone modes with automated programs
-

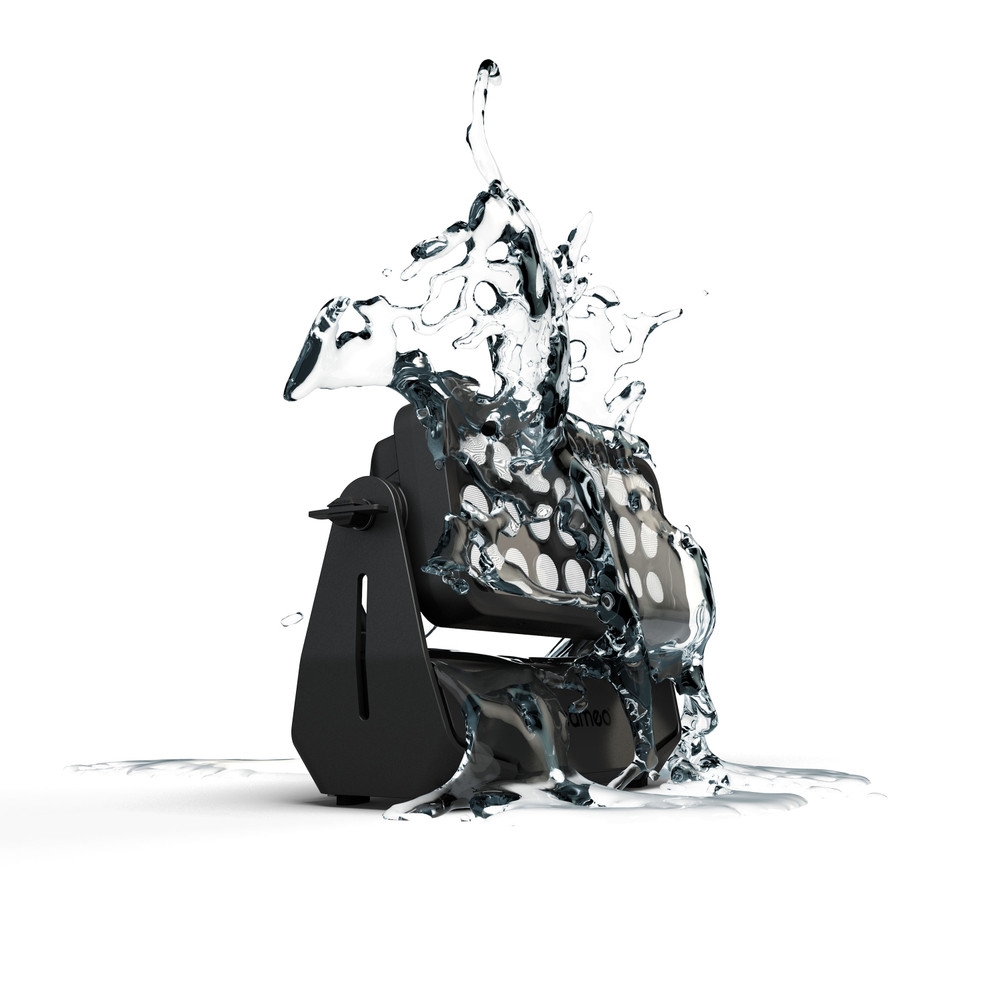

IP65 rating for permanent outdoor use
-
Low-noise temperature controlled fans for optimized operation
-
16-bit technology for high-resolution colours and dimming
Description

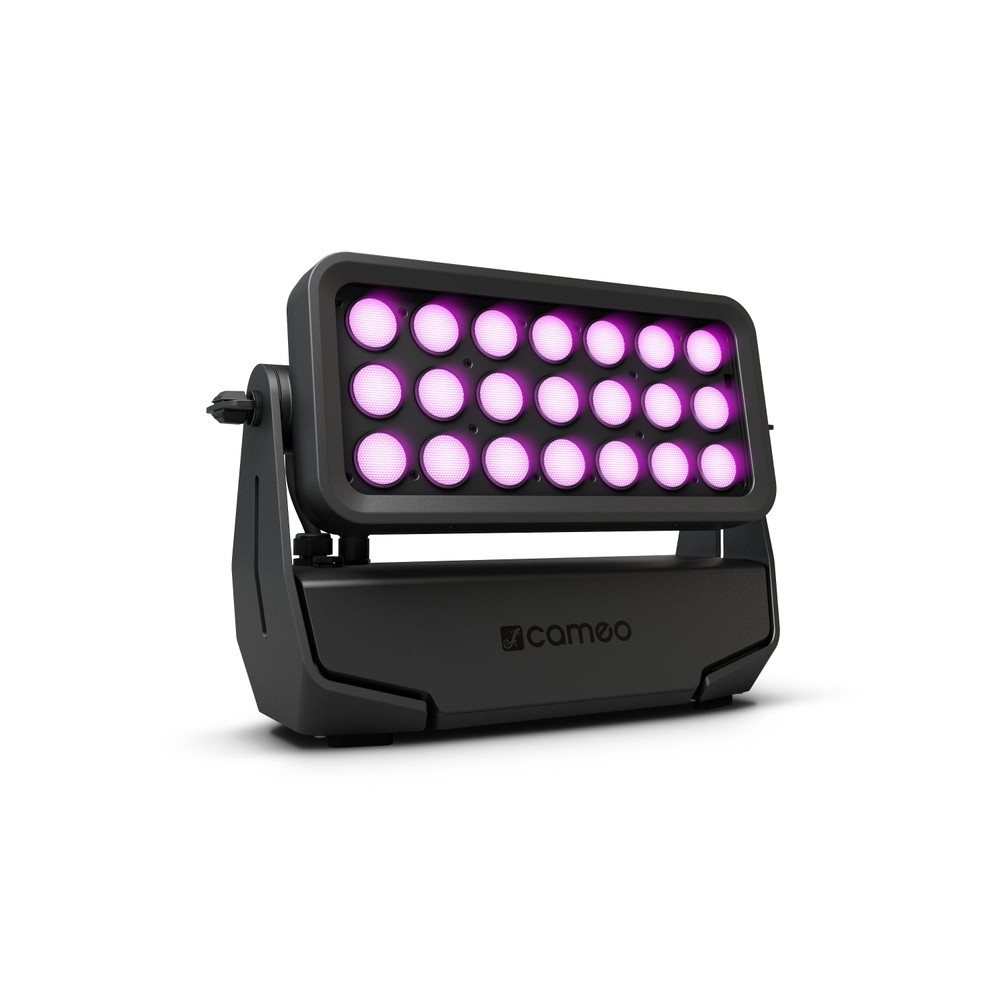

Equipped with a total of twenty-one 15 W RGBW LEDs for a huge 10,000 lm output, the Cameo ZENIT® W300 is a powerful IP65 rated wash light for demanding outdoor applications. In addition to RDM and standard DMX capability it boasts a built-in 2.4 GHz W-DMX™ transceiver by Wireless Solution Sweden AB for convenient wireless control. The fixture also provides a rich variety of stunning automated programs for standalone or wireless master-and-slave operation.

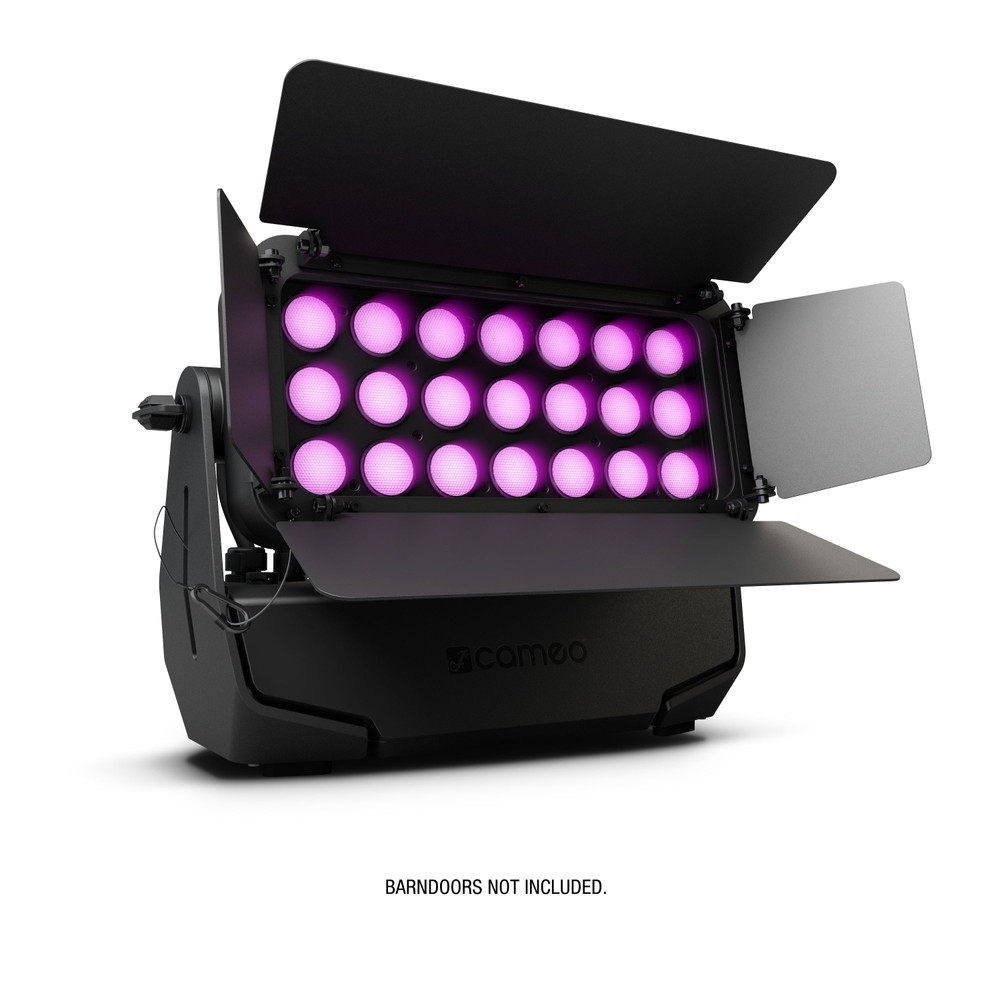

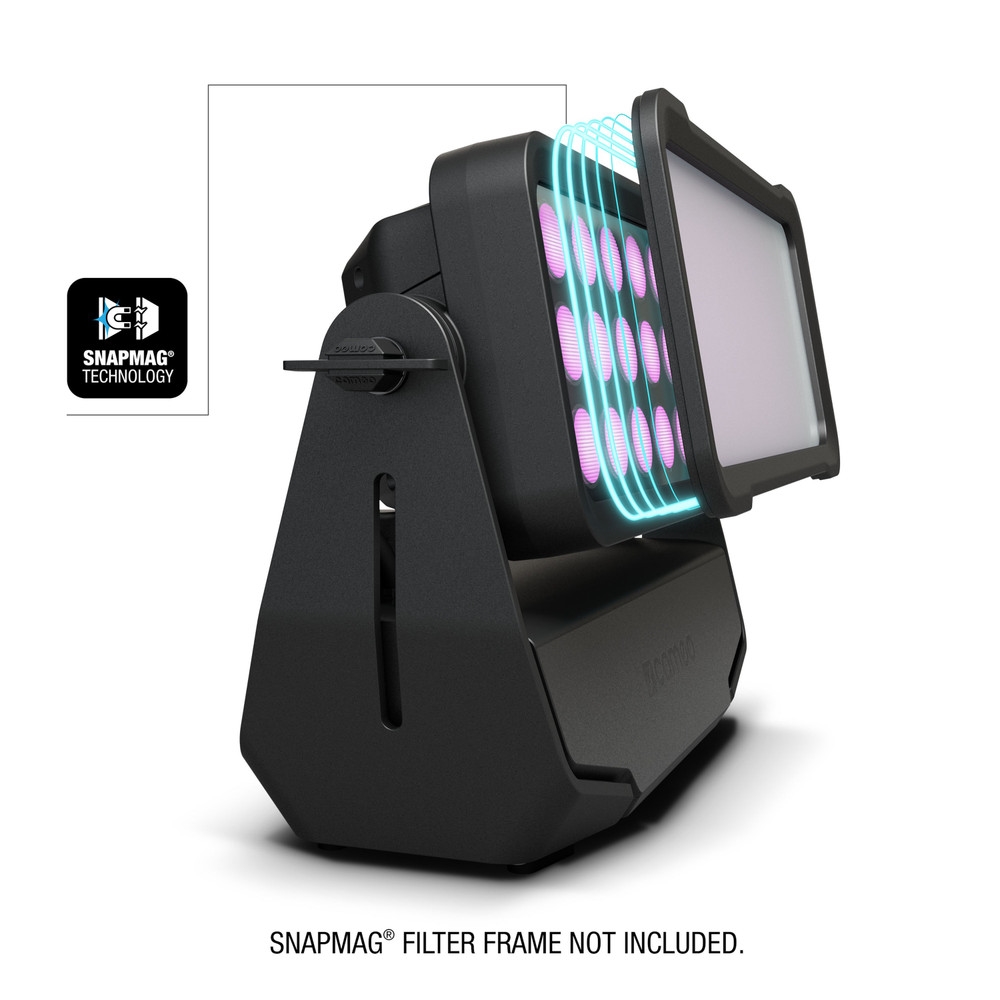

For maximum versatility, the ZENIT® W300 sports Cameo's innovative SnapMag® technology. It allows you to add filter frames in less than a second without the need for tools or dismantling. Magnetic SnapMag® frames with precision light shaping diffusers and a 4-way barn door are available as dedicated accessories.
Featuring advanced 16-bit technology for high-resolution colour mixing and dimming and an 21° beam spread, the ZENIT® W300 projects highly intense, uniform washes. With colour temperature correction, selectable dimming curves and dimming response, the fixture is the perfect tool for truly professional lighting.

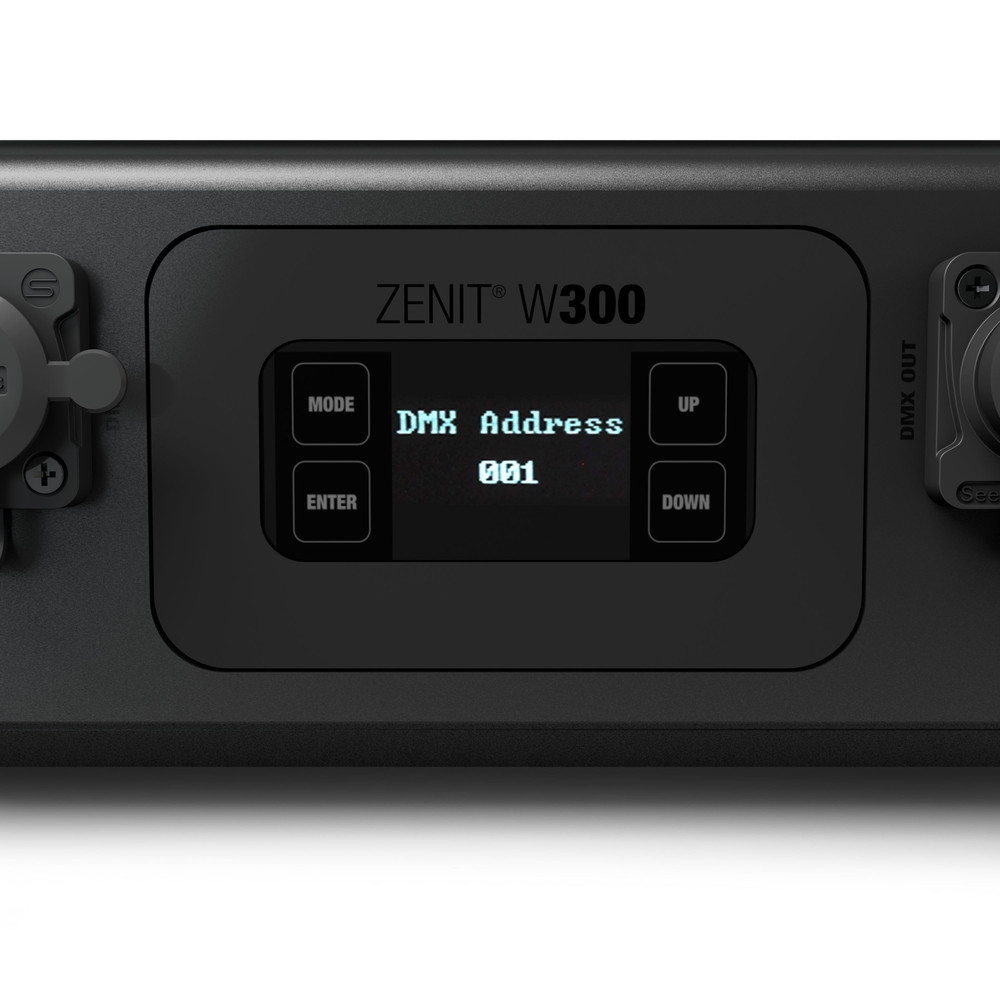

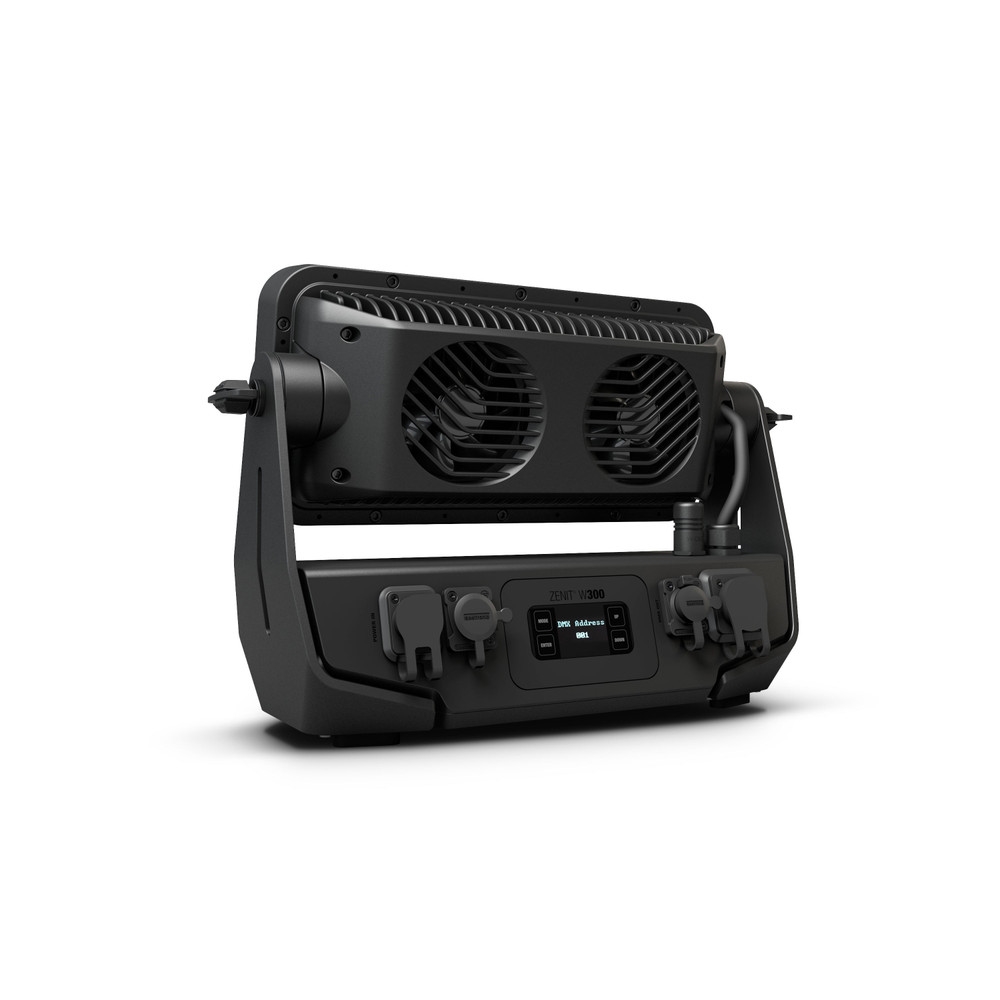

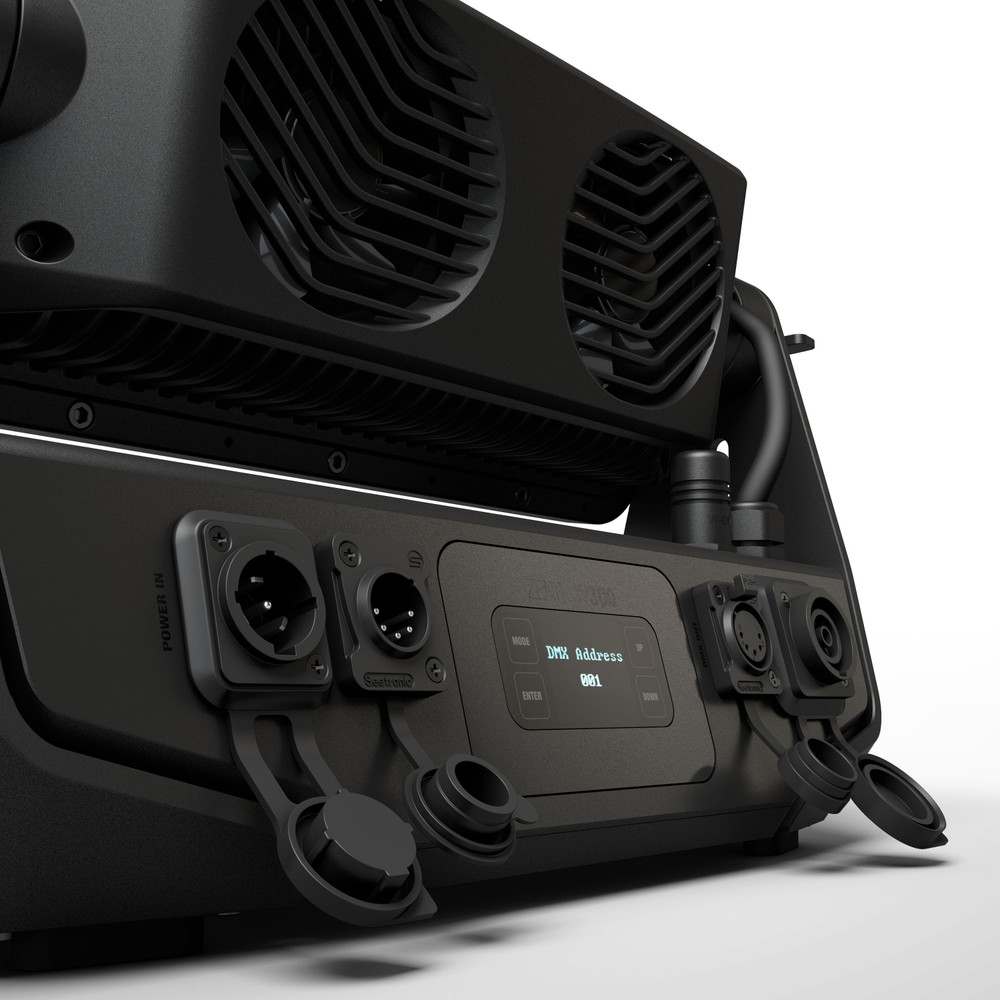

The ZENIT® W300's die cast aluminium housing integrates temperature controlled fans that ensure optimized, low noise operation while a bright OLED display with four touch buttons permits easy, intuitive configuration. The fixture comes with an IR remote control, omega mounting bracket and power cord.
Specifications
General
Product type
LED Outdoor Wash Light
Type
ZENIT
Colour spectrum
RGBW
Number of LEDs
21
LED type
15 W
Average LED lifetime
50000
Refresh rate
Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz
Dispersion
21 ° Beam, 40 ° Field (without Diffusor) °
Lens
PE and tempered glass
DMX input
5-pin IP65
DMX output
5-pin IP65
DMX mode
10-channel , 15-channel , 2-channel , 3-channel , 4-channel , 8-1 Channel , 8-2 Channel
DMX Functions
Auto programs , colour macro , CTC (Colour Temperature Correction) , Dimmer , Dimmer Curve , Dimmer Fine , Dimmer Response , RGBW , RGBW Fine , strobe
Standalone modes
Auto programs , colour macro , Device Settings , Master / Slave mode , Static , system info , Tunable White , User Colours
Controls
Enter , Mode , Value Down , Value Up
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
300 W
power factor
0.99 PF (120V) / 0.96 PF (230V)
Power connector
IP65
Power supply connection
IP65
Housing material
Aluminum
Cabinet colour
Black
Protection class IP
IP65
Cooling
IP65 temperature-controlled fans
Luminous flux
10661 lm
Efficiency
35.3 lm/W
Operating Temperature
-15 - 45 °C
Other features
ETL certified
