Create perfect displays for your light presentations with a broad colour palette and lightning-fast colour changes with the Cameo OPUS® SP5 FC. The powerful Profile Spot Moving Head reproduces even projection without colour shadows thanks to its high-quality optical system. It features a particularly long zoom range of 6° to 44°, plus a continuously variable iris diaphragm and motorised focusing. A continuously adjustable frost filter supplies a soft, washlight-like spread. With its flicker-free and almost noiseless operation, plus a colour reproduction index of over 90, the spotlight is superbly suited for use in theatre, film and TV production.
The OPUS® SP FC features four diaphragm sliders for creating a range of geometric shapes. These can be individually angled and inserted all the way for complete shading. The complete diaphragm slider system turns +/- 45° for precise positioning. Incredible morphing effects are created with the simultaneous use of both gobo wheels with 6 rotating and 7 static glass gobos. These can be combined with the animation wheel for exceptionally vivid projections. The spotlight offers a rotatable and indexable circular threefold prism and a rotatable and indexable linear sixfold prism for projection reproduction. In addition, four 16-bit dimmer curves are available to choose from.

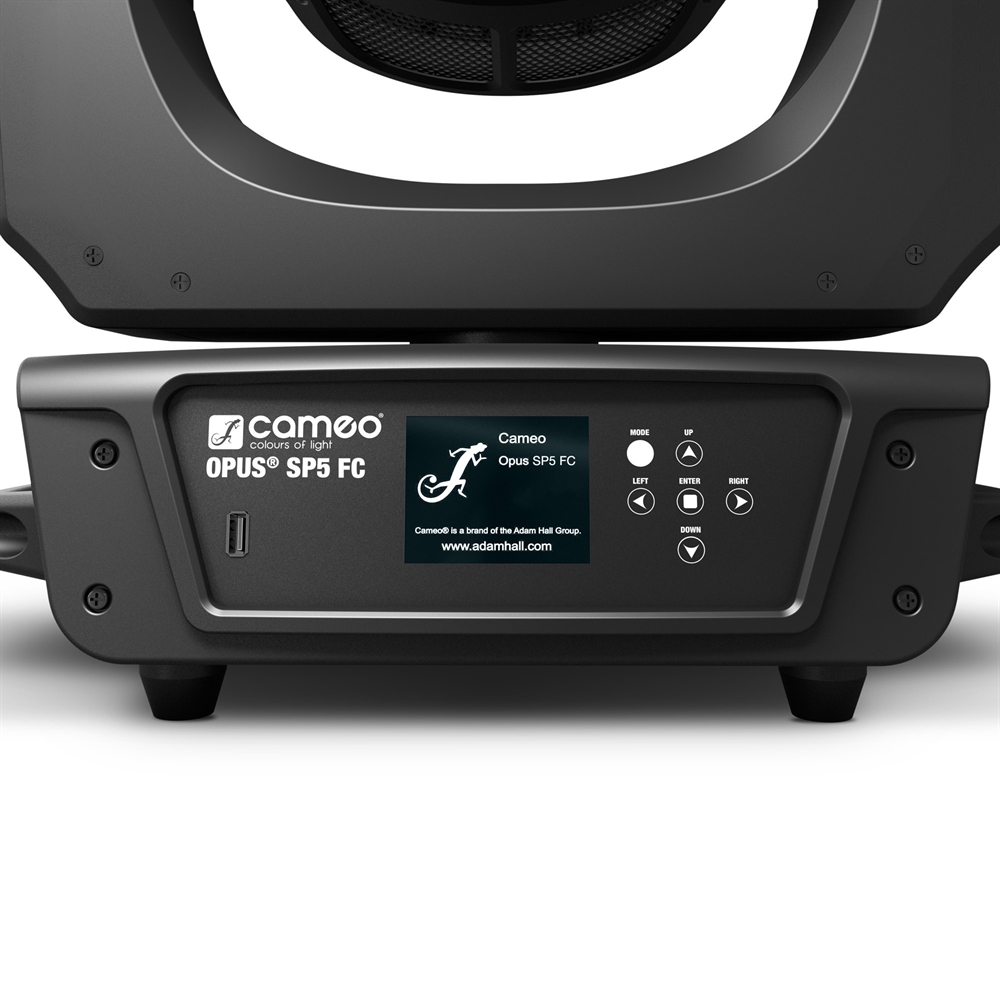

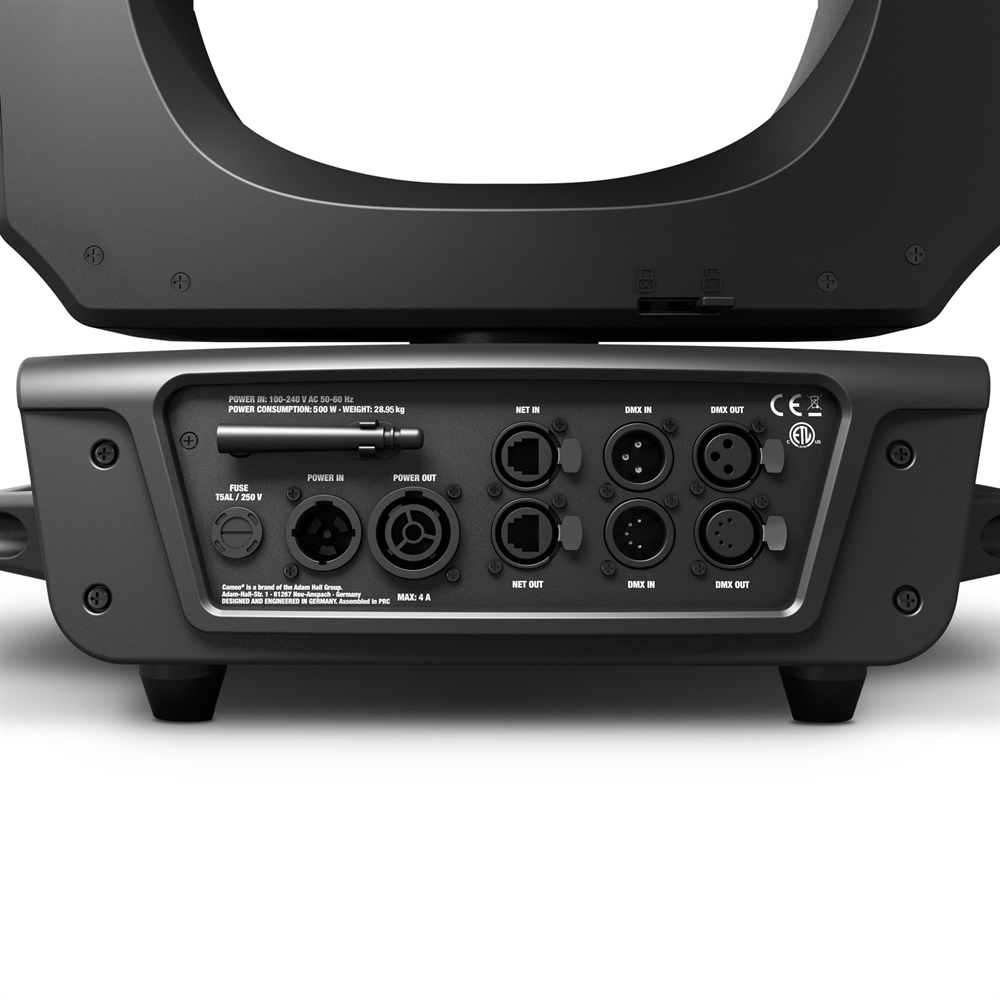

The OPUS® SP5 FC offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. Its robust ABS and metal housing is equipped with Neutrik® DMX and powerCON TRUE1 power sockets, while highly efficient heat pipe cooling and temperature-controlled fans ensure optimal operation. A battery-powered touchscreen display and 6 additional touch buttons facilitate convenient, mains-free configuration and two methods for navigation. The spotlight is supplied with two Omega brackets and power cable
Product type
LED Moving Lights
Type
Moving Head
Colour spectrum
RGBAL
Number of LEDs
1
LED type
300 W
Refresh rate
adjustable to 25000 Hz
Dispersion
6 - 44 °
DMX input
XLR 3-pin male , XLR 5-pin male
DMX output
XLR 3-pin female , XLR 5-pin female
DMX mode
33-channel
DMX Functions
Animation Wheel , Auto Movement , Colour wheel , Device Settings , Dimmer , Dimmer Fine , Focus , Focus Fine , Framing Blade Rotation , Framing Blades , Frost , Gobo Wheel 1 , Gobo Wheel 2 , Iris , PAN , PAN FINE , Prism , Rotation Fine Gobo Wheel , Rotation Gobo Wheel , Rotation Prism , Set Dimmer Curve , strobe , TILT , TILT FINE , Zoom , Zoom Fine
PAN movement
540
TILT movement
270
High Speed Strobe
> 20 Hz
Standalone modes
Auto Mode , Settings , Static
Controls
Enter , Mode , Value Down , Value Up
Indicators
Graphic Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz , Neutrik True 1 IN / OUT
Power consumption
500 W
Housing material
ABS plastic , Metal
Cabinet colour
Black
Protection class IP
IP20
Cooling
Heat-pipe cooling system with temperature controlled fans
Illuminance
14000 lx @ 5 m
Luminous flux
9000 lm
Maximum Ambient Temperature
-15 - 45 °C
Width
380 mm
Height
710 mm
Depth
250 mm
Weight
28,95 kg
