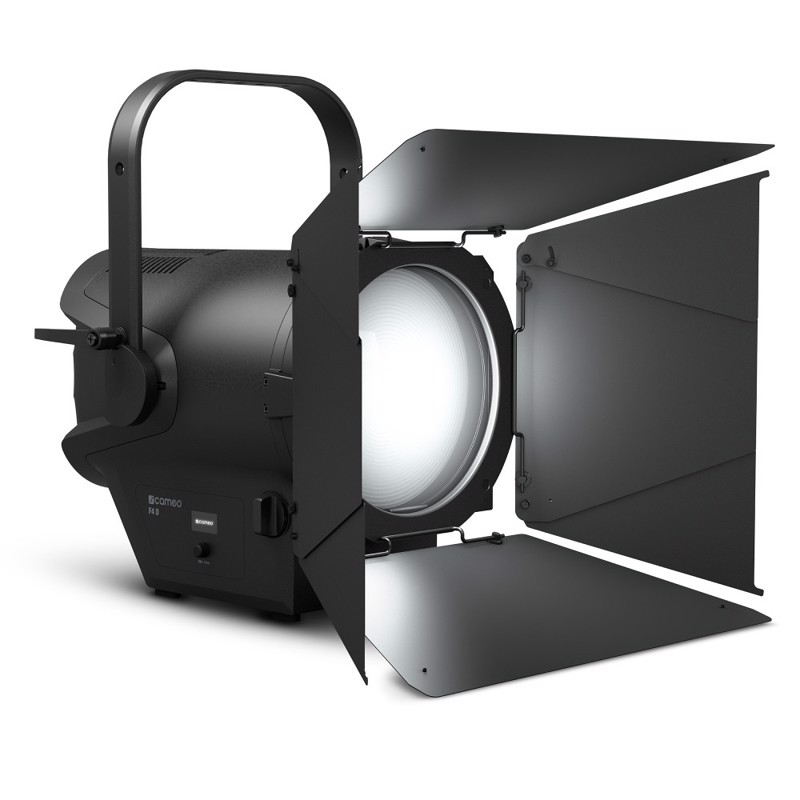

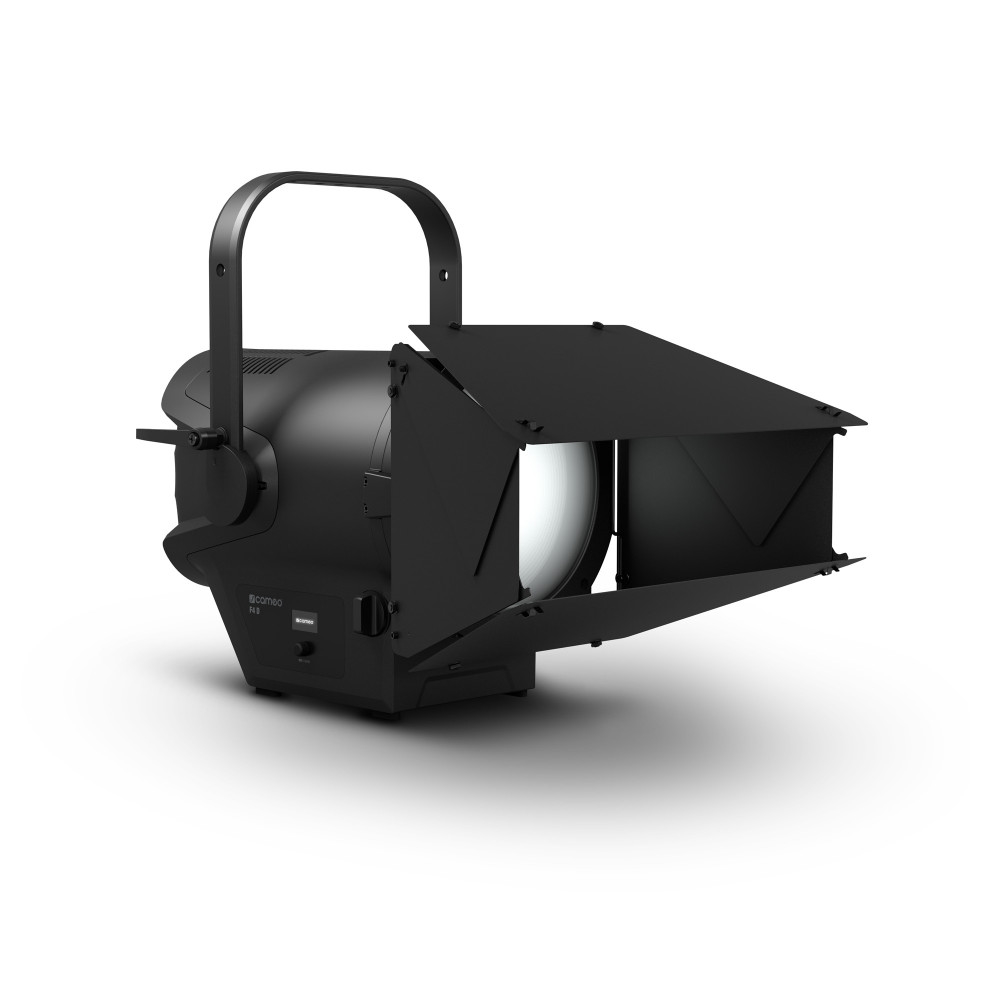

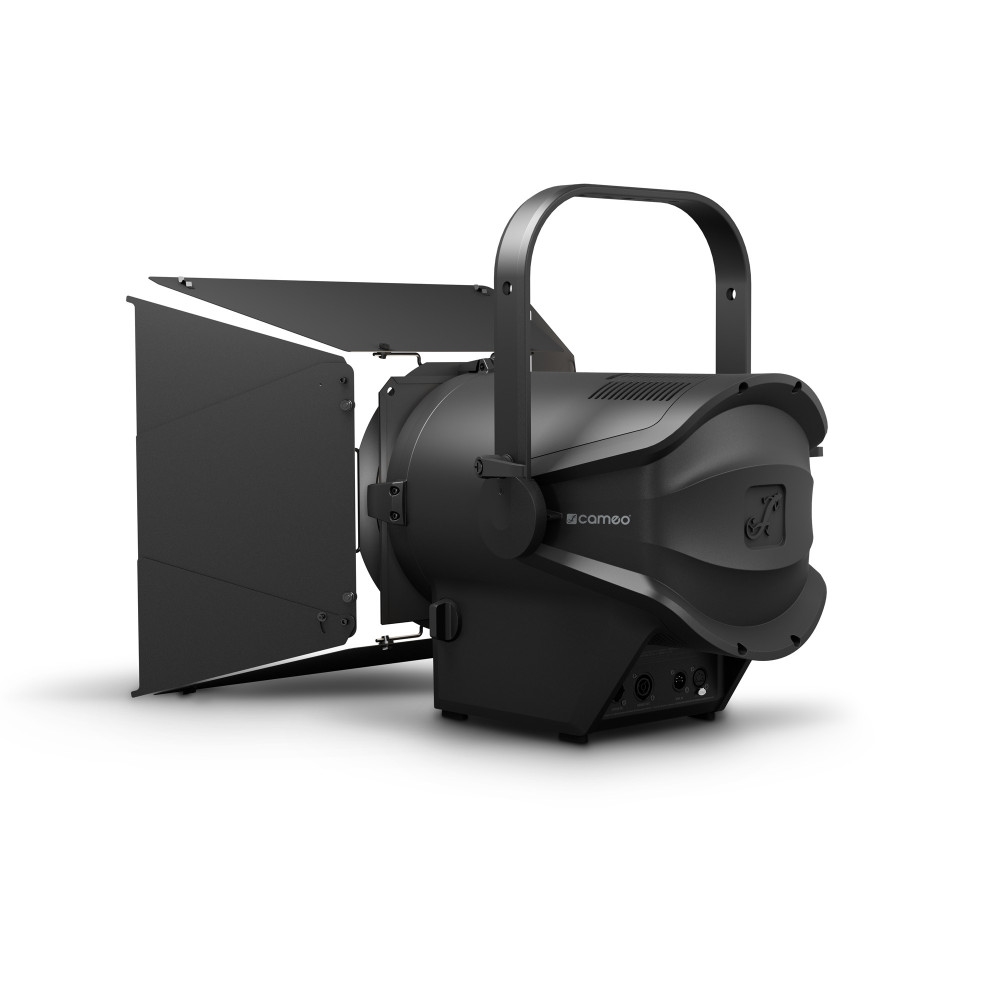

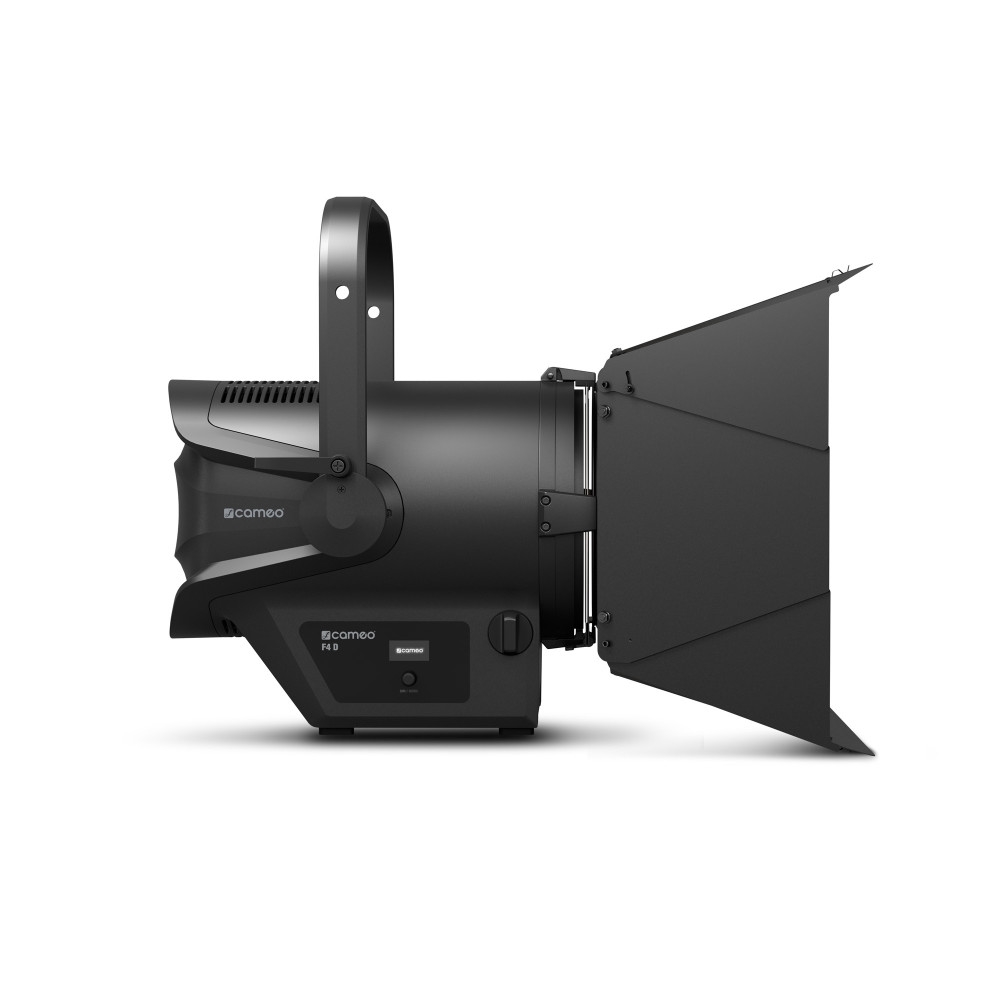

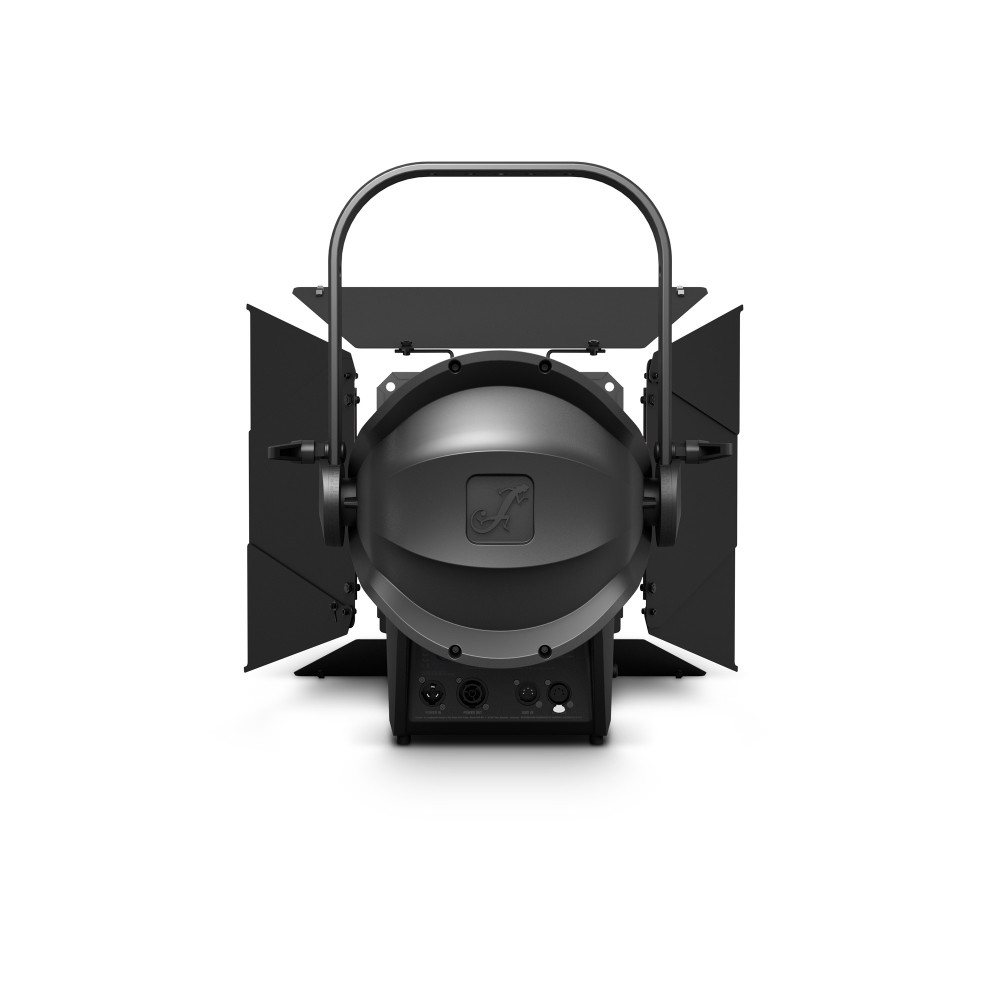

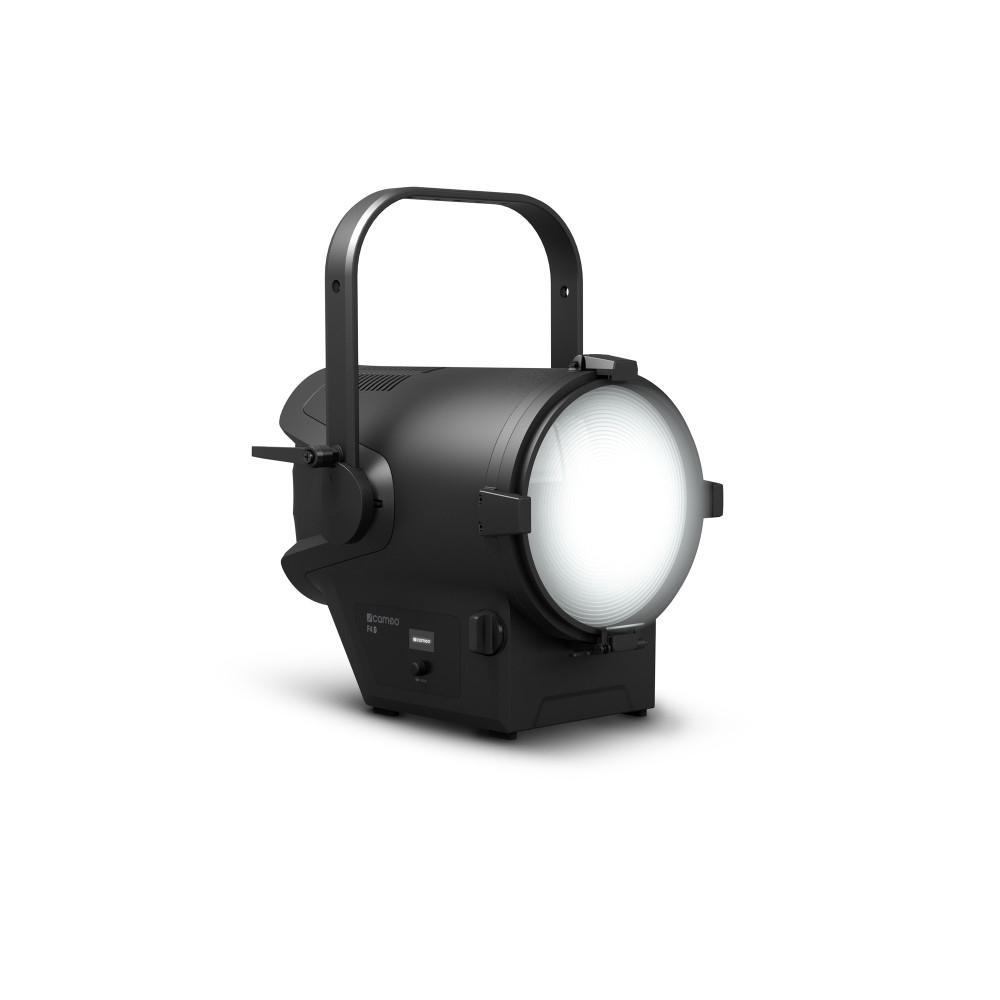

Cameo F4 D - Professional Fresnel Spotlight with Daylight, 520 W LED , 34,000 lm, zoom 12° to 40°

Natural white daylight in precise reproduction quality: The CAMEO F4 D is a professional Fresnel spotlight with the latest LED technology. It's an outstanding replacement for conventional halogen Fresnel spotlights that also leads to significant energy savings. The 250 mm high-quality lens is flooded with a powerful luminous flux of 34,000 lm. The RDM-capable spotlight creates a soft-edged beam of light with a continuously adjustable beam angle of 12° to 40° (beam angle) or 24° to 47° (field angle). Its 520-watt daylight LED has a colour temperature of 5,600 K and a service life of 50,000 hours. Its extremely high colour rendering index of 96 reproduces pure and natural colours.

The F4 D has six DMX control modes, a fast strobe function and 16-bit dimmer curves with adjustable response. The unique quicklight function makes setting up the spotlight much easier. Simply remove the DMX signal for a moment, increase the lighting brightness via the push encoder and adjust the spotlight. Six selectable pulse width modulation frequencies of up to 25 kHz ensure flicker-free operation. The highly efficient heatpipe cooling combines with a temperature-controlled fan to ensure optimal operation. The robust, die-cast aluminium housing is equipped with a push encoder and OLED display for easy configuration of the spotlight. 5-pin DMX connections allow simple daisy-chaining. 8-way barndoor, a gel frame and mains cable are included.

• LED Fresnel spotlight with daylight LED and 34,000 lm total light output
• Natural colour reproduction, CRI 96, TLCI > 94
• Continuous zoom for beam angles from 12° to 40°
• 16-bit technology for high-resolution dimming
• Four selectable dimmer curves with adjustable response
• Highly efficient heatpipe cooling with temperature-controlled fan
• RDM-capable, selectable pulse width modulation frequencies up to 25 kHz
• Flicker-free and silent operation, ideal for TV, film and theatre
• Quicklight function to save time when setting lights

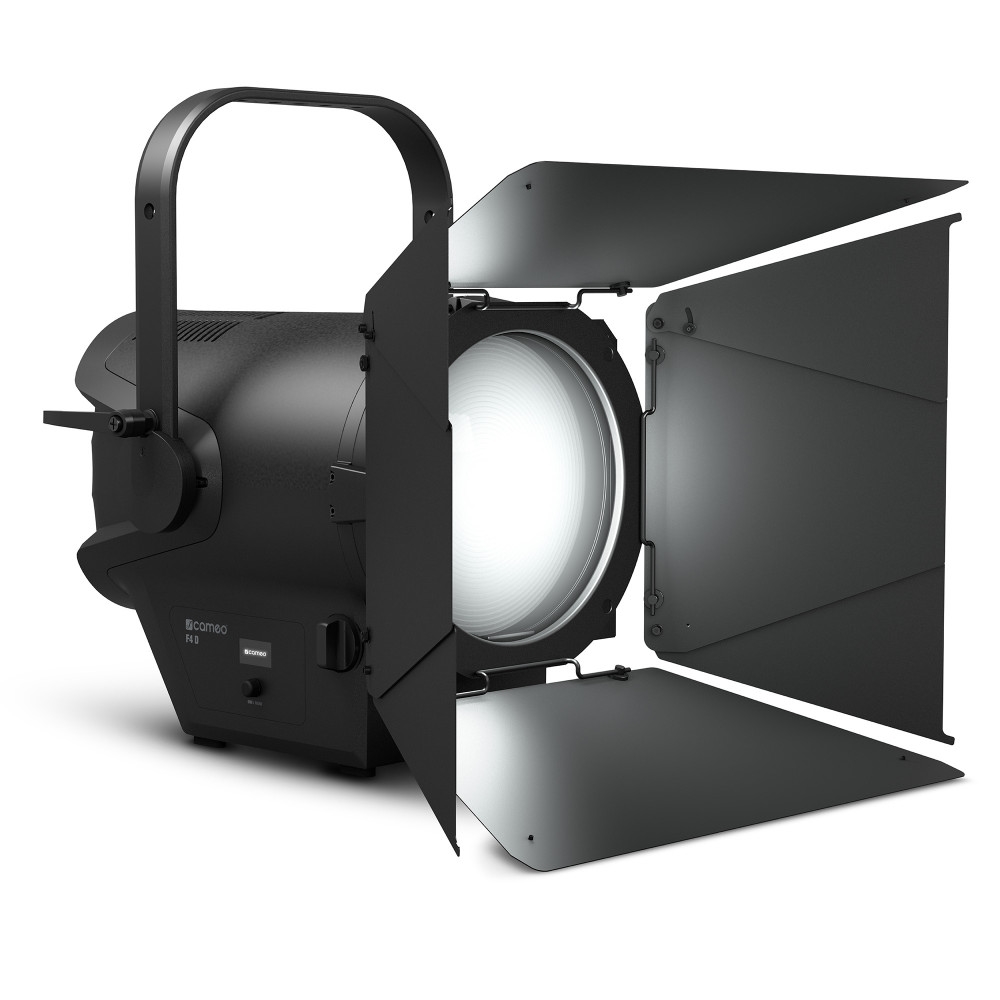

• 8-way barndoor and colour filter frames in

Specifications

Dimensions without mounting bracket
Product type
LED Fresnel Spotlight
Type
Theater Fresnel
Colour spectrum
Daylight
Number of LEDs
1
LED type
520 W (approx. 50,000 operating hours)
LED PWM Frequency
Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz
Dispersion
Beam Angle: 12 - 40 ° , Field Angle: 24 - 47 °
Lens
250 mm Fresnel

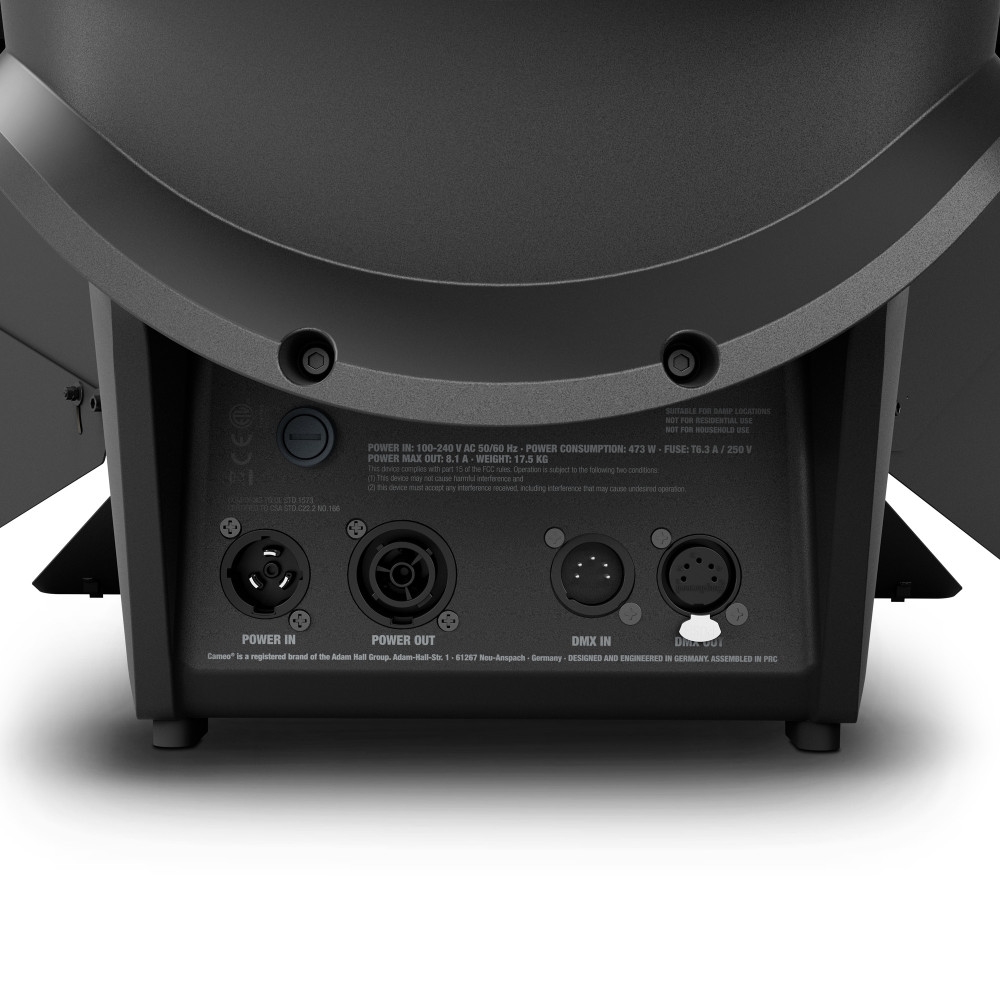

DMX input
5-Pol
DMX output
5-Pol
DMX Functions
Device Settings , Dimmer , Dimmer Curve , Dimmer Fine , strobe
Standalone modes
Master / Slave mode , Static
Controls
Push encoder
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
478 W
Power connector
TRUE1 compatible Power I/O sockets
Power supply connection
TRUE1 compatible Power I/O sockets
Housing material
Die-cast aluminium
Cabinet colour
Black
Protection class IP
IP20
Cooling
Comination of Heat Pipe and Temperature Controlled Fan
Luminous flux
34000 lm
Efficiency
71 lm/W
Colour temperature
5600 K
Ambient temperature (operating)
-15 - 45 °C
Width
410 mm
Height
364 mm
Length
433 mm
Weight
17,8 kg
Accessories (included)
8-way barndoor , Colour Filter Frame , Power cord
