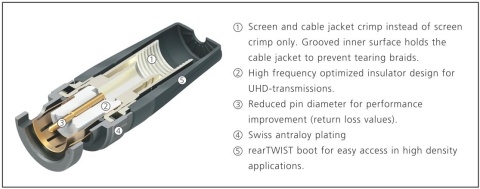

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.

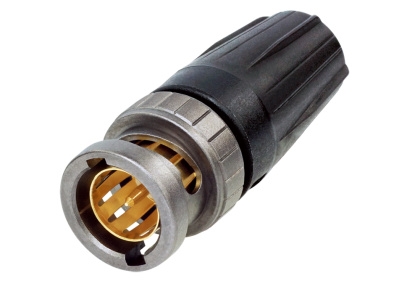

NBNC75BLP9X BNC stik UHD kompatibel med bl.a. Belden 1505ANH kabel
NBNC75BLP9X rearTWIST UHD BNC-kabelstikket er specifikt designet til højopløselige video-signaltransmissioner. Stikkets unikke isolator og kontakt pin-design sørger for at signaltabet er minimalt ved 4K og 8K signaler.
Egnede kabler:Argosy Image 720, CAE HD08370LSZH, Clark Wire CD7559F, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F), Percon VK6
UHD-optimerede kabler:Belden 1505A, Belden 1505ANH, Belden 1505DNH, Belden 4505R, Belden 70081, Belden 70081NH, Belden 70081CH, Bryant SD50F, Canare L-4CFB, Clark CD7559, Draka Highflex 0.8L/3.7Dz, Draka HD Pro 0.8/3.7 AF, Klotz VD083SH, Klotz V08/37H, Sommer vector 0.8/3.7
Contact resistance: = 3 mO (inner)
Contact resistance: = 2 mO (outer)
Dielectric strength: 1.5 kVdc
Impedance: 75 O
Insulation resistance: > 5 GO
Rated voltage: < 50 V
VSWR: =1.06 / >30 dB up to 6 GHz / =1.13 / >24 dB up to 12 GHz / =1.22 / >20 dB up to 18 Ghz
Cable O.D.: 6.3 mm
Cable retention: > 30 N (center)
Crimp size: 6.47 Hex crimp (shield)
Crimp size (pin): 1.07 crimp
Insertion force: < 25 N
Lifetime: > 1000 mating cycles
Locking device: Bayonett
Cable anchoring: Jacket crimping
Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
Shell: Brass (CuZn39Pb3)
Shell plating: Antraloy
Insert: PP
Temperature range: -30 °C to +85 °C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2
