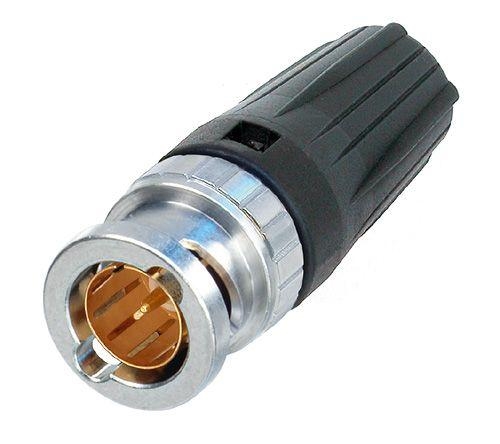

NBTC75BVV5 rearTWIST HD BNC-kabelstik 75 Ohm til Belden 1406B, 1407B & 1417B
NBTC75BVV5 rearTWIST HD BNC-kabelstik 75 Ohm. Egner sig perfekt til HD-applikationer. Stikket er optimeret til Belden 1406B, 1407B & 1417B.
Contact resistance: = 3 mO (inner)
Contact resistance: = 2 mO (outer)
Dielectric strength: 0,75 kVdc
Impedance: 75 O
Insulation resistance: > 5 GO
Rated voltage: <50 V
VSWR: =1.10/>26 dB up to 1 GHz, =1.14/>24 dB up to 2 GHz, =1.22/>20 dB up to 3 GHz
Cable O.D.: 3,8 mm
Cable retention: > 30 N (Center)
Crimp size: 5 Hex crimp (shield) acc. MIL22520/5-39(B)
Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force: < 25 N
Lifetime: > 1000 mating cycles
Locking device: Bayonett
Cable anchoring: Jacket crimping
Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert: PTFE
Shell: Brass (CuZn39Pb3)
Shell plating: Optalloy®
Temperature range: -30 °C to +85 °C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2
