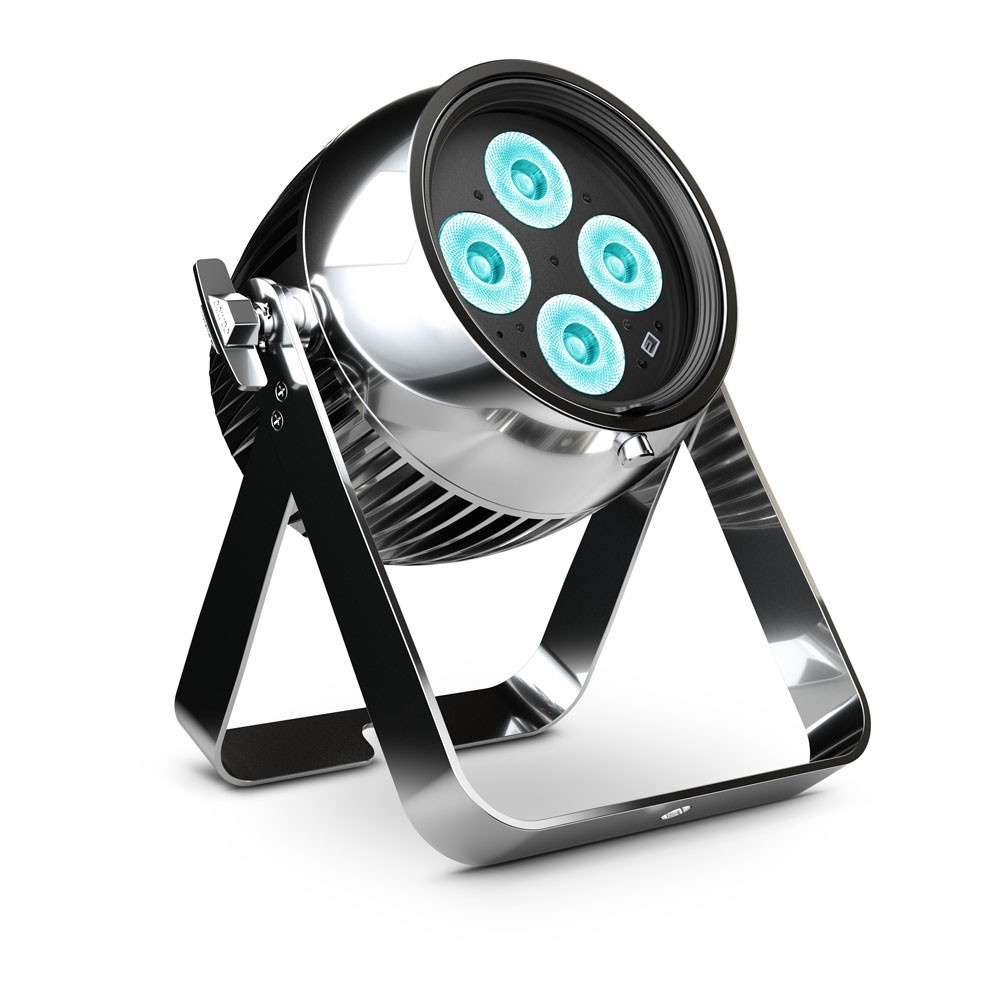

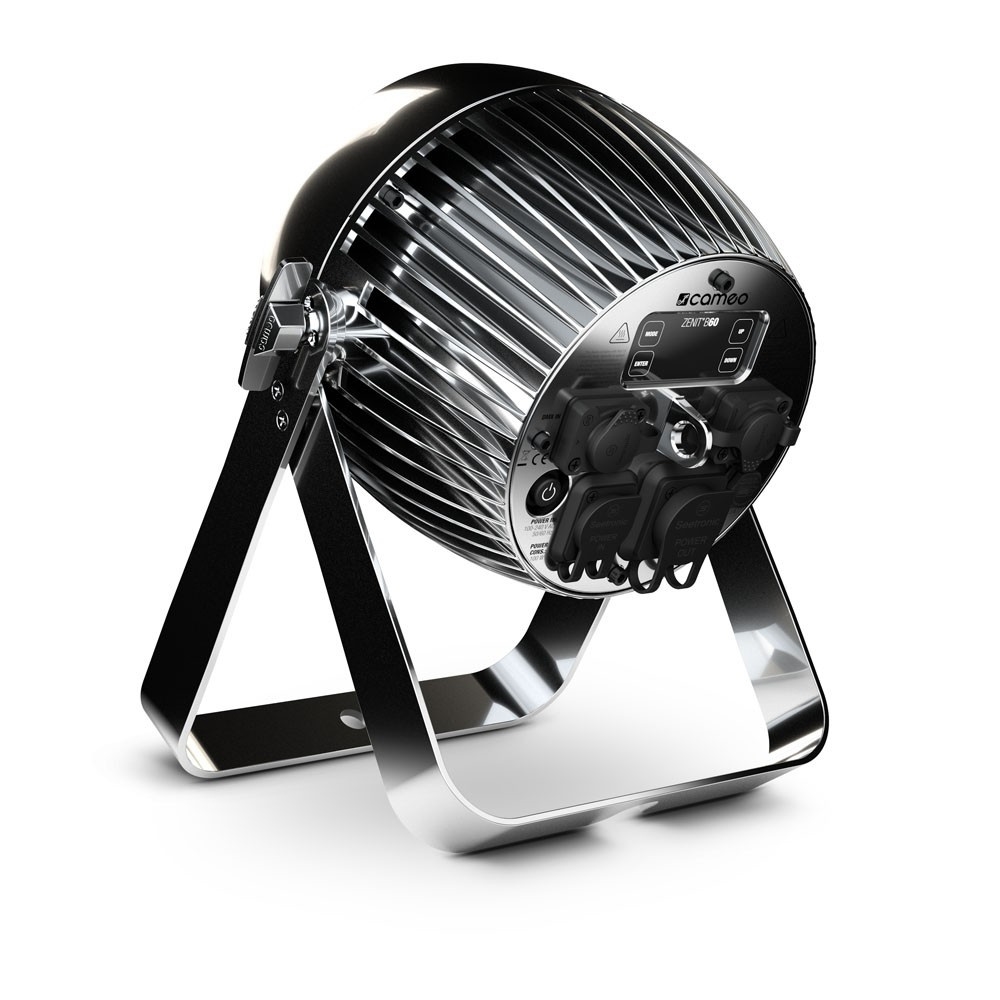

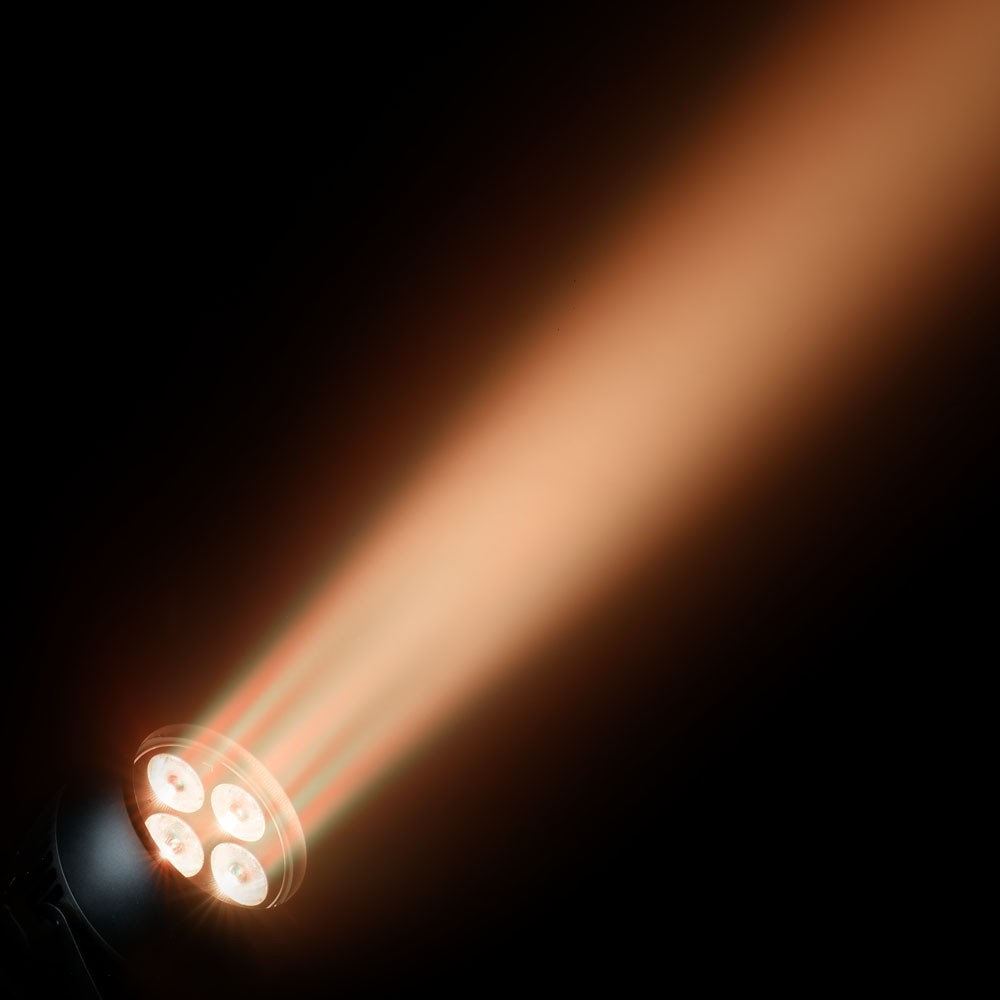

With battery operation, built-in wireless DMX and IP65 rating, the Cameo ZENIT® B60 is ready for demanding indoor and outdoor lighting applications. The highly professional PAR light sports four 15 W RGBW Cree LEDs with a 50,000 hour lifetime and powerful 1,900 lm output for brilliant, uniform colours with a precise 11° beam spread. For extra versatility it comes with two specially designed light shaping diffusers offering a choice of 25° or 40° beam angles while maintaining output.
In addition to seven modes of DMX, RDM and IR remote or manual control via the fixtures display the ZENIT® B60 incorporates a 2.4 GHz W-DMX receiver. Developed by Wireless Solution Sweden AB, W-DMX has become the unofficial standard for professional wireless lighting control. The luminaires super capacity lithium-ion battery is made providing reliable performance up to 24 hours from a single charge with adjustable runtime in one hour increments. An intelligent control automatically calculates brightness, and the PAR lights battery management system prevents overcharging and exhaustive discharge for extended battery life.
Sporting a 3,600 Hz refresh rate for flicker-free performance and highly efficient convection cooling for noiseless operation, the ZENIT® B60 is perfect for motion picture and TV applications. It utilises 16-bit technology for smooth high-resolution colour mixing and dimming and includes individual LED colour temperature correction plus a selection of dimming curves with adjustable response. The aluminium housing features a bright OLED display with four touch buttons for easy configuration while a security lock prevents unauthorized menu access.
- Professional battery-powered W-DMX PAR spotlight with IP65 protection rating

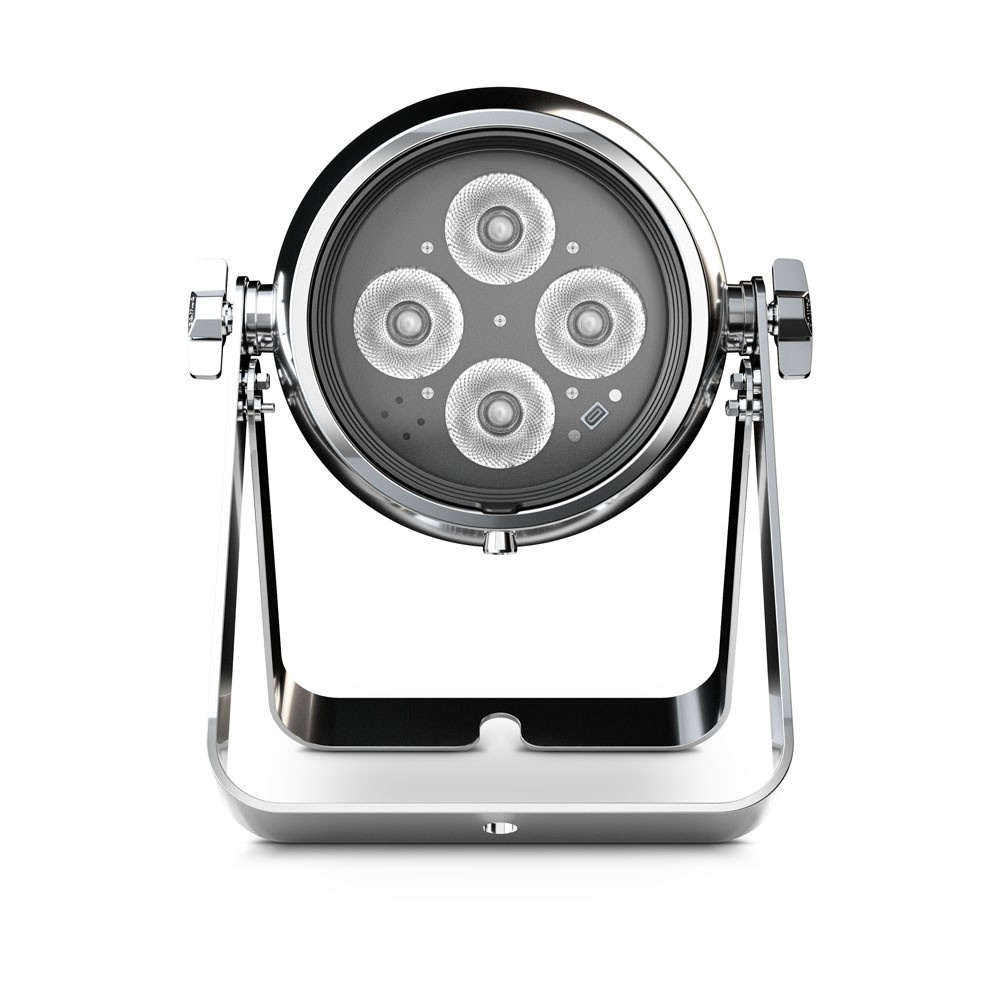

- 4 x 15 W RGBW Cree LEDs with 1900 lm luminous flux for especially consistent colour blending
- Long-life, powerful lithium-ion battery for reliable operation
- Battery management system prevents overcharging and deep discharging
- Built-in 2.4 GHz W-DMX receiver
- Control via W-DMX, DMX, RDM, IR remote control or display

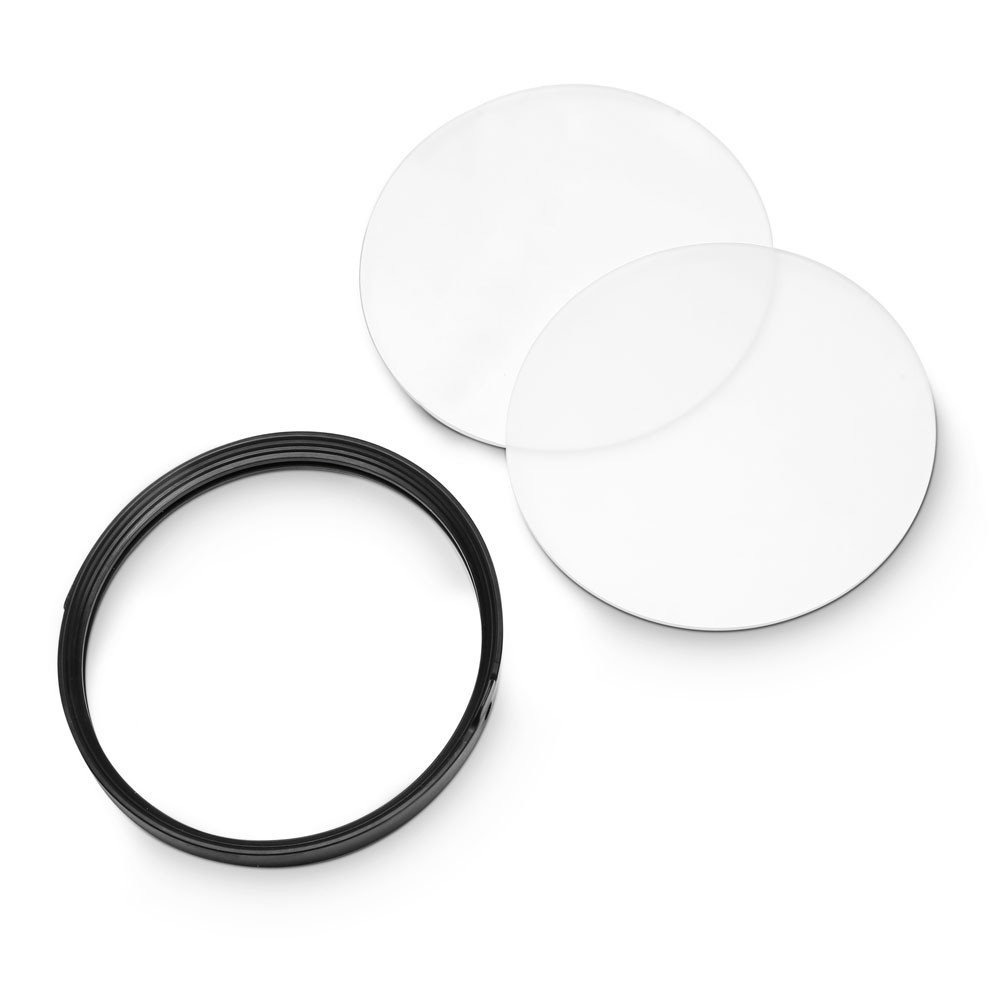

- Includes 2 specially developed diffusion lenses for adjustable beam angle of 11°, 25° and 40°. Elliptical diffuser 60°x10° available as accessory
- High-resolution colour blending and dimmer response with 16-bit technology

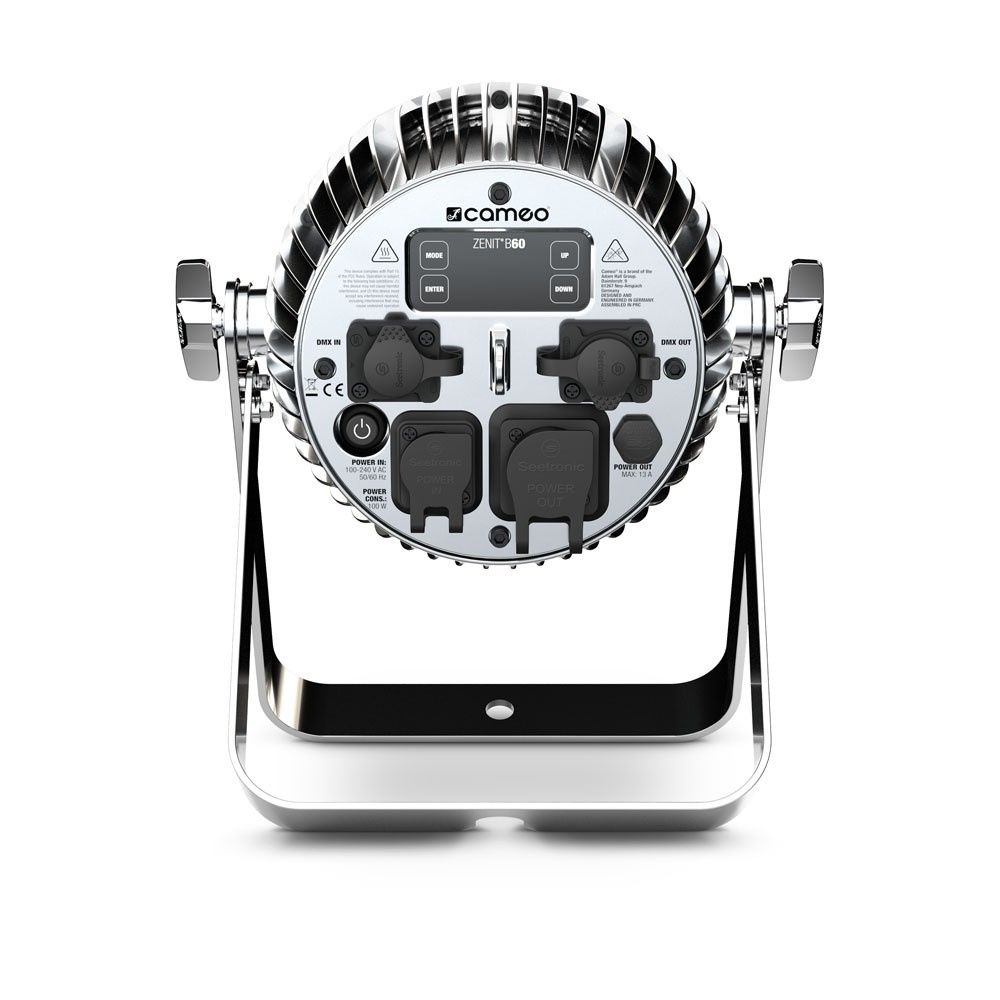

- OLED display with 4 touch-sensitive controls for simple configuration
- Access lock against unauthorised changes to menu settings
- Matching design bracket (CLZDB1C) included in scope of delivery
LED PAR Lighting
Type
Outdoor
Colour spectrum
RGBW
Number of LEDs
4
LED type
15 W
Refresh rate
3600 Hz
Dispersion
Without diffusor - (Beam) 11° / (Field) 18 °
DMX input
5-pin IP65
DMX output
5-pin IP65
DMX mode
10-channel, 15-channel, 2-channel, 3-channel, 4-channel, 8-1 Channel, 8-2 Channel
DMX Functions
colour change, colour fade, colour jump, colour macro, CTC (Colour Temperature Correction), Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, reset, RGBW, RGBW Fine, Strobe
Standalone modes
Auto programs, colour fade, colour jump, colour macro, Dimmer Curve, Dimmer Response, Display Lock, Master / Slave mode, static colour, Strobe, White Balance adjustable
Controls
Enter, Mode, Value Down, Value Up
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
100 W
Power connector
IP65
Power supply connection
IP65
Housing material
Die-cast aluminium
Cabinet colour
chrome
Protection class IP
IP65
Battery capacity
217 Wh
Battery capacity
20.1 Ah
Battery operation time at maximum load
up to 24 hours
Charging time
4h
Cooling
Convection
Illuminance
40000lx @ 1m
Luminous flux
1900 lm
Efficiency
32 lm/W
Operating Temperature
0 - 30 °C
