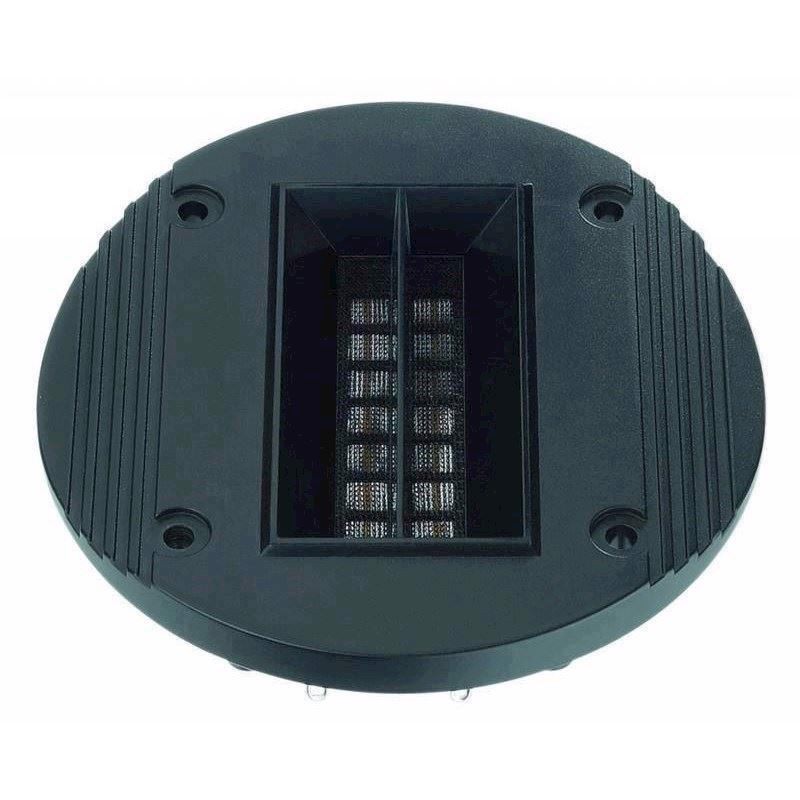

Finally, a ribbon tweeter (magnetostatic speaker) is available again from MONACOR:
modern appearance, of high power capability in exactly the right range of applications and with a perfect price-performance ratio.

Ribbon tweeter,

Ribbon tweeter, 30 W, 8 Ω

• Magnetostatic speakers of a high efficiency
• Perfectly fine dynamic reproduction of the high range and the brilliance frequency range
• Power capability of the system can considerably be increased by voltage dividers and maybe higher crossover frequencies (level attenuations which take tweeters to the level of normal hi-fi systems)
• Very light sound of low distortion which particularly improves the stereophony in applications from 5 kHz on
• By adding a super tweeter above 8-10 kHz, e.g. even high-quality full range systems can be further improved



Impedance (Z)	8 Ω
Transmission method

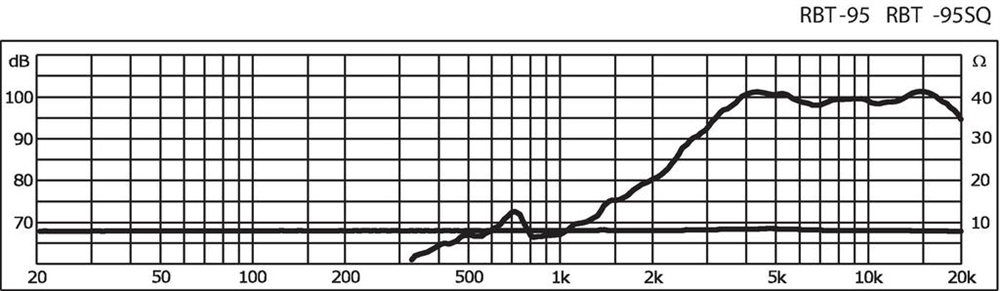

Frequency range	fx-22,000 Hz
Resonant frequency (fs)	4,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	5,000 Hz
Power rating	30 W
Peak music power output	60 W
Sensitivity	98 dB/W/m
Max. rated SPL
Max. voltage
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms)
Moving mass (Mms)
Mech. Q factor (Qms)
Electr. Q factor (Qes)
Total Q factor (Qts)
Equivalent volume (Vas)
DC resistance (Re)
Force factor (BxL)
Voice coil induct. (Le)
Voice coil diameter	-
Voice coil former
Linear excursion (XMAX)
Eff. cone area (Sd)
Magnet weight
Magnet diameter	magnetostatic speaker

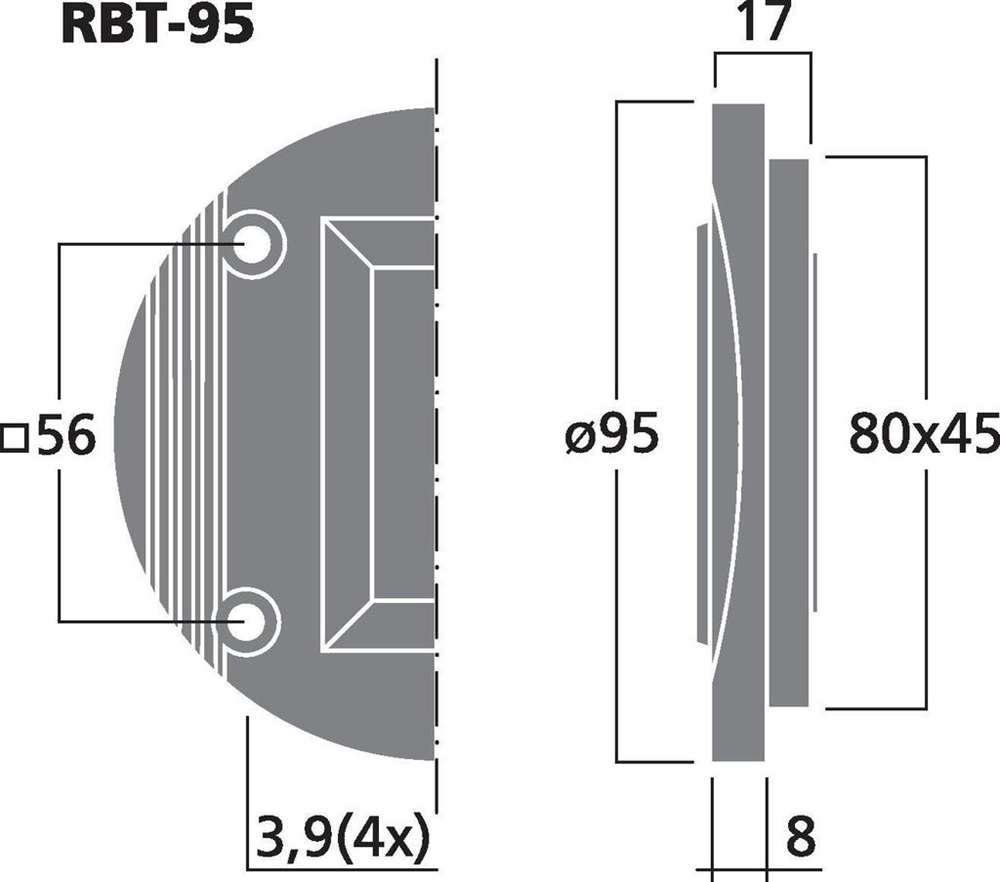

Mounting cutout	80 x 45 mm
Mounting depth	17 mm
Mounting hole diameter	-
Hole spacing X-axis
Hole spacing Y-axis
Dimensions	Ø 95 x 17 mm
Outside diameter	Ø 95 mm
Width	Ø 95 mm
Height	-
Depth	17 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	110 g
Packing unit	1
Type of speaker	-

Varenr.: 102250
