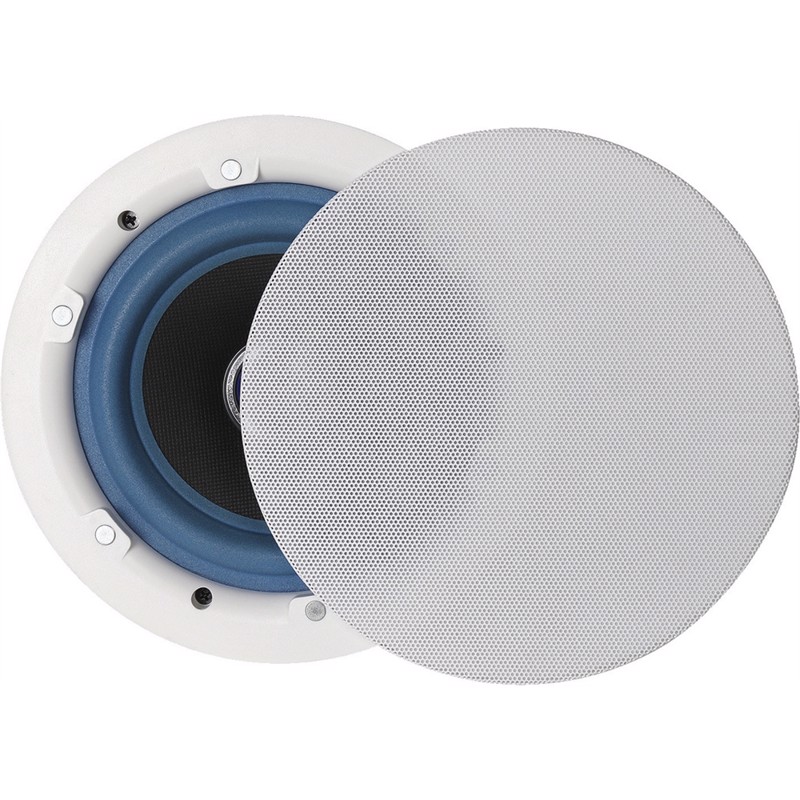

Active 2-way flush-mount ceiling speaker, with integrated Dante® module. - RDA10

På lager
På lager, 2-4 dage
Bedømmelse for Active 2-way flush-mount ceiling speaker, with integrated Dante® module. - RDA10
Produktet er endnu ikke bedømt

Indhent tilbud.Vis uden moms

Active 2-way flush-mount ceiling speaker,

with integrated Dante^® module.

Full range coaxial ceiling speaker
Equipped with standard flex terminals
Frameless construction and slim design

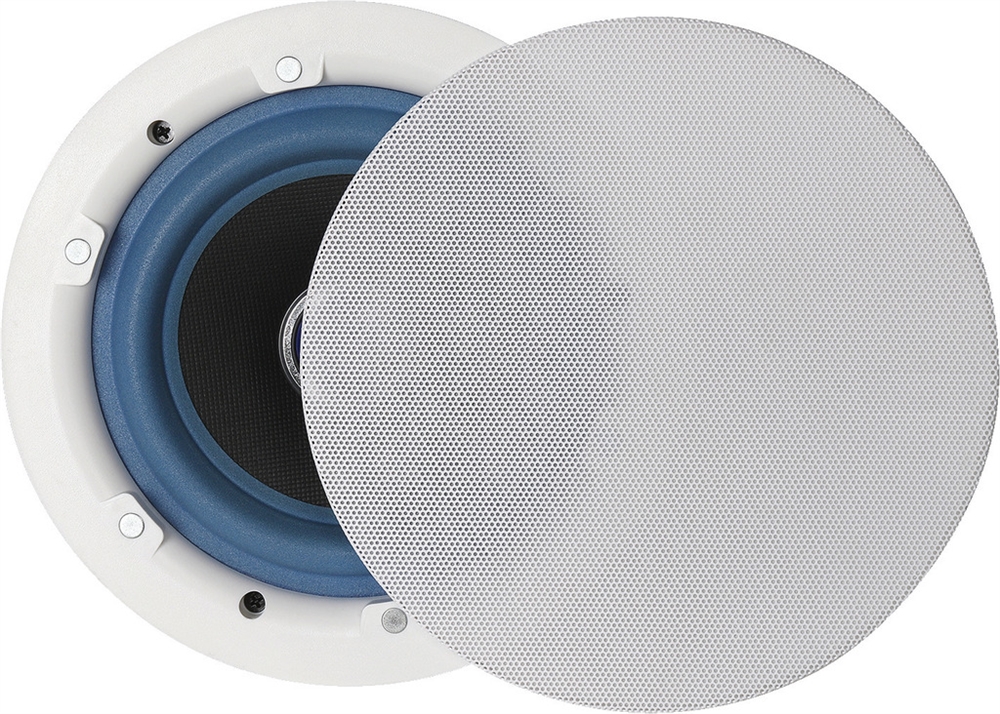

Removable magnetic, lacquered grille for seamlessly covering the entire speaker

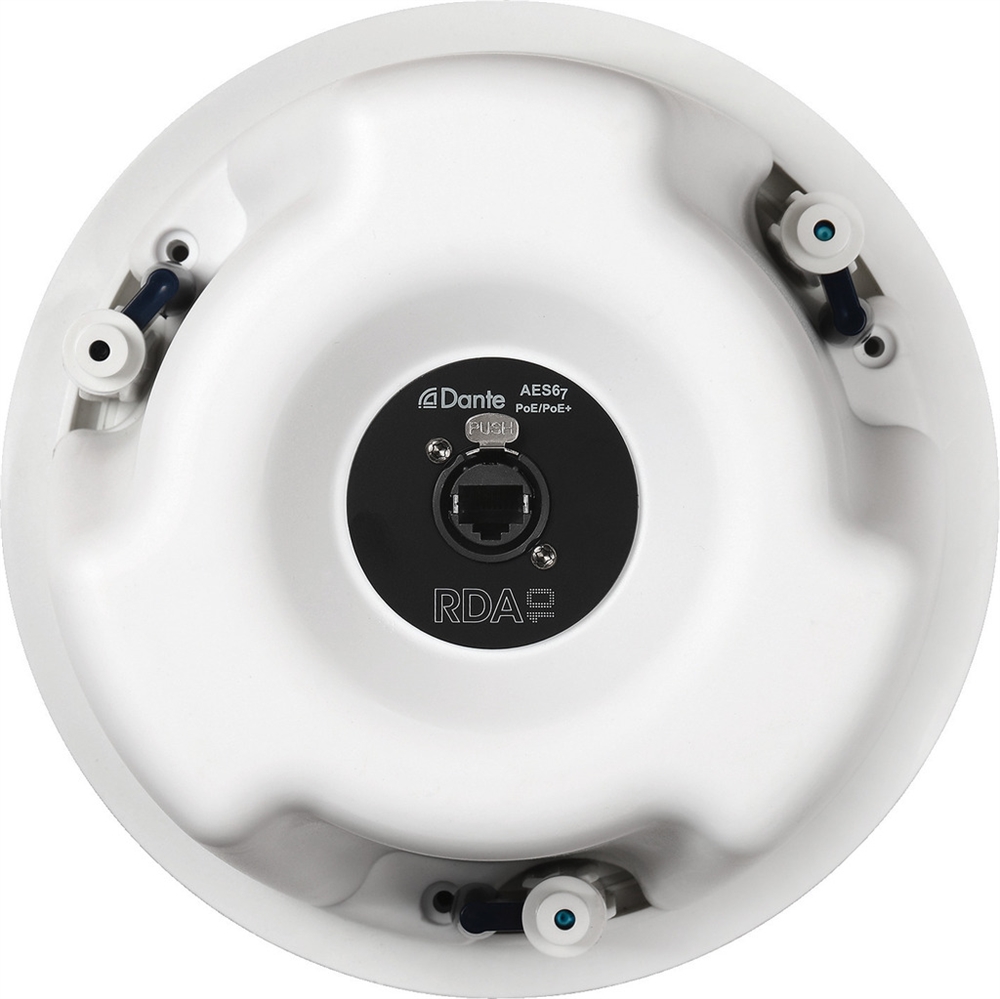

Supports PoE/PoE+ Ethernet audio connection and power supply via RJ45 connection
Output power: 10 W (PoE), 20 W (PoE+)
Compatible with all Dante^®/AES67 audio network products
Transmission of data signals via RJ45 port
Supports Relacart speaker management software for easy setup and remote management

System requirements Dante^®: Windows 7/8.1/10/11 or MacOS 10.9.5/10.10.5/10.11

Technical specifications RDA10

RDA10
Active/passive	active
Transmission technology	Dante ^®
Total output power	30 W
Power rating (RMS)	10 W (PoE), 20 W (PoE+)
Frequency range	85-17,000 Hz
Input signal	Dante^®
System	2-way
Bass speaker	1 x 16 cm
Tweeter	1 x 2.5 cm
Number of speakers	1
Speaker size	16 cm (6")
SPL	90 dB/W/m
Max. rated SPL	103 dB
Radiation angle/beam angle	90°
Radiation angle, horizontal	90°
Radiation angle, vertical	90°
Housing material	plastic frame, protective metal grille
Colour	white
Mounting device	ceiling suspension
Power supply	37-57 V PoE/PoE+ via RJ45
Dimensions	Ø 210 mm x 150 mm
Width	Ø 210 mm
Height	Ø 210 mm
Depth	150 mm
Weight	1.5 kg
Inputs	RJ45
Other features	integr. DSP for tone control via software
Packaging dimensions (W x H x L)	0.232 x 0.178 x 0.232 m
Gross weight	1.89 kg
Net weight	1.5 kg
