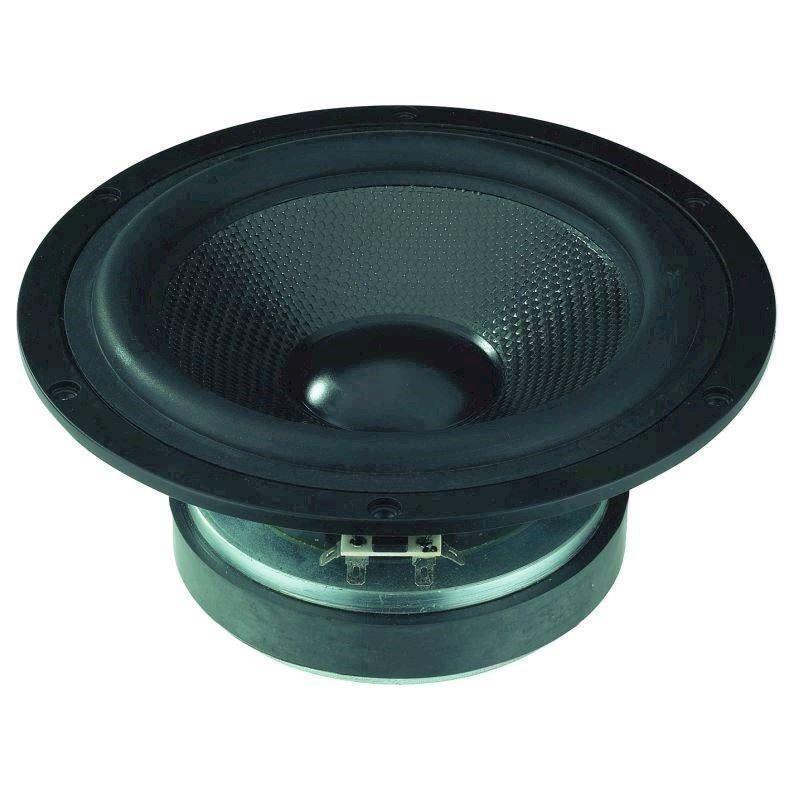

8'' højttaler - SPH-225C - NUMBER ONE

8\'\' højttaler - SPH-225C - NUMBER ONE
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for 8'' højttaler - SPH-225C - NUMBER ONE
    Produktet er endnu ikke bedømt
  •
    1.179,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




High-end bass speaker, 120 W, 8 Ω
  • High-rigidity cone
  • Extra long excursion
  • Small loss and low distortion
  • For an impressive fundamental bass in any high-quality hi-fi combination and smaller subwoofers
  • Also possible as a bass-midrange speaker in 2-way combinations
  • Suitable for cabinets of extra small dimensions
Klang+Ton 06/2014
"Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials."


Impedance (Z)8 Ω
Transmission method-
Frequency rangef3-3,000 Hz
Resonant frequency (fs)39 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating120 W
Peak music power output200 W
Sensitivity90 dB
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.43 mm/N
Moving mass (Mms)36.6 g
Mech. Q factor (Qms)4.94
Electr. Q factor (Qes)0.31
Total Q factor (Qts)0.30
Equivalent volume (Vas)24 l
DC resistance (Re)5.9 Ω
Force factor (BxL)13.17 Tm
Voice coil induct. (Le)0.8 mH
Voice coil diameterØ 50 mm
Voice coil formerKapton
Linear excursion (XMAX)± 6 mm
Eff. cone area (Sd)201 cm2
Magnet weight1.1 kg
Magnet diameterØ 140 mm
Mounting cutoutØ 181 mm
Mounting depth97 mm
Mounting hole diameterØ 209 mm
Hole spacing X-axis-
Hole spacing Y-axis-

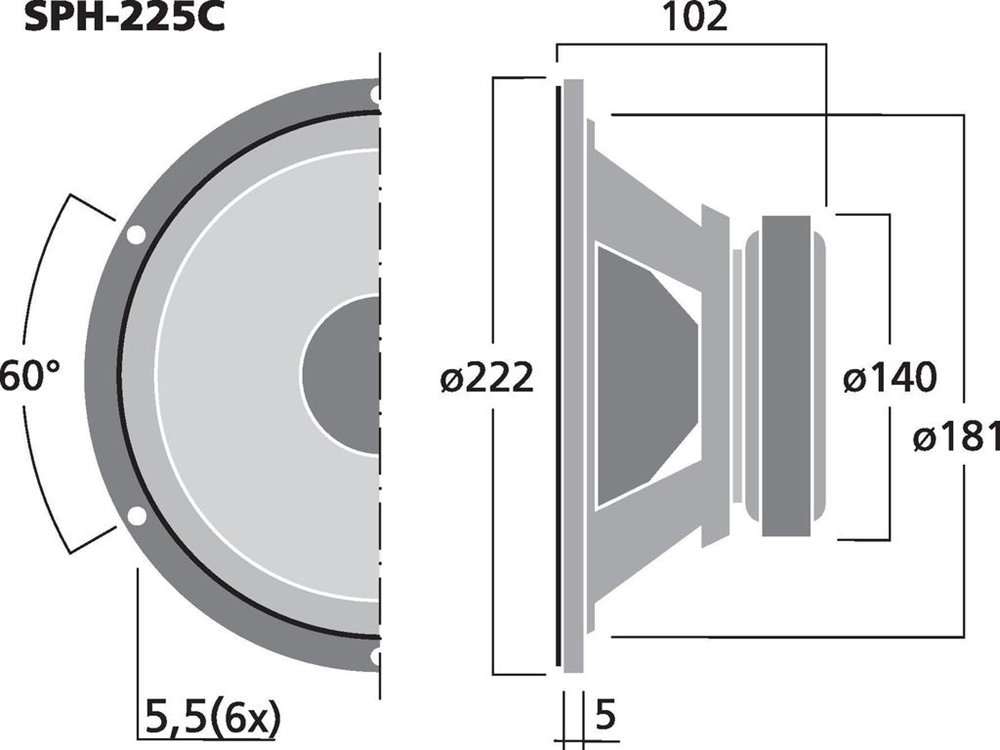

DimensionsØ 222 mm x 102 mm
Outside diameterØ 222 mm
WidthØ 222 mm
Height-
Depth102 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight3.52 kg
Packing unit1
Type of speaker8"

Varenr.: 104130
