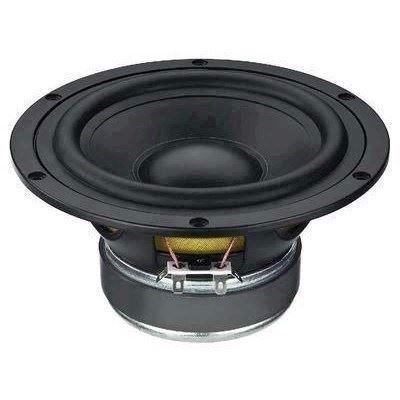

6'' højttaler - SPH-6M - MONACOR

6\'\' højttaler - SPH-6M - MONACOR
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for 6'' højttaler - SPH-6M - MONACOR
    Produktet er endnu ikke bedømt
  •
    539,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


Hi-fi bass speaker, 120WMax, 8Ω

Hi-fi bass speaker, 60 W, 8 Ω
  • High-quality hi-fi bass speaker of long excursion
  • Damped low-resonance polypropylene cone
  • Robust diecast aluminium basket of an elegant design with 6-hole screw connection
  • Magnet system with drilled pole core and protruding rear pole plate
  • Very well-suited for bass-reflex speaker systems
Klang+Ton 01/2014
"The 17 cm prolypropylene speaker provides a regular and very accurate signal reproduction."
(Together with DT-350NF in the Klang+Ton speaker building concept GT6)

HOBBY HiFi 02/2012
"Amazing bass speaker - neat workmanship, clever dimensioning. Creates an amazingly deep bass reproduction from a petite bookshelf speaker format (to 36 Hz)."


Impedance (Z)8 Ω
Transmission method-
Frequency rangef3-3,000 Hz
Resonant frequency (fs)39 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating60 W
Peak music power output120 W
Sensitivity88 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.78 mm/N
Moving mass (Mms)20 g
Mech. Q factor (Qms)2.26
Electr. Q factor (Qes)0.35
Total Q factor (Qts)0.30
Equivalent volume (Vas)17.6 l
DC resistance (Re)6.33 Ω
Force factor (BxL)9.68 Tm
Voice coil induct. (Le)0.82 mH
Voice coil diameterØ 37 mm
Voice coil formeraluminium
Linear excursion (XMAX)± 4 mm
Eff. cone area (Sd)127 cm2
Magnet weight630 g
Magnet diameterØ 100 mm
Mounting cutout-
Mounting depth-
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

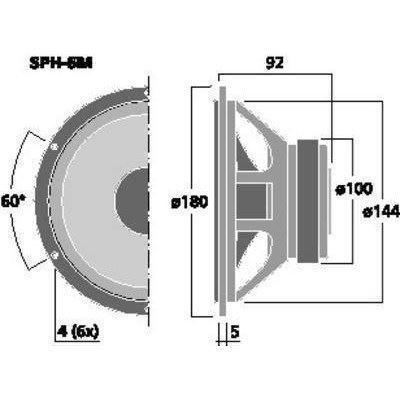

DimensionsØ 180 mm x 92 mm
Outside diameterØ 180 mm
WidthØ 180 mm
Height-
Depth92 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight2.005 kg
Packing unit1
Type of speaker6.5"


Varenr.: 105540
