| Impedance (Z) | 8 Ω |
| Transmission method | - |
| Frequency range | f3-6,000 Hz |
| Resonant frequency (fs) | 38 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating | 55 W |
| Peak music power output | 80 W |
| Sensitivity | 89 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 2.14 mm/N |
| Moving mass (Mms) | 8.2 g |
| Mech. Q factor (Qms) | 1.91 |
| Electr. Q factor (Qes) | 0.39 |
| Total Q factor (Qts) | 0.32 |
| Equivalent volume (Vas) | 22 l |
| DC resistance (Re) | 5.7 Ω |
| Force factor (BxL) | 5.4 Tm |
| Voice coil induct. (Le) | 0.5 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±2 mm |
| Eff. cone area (Sd) | 80 cm2 |
| Magnet weight | 230 g |
| Magnet diameter | Ø 72 mm |
| Mounting cutout | Ø 129 mm |
| Mounting depth | 64.2 mm |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |

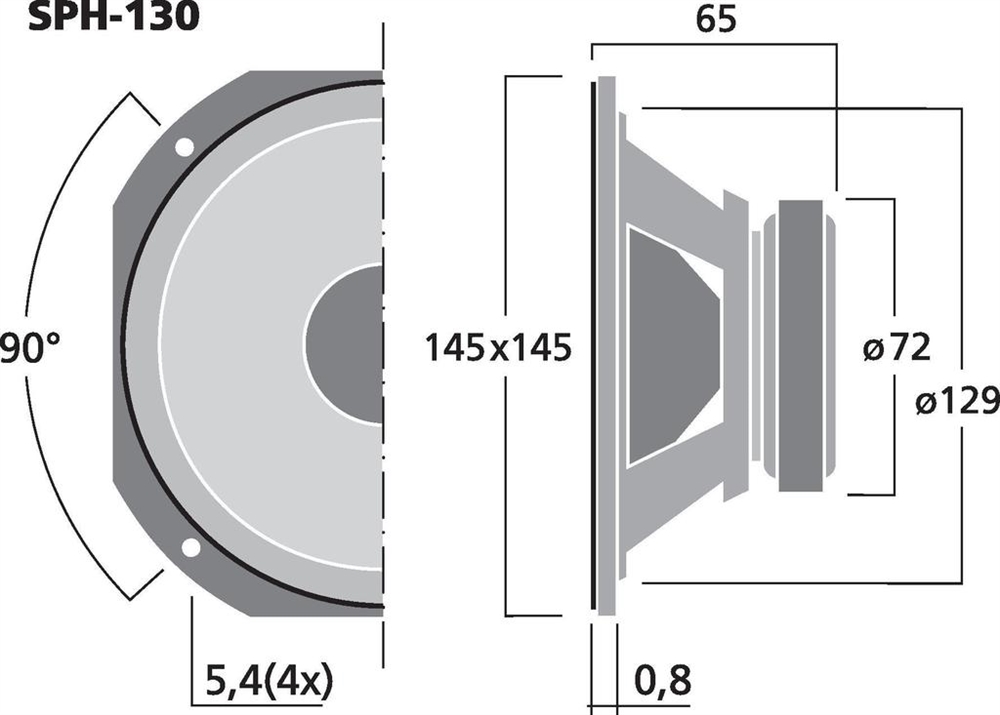

| Dimensions | 145 x 145 x 65 mm |
| Outside diameter | - |
| Width | 145 mm |
| Height | 145 mm |
| Depth | 65 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.75 kg |
| Packing unit | 1 |

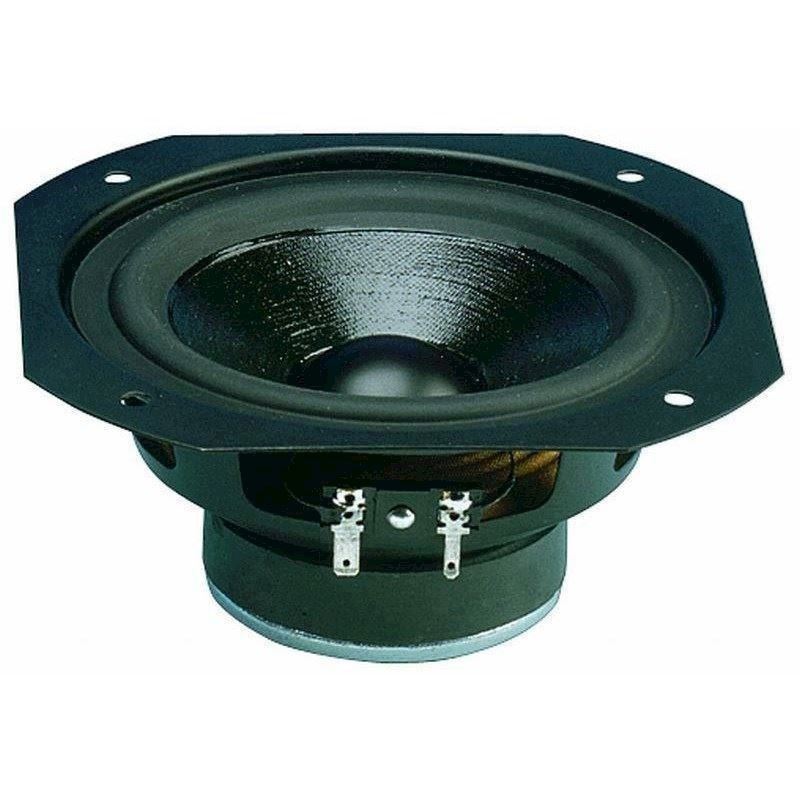

| Type of speaker | 5.5" |
