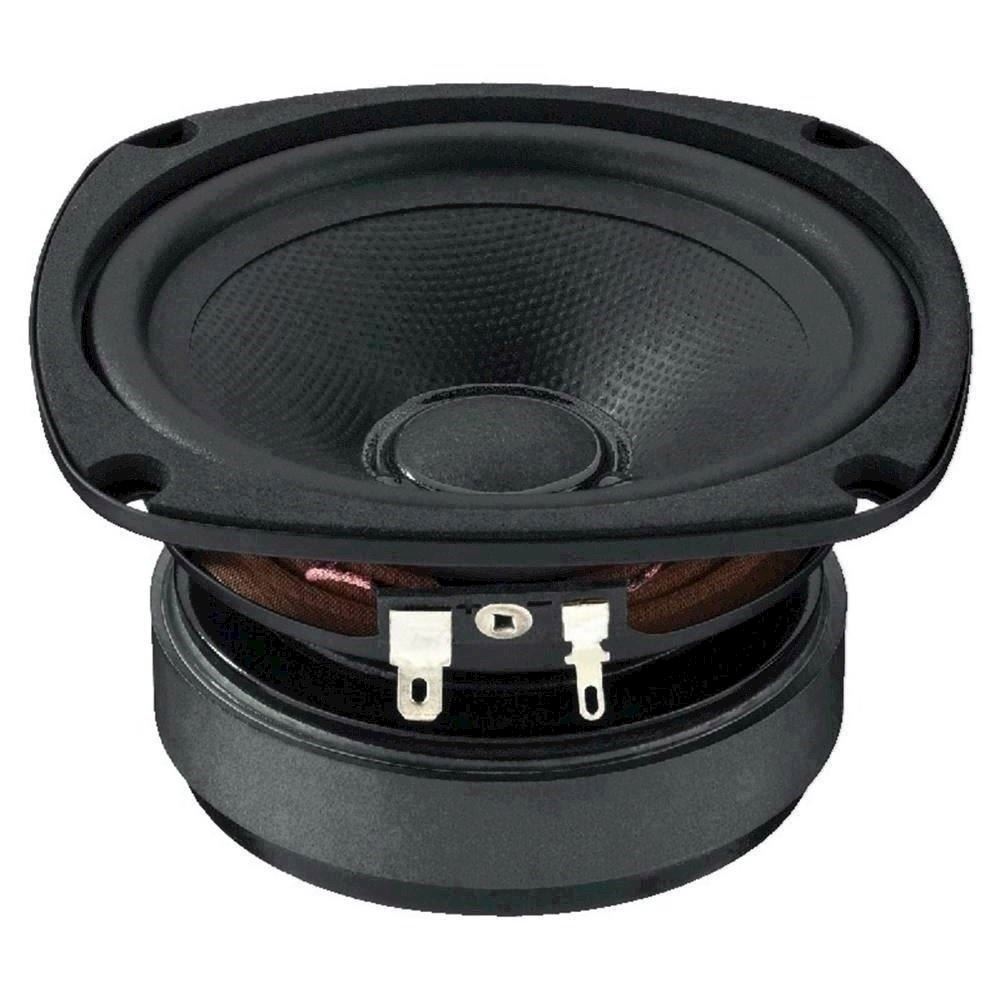

4'' højttaler - SP-4/60PRO

4\'\' højttaler - SP-4/60PRO
  • Ikke på lager
  • Forventes uge 25
  • Bedømmelse for 4'' højttaler - SP-4/60PRO
    Produktet er endnu ikke bedømt
  •
    189,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


PA midrange speaker, 60WMAX, 30WRMS, 8 ohm

PA midrange speaker, 30 W, 8 Ω
  • 10 cm (4") PA midrange speaker
  • Midrange speaker from the L-RAY/1000
  • Very linear and wide frequency range
  • Excellent sound and dynamic characteristics
  • Due to a great linear excursion for a midrange system, very low crossover frequency at subwoofer systems possible
  • Ideally suited for small PA systems, column speakers and also as a hi-fi midrange speaker
HOBBY HiFi 01/2013
"Impressively low THD values for a crystal-clear reproduction of the midrange."

HiFi-Selbstbau 07/2012

"Attractive price, unobtrusive, yet very good. This perfectly describes the midrange speaker SP-4/60PRO from IMG Stage Line. You can often be more successful when using your head instead of excessive material, ... The staff from MONACOR know exactly why they accommodate two of the SP-4/60PRO in the PA combination L-RAY/1000. We have always been curious as to why they only used a 10 cm speaker - but now we know why: the speaker is capable of a powerful bass reproduction without any kind of hesitation. They have done EVERYTHING right."


Impedance (Z)8 Ω
Transmission method-

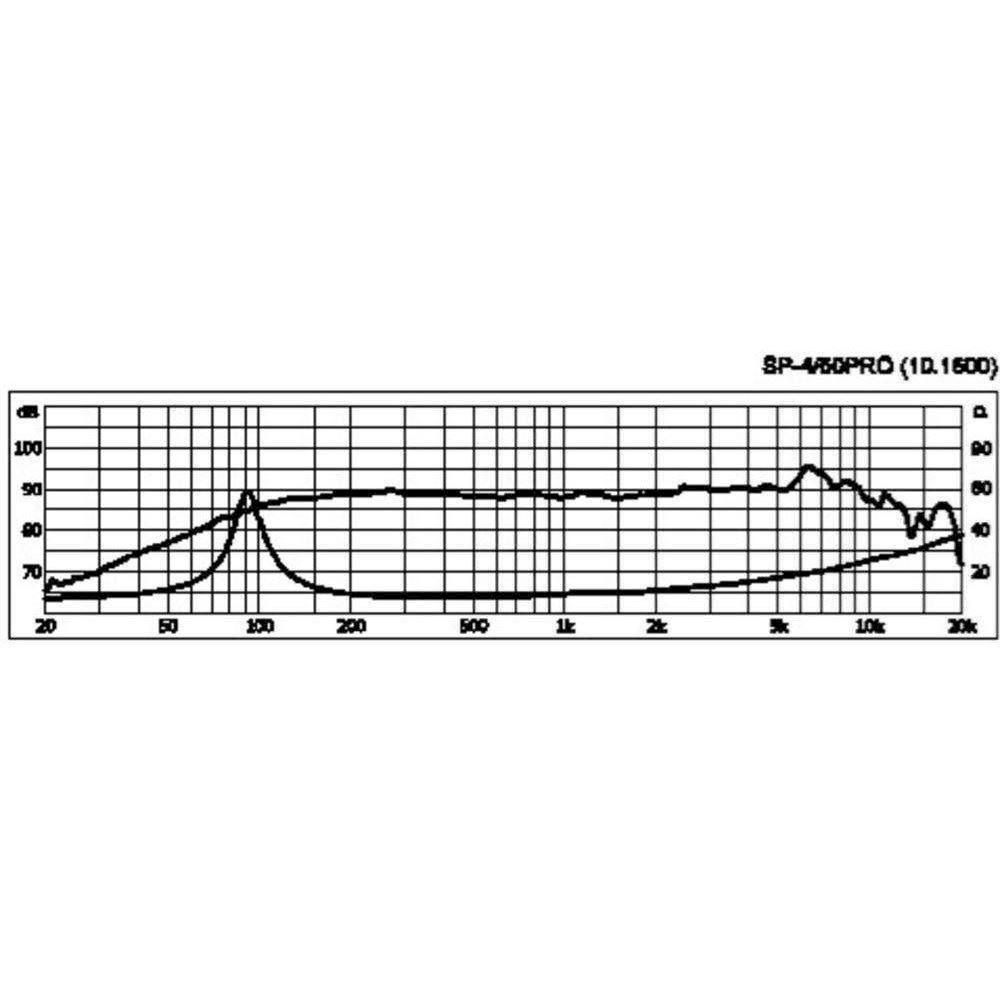

Frequency rangef3-10,000 Hz
Resonant frequency (fs)92 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating30 W
Peak music power output60 W
Sensitivity90 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.47 mm/N
Moving mass (Mms)6.3 g
Mech. Q factor (Qms)5.35
Electr. Q factor (Qes)0.67
Total Q factor (Qts)0.60
Equivalent volume (Vas)3.04 l
DC resistance (Re)6.76 Ω
Force factor (BxL)5.85 Tm
Voice coil induct. (Le)0.3 mH
Voice coil diameterØ 25 mm
Voice coil formerKapton
Linear excursion (XMAX)± 2.3 mm
Eff. cone area (Sd)68 cm2
Magnet weight370 g
Magnet diameterØ 86 mm
Mounting cutoutØ 103 mm
Mounting depth57.5 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

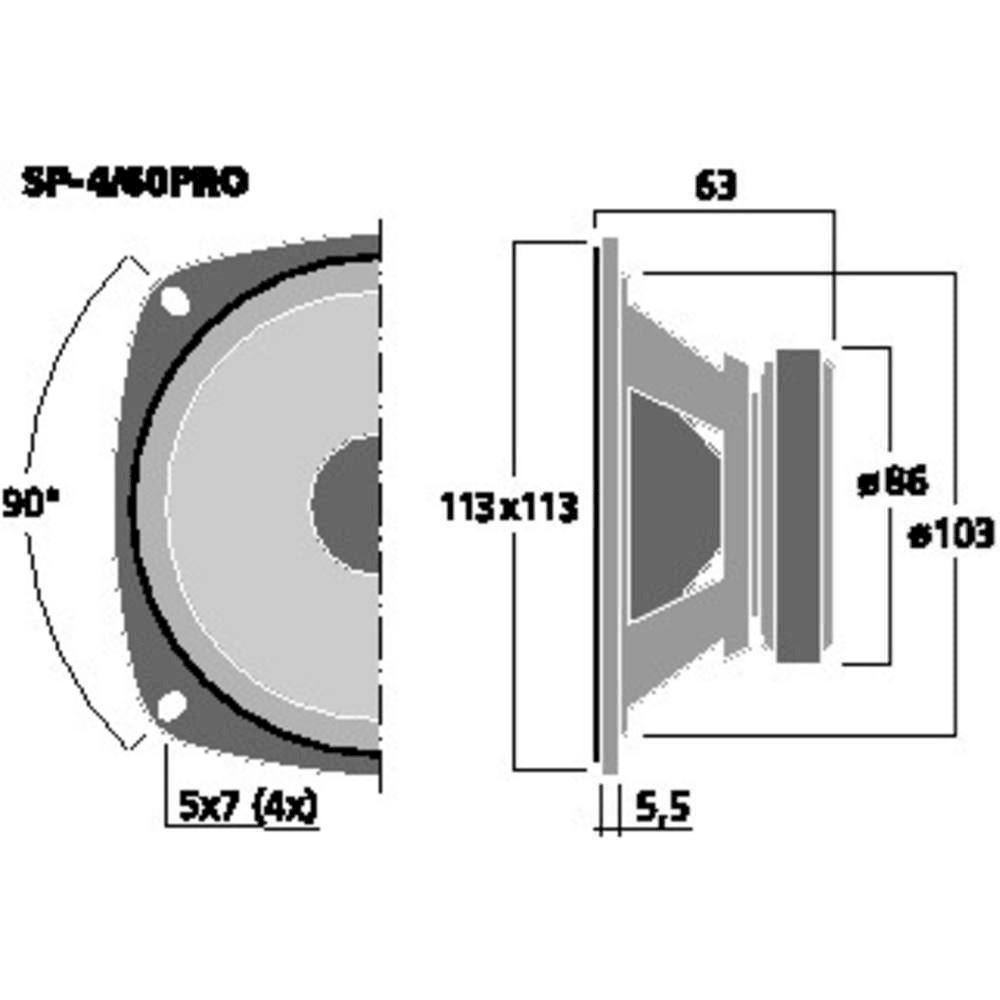

Dimensions113 x 113 x 63 mm
Outside diameter-
Width113 mm
Height113 mm
Depth63 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.9 kg
Packing unit1
Type of speaker4"


Varenr.: 101600
