| Impedance (Z) | 8 Ω |
| Transmission method | - |

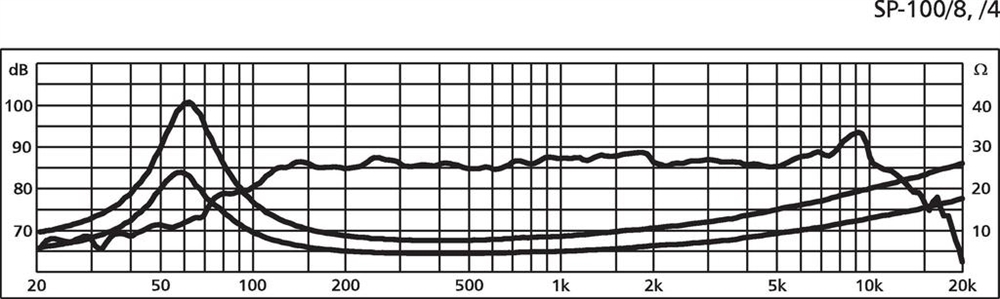

| Frequency range | f3-7,000 Hz |
| Resonant frequency (fs) | 61 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating | 30 W |
| Peak music power output | 60 W |
| Sensitivity | 88 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 1.23 mm/N |
| Moving mass (Mms) | 5.5 g |
| Mech. Q factor (Qms) | 2.28 |
| Electr. Q factor (Qes) | 0.44 |
| Total Q factor (Qts) | 0.37 |
| Equivalent volume (Vas) | 4.7 l |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | 5.55 Tm |
| Voice coil induct. (Le) | 0.4 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 2.5 mm |
| Eff. cone area (Sd) | 52 cm2 |
| Magnet weight | 280 g |
| Magnet diameter | Ø 80 mm |

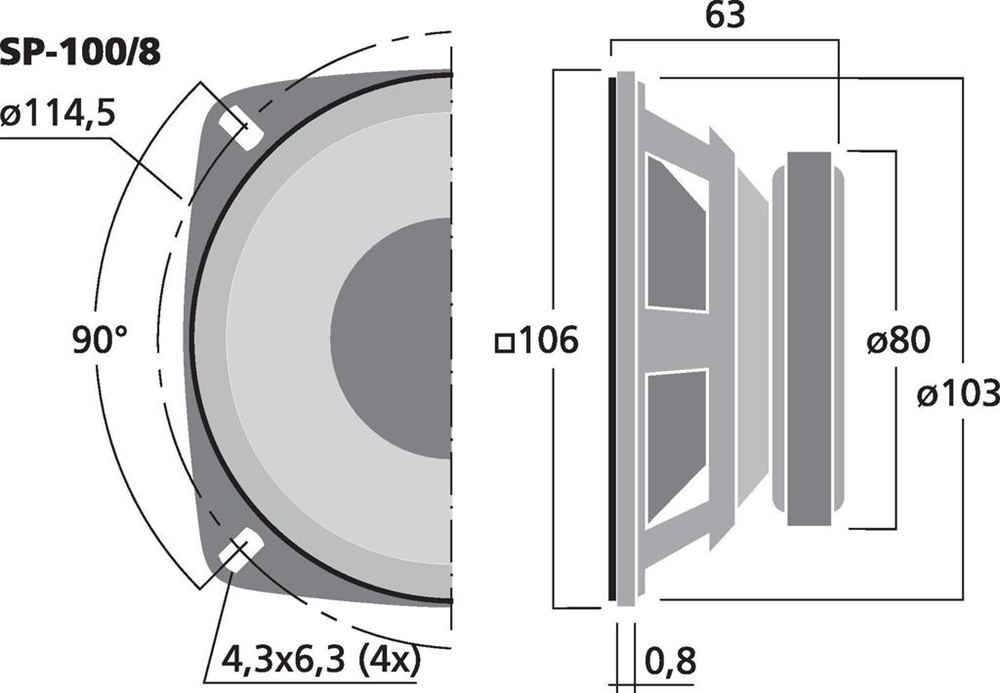

| Mounting cutout | Ø 103 mm |
| Mounting depth | 62.2 mm |
| Mounting hole diameter | Ø 114.5 mm |
| Hole spacing X-axis | 81 mm |
| Hole spacing Y-axis | 81 mm |
| Dimensions | 106 x 106 x 63 |
| Outside diameter | Ø 127 mm |
| Width | 106 mm |
| Height | 106 mm |
| Depth | 63 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.8 kg |
| Packing unit | 1 |
| Type of speaker | 4" |
