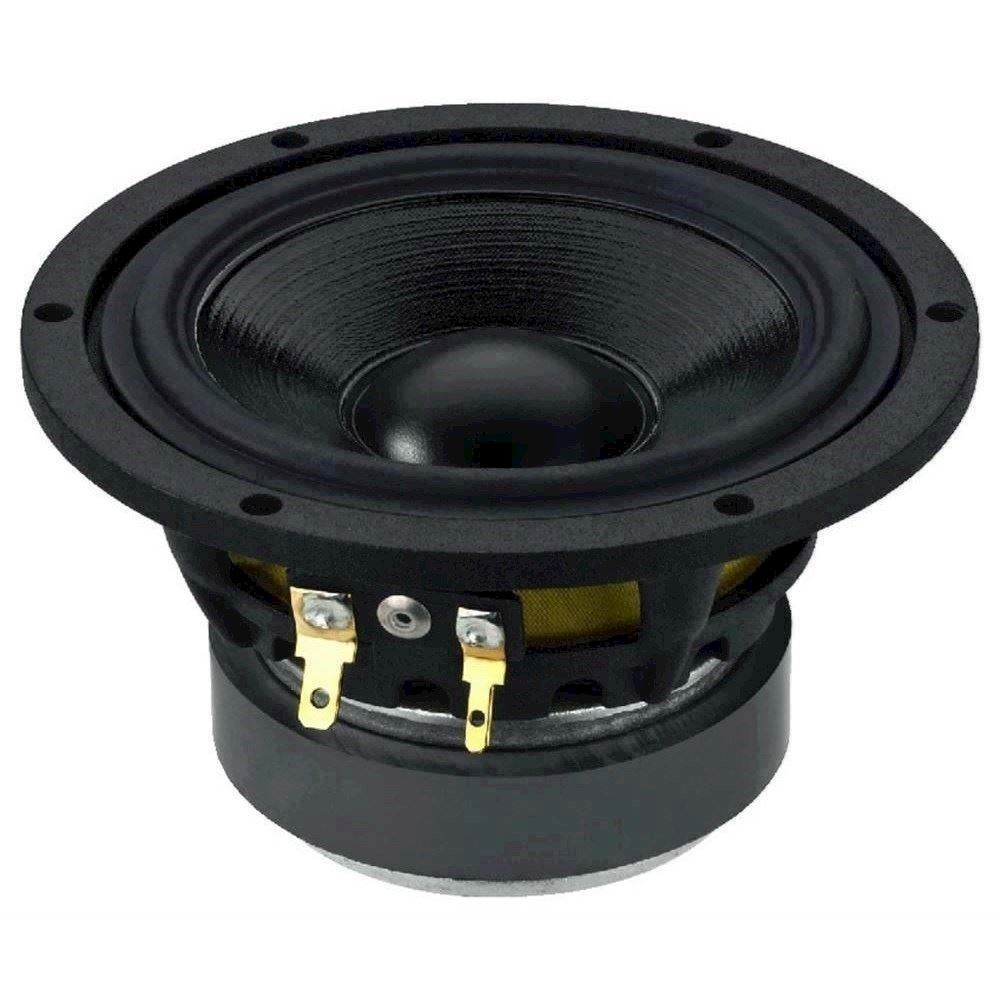

4'' højttaler - MSH-115HQ

4\'\' højttaler - MSH-115HQ
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for 4'' højttaler - MSH-115HQ
    Produktet er endnu ikke bedømt
  •
    489,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


High-quality hi-fi speakers for highest sound requirements

High-quality hi-fi midrange speaker, 50 W, 8 Ω
  • 100 mm (4") midrange speaker
  • Further development of the classic speaker MSH-115
  • Specialised for reproduction of the important midrange
  • Diecast basket and rear-ventilated centering spider for minimum mechanical loss
  • High-quality, low-resonance paper cone
  • Wide and linear radiation range
  • Also ideally suited for application in small satellite systems with subwoofer support
HOBBY HiFi 01/2013
"Smooth, very fast decay. Impresses with its high-quality workmanship."

Klang+Ton 02/2013

SPH-10M, MSH-115HQ, RBT-95SR and SAM-2 in the building concept 2DOT1
"A system of appealing design which provides an equally nice sound ... the speaker building concept features an amazing adaptability and almost unlimited settings ... incredibly suitable for everyday use, is capable of reproducing any kind of music and suitable for home cinema systems. The system provided an absolutely amazing sound when tested in the audio room. The small speakers appeared to reproduce the complete bass range. There was no way of locating the subwoofer. The tactics with the tiles achieved great results ... nothing trembles, even though a powerful bass speaker of a high power capability is set-up in the room. The satellites provide an extra light and high-resolution sound."


Impedance (Z)8 Ω
Transmission method-
Frequency rangefx-8,000 Hz
Resonant frequency (fs)89 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating50 W
Peak music power output100 W
Sensitivity87 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.5 mm/N
Moving mass (Mms)5.8 g
Mech. Q factor (Qms)3.26
Electr. Q factor (Qes)0.66
Total Q factor (Qts)0.55
Equivalent volume (Vas)2.2 l
DC resistance (Re)5.8 Ω
Force factor (BxL)5.35 Tm
Voice coil induct. (Le)0.53 mH
Voice coil diameterØ 25 mm
Voice coil formeraluminium
Linear excursion (XMAX)± 3 mm
Eff. cone area (Sd)55 cm2
Magnet weight230 g
Magnet diameterØ 72 mm
Mounting cutoutØ 97 mm
Mounting depth59 mm
Mounting hole diameterØ 108 mm
Hole spacing X-axis-
Hole spacing Y-axis-

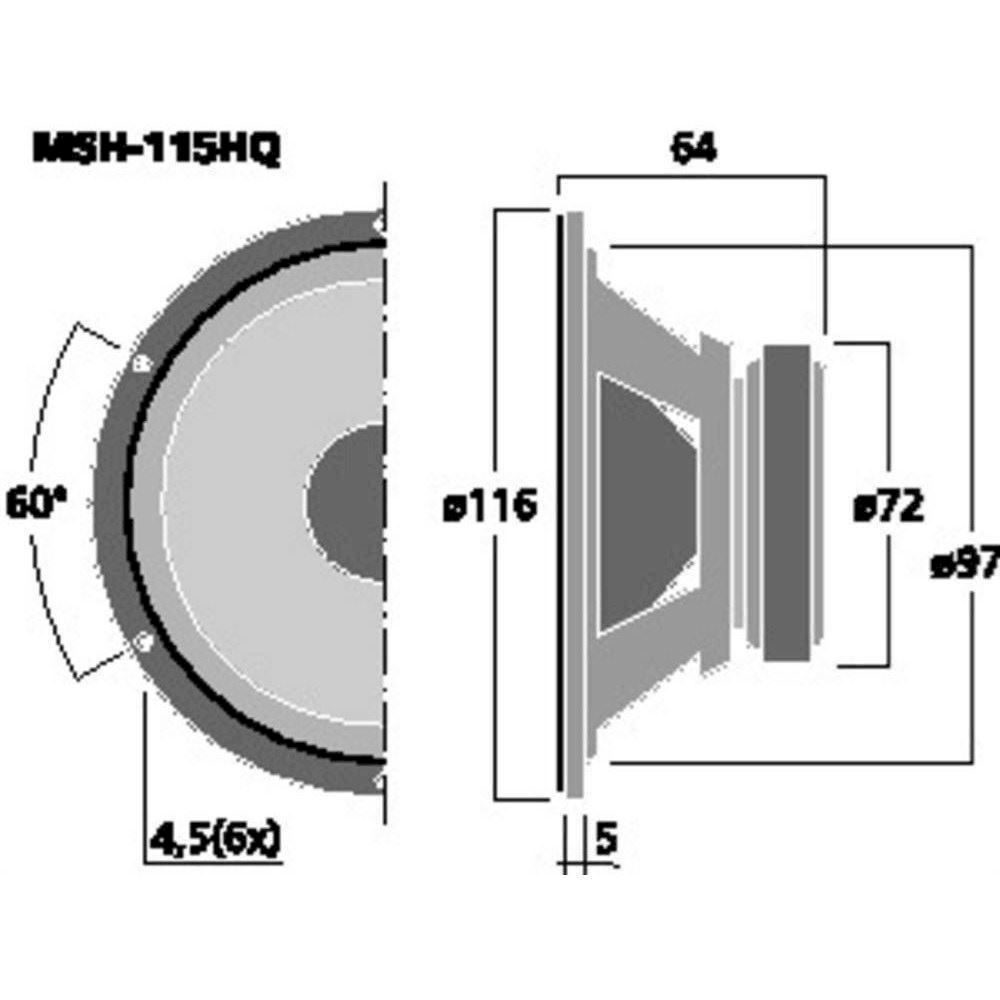

DimensionsØ 116 mm x 64 mm
Outside diameterØ 116 mm
WidthØ 116 mm
Height-
Depth64 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.67 kg
Packing unit1
Type of speaker4"


Varenr.: 101330
