Dante® is a network protocol based on layer 3 IP technology which provides a low-latency, high-precision and cost-effective solution for point-to-point audio connections. Dante® technology can be used for the transmission of high-precision clock signals and audio signals. It allows for complex ethernet routing to ensure a perfect sound effect, to solve problems resulting from complex cabling known from traditional audio transmissions and to reduce costs. There is no special configuration required for an integration into an existing network.

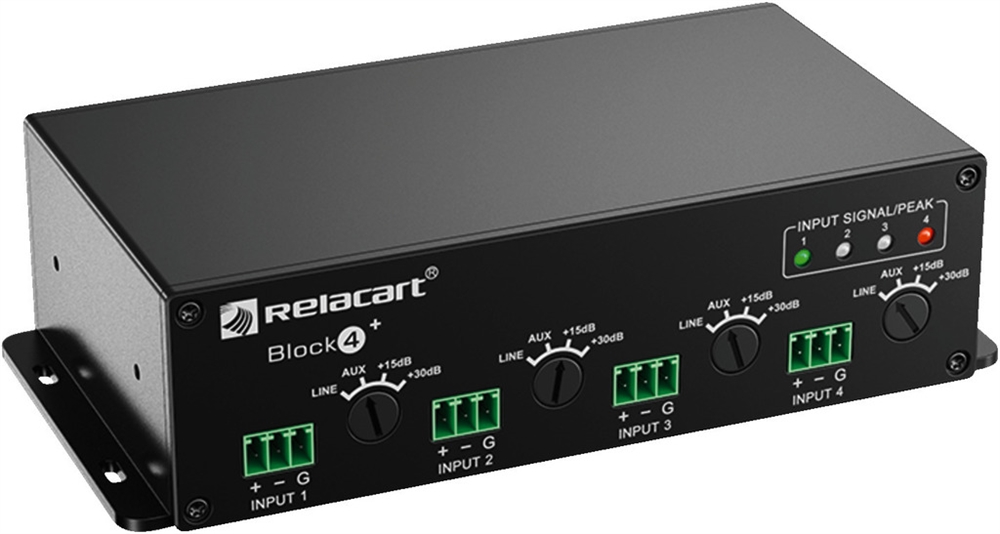

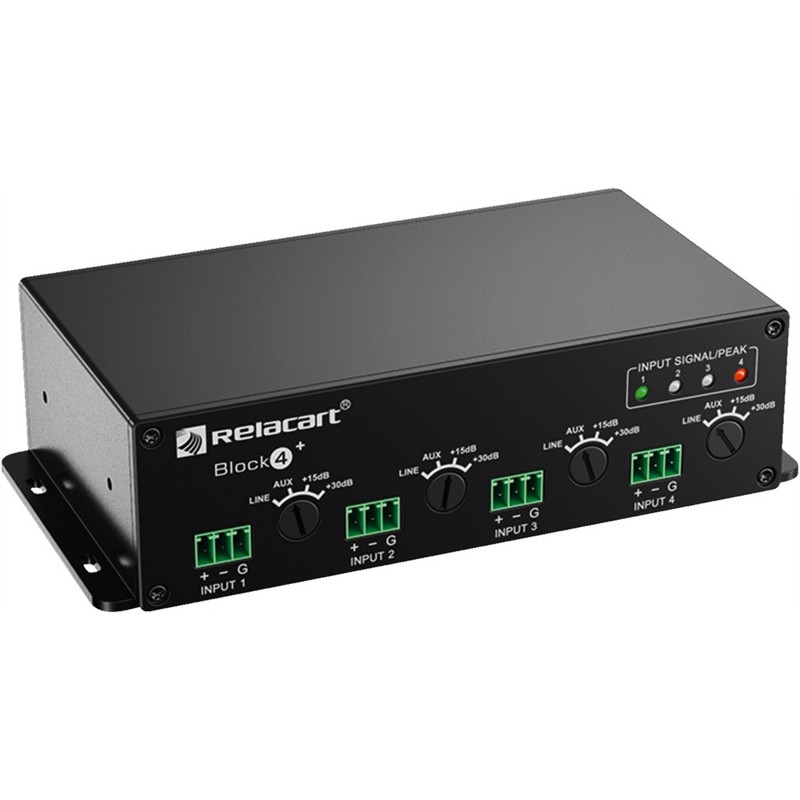

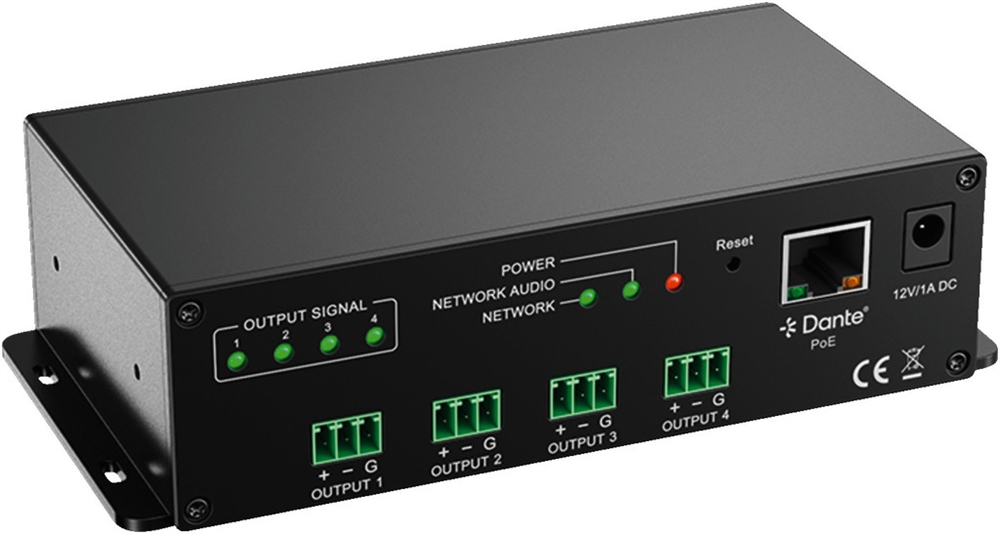

4-channel Dante® audio switch
-
4 audio inputs and 4 audio outputs
-
Audio inputs to be switched line/mic /0/+15/+25 dB)
-
48 V phantom power supply
-
Direct connection to the network via Ethernet cable (RJ45)
-
Power supply via Network PoE: PoE IEEE802.3af standard
-
User-friendly operation, simple mechanical adjustment switch, LED for clear indication of operating status
The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
