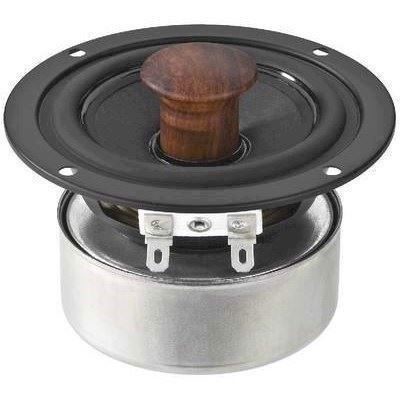

3'' fuldtonehøjttaler - SPX-32M - MONACOR

• Fjernlager
• På lager, 2-4 Hverdage
• Bedømmelse for 3'' fuldtonehøjttaler - SPX-32M - MONACOR

  Produktet er endnu ikke bedømt

•
  169,00DKK ved 1 stk.

Vis uden moms

HiFi full range speaker, 40WMAX, 8¥Ø

Hi-fi full range speaker, 20 W, 8 Ω

• Excellent sound quality
• High-quality paper cone
• Wooden phase plug for optimising radiation pattern
• Rear-ventilated centering spider
• Magnet system with shielding
• Application in small speakers or satellite systems
• Ideally suited for application in FAST speakers (full range and subwoofer technology)

HOBBY HiFi 03/2012
"Audiophile characteristics due to paper cone and solid wooden phase plug."



Impedance (Z)	8 Ω
Transmission method	-

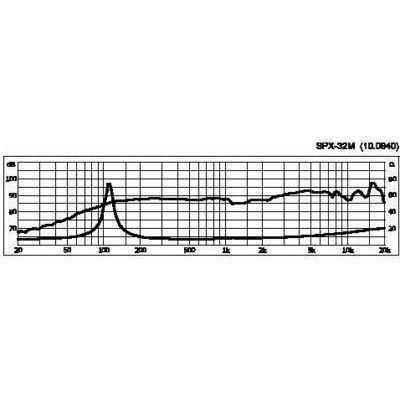

Frequency range	f3-22,000 Hz
Resonant frequency (fs)	110 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	20 W
Peak music power output	40 W
Sensitivity	88 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	1.11 mm/N
Moving mass (Mms)	1.7 g
Mech. Q factor (Qms)	7.66
Electr. Q factor (Qes)	0.60
Total Q factor (Qts)	0.56
Equivalent volume (Vas)	1.6 l
DC resistance (Re)	6.6 Ω
Force factor (BxL)	3.69 Tm
Voice coil induct. (Le)	0.18 mH
Voice coil diameter	Ø 20 mm
Voice coil former	Kapton
Linear excursion (XMAX)	± 1.1 mm
Eff. cone area (Sd)	32 cm2
Magnet weight	99 g
Magnet diameter	Ø 68 mm
Mounting cutout	Ø 71 mm
Mounting depth	52.5 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

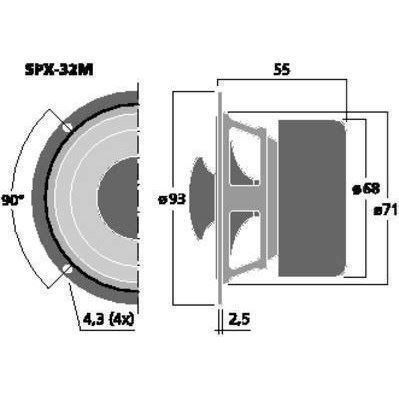

Dimensions	Ø 93 mm x 55 mm
Outside diameter	Ø 93 mm
Width	Ø 93 mm
Height	-
Depth	55 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	0.498 kg
Packing unit	1
Type of speaker	3"

Varenr.: 100940
