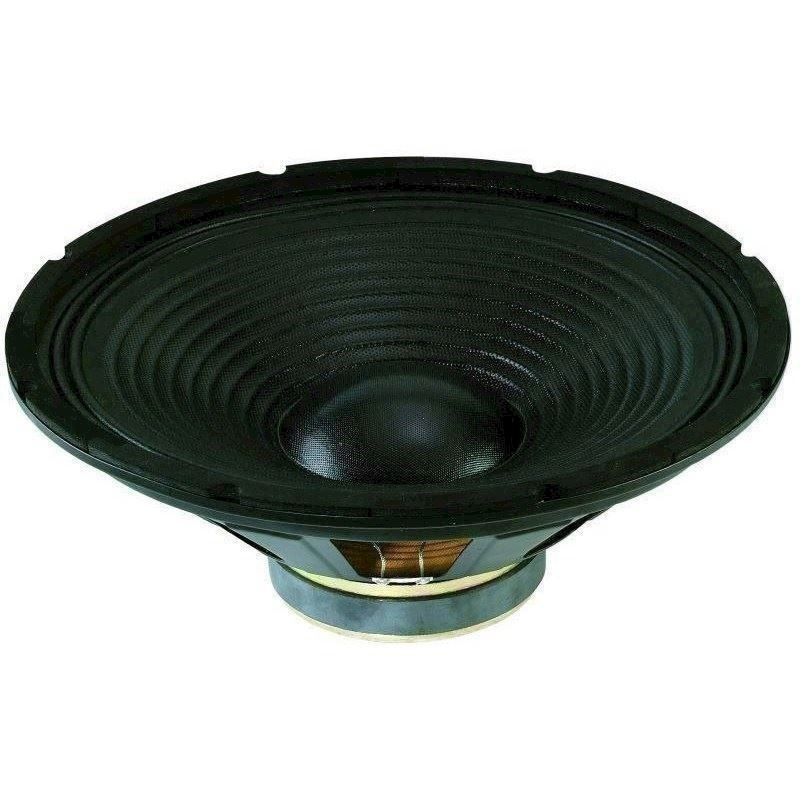

15'' højttaler - SP-382PA - MONACOR

• Fjernlager
• På lager, 2-4 Hverdage
• Bedømmelse for 15'' højttaler - SP-382PA - MONACOR

  Produktet er endnu ikke bedømt

•
  839,00DKK ved 1 stk.

Vis uden moms

Universal bass speaker, 150 W, 8 Ω
For bass applications, also in power speaker systems.



Impedance (Z)	8 Ω
Transmission method	-

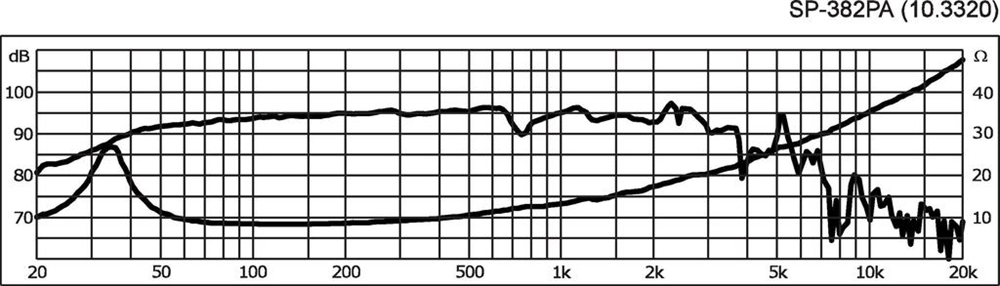

Frequency range	f3-4,000 Hz
Resonant frequency (fs)	25 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	150 W
Peak music power output	300 W
Sensitivity	94 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.26 mm/N
Moving mass (Mms)	73 g
Mech. Q factor (Qms)	3.03
Electr. Q factor (Qes)	0.99
Total Q factor (Qts)	0.75
Equivalent volume (Vas)	270 l
DC resistance (Re)	7.0 Ω
Force factor (BxL)	10.87 Tm
Voice coil induct. (Le)	0.8 mH
Voice coil diameter	Ø 50 mm
Voice coil former	aluminium
Linear excursion (XMAX)	±3.5 mm
Eff. cone area (Sd)	825 cm2
Magnet weight	1.2 kg
Magnet diameter	Ø 142 mm

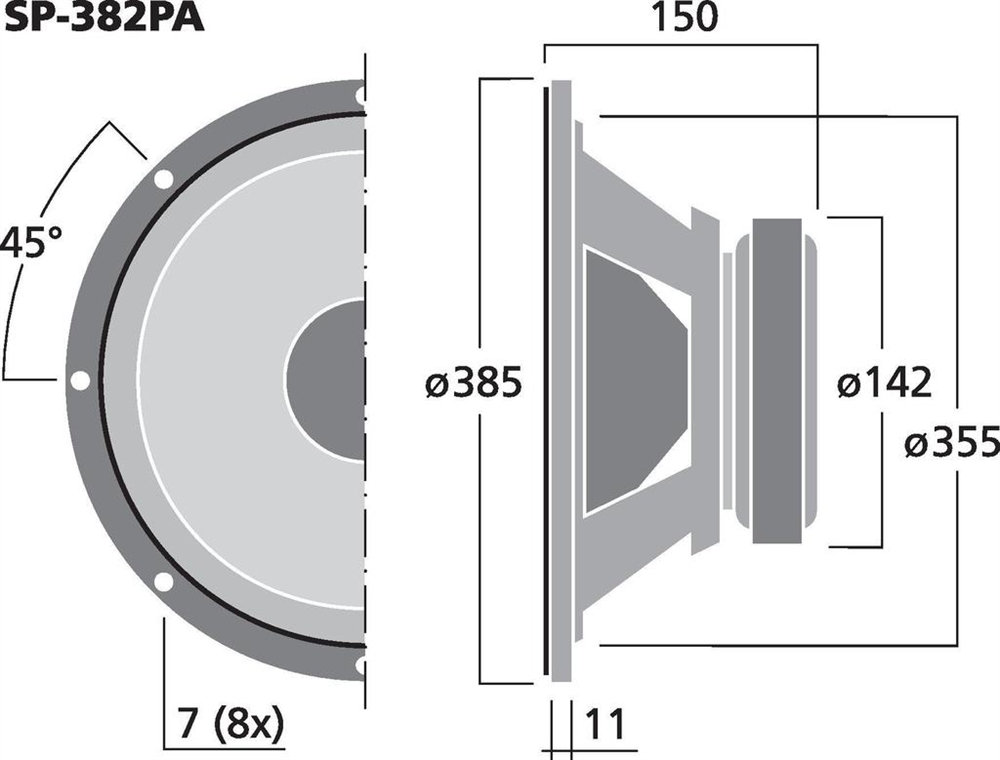

Mounting cutout	Ø 355 mm
Mounting depth	139 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-
Dimensions	Ø 385 mm x 150 mm
Outside diameter	Ø 385 mm
Width	Ø 385 mm
Height	-
Depth	150 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	3.9 kg
Packing unit	1
Type of speaker	15"

Varenr.: 103320
