15'' højttaler - SP-15A/402PA - IMG STAGE LINE

$15\'\' højttaler - SP-15A/402PA - IMG STAGE LINE$

Fjernlager
På lager, 2-4 Hverdage
Bedømmelse for 15'' højttaler - SP-15A/402PA - IMG STAGE LINE
Produktet er endnu ikke bedømt

1.899,00DKK ved 1 stk.

Billigst på PriceRunner

Professional PA bass speaker, 800WMAX, 400WRMS, 8Ù

Professional PA bass speaker, 400 W, 8 Ω

Of very high power capability

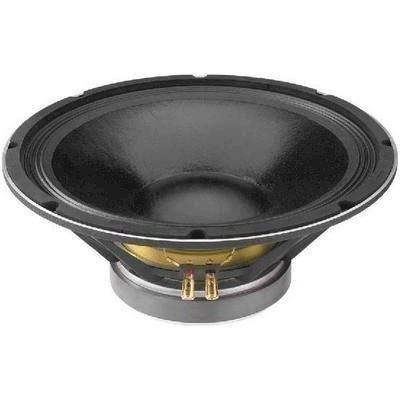

38 cm (15") professional bass speaker of long excursion
Diecast basket
Cone with water-repellent coating
Very neat workmanship with front-facing basket
Wide frequency response
High efficiency
Excellent deep bass reproduction
Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
For bass-reflex cabinets of medium size from 80 litres on
For all kinds of professional and semiprofessional PA applications

Impedance (Z)	8 Ω
Transmission method	-
Frequency range	f3-3,000 Hz
Resonant frequency (fs)	36 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	400 W
Peak music power output	800 W
Sensitivity	100 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.22 mm/N
Moving mass (Mms)	87 g
Mech. Q factor (Qms)	7.45
Electr. Q factor (Qes)	0.33
Total Q factor (Qts)	0.31
Equivalent volume (Vas)	235 l
DC resistance (Re)	6.5 Ω
Force factor (BxL)	19.9 Tm
Voice coil induct. (Le)	0.9 mH
Voice coil diameter	Ø 100 mm
Voice coil former	Kapton
Linear excursion (X_MAX)	±5 mm
Eff. cone area (Sd)	881 cm²
Magnet weight	2.3 kg
Magnet diameter	Ø 190 mm
Mounting cutout	Ø 350 mm
Mounting depth	-
Mounting hole diameter	Ø 370 mm
Hole spacing X-axis	-
Hole spacing Y-axis	-

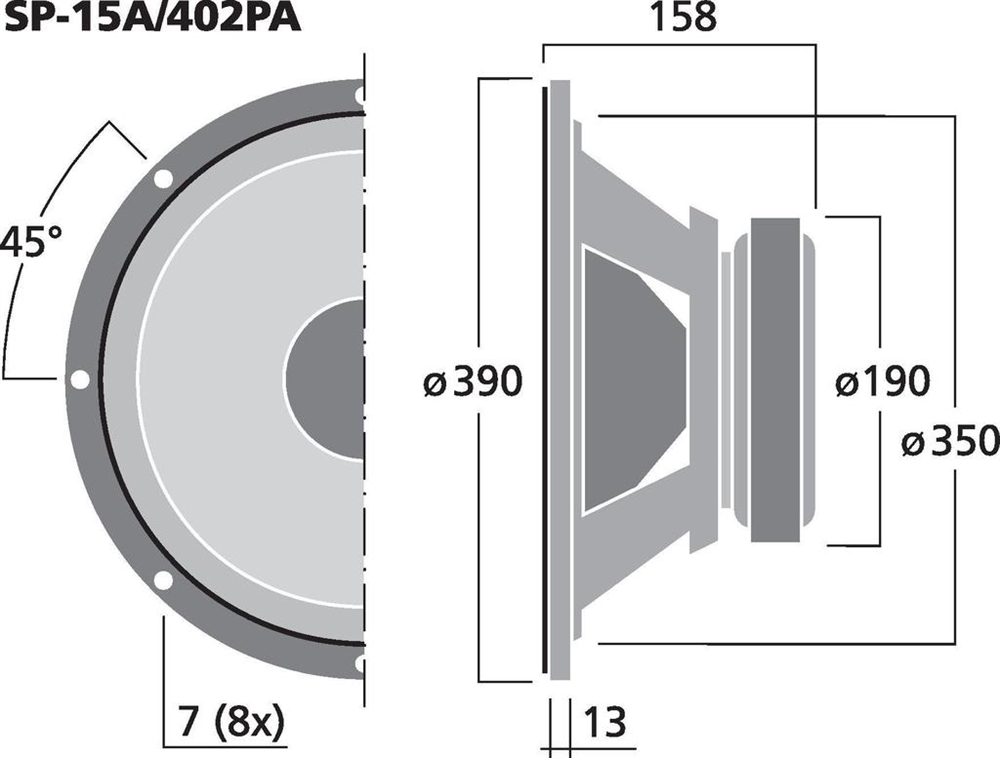

Dimensions	Ø 390 mm x 158 mm
Outside diameter	390 mm
Width	390 mm
Height	-
Depth	158 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	7.74 kg
Packing unit	1
Type of speaker	15"

Varenr.: 104940
