12 x 4 W RGBW-LED Battery Bar - Cameo

12 x 4 W RGBW-LED Battery Bar - Cameo
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for 12 x 4 W RGBW-LED Battery Bar - Cameo
    Produktet er endnu ikke bedømt
  •
    4.309,00DKK ved 1
Vis uden moms
Billigst på PriceRunner

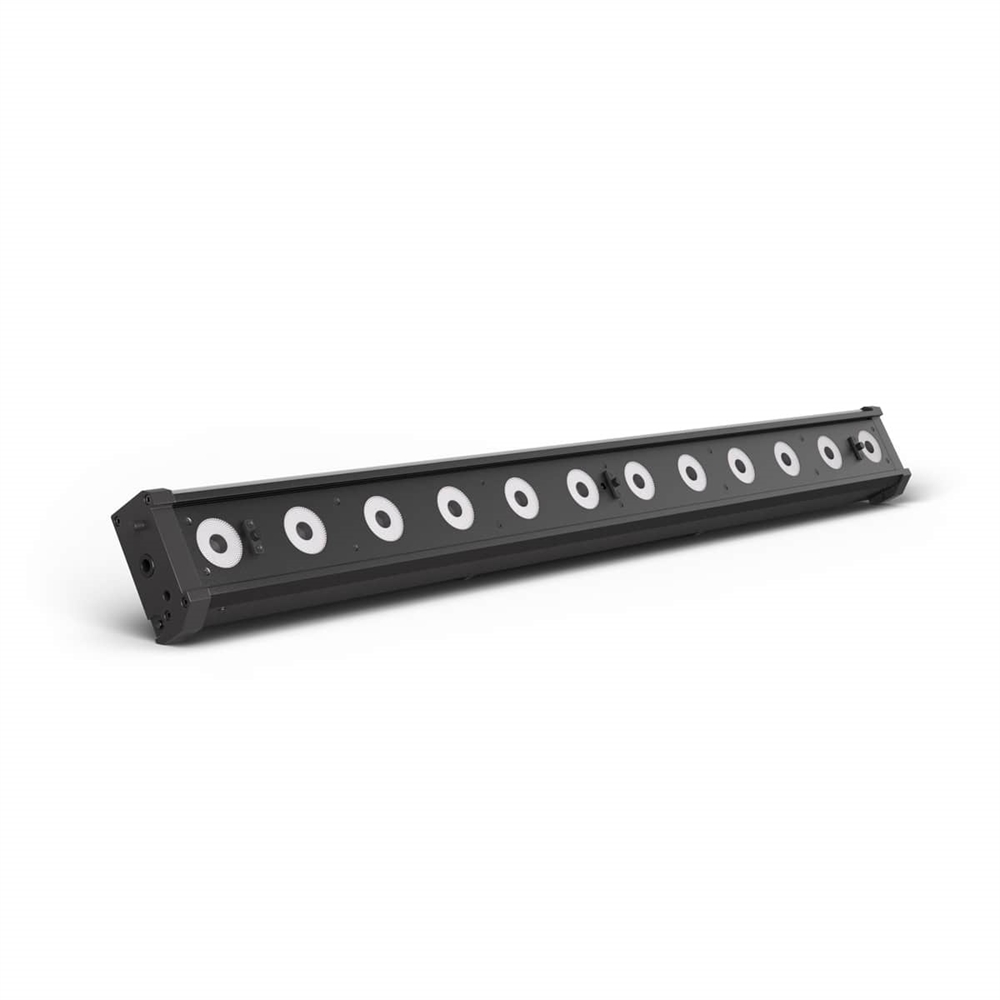

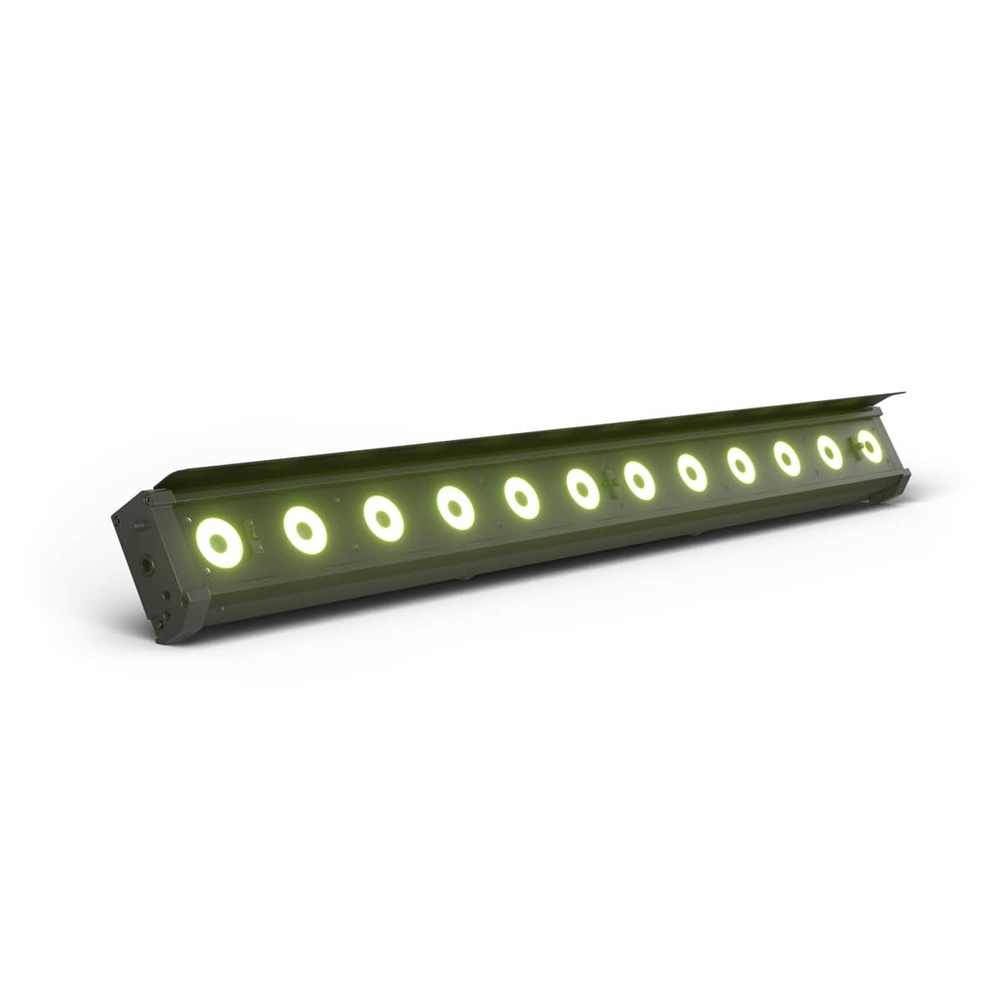

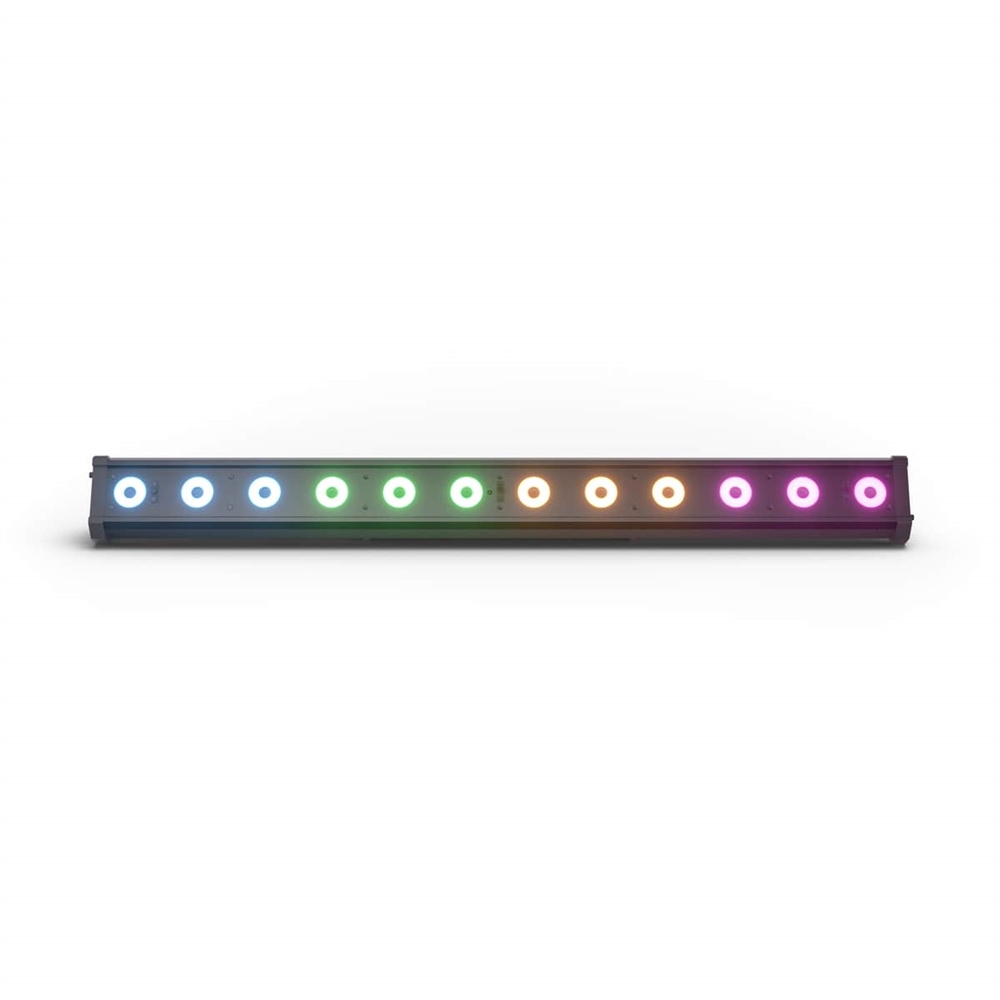

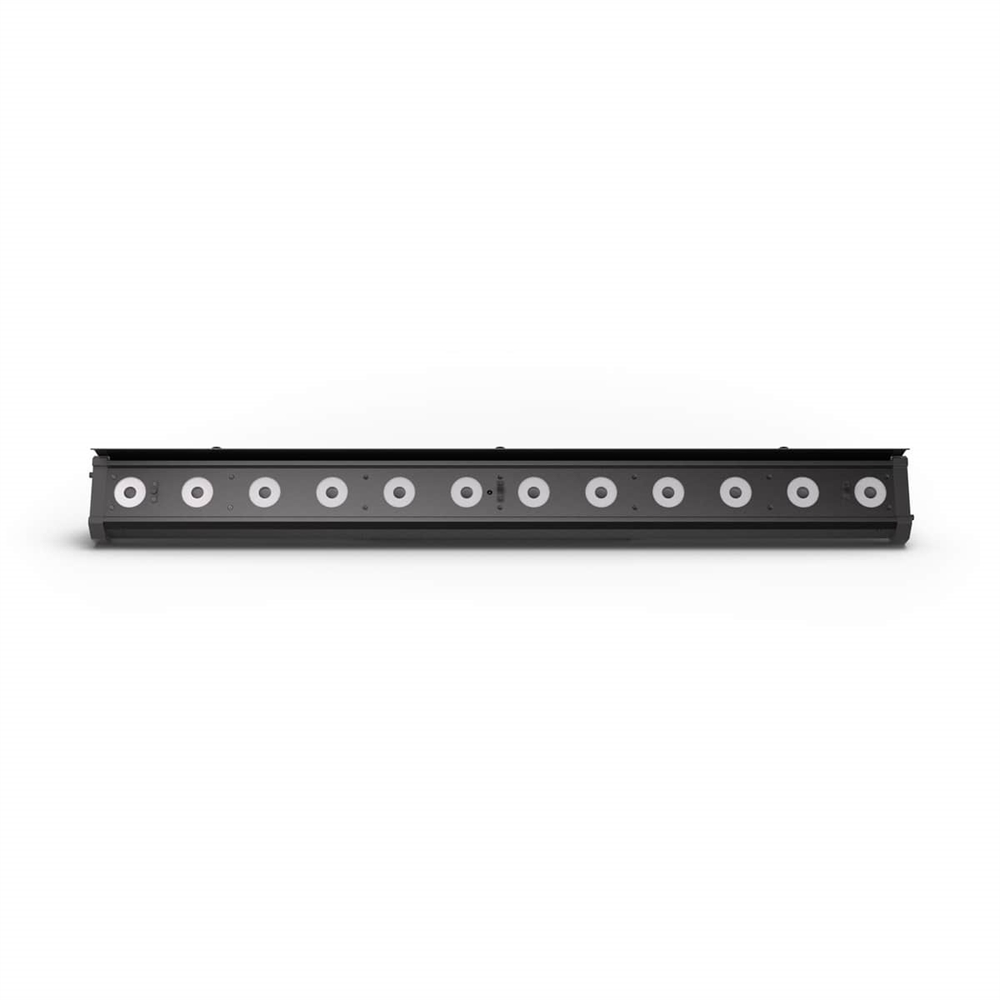

The Cameo ROOT® BAR is a linear LED bar available in three versions. Its compact design and impressive versatility make it ideal for creative lighting in trendy clubs, small bars, or exclusive events, providing stunning lighting effects in any setting.

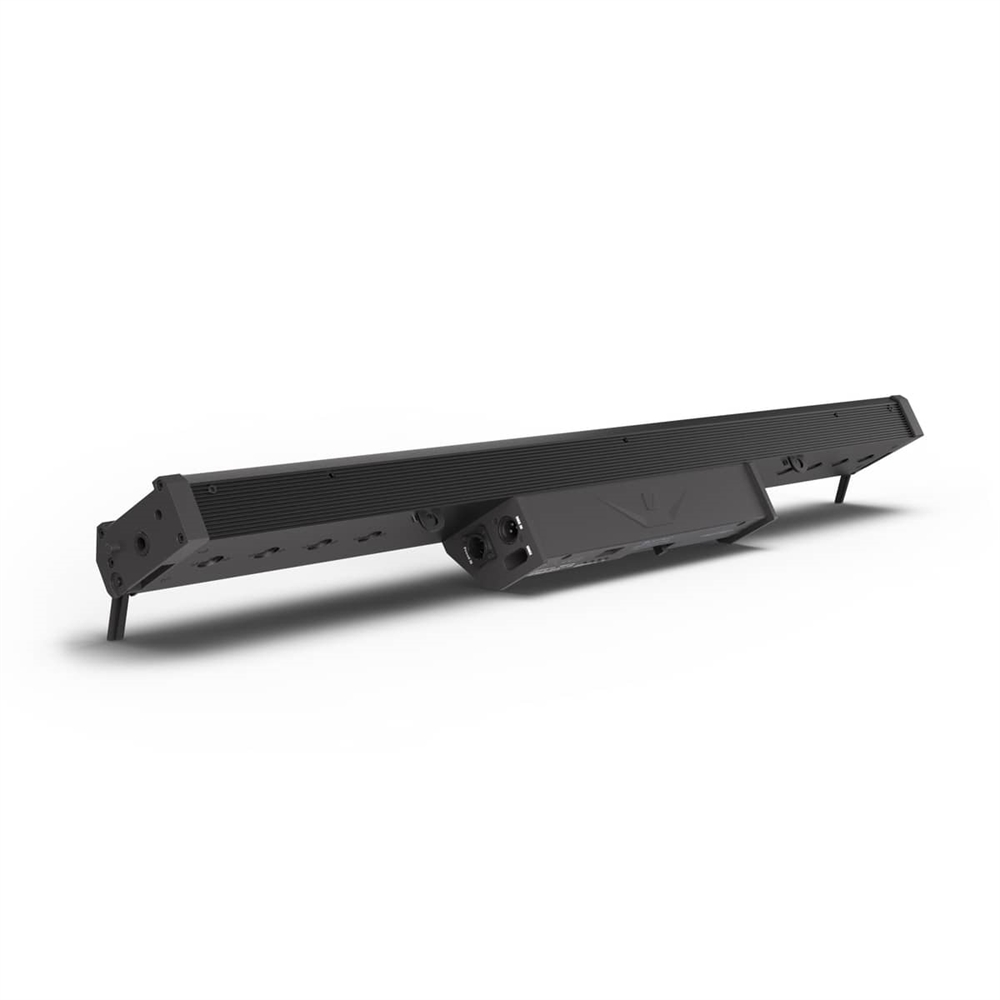

The intelligent design allows for flexible positioning at various angles without the included feet. The practical threaded mount supports both hanging and standing use, making it adaptable to different environments.

The magnetic Quick Alignment System, combined with various Quick Lock options, enables quick and precise alignment of multiple LED bars, creating seamless transitions and spectacular lighting installations. The included frost filters, neon tube filter, and glare shield provide numerous creative possibilities, adding impressive visual accents.

In addition to DMX protocol control, the ROOT® BAR can be remotely controlled via the optional IR remote. For wireless DMX connection via W-DMX™, the ROOT® BAR features a USB port for connecting the Cameo iDMX® Stick. Additionally, the unique patented EZchase® DMX delay function allows for the creation of captivating chase patterns and colour transitions with minimal programming effort.

The Cameo ROOT® BAR stands for high quality, reliability, and modern design. It sets new standards in event lighting and transforms any venue into an unforgettable experience.

  • Compact LED bar available in three versions
  • Flexible positioning at various angles, with or without feet
  • Magnetic Quick Alignment System for precise alignment of multiple units
  • Includes frost filter, neon tube filter, and glare shield for versatile lighting effects
  • Control via DMX, or W-DMX (with optional Cameo iDMX Stick)
  • Patented EZchase® DMX delay function for chase effects
  • 16-bit resolution for smooth dimming and high-performance RGBW LEDs

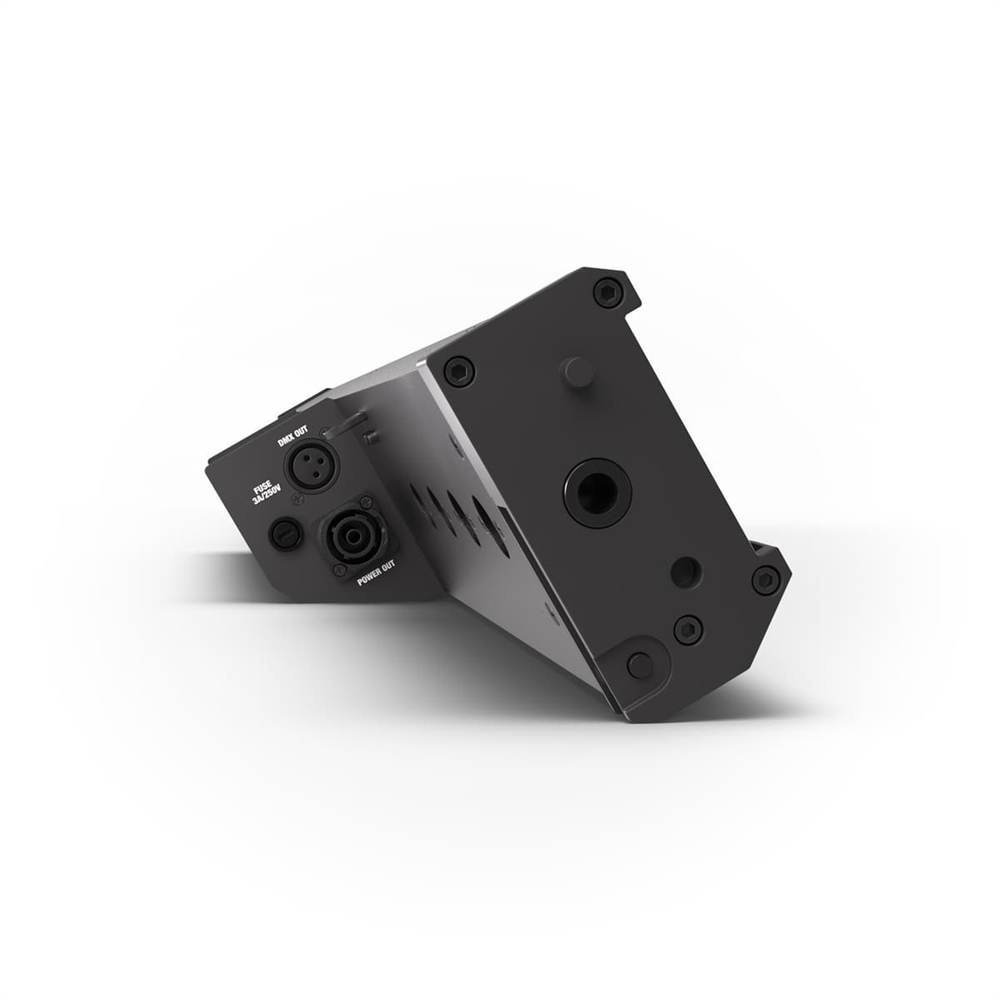

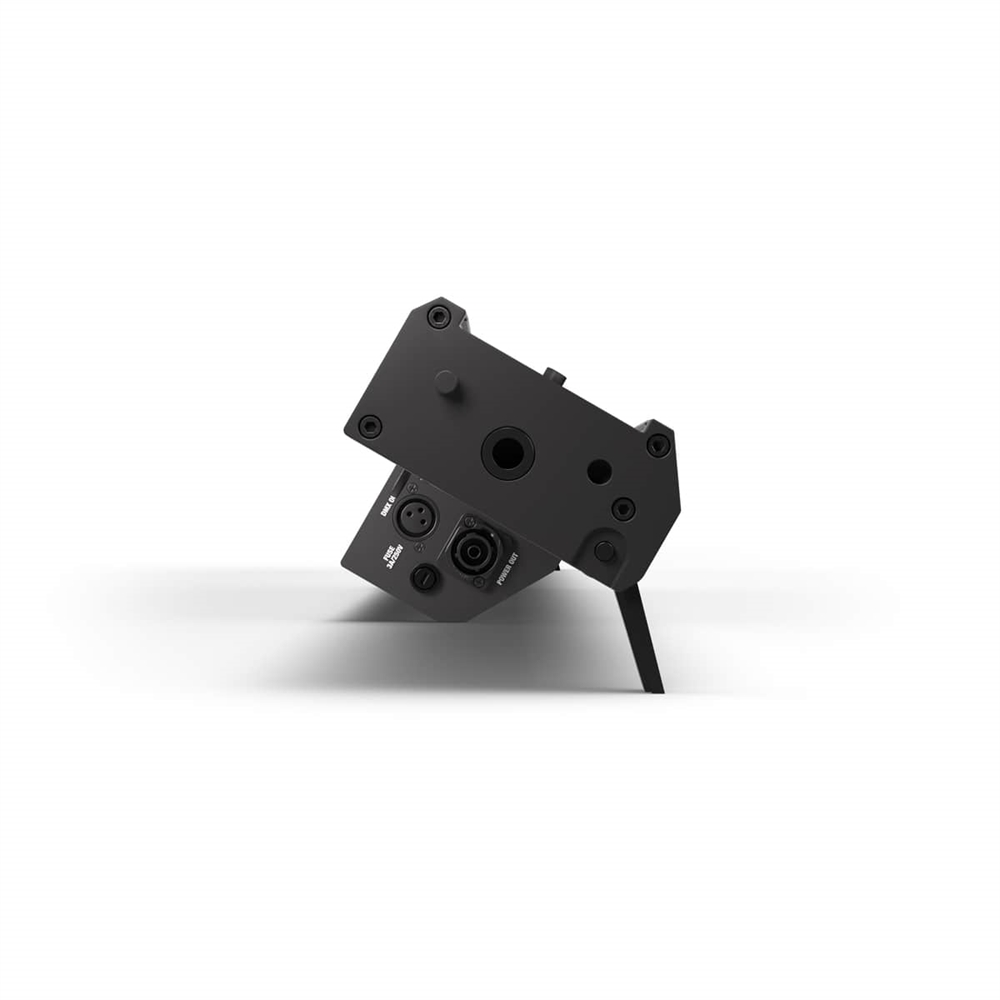

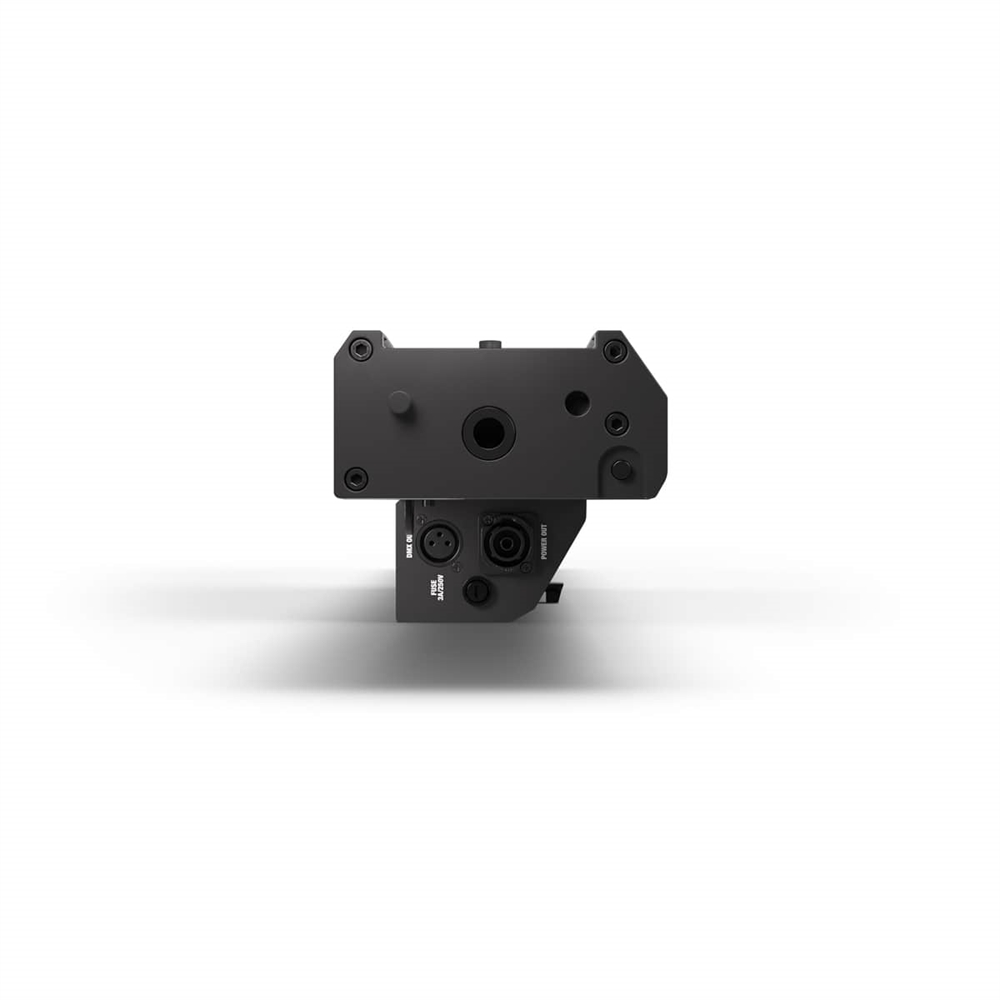

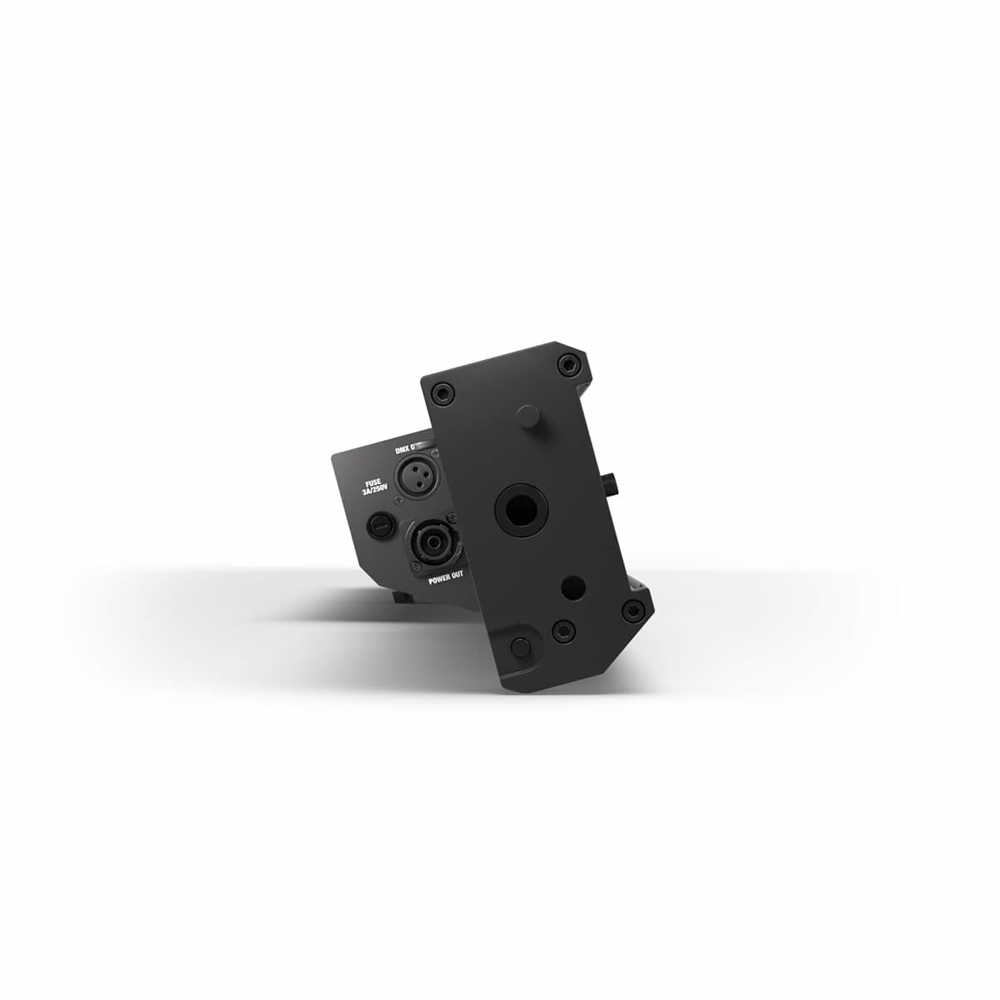

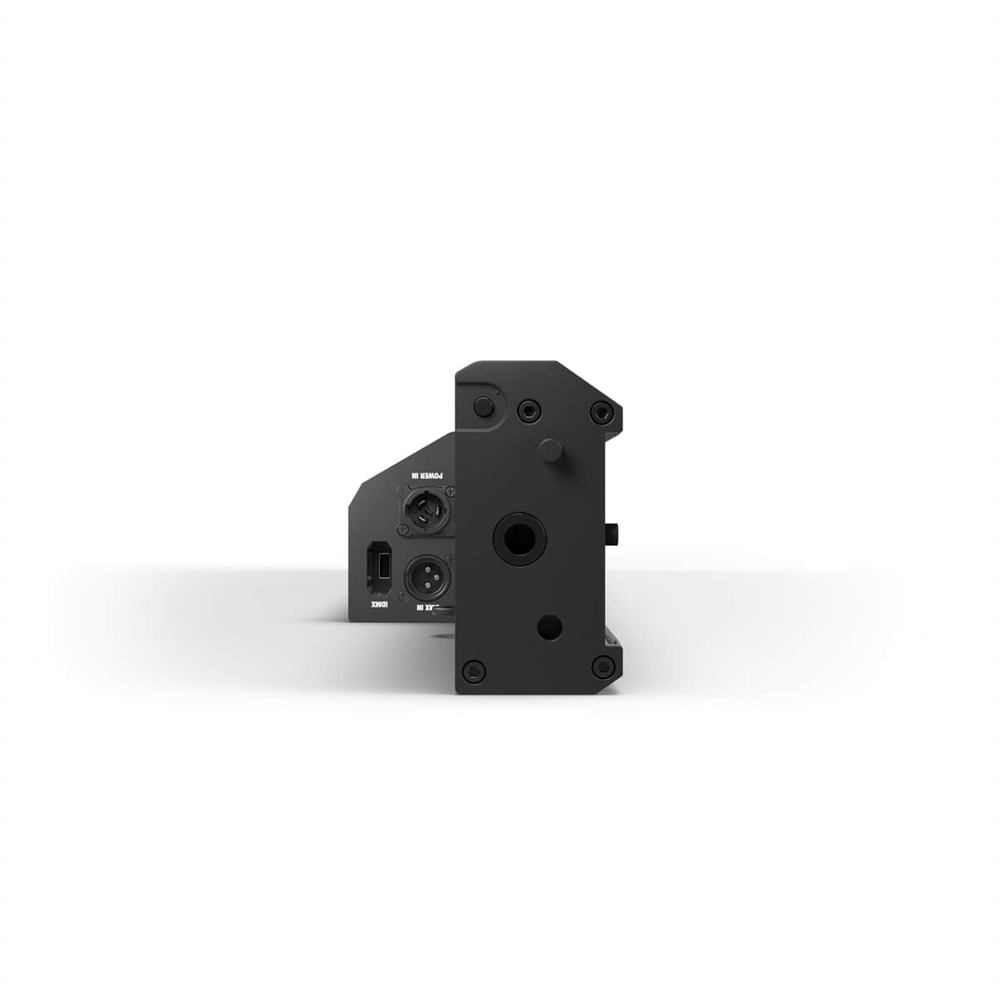

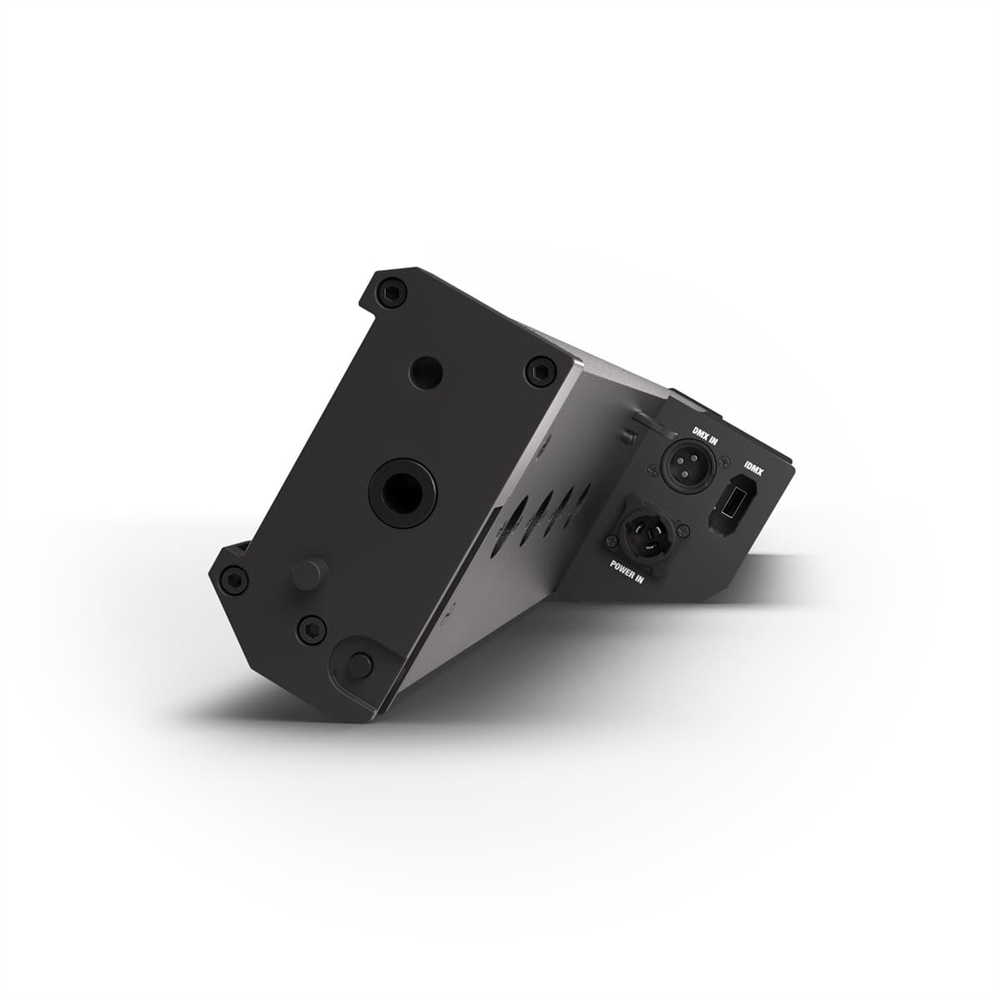

  • Power input via Seetronic and DMX connectors for daisy-chaining multiple units
  • Silent, fanless cooling design ideal for noise-sensitive environments

Photometric values

Illuminant typeLED RGBW
Illuminant power48 W
LED data12 x 4 W LED RGBW
Luminous flux2,300 lm
Beam/Field angle20° / 37°
LED PWM frequency650 Hz, 1,530 Hz, 2,000 Hz, 4,000 Hz
Dimmer resolution16 Bit

Colours

Colour mix functionsRGB
LED coloursRed, Green, Blue, White

Effects

Strobe0 - 20 Hz
Framing bladesNo

Control

Controller protocolsDMX512
Additional DMX featuresDMX delay, LED segment dimmer, System settings
Stand alone operating modesAutorun, Master/slave, Static
Data in connectorXLR 3-pole male
Data out connectorXLR 3-pole female

Mains operation

Operation voltage100 V AC - 240 V AC / 50 - 60 Hz
Rated power62 W
Mains connectorMains plug device outdoor male & TRUE1®
Power outMains plug device outdoor female & TRUE1®

Accumulator data

Cell technologyLithium-ion
Battery capacity6.4 Ah
Battery life3 h (FULL) - 5.5 h (ECO)

Housing

Chassis materialAluminium, Plastic
ColourBlack

Cooling

Cooling systemConvection cooling

Environmental

Protection classIP20
Noise level in operation0 dB
Ambient temperature0 - 40 °C

Dimensions & weight

Width1,042 mm
Height116 mm
Depth106 mm
Weight5 kg

Other properties

Included AccessoriesMains cable, Filter, Mounting bracket
Varenr.: A-CLROOTBARBAT
