12'' højttaler - SP-302PA - MONACOR

• Fjernlager
• På lager, 2-4 Hverdage
• Bedømmelse for 12'' højttaler - SP-302PA - MONACOR

  Produktet er endnu ikke bedømt

•
  449,00DKK ved 1 stk.

Vis uden moms

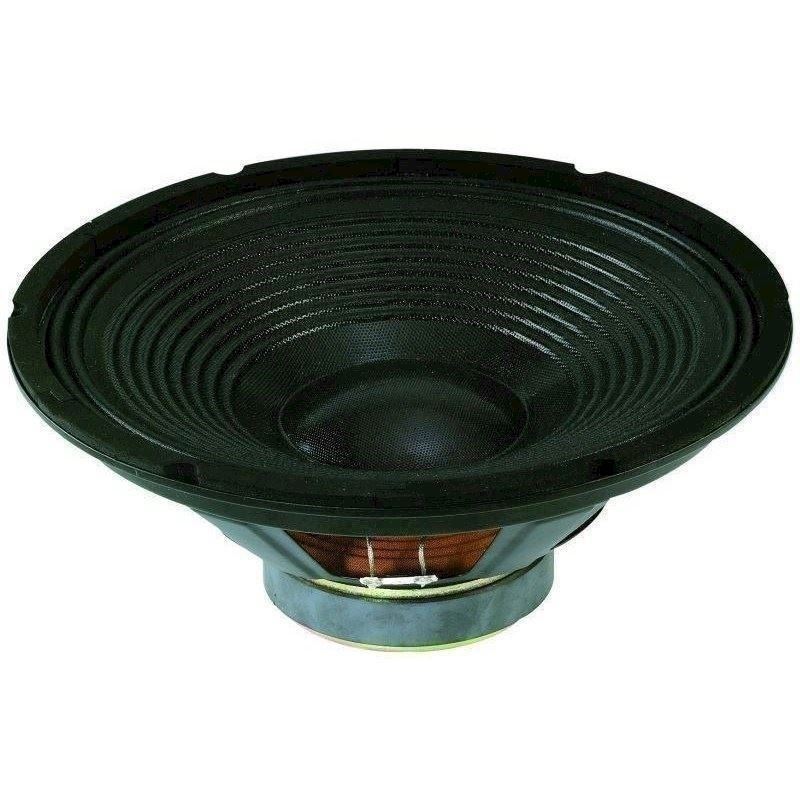

Universal bass speaker, 100 W, 8 Ω
For bass applications, also in power speaker systems.



Impedance (Z)	8 Ω
Transmission method	-

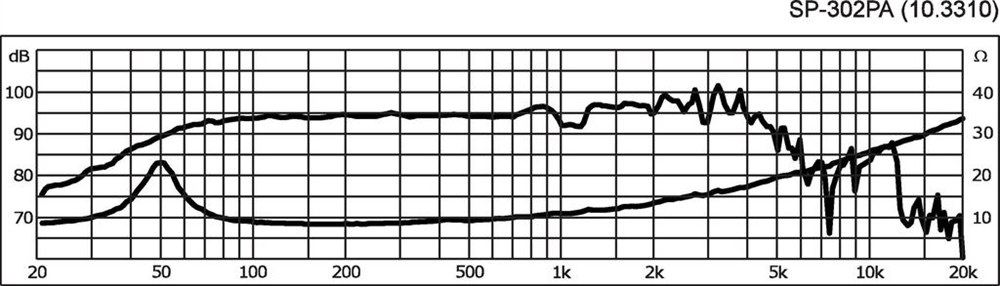

Frequency range	f3-4,000 Hz
Resonant frequency (fs)	45 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	100 W
Peak music power output	200 W
Sensitivity	90 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.15 mm/N
Moving mass (Mms)	57 g
Mech. Q factor (Qms)	2.2
Electr. Q factor (Qes)	1.47
Total Q factor (Qts)	0.89
Equivalent volume (Vas)	51 l
DC resistance (Re)	7.7 Ω
Force factor (BxL)	10.5 Tm
Voice coil induct. (Le)	0.5 mH
Voice coil diameter	Ø 38 mm
Voice coil former	aluminium
Linear excursion (XMAX)	±2.5 mm
Eff. cone area (Sd)	542 cm2
Magnet weight	850 g
Magnet diameter	Ø 119 mm

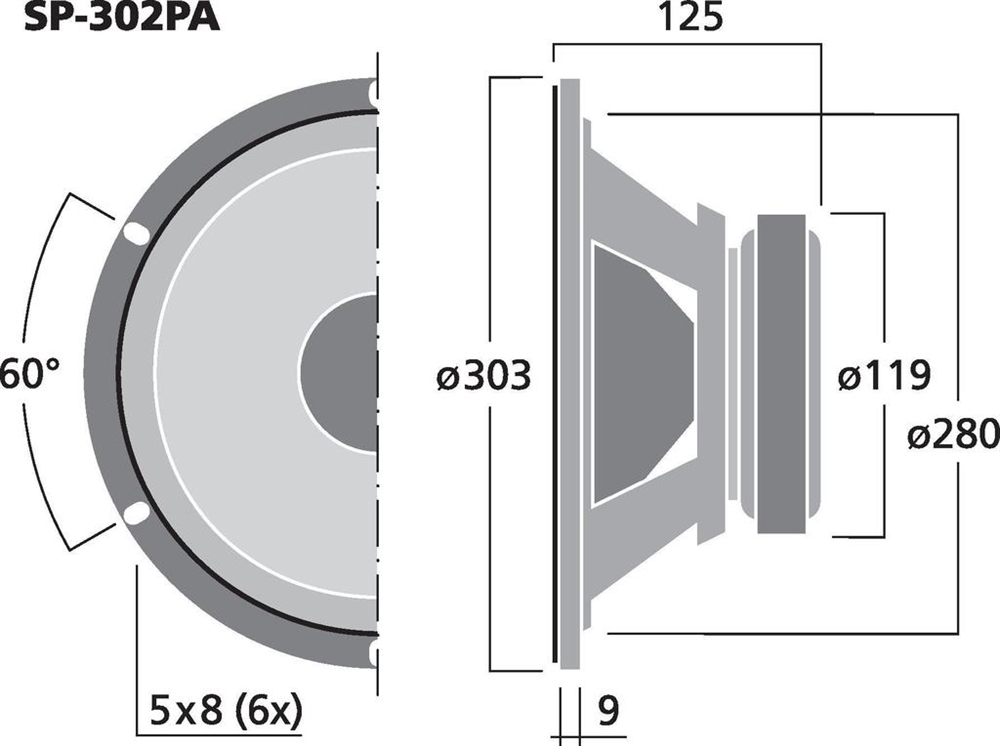

Mounting cutout	Ø 280 mm
Mounting depth	116 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-
Dimensions	Ø 303 mm x 125 mm
Outside diameter	Ø 303 mm
Width	Ø 303 mm
Height	-
Depth	125 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	2.36 kg
Packing unit	1
Type of speaker	12"

Varenr.: 103310
