| Impedance (Z) | 8 Ω (bass), 8 Ω (tweeter) |
| Transmission method | - |

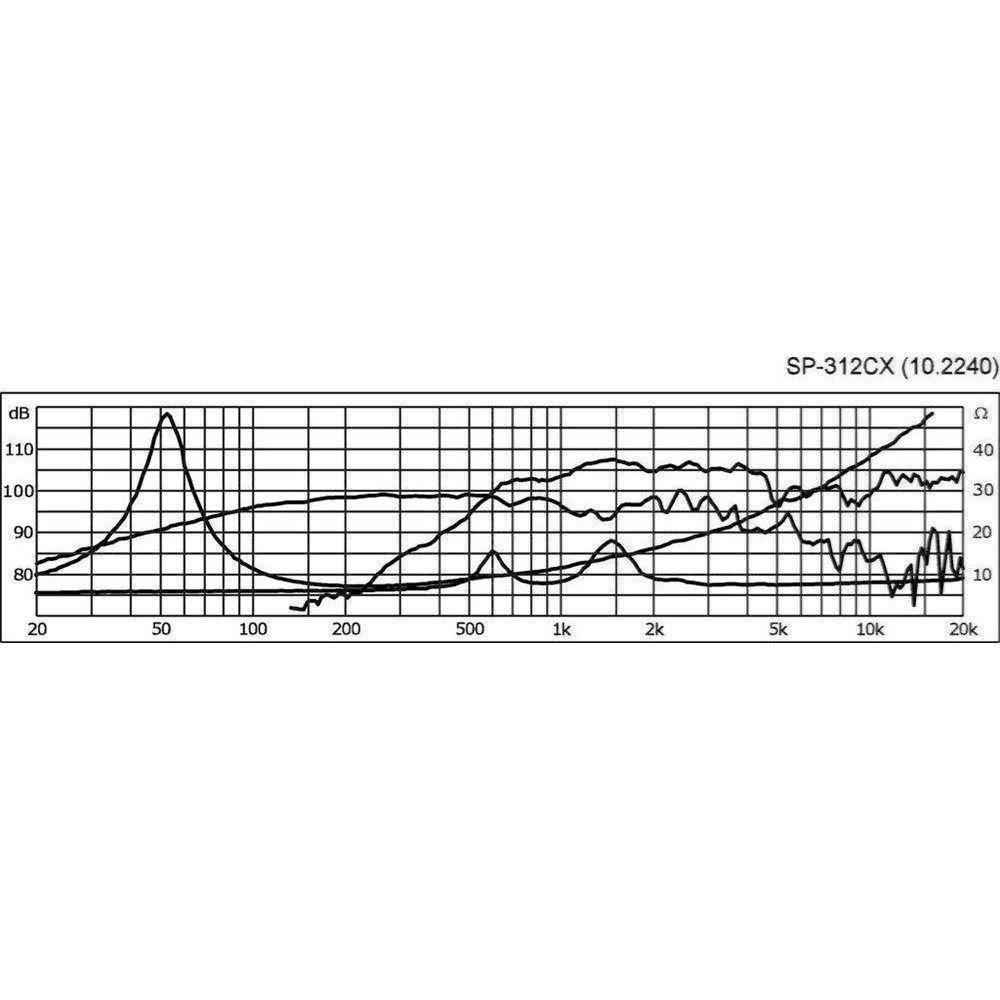

| Frequency range | f3-3,000 Hz (bass)
1,000-22,000 Hz (tweeter) |
| Resonant frequency (fs) | 55 Hz (bass), 700 Hz (tweeter) |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating | 250 W (bass) / 50 W (tweeter) |
| Peak music power output | 500 W (bass) / 100 W (tweeter) |
| Sensitivity | 97 dB (bass) / 106 dB (tweeter) |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 0.16 mm/N |
| Moving mass (Mms) | 56 g |
| Mech. Q factor (Qms) | 3.74 |
| Electr. Q factor (Qes) | 0.36 |
| Total Q factor (Qts) | 0.33 |
| Equivalent volume (Vas) | 64 l |
| DC resistance (Re) | 5.6 Ω |
| Force factor (BxL) | 16.9 Tm |
| Voice coil induct. (Le) | 1.1 mH |
| Voice coil diameter | Ø 75 mm (bass) / Ø 44 mm (tweeter) |
| Voice coil former | polyamide (TIL) |
| Linear excursion (XMAX) | ±3.0 mm |
| Eff. cone area (Sd) | 540 cm2 |
| Magnet weight | 1.8 kg |
| Magnet diameter | Ø 169 mm/Ø 110 mm |
| Mounting cutout | Ø 280 mm |
| Mounting depth | 195.5 mm |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |

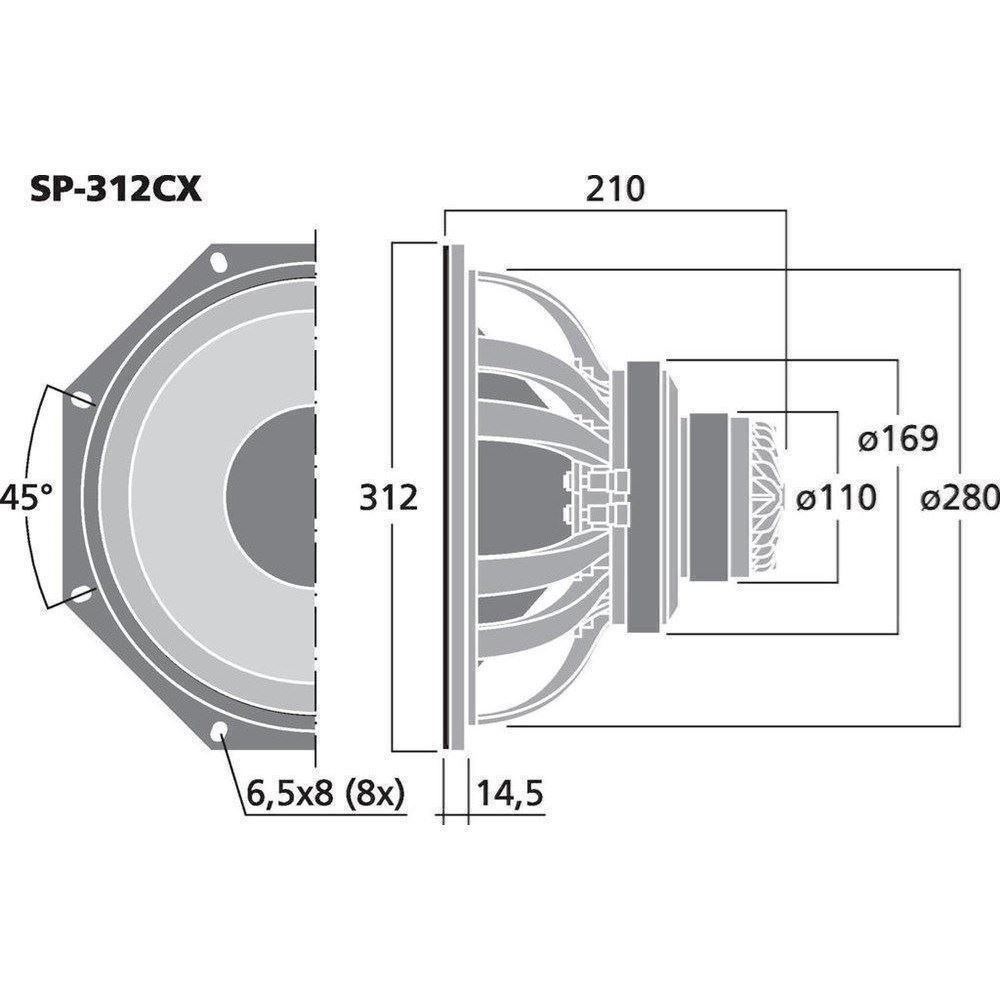

| Dimensions | 312 x 312 x 210 mm |
| Outside diameter | - |
| Width | 312 mm |
| Height | 312 mm |
| Depth | 210 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 8.1 kg |
| Packing unit | 1 |
| Type of speaker | 12" |
