| Peak output power | 4 x 170 W |
| Power rating | 4 x 120 W |
| Power rating at 2 Ω | - |
| Power rating at 4 Ω | - |
| Power rating at 8 Ω | - |
| Power rating at 16 Ω | - |
| Power rating at 100 V | - |
| Power rating with 4 Ω bridged operation | - |
| Power rating with 8 Ω bridged operation | - |
| Output impedance | - |
| Channels | 8 |
| Zones | 4 |
| Inputs | 2.5 mV/20 kΩ (mic), 2 V/20 kΩ (line) |
| Attenuation factor | - |
| Frequency range | 20-20,000 Hz |
| Crossover network | - |
| Crossover frequency | - |
| Integrated limiter | - |
| Equalizer bass | ±12 dB/80 Hz (channels 1-4) ±15 dB/80 Hz (zones 1-4) |
| Equalizer midrange | ±12 dB/2.5 kHz (channels 1-4) |
| Equalizer treble | ±12 dB/12.5 kHz (channels 1-4) ±15 dB/12 kHz (zones 1-4) |
| S/N ratio | > 70 dB |
| Crosstalk attenuation | - |
| THD | < 0.1% |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 860 VA |
| Power consumption, standby | - |
| Standby current | - |
| Operating voltage (possible alternative) | - |
| Power supply (possible alternative) | - |
| Admiss. ambient temp. | 0-40 °C |
| Width | 420 mm |
| Height | 88 mm |
| Depth | 320 mm |
| Rack spaces, RS | 2 |
| Weight | 7.5 kg |

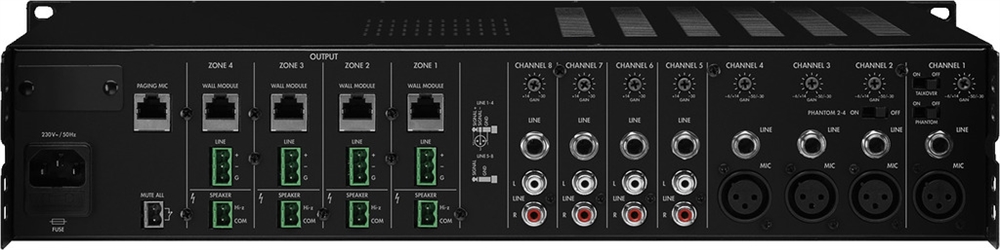

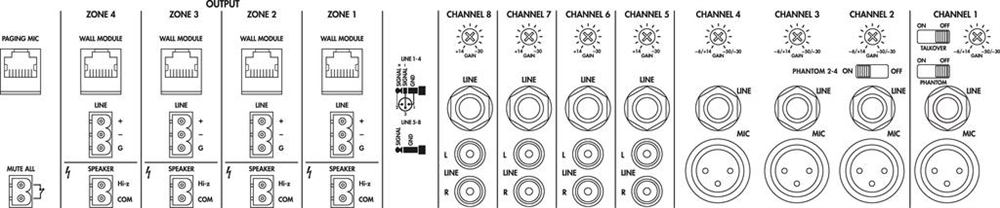

| Connections | 4 x XLR, bal. (mic 1-4), 4 x 6.3 mm jack (line 1-4), 4 x 6.3 mm jack (line 5-8), 4 x RCA L/R (line 5-8), 1 x RJ45 (push-to-talk microphone), 4 x RJ45 (remote in), screw terminal (speakers) |
