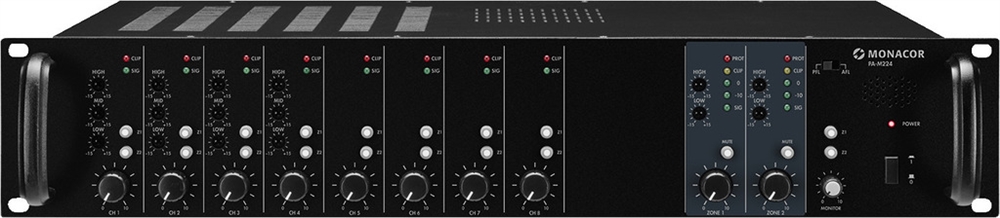

100V matrixforstærker 2x240W - PA-M224

100V matrixforstærker 2x240W - PA-M224
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for 100V matrixforstærker 2x240W - PA-M224
    Bedømmelse: 3 ud af 5 baseret på 1 stemmer
  •
    8.618,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




2-zone PA matrix mixing amplifier
  • 240 W per zone
  • 2 zones, can be controlled individually with 2-way tone control
  • 4 adjustable mic/line inputs with 3-way equalizer and phantom power, to be activated as required
  • 4 adjustable line inputs
  • Talkover (channel 1)
  • Adjustable monitor function
  • 1 connection for zone paging microphone PA-M4RC
  • 2 connections for wall module PA-M1WP
  • 482 mm (19") rack installation



Peak output power2 x 290 W
Power rating2 x 240 W
Power rating at 2 Ω-
Power rating at 4 Ω-
Power rating at 8 Ω-
Power rating at 16 Ω-
Power rating at 100 V-
Power rating with 4 Ω bridged operation-
Power rating with 8 Ω bridged operation-
Output impedance-
Channels8
Zones2
Inputs2.5 mV/20 kΩ (mic),

2 V/20 kΩ (line)

Attenuation factor-
Frequency range20-20,000 Hz
Crossover network-
Crossover frequency-
Integrated limiter-
Equalizer bass±12 dB/80 Hz (channels 1-4)

±15 dB/80 Hz (zones 1-4)

Equalizer midrange±12 dB/2.5 kHz (channels 1-4)
Equalizer treble±12 dB/12.5 kHz (channels 1-4)

±15 dB/12 kHz (zones 1-4)

S/N ratio> 70 dB
Crosstalk attenuation-
THD< 0.1%
Mains voltage∼ 230 V
Mains frequency50 Hz
Power consumption, operation800 VA
Power consumption, standby-
Standby current-
Operating voltage (possible alternative)-
Power supply (possible alternative)-
Admiss. ambient temp.0-40 °C
Width420 mm
Height88 mm
Depth320 mm
Rack spaces, RS2
Weight7 kg

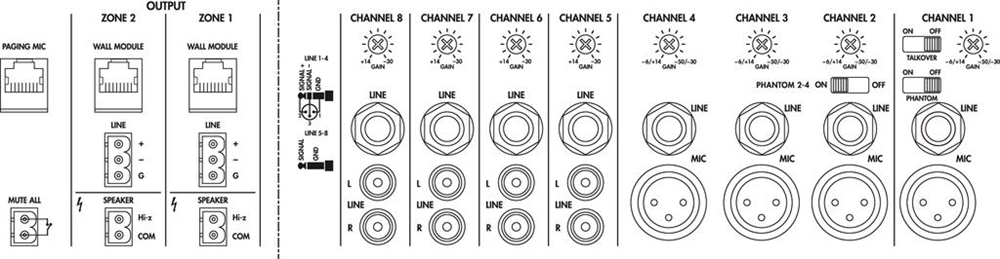

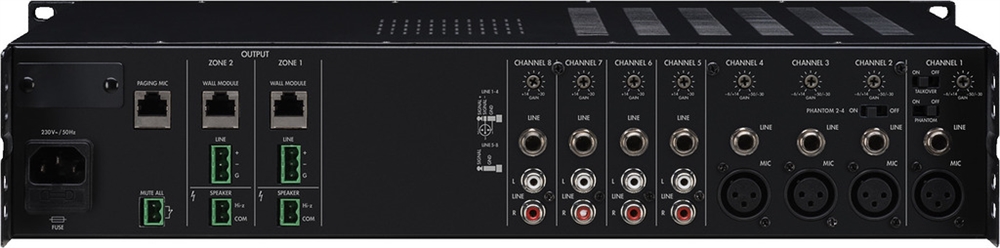

Connections4 x XLR, bal. (mic 1-4),

4 x 6.3 mm jack (line 1-4),

4 x 6.3 mm jack (line 5-8),

4 x RCA L/R (line 5-8)

1 x RJ45 (push-to-talk microphone),

2 x RJ45 (remote in),

screw terminal (speakers)

Varenr.: 179280
