| Active/passive | passive |
| Transmission method | 100 V |
| Impedance | 8 Ω |
| Frequency range | 80-20,000 Hz |
| Power rating | - |
| Max. power | - |
| THD | - |
| S/N ratio | - |
| Input signal | - |
| System | 2-way |
| Full range speaker | - |
| Bass speaker | 13 cm (5") bass-midrange speaker |
| Midrange speaker | - |
| Tweeter | 12 mm (½") dome tweeter |
| Number of speakers | 2 |
| Speaker size | 5" |
| Power rating | 16/8/4/2 W (100 V)
40 W (8 Ω) |
| Peak music power output | 80 W |
| Sensitivity | 89 dB/W/m |
| Max. rated SPL | 104 dB |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Features | - |
| Housing material | plastic |
| Colour | black |
| Mounting facility | mounting bracket |
| Protected against ball rebound | - |
| Protective class | IP65 |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | - |

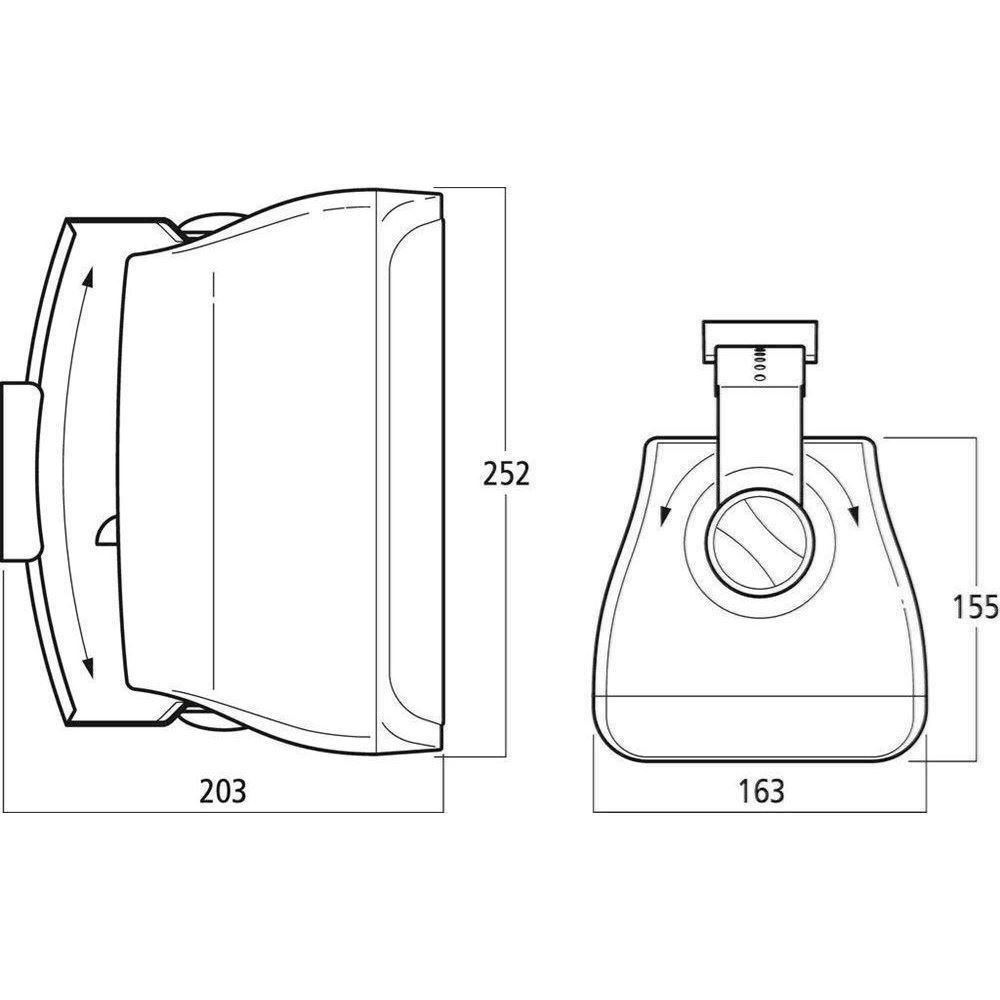

| Width | 163 mm |
| Height | 252 mm |
| Depth | 203 mm |
| Weight | 2.6 kg |
| Inputs | spring-load. speaker term. |
| Outputs | - |
| Replacement voice coil | - |
| Other features | for pivoting and tilting |
| Accessories | |
