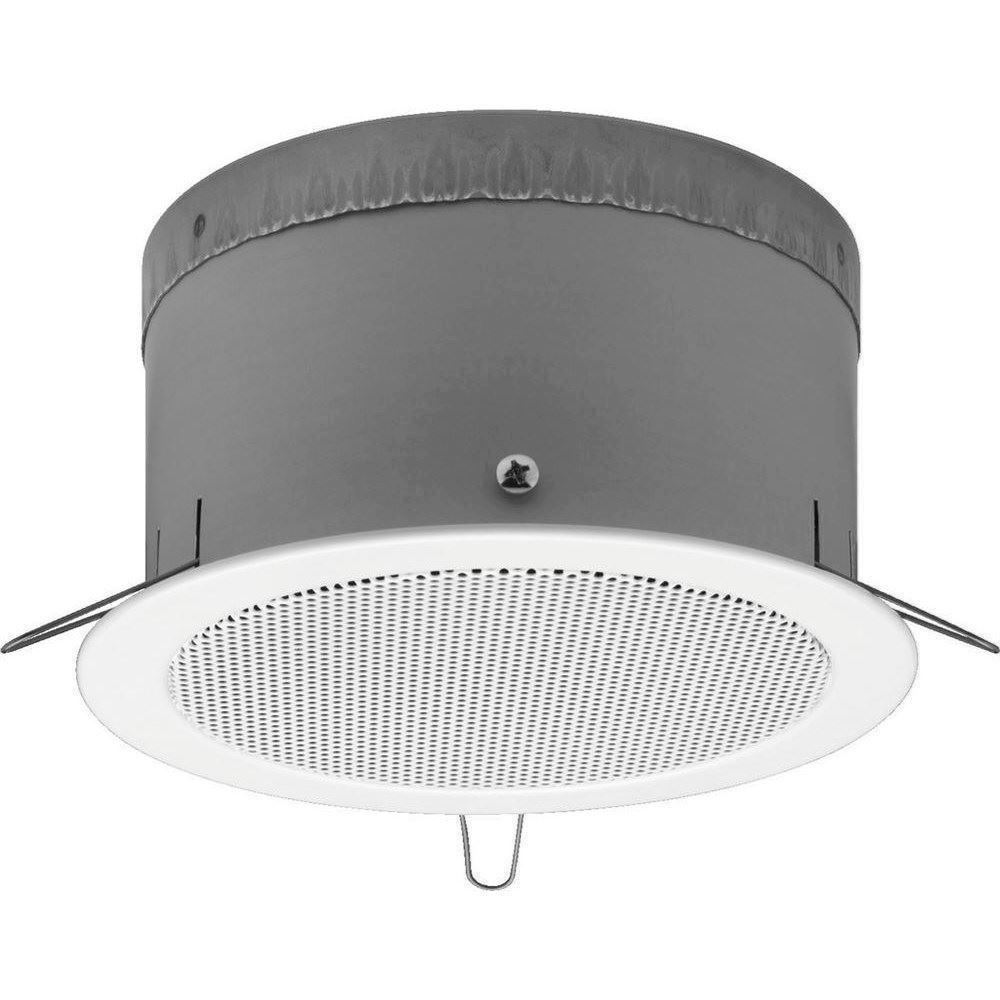

100V højttaler EN54 - EDL-165AB/WS

100V højttaler EN54 - EDL-165AB/WS
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for 100V højttaler EN54 - EDL-165AB/WS
    Produktet er endnu ikke bedømt
  •
    539,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




PA A/B ceiling speaker, with EN 54-24 certification for systems with A/B speaker distribution according to EN 60849.
  • 100 V line technique
  • 13 cm full range speaker with dual voice coil
  • 2 separate transformers with power taps with 6/3/1.5 W each
  • Connection via 2 ceramic screw terminals inside the cabinet
  • Quick mounting with stainless steel spring clips
  • Metal cabinet with fire protection cover and protective metal front grille
  • Ball-proof according to DIN 18032, part 3


Impedance (Z)-
Transmission method100 V
Frequency range80-19,000 Hz
Resonant frequency (fs)-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating2 x 6/3/1.5 W
Peak music power output-
Sensitivity93 dB/W/m
Max. rated SPL101 dB
Max. voltage-
Radiation angle, horizontal180°
Radiation angle, vertical180°
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameter-
Mounting cutoutØ 140-150 mm
Mounting depth90 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 170 mm x 95 mm
Outside diameterØ 170 mm
WidthØ 170 mm
Height-
Depth95 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight1.4 kg
Packing unit1
Type of speaker130

Varenr.: 163650
