100V højttaler - EDL-42HQ

100V højttaler - EDL-42HQ
  • Ikke på lager
  • Forventes uge 22
  • Bedømmelse for 100V højttaler - EDL-42HQ
    Produktet er endnu ikke bedømt
  •
    539,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

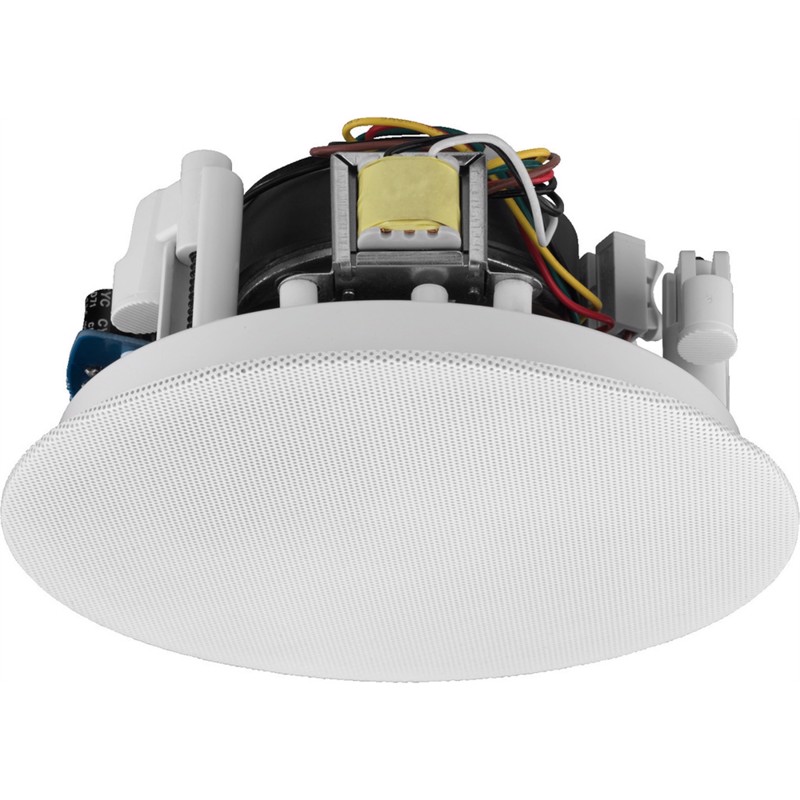

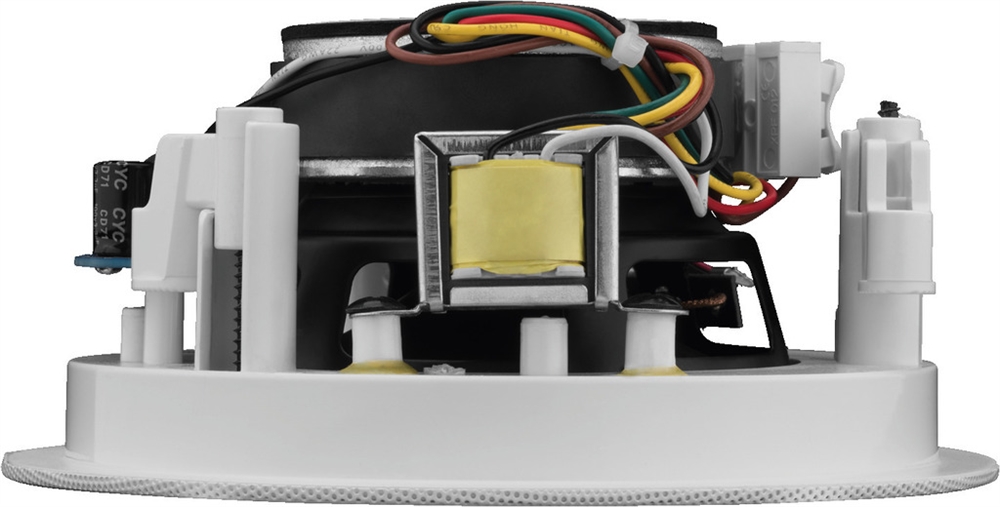

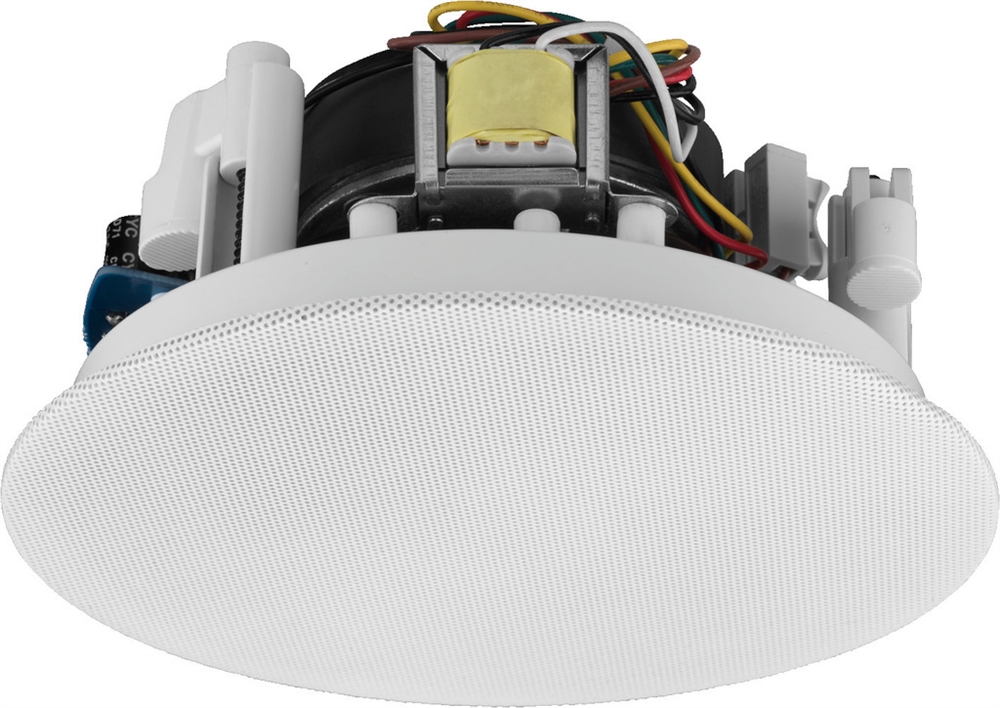

Hi-fi wall and ceiling speaker, 15 W
  • 100 V line technique or 8 Ω operation
  • Power taps: 100 V (8/4/2/1 W)

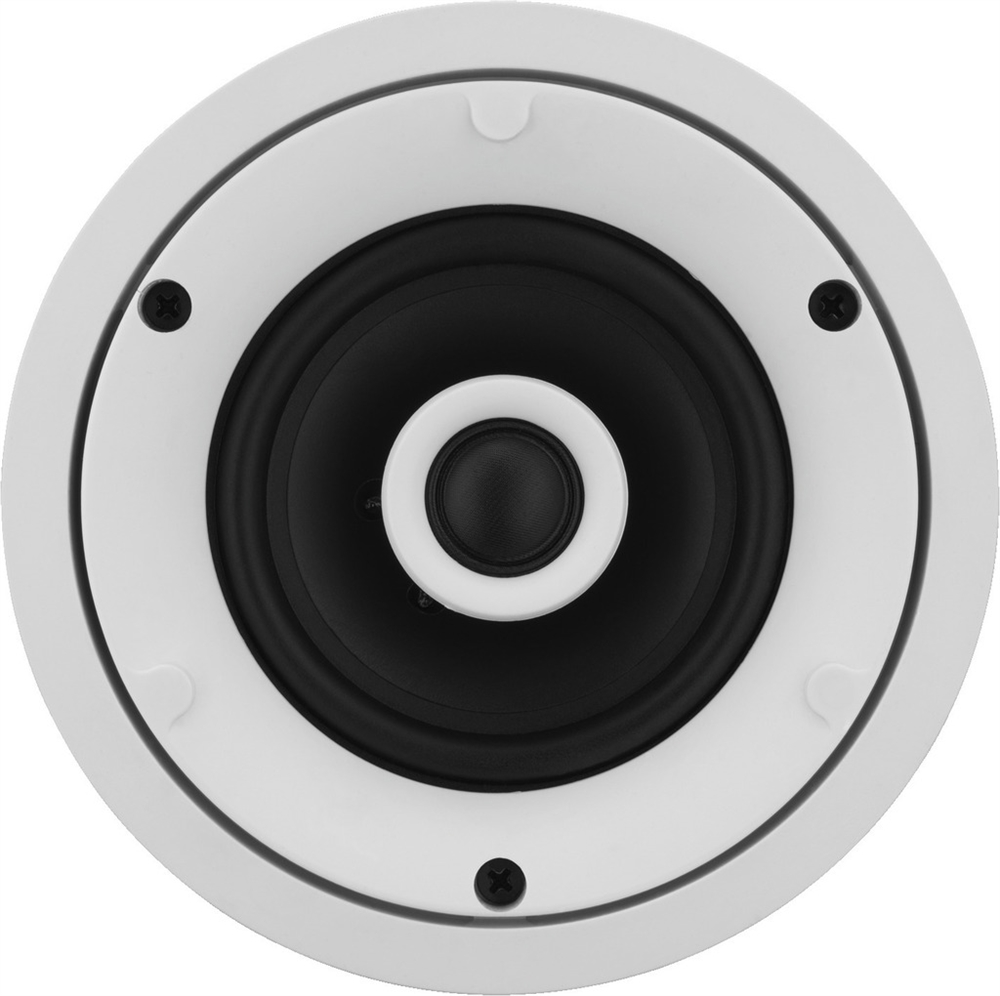

  • 2-way version with coaxial dome tweeter
  • 10 cm (4") bass speaker with waveguide and 20 mm (3/4") silk dome
  • Pivoting tweeter via ball joint
  • Excellent sound characteristics
  • Supplied with 2 stylish protective metal grilles for an individual look
  • Protective grille to be magnetically attached
  • For a wall thickness/ceiling thickness from 8 to 30 mm



Impedance (Z)8 Ω
Transmission method100 V or low-impedance
Frequency range70-20,000 Hz
Resonant frequency (fs)70 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)15 W (8 Ω)

8/4/2/1 W (100 V)

Peak music power output (MAX)30 W
Sensitivity85 dB/W/m
Max. rated SPL96 dB
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameter-

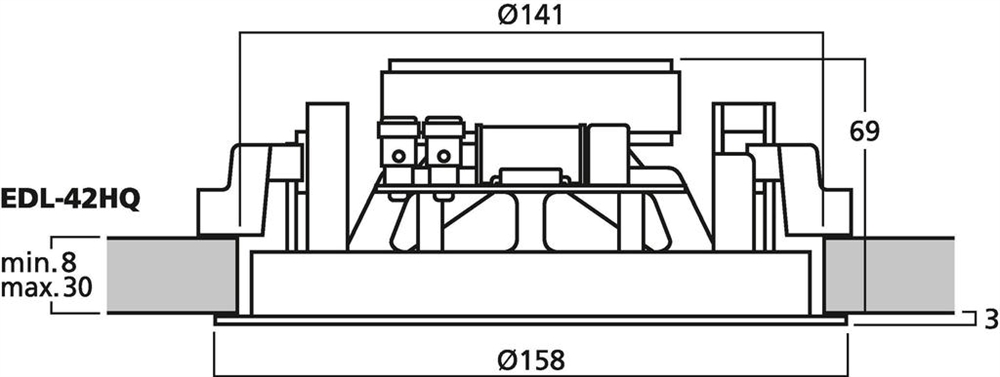

Mounting cutoutØ 141 mm
Mounting depth69 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 158 mm x 72 mm
Outside diameterØ 158 mm
WidthØ 158 mm
Height-
Depth72 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.930 kg
Packing unit1
Type of speaker100
Varenr.: 163890
