| Channels | 5 |
| Zones | - |
| Power rating | 480 W |
| Power rating at 2 Ω | - |
| Power rating at 4 Ω | - |
| Power rating at 8 Ω | - |
| Power rating at 100 V | - |
| Power rating with 4 Ω bridged operation | - |
| Power rating with 8 Ω bridged operation | - |
| Peak music power output (PMAX) | 680 W |
| Output impedance | - |
| Inputs | 2.5-100 mV (mic),
350 mV (line) |
| Attenuation factor | - |
| Frequency range | 50-16,000 Hz, ± 3 dB |
| Crossover network | - |
| Crossover frequency | - |
| Integrated limiter | - |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer midrange | - |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 75 dB |
| Crosstalk attenuation | - |
| THD | < 0.1% |
| Power supply | ∼ 230 V/50 Hz/1,090 VA,
DC current 24 V/27 A |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 1,090 VA |
| Power consumption, standby | - |
| Standby current | - |
| Operating voltage (possible alternative) | DC current 24 V |
| Power supply (possible alternative) | DC current 27 A |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 482 x 137 x 395 mm, 3 RS |
| Width | 482 mm |
| Height | 137 mm |
| Depth | 395 mm |
| Rack spaces, RS | 3 |
| Weight | 19 kg |

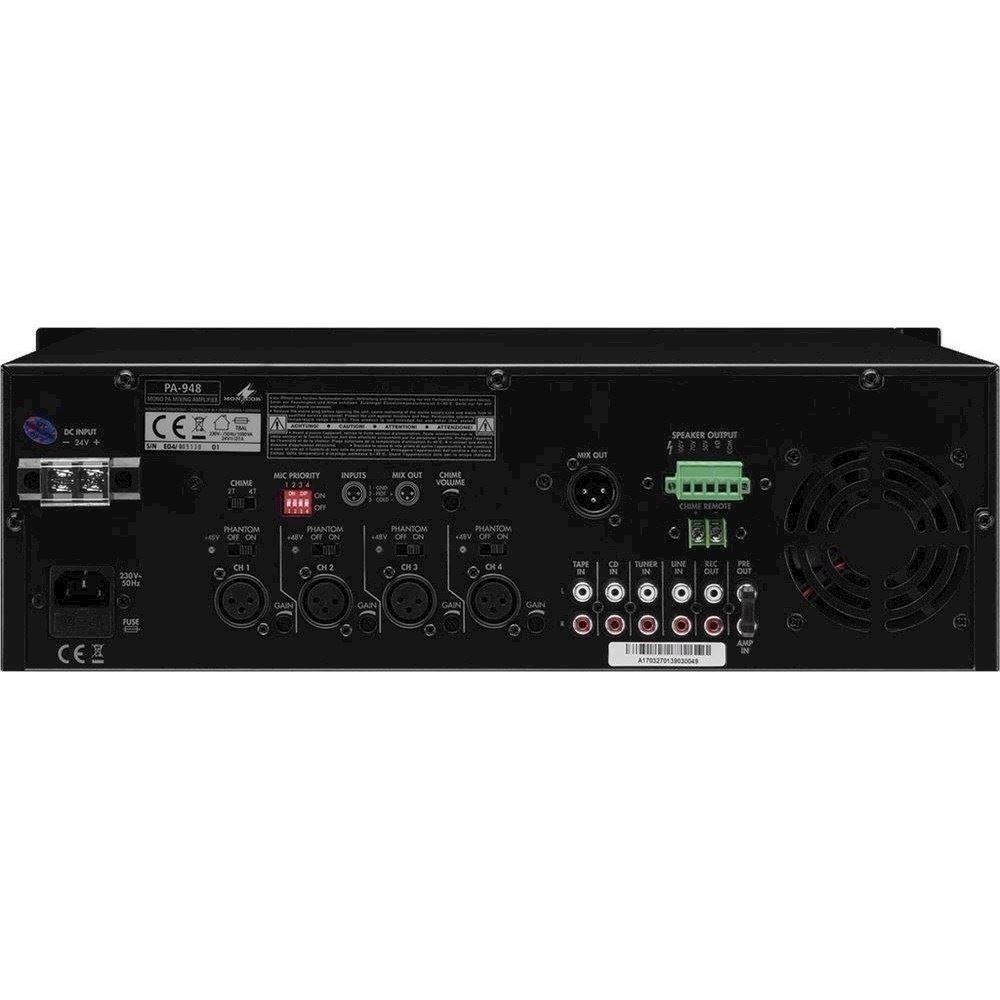

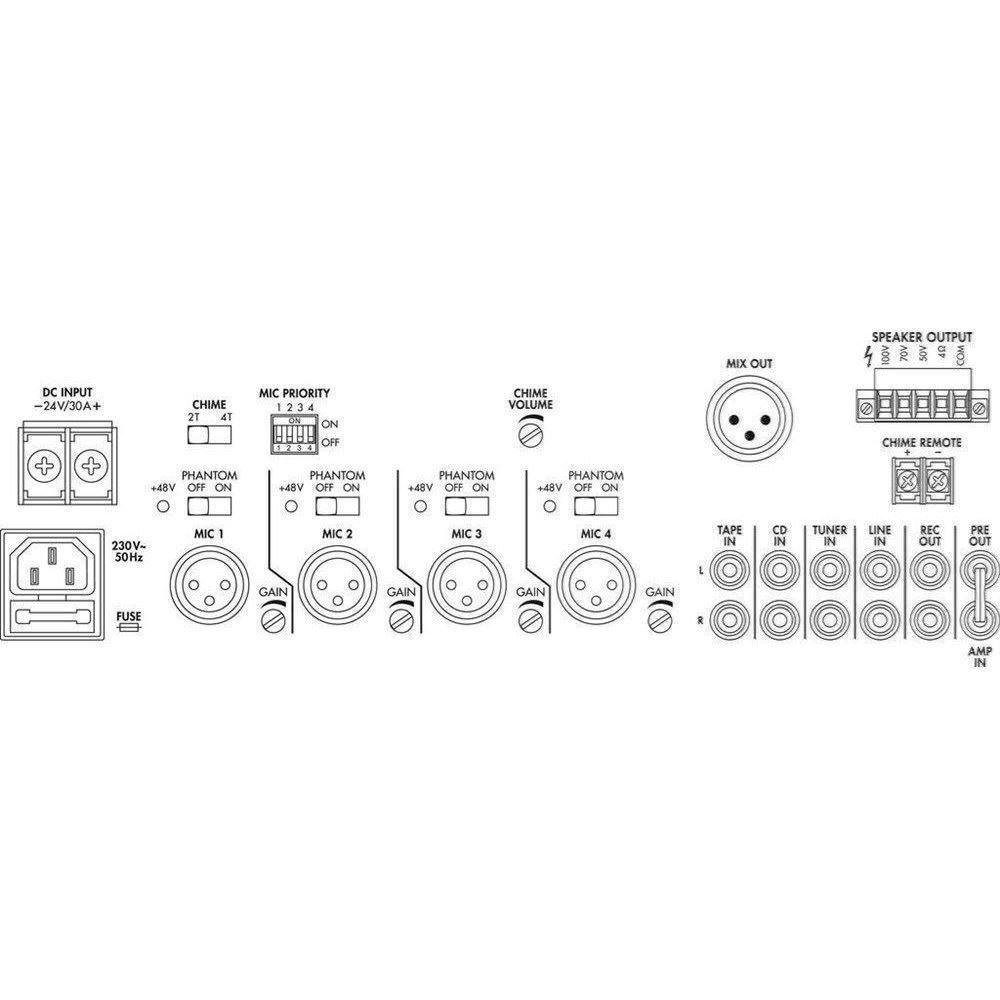

| Connections | 4 x XLR (mic),
4 x RCA L/R (line),
1 x XLR (line out),
1 x RCA L/R (line out),
screw terminals (speakers) |
